1756-IV32

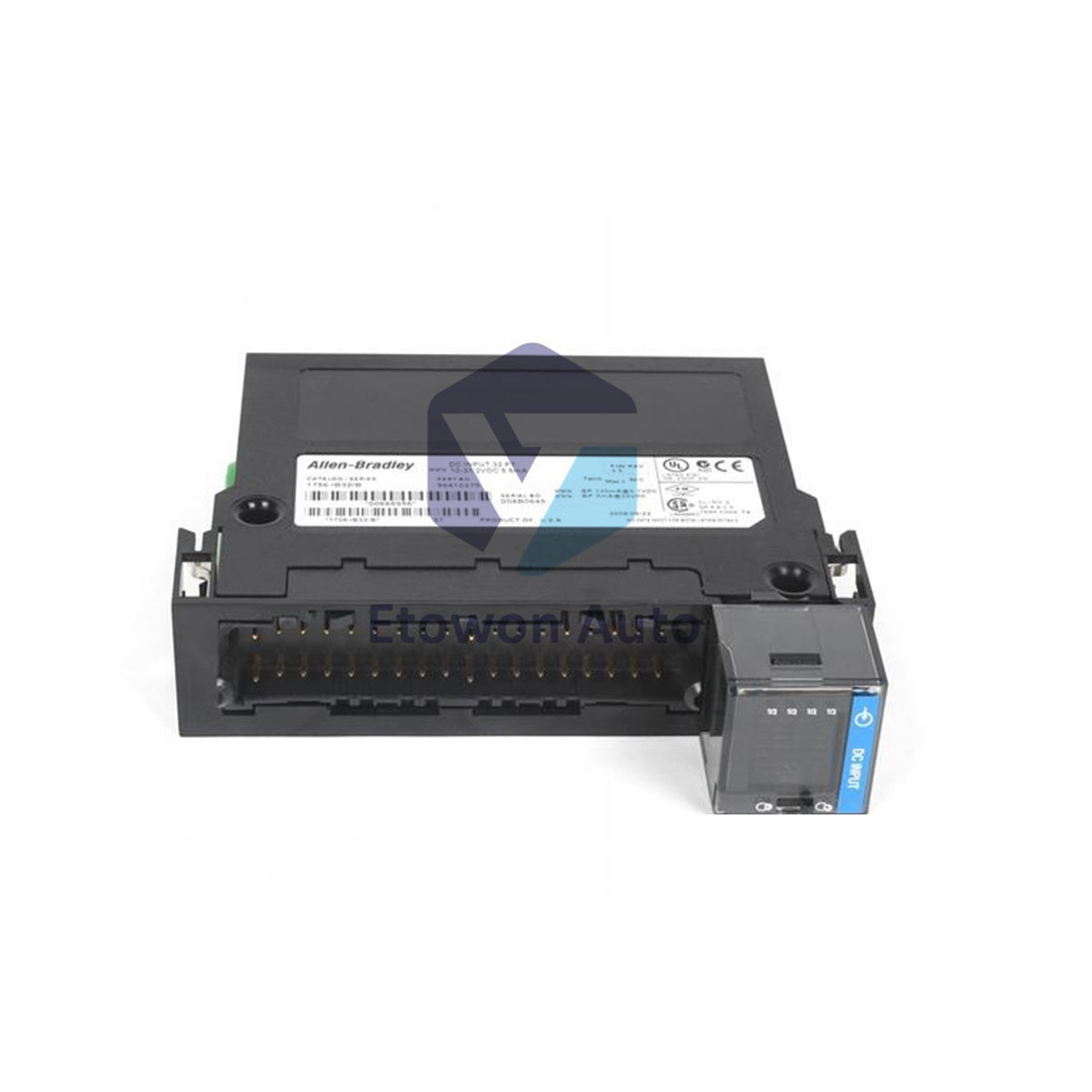

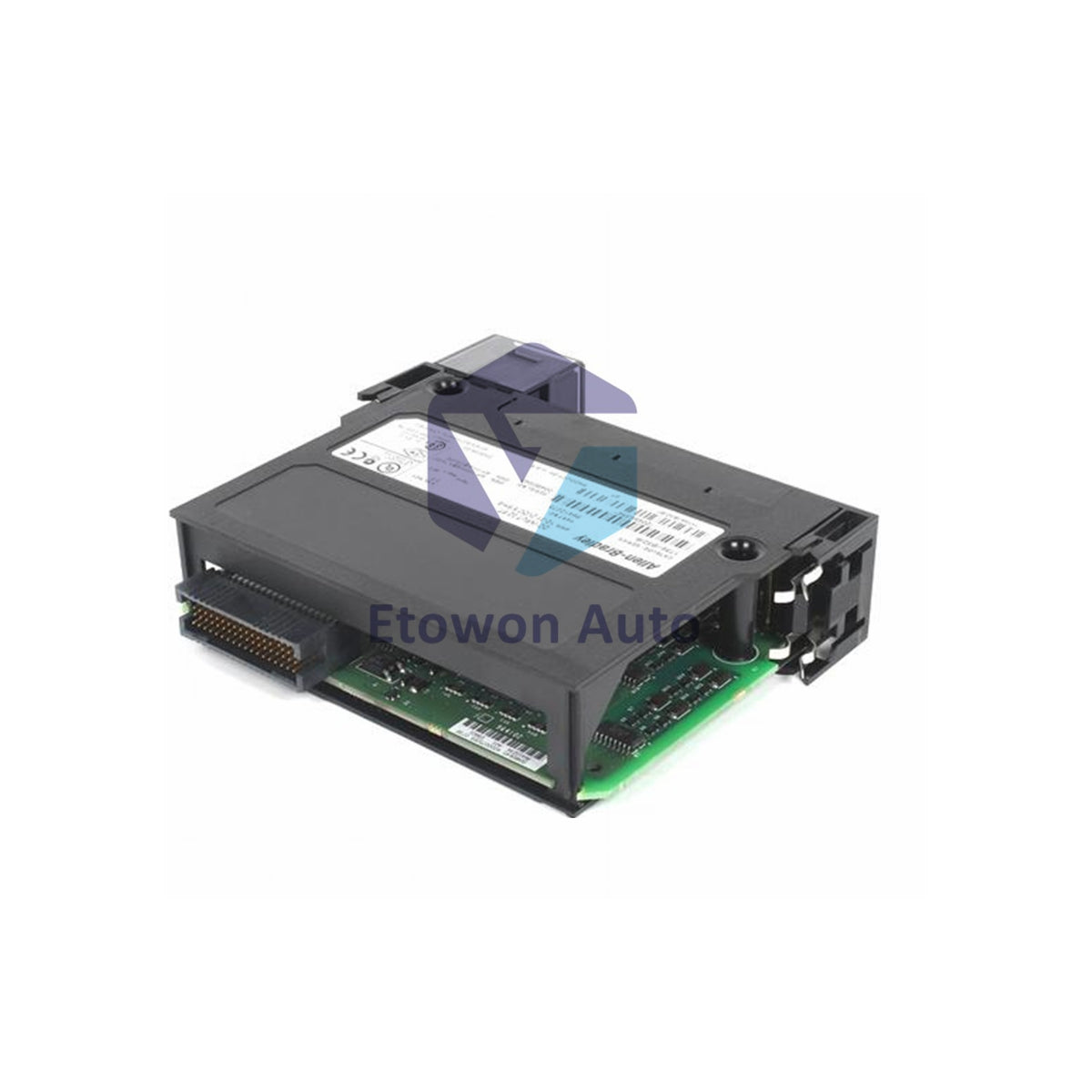

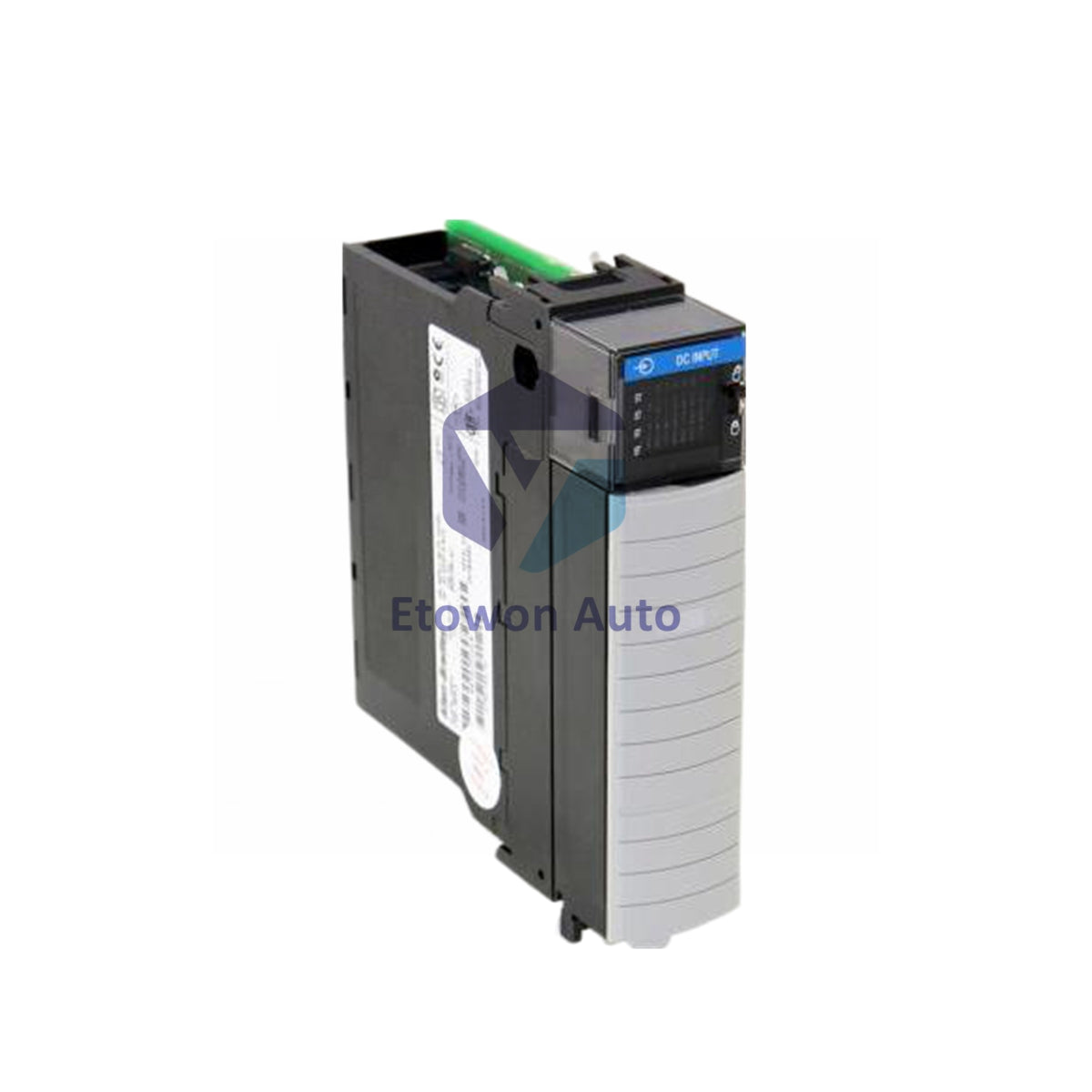

Allen-Bradley 1756-IV32 ControlLogix DC Input 32 Channels

Skladda bar (12 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1756-IV32

  • Product Type: Digital DC Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 450g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

1756-IV32 Allen-Bradley ControlLogix Sourcing DC Input Module – 32 Points

The Allen-Bradley 1756-IV32 is a 32-point sourcing DC input module for the ControlLogix platform. Compact 1-slot design with two groups of 16 inputs each.

Product Information

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number 1756-IV32
Product Type Sourcing DC Input Module
Series ControlLogix
Number of Inputs 32
Input Type Sourcing DC
Input Groups 2 (16 points each)
Nominal Input Voltage 24V DC
Slots Required 1
Weight 0.45 kg (1.0 lb)
UPC 10612598264350

Electrical Specifications

Operating Voltage Range 10 to 30V DC
Input Voltage Range 12 to 24V DC
Min On-State Current 2 mA at 10V DC
Max On-State Current 3.5 mA at 30V DC
Off-State Leakage Current 1.5 mA max
Max Input Impedance 8.6 kΩ at 30V DC
Continuous Voltage 250V
Max Inrush Current 250 mA (decays to <37% in 22ms)

Power and Delay Specifications

Backplane Current (5.1V) 120 mA
Backplane Current (24V) 2 mA
Total Backplane Power 0.66 W
Power Dissipation (Max) 4.1 W at 60°C
Thermal Dissipation 14 BTU/hour at 60°C
On to Off Delay 540µs nominal + filter time
Off to On Delay 350µs nominal + filter time
Configurable Filter Times 0, 1, 2, 9, 18 ms

Compatibility

Chassis ControlLogix 1756 Chassis
Removable Terminal Blocks 1756-TBCH, 1756-TBS6H

Features

  • 32 sourcing DC inputs in compact 1-slot design
  • 10 to 30V DC operating voltage range
  • Configurable input filtering from 0 to 18 ms
  • Two isolated groups of 16 points each
  • Compatible with 1756-TBCH and 1756-TBS6H terminal blocks
  • Low backplane power consumption
  • Lightweight design at 0.45 kg (1.0 lb)

Applications

  • Factory automation conveyor systems
  • Packaging machine sensor inputs
  • Material handling equipment
  • Process control monitoring
  • Automotive plant I/O expansion

FAQs

Q1: How many inputs does the 1756-IV32 provide?
A1: 32 sourcing DC inputs arranged in two groups of 16 points each.

Q2: What terminal blocks are compatible with this module?
A2: 1756-TBCH and 1756-TBS6H removable terminal blocks.

Q3: What is the operating voltage range and weight?
A3: 10 to 30V DC with nominal input voltage of 24V DC. Weight is 0.45 kg (1.0 lb).
