1756-IF6I

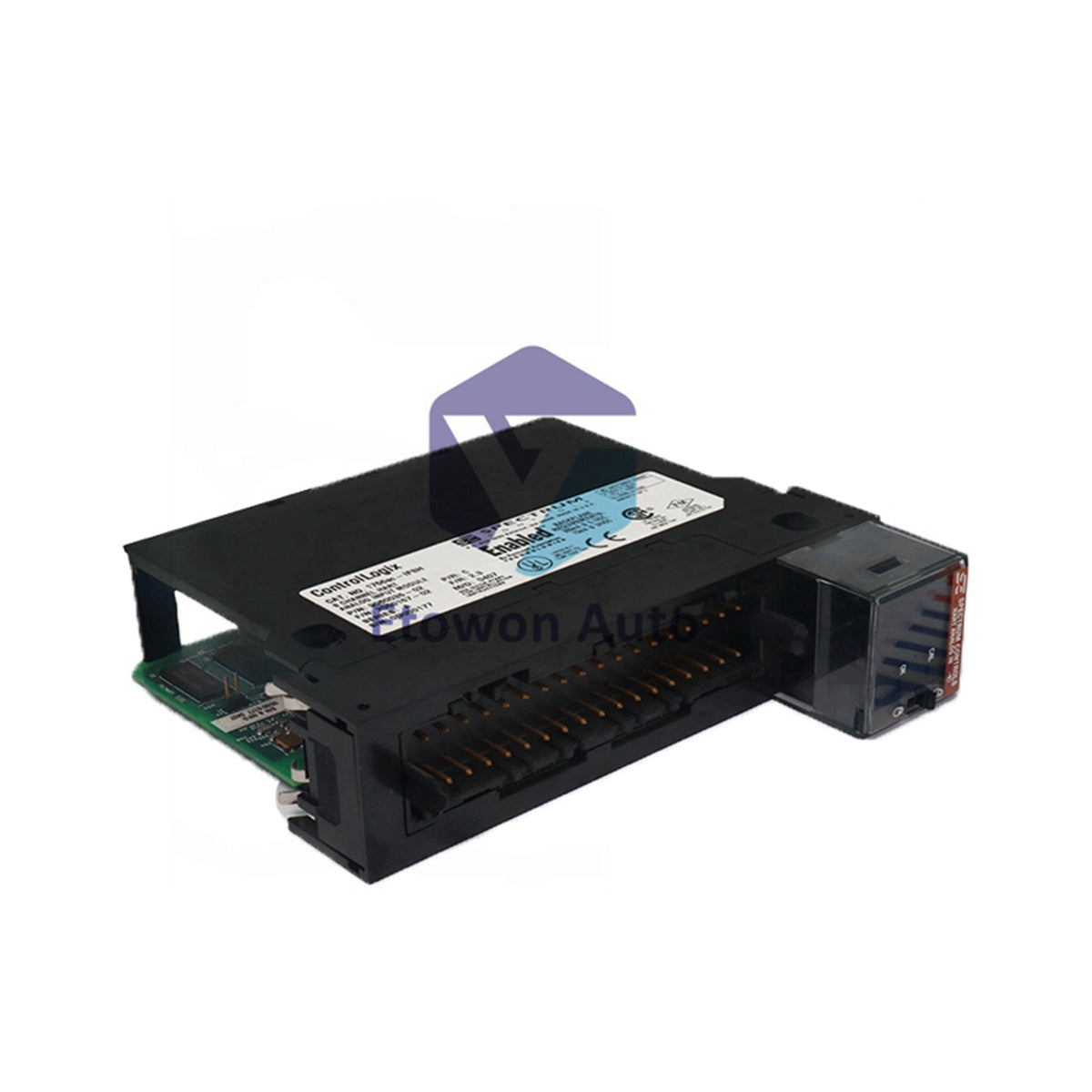

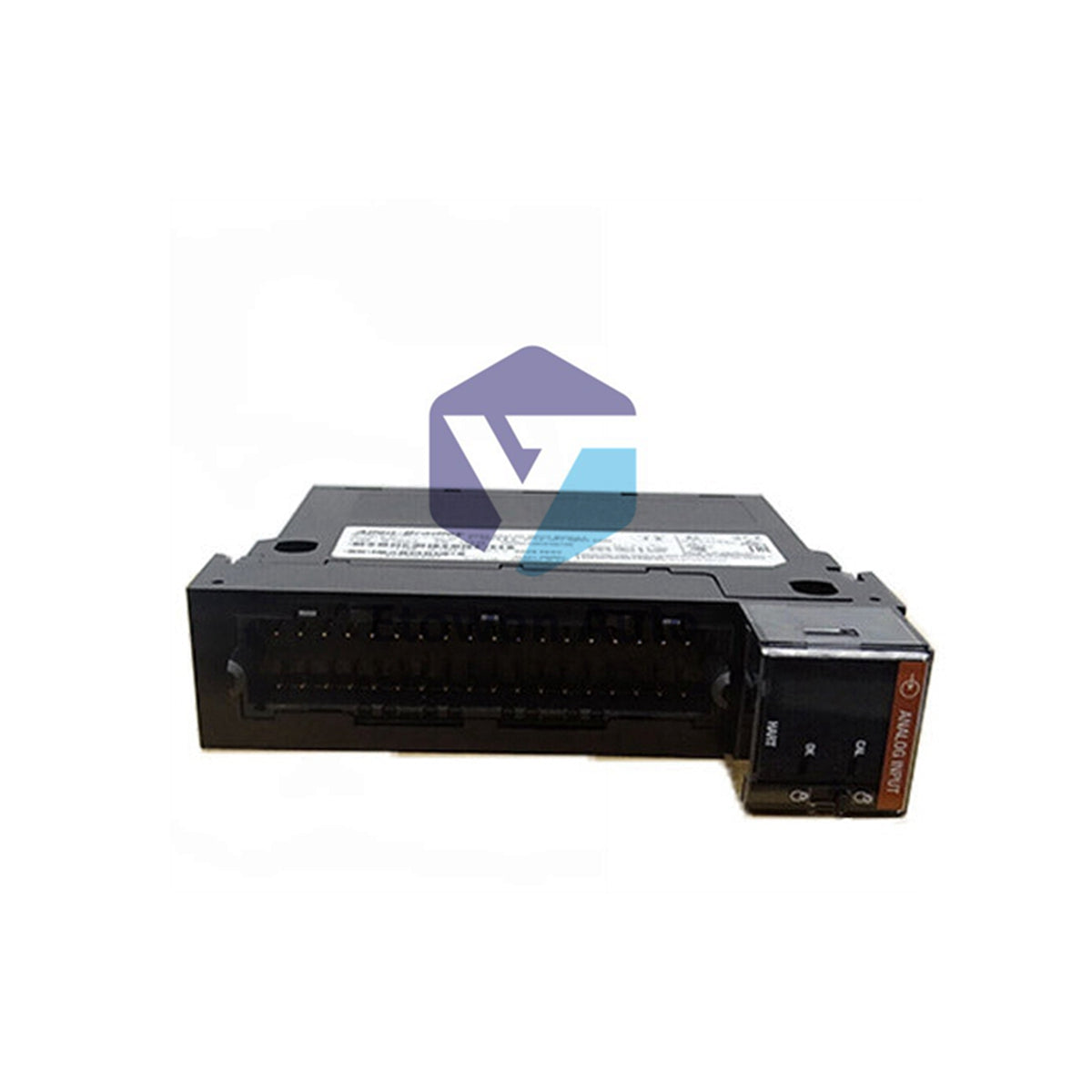

Allen-Bradley 1756-IF6I ControlLogix Analog Input Module 6-Point

Skladda bar (11 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1756-IF6I

  • Product Type: Analog Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 680g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Allen-Bradley 1756-IF6I ControlLogix Analog Input Module

Allen-Bradley 1756-IF6I is an isolated analog input module for the ControlLogix system. Features 6 individually isolated channels supporting ±10.5V, 0-10.5V, 0-5.25V, and 0-21 mA input signals. 16-bit resolution with Sigma-Delta conversion. Weight: 0.68 kg (1.5 lbs).

Technical Specifications

Parameter Specification
Manufacturer Allen-Bradley / Rockwell Automation
Model 1756-IF6I
Product Type Isolated Analog Input Module
Series ControlLogix
Number of Inputs 6 points, isolated
Input Signal Range ±10.5V, 0-10.5V, 0-5.25V, 0-21mA
Input Resolution 16 bits
Conversion Method Sigma-Delta
Data Format Integer mode, IEEE 32-bit floating point
Backplane Current (5V) 250 mA
Backplane Current (24V) 100 mA
Power Dissipation (Voltage) 3.7 W
Power Dissipation (Current) 4.3 W
Removable Terminal Blocks 1756-TBNH, 1756-TBSH
Weight 0.68 kg (1.5 lbs)

Input Signal Resolution

Range Resolution per Bit
±10.5V 343 µV/bit
0 to 10.5V 171 µV/bit
0 to 5.25V 86 µV/bit
0 to 21mA 0.34 µA/bit

Key Features

  • 6 individually isolated analog input channels
  • Sigma-Delta conversion method for high accuracy
  • Supports scaling to engineering units for HMI and SCADA integration
  • Wire off detection for each channel
  • Rate alarm monitoring for floating-point mode applications
  • Process alarms for high/low limit exceedance
  • Digital filter for noise transient smoothing
  • Real-time sampling with adjustable RTS periods

Installation Guidelines

Terminal Blocks: Requires either 1756-TBNH or 1756-TBSH 20-pin Removable Terminal Block for wiring input signals.

RPI Configuration: Set requested packet interval (RPI) and real-time sampling (RTS) periods during module configuration.

Power Requirements: Draws 250 mA at 5V and 100 mA at 24V from backplane. Max power dissipation 4.3 W.

Notch Filter Selection: Choose the notch filter that closest matches anticipated noise frequency to optimize effective resolution.

FAQs

Q1. What terminal blocks are compatible with the 1756-IF6I?
A1. The module requires either the 1756-TBNH or 1756-TBSH 20-pin Removable Terminal Block for wiring input signals.

Q2. What signal ranges does the module support?
A2. The module supports ±10.5V, 0-10.5V, 0-5.25V, and 0-21 mA ranges with 16-bit resolution.

Q3. What data formats are available?
A3. The module supports two data formats: integer mode (left justified, 2's complement) and IEEE 32-bit floating point.
