1756-BATM

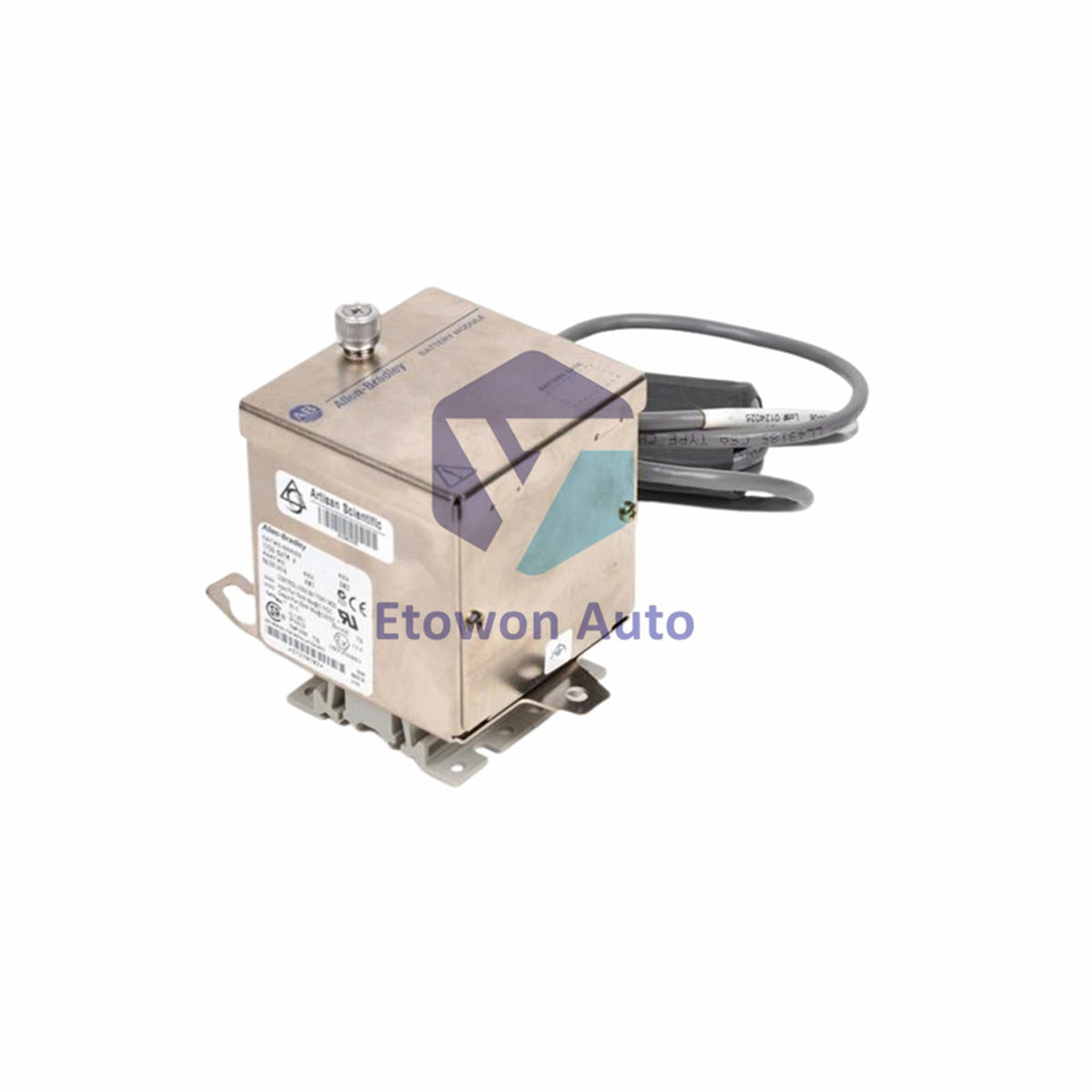

Allen-Bradley 1756-BATM External Lithium Battery Pack

Skladda bar (26 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1756-BATM

  • Product Type: Lithium Battery

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1100g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Allen-Bradley 1756-BATM ControlLogix Battery Assembly Module

The Allen-Bradley 1756-BATM (Rockwell Automation UPC: 10612598284761) is an externally mounted lithium battery assembly designed for the ControlLogix platform. Enclosing a single high-capacity 1756-BATA lithium cell, this module acts as a highly reliable external power backup system to prevent volatile memory loss across broad Series Allen-Bradley 1756-L55Mxx and Allen-Bradley 1756-L6x controller groups.

Key Advantages

  • Stable Memory Protection: Low chemical self-discharge profile outperforms typical Ni-Cad or NiMH setups, delivering a long shelf life of up to 10 years.
  • Flexible Mechanical Layouts: Built within a robust open housing frame configured for direct horizontal panel layouts or secure, space-saving DIN rail clips.
  • Extended Wiring Scope: Ships out fitted with an integrated 3.28-foot (1-meter) Category 3 adapter connection cable to make remote attachment simple.

Technical Specifications

Hardware Compatibility Allen-Bradley ControlLogix 5561, 5562, 5563, 5564 / 1756-L55M14, -L55M16, -L61, -L62, -L63
Cell Power Capacity 3.6 VDC Output Voltage / 1.7 Ah Nominal Cell Capacity / 20mA Peak Discharge Current
Module Power Consumption Input: 15mA at 5.1 VDC / Max Power Dissipation: 4.5 Watts / 10A at 5V, 2.8A at 24V bus draws
Environmental Window Operating: 0°C to 60°C (32°F to 140°F) / Humidity: 5% to 95% non-condensing relative humidity
Shock & Vibration Rating Operational Shock: 30G (Panel Mounted), 15G (DIN Rail) / Vibration: 2.0G at 10-500Hz limits
Physical Framework Open Assembly: 20 x 24 x 8 inches / Total Net Weight: Approx. 1.1 kg (2.4 lbs) including base bracket

Quick Installation

  • Chassis Placement: Fasten the main bracket framework horizontally on the control panel or lock it over the chosen DIN rail structure inside the enclosure.
  • Lead Termination: Plug the 1-meter wire lead connector into the matching battery port on the front of the Allen-Bradley ControlLogix processing card.
  • Storage Parameters: Keep replacement spares inside climate-controlled rooms below 30°C (86°F) to protect the 10-year internal cell shelf life.

Technical FAQs

Q1: What is the primary operational difference between the Allen-Bradley 1756-BATM and the 1756-BATA?
A1: The Allen-Bradley 1756-BATM is the complete external housing assembly kit, which includes the bracket and adapter harness. The Allen-Bradley 1756-BATA is the individual 10-gram replacement lithium cell housed inside the assembly.

Q2: Why are lithium modules chosen over rechargeable chemistries for Allen-Bradley PLC backup applications?
A2: Lithium chemistries exhibit a much lower self-discharge rate compared to Ni-Cad or NiMH alternatives. This provides reliable memory retention even during long plant power shutdowns.

Q3: How does mounting configuration affect the mechanical durability of this Allen-Bradley battery module?
A3: Rigid panel mounting offers higher mechanical protection, certified to withstand up to 30G operational shock, compared to 15G when clipped onto a standard DIN rail.
