1747-L532

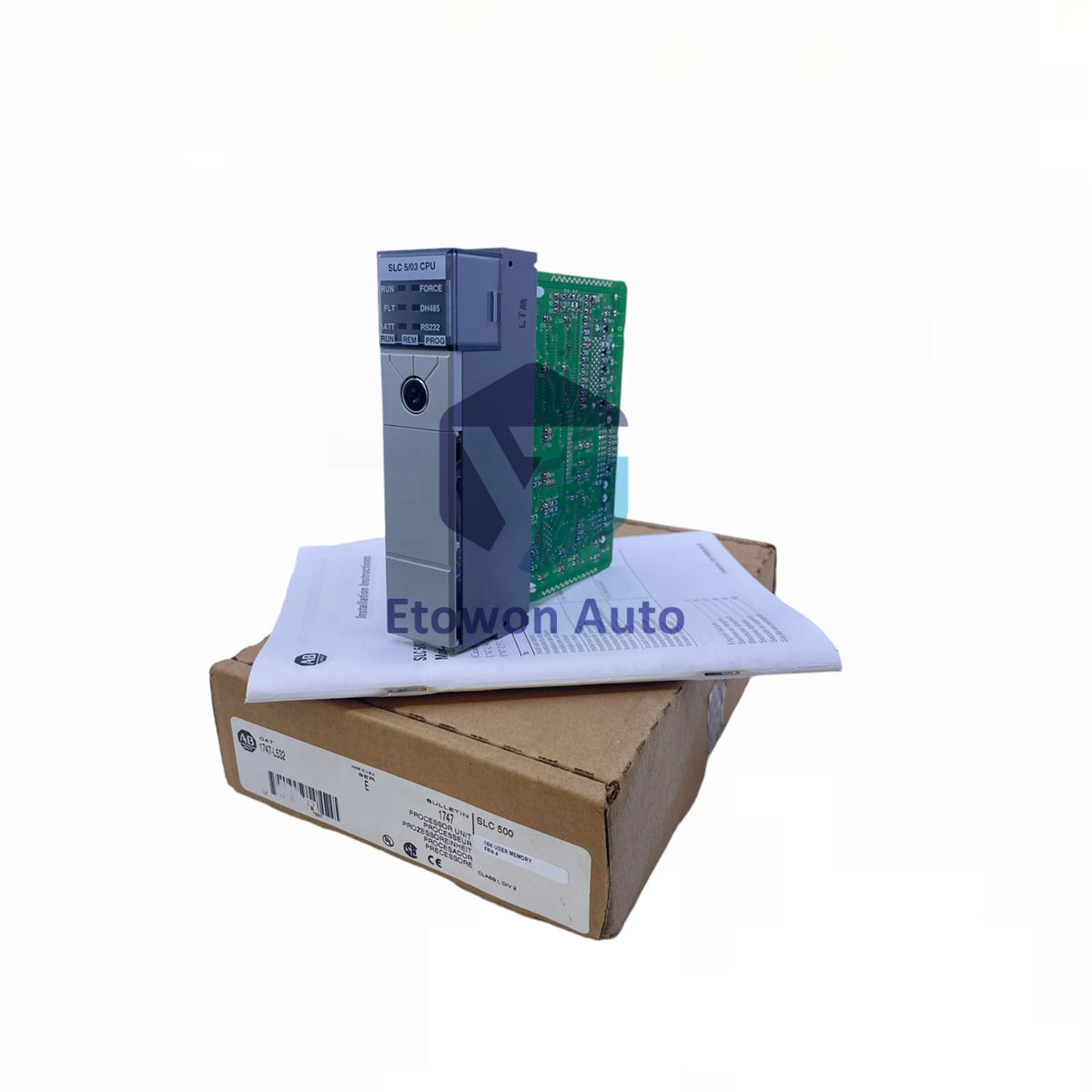

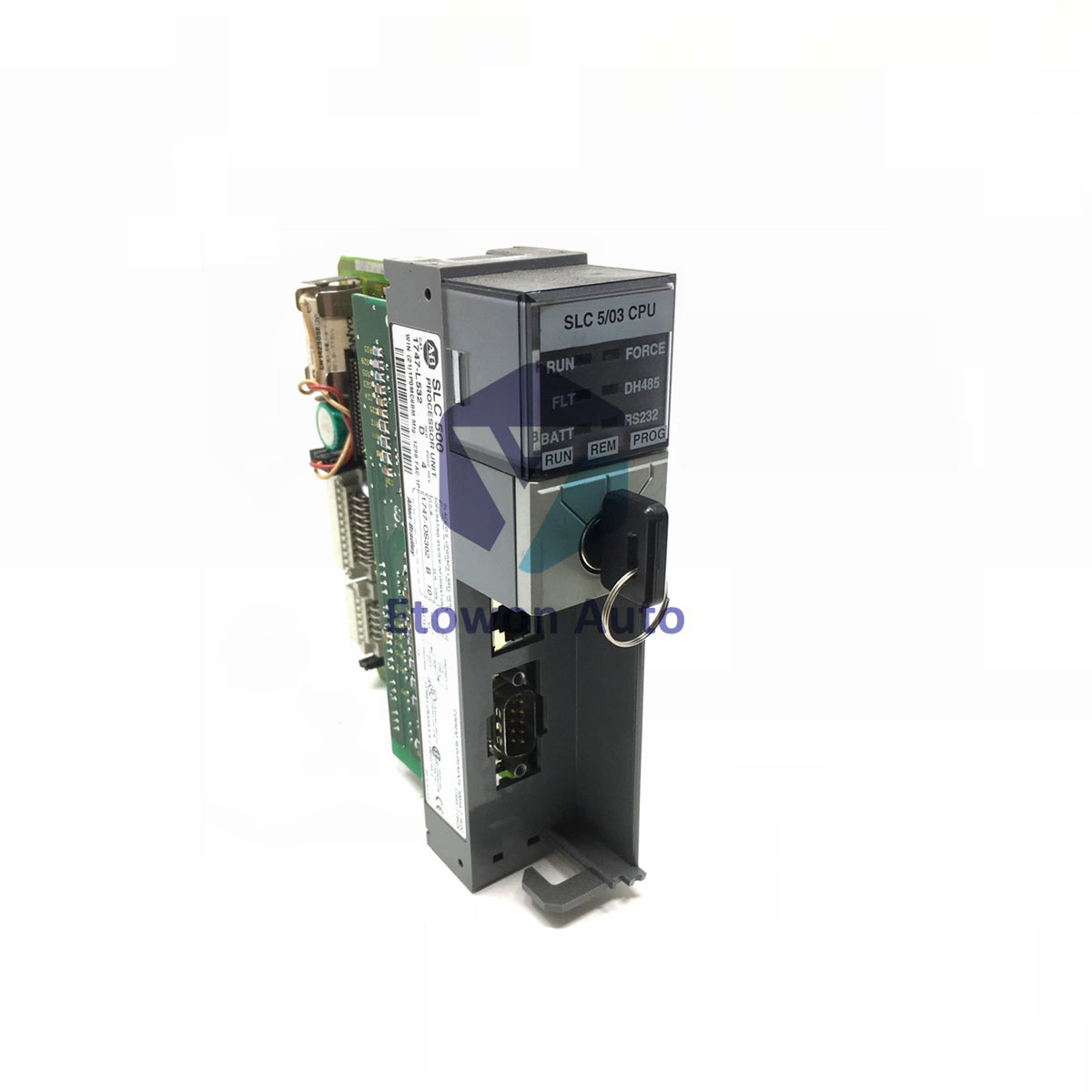

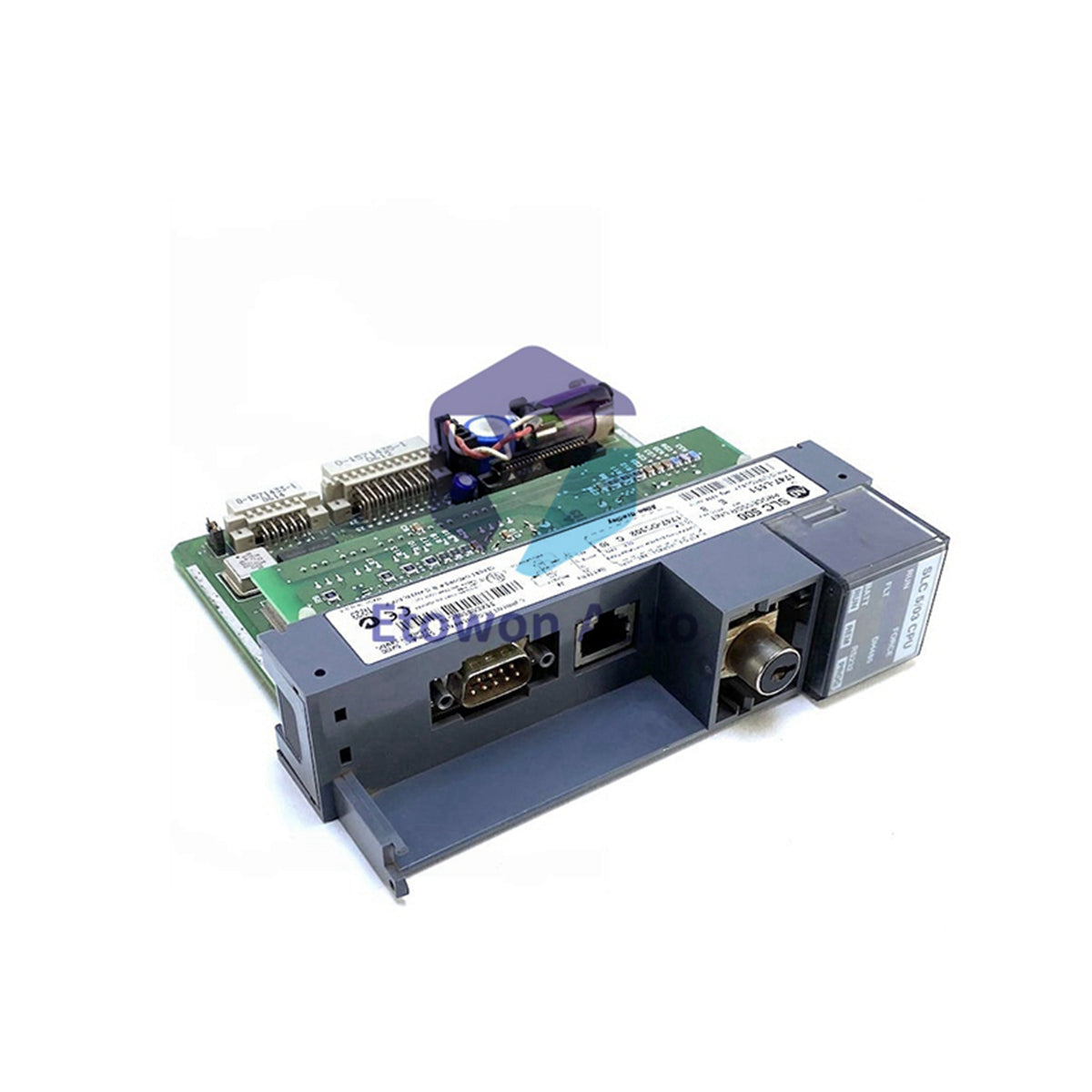

Allen-Bradley 1747-L532 SLC 5/03 Processor Module

Diňe 10 sany galdy

  • Manufacturer: Allen-Bradley

  • Product No.: 1747-L532

  • Product Type: Processor Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 350g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Technical Specifications

Manufacturer / Brand Allen-Bradley / Rockwell Automation
Product Series SLC 500 Modular Hardware
Part Number 1747-L532
Module Type SLC 5/03 Processor Module
Memory Capacity 16 KB Words (12K program/data, 4K data only) Battery-Backed RAM
Max I/O Capacity 4096 Discrete Inputs, 4096 Discrete Outputs, 480 Analog I/O
Communication Ports 1x DH-485 Port, 1x RS-232 Channel (DF1 or DH485 protocol)
Performance & Scan Time 0.225 ms I/O scan time | 1 ms/K program scan time
Backplane Current Draw 500 mA @ 5 VDC | 175 mA @ 24 VDC
Backup Memory & Battery 1747-M13 Flash Memory Module | 1747-BA Battery Pack
Weight Approx. 0.35 kg (0.77 lbs)

Product Overview

The Allen-Bradley 1747-L532 is an SLC 5/03 processor module designed for the Allen-Bradley SLC 500 modular hardware architecture. Weighing approximately 0.35 kg (0.77 lbs), this compact CPU provides 16 KB words of user memory, supporting up to 4,096 discrete inputs, 4,096 discrete outputs, and 480 analog channels. Featuring integrated RS-232 and DH-485 communication ports, a built-in real-time clock, and floating-point math, it delivers fast, deterministic performance for material handling, HVAC, and standalone process control systems.

Key Features

  • 16KB User Memory Architecture: Partitioned into 12K words for logic/data and 4K words dedicated for data storage.
  • Integrated Dual Communication: Built-in DH-485 port and configurable RS-232 port (DF1 Full-Duplex or DH-485) for peer-to-peer messaging.
  • High-Speed Instruction Execution: Delivers a fast 0.44 microsecond bit-instruction execution time and 0.225 ms I/O scan rate.
  • Memory Backup & Hardware Controls: Features a front-panel keyswitch, 1747-BA battery backup, and support for optional 1747-M13 EEPROM flash modules.

Installation Essentials

Insert in Slot 0 of SLC 500 chassis. Wire RS-232 or DH-485, and prevent ESD damage.

Technical FAQs

Q1: What is 1747-L532's function?
A1: 16KB CPU processor for Allen-Bradley SLC 500.

Q2: What is its size and weight?
A2: Fits 1 chassis slot, weighs 0.35 kg (0.77 lbs).

Q3: What communication ports are onboard?
A3: One DH-485 port and one RS-232 (DF1/DH485) port.
