1746-NO8V

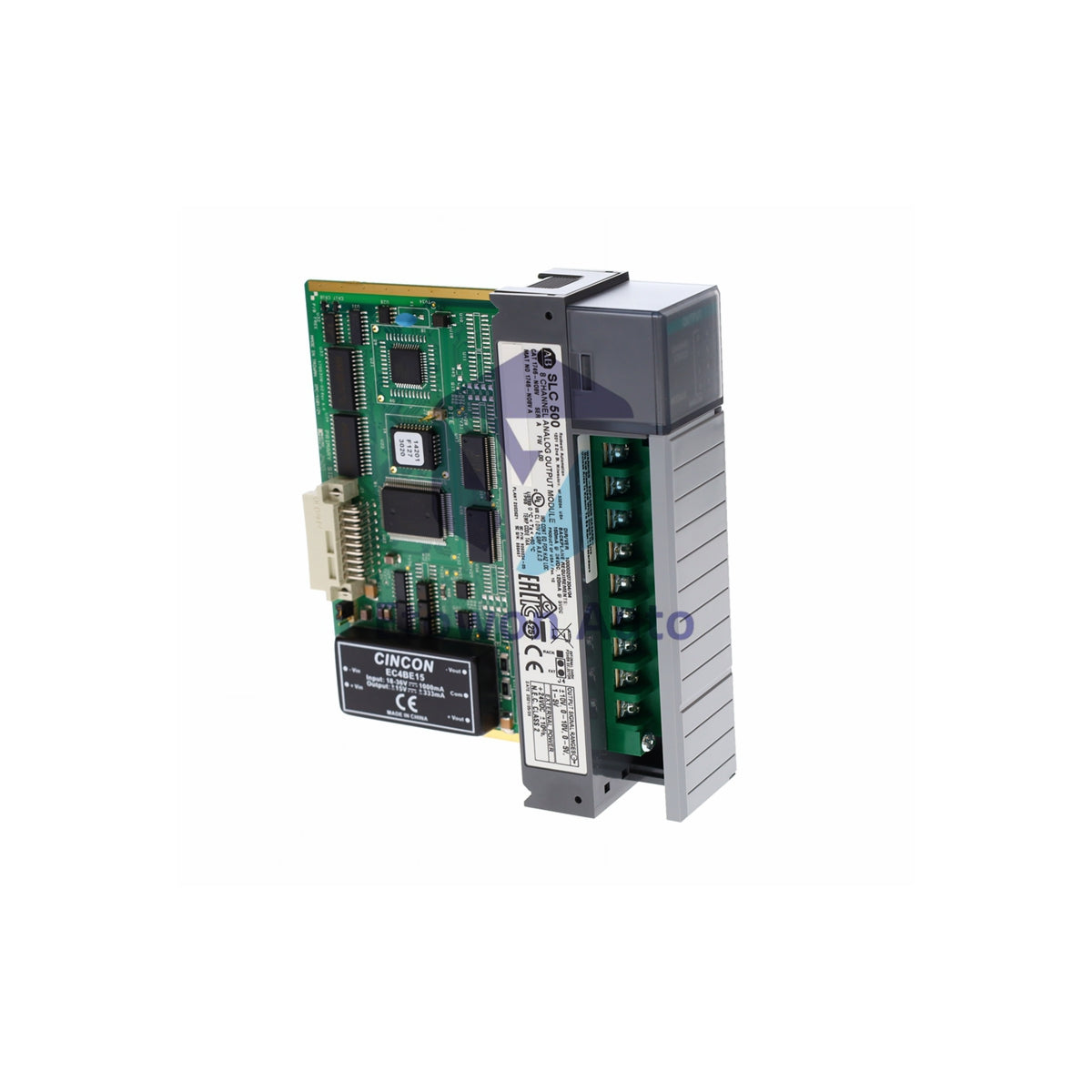

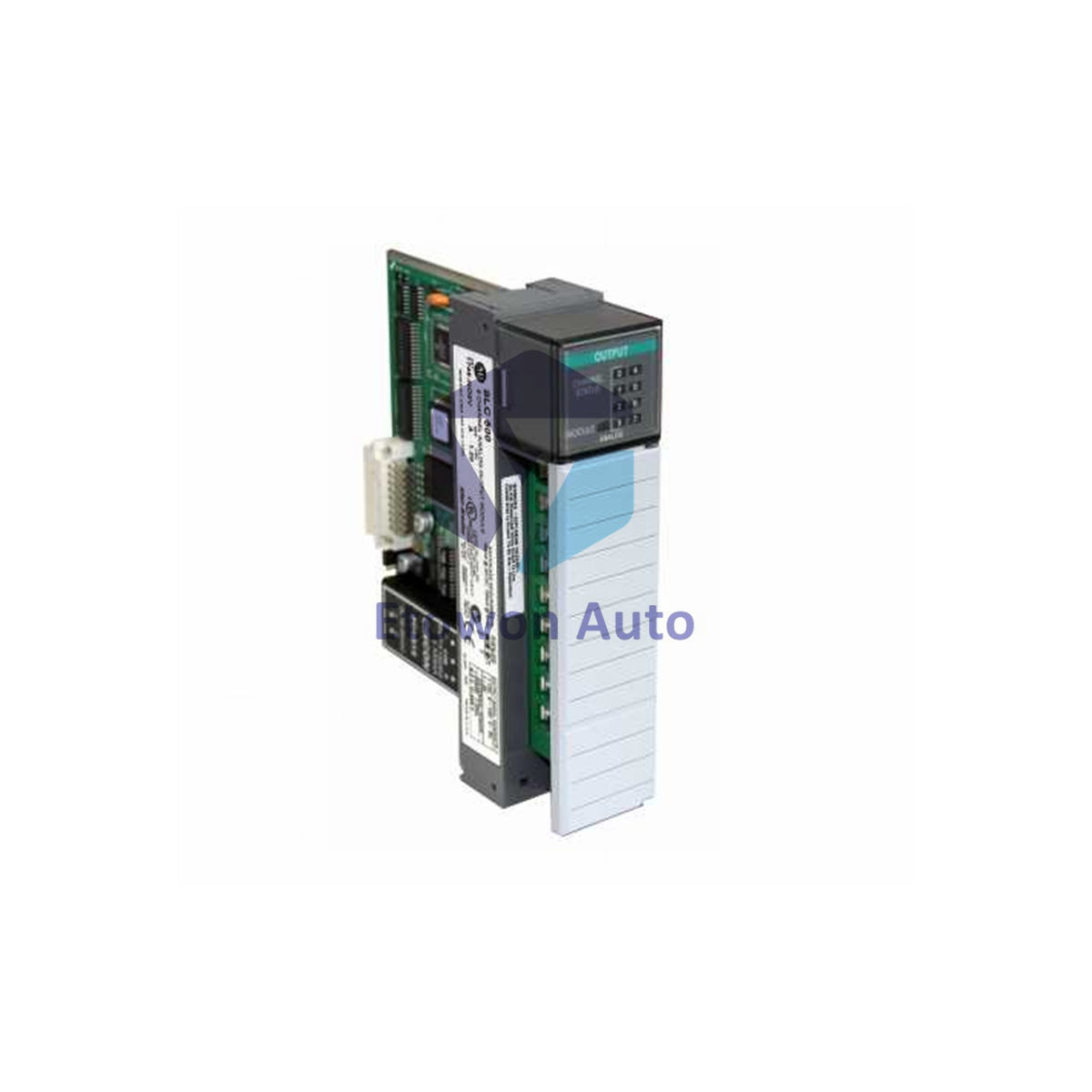

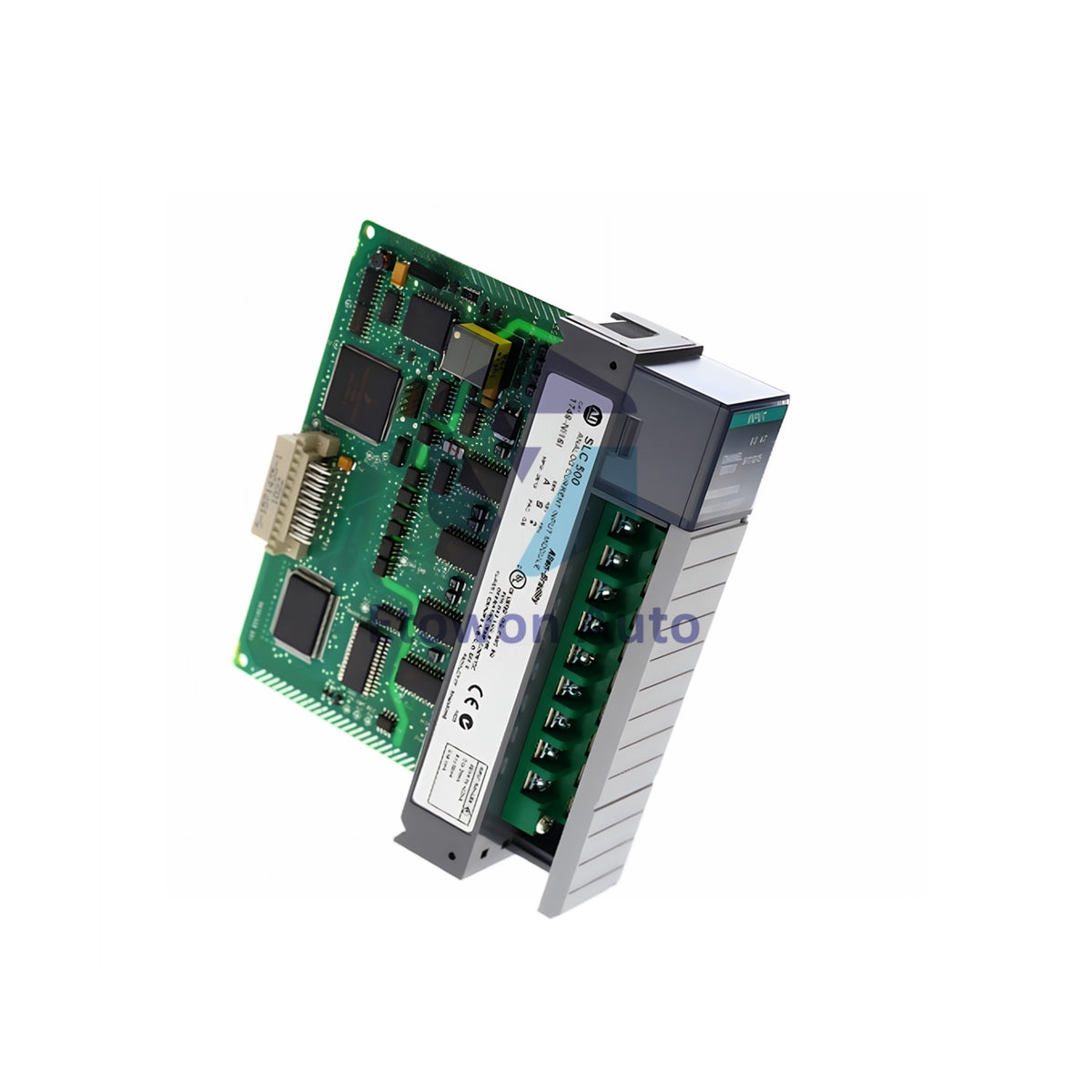

Allen-Bradley 1746-NO8V SLC 500 Analog Output Module

Skladda bar (25 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1746-NO8V

  • Product Type: Analog Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 400g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The Allen-Bradley 1746-NO8V is an SLC 500 analog output module with 8 single ended output channels delivering ±10.25 VDC. Weighing approximately 0.4 kg, it provides 16 bit resolution at 320 µV per count, ideal for controlling valves, dampers, VFDs, and other modulating devices.

Key Features

8 single ended analog output channels with 16 bit resolution. Output voltage ranges include ±10.25VDC, 0 to 10VDC, 0 to 5VDC, and 1 to 5VDC. Built in R 2R ladder DAC conversion. Circuit isolation between field wiring and backplane tested at 500 VDC. LED indicators for module and channel status. Lightweight 0.4 kg design fits any 1746 chassis slot except slot 0.

Technical Specifications

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number 1746-NO8V
Series SLC 500
Module Type Analog Output Module
Number of Outputs 8 Single Ended
Output Voltage Range -10.25 to +10.25 VDC
Resolution 16 bit, 320 µV/count
Output Coding -32,768 to +32,767
Accuracy at 25°C 0.1% of Full Scale
Accuracy at 60°C 0.2% of Full Scale
Update Time 540 µs per 8 channels
Step Response 60 ms in, 2.5 ms out
Backplane Current (5V) 120 mA
Backplane Current (24V) 160 mA (RACK) / 0 mA (EXT)
Backplane Power 5.6 W
Load Range 1 kΩ and greater
Max Load Current 10 mA
Operating Temperature 0 to 60°C
Certifications CE, cUL, Class I Division 2
Weight Approximately 0.4 kg

Installation Guide

Install the 1746-NO8V (approx. 0.4 kg) in any 1746 chassis slot except slot 0. Set the J4 jumper to RACK or EXT depending on whether backplane 24V or external 24V power is used. Wire output devices observing proper polarity for bipolar ranges. Maintain load resistance above 1 kΩ and load current below 10 mA. Ensure ambient temperature stays between 0 and 60°C with humidity below 95% non condensing.

Engineering Advantages

16 bit resolution delivers precise control for modulating devices. Multiple output voltage ranges provide flexibility for different actuator types. Circuit isolation protects the processor and backplane from field transients. Configurable output parameters include clamping limits, ramp rates, and fault behavior for safe operation. Lightweight 0.4 kg single slot design conserves chassis space and reduces mounting strain. CE and cUL certified for Class I Division 2 hazardous locations.

Frequently Asked Questions

Q1: How many output channels does the 1746-NO8V provide?

A1: It provides 8 single ended analog output channels.

Q2: What is the resolution and accuracy of this module?

A2: It offers 16 bit resolution (320 µV/count) with 0.1% accuracy at 25°C and 0.2% at 60°C.

Q3: Which chassis slots can this module be installed in?

A3: It fits any 1746 chassis slot except slot 0.

Product Resources

📄 Download PDF
🏷️ Tags: Analog Output Module
