1746-NO4V

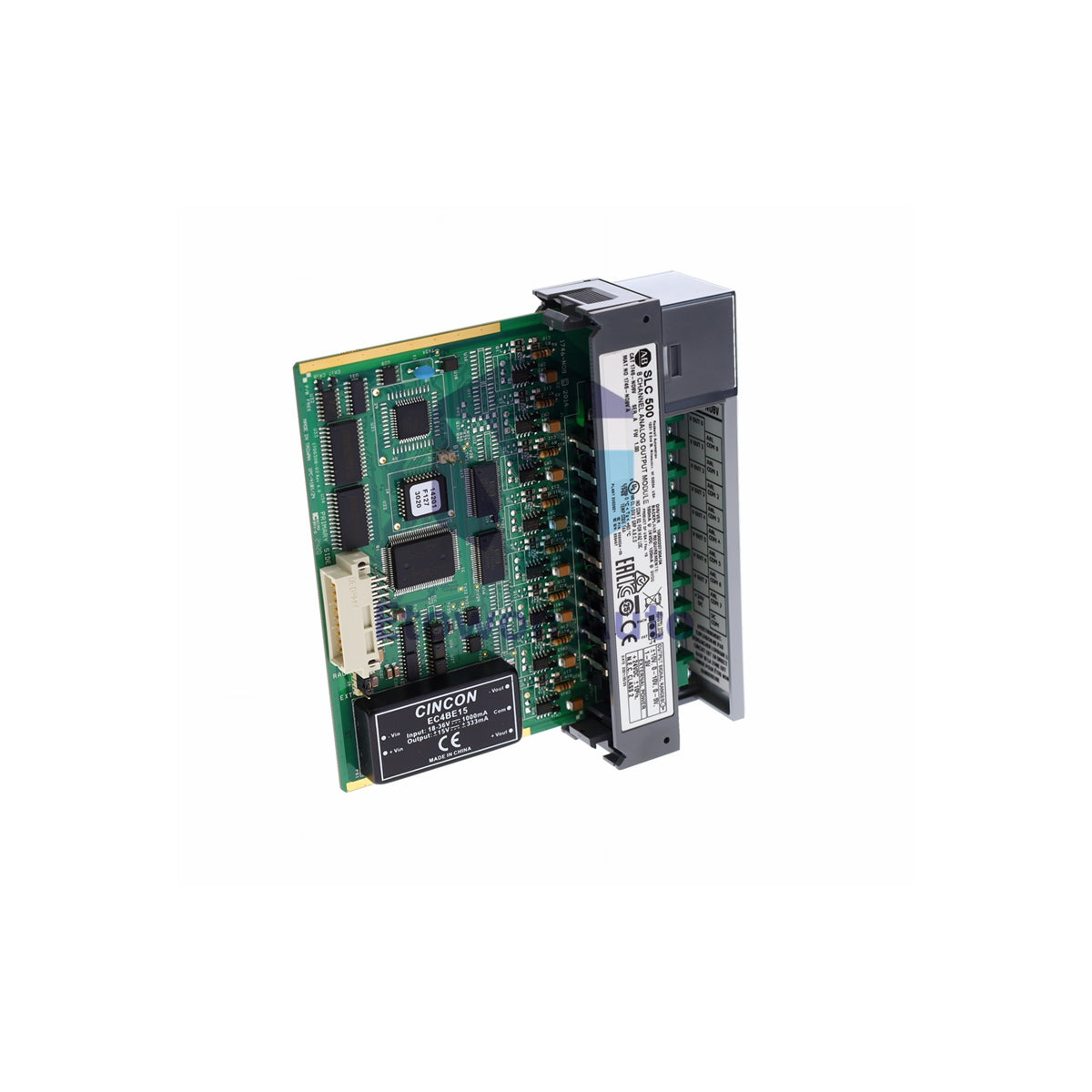

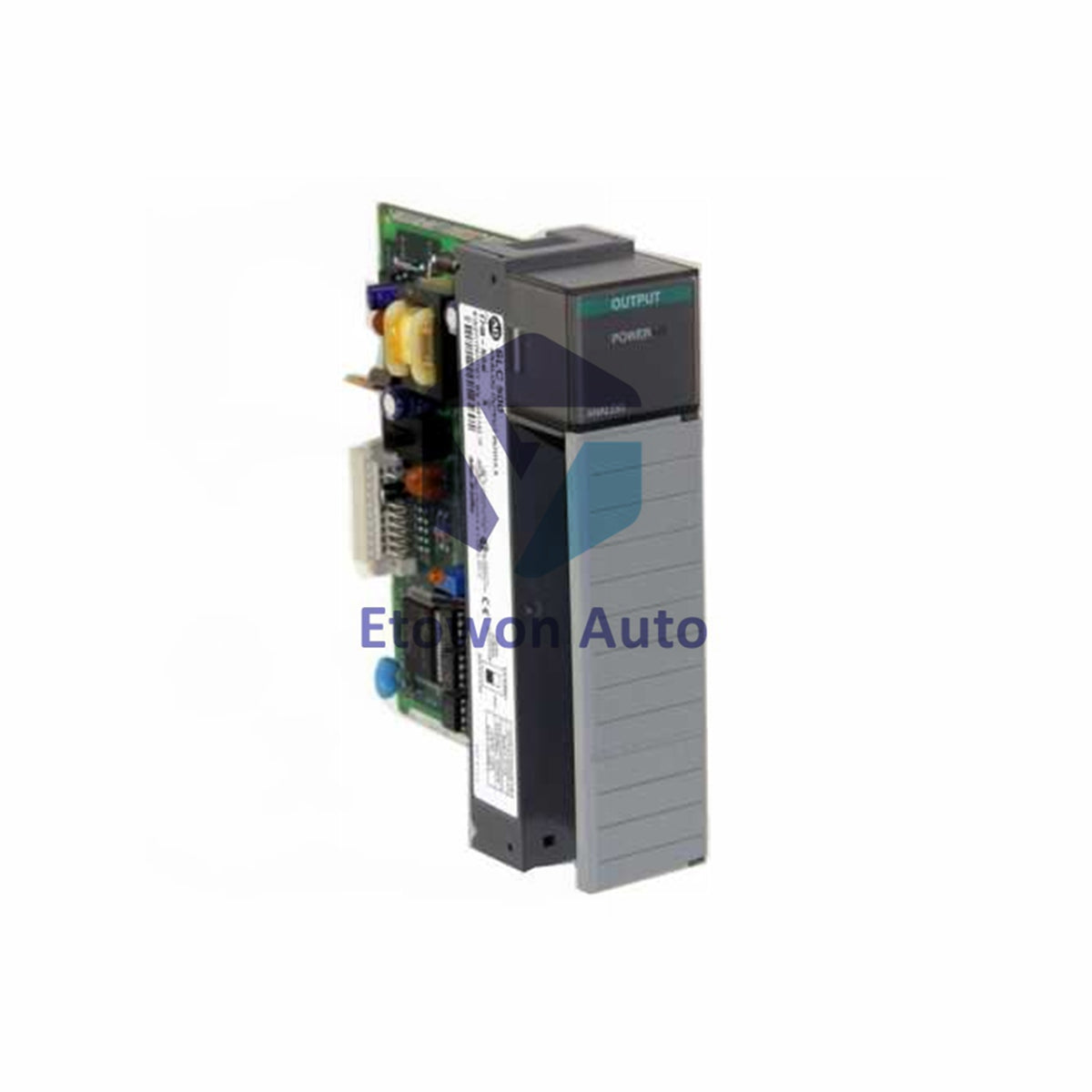

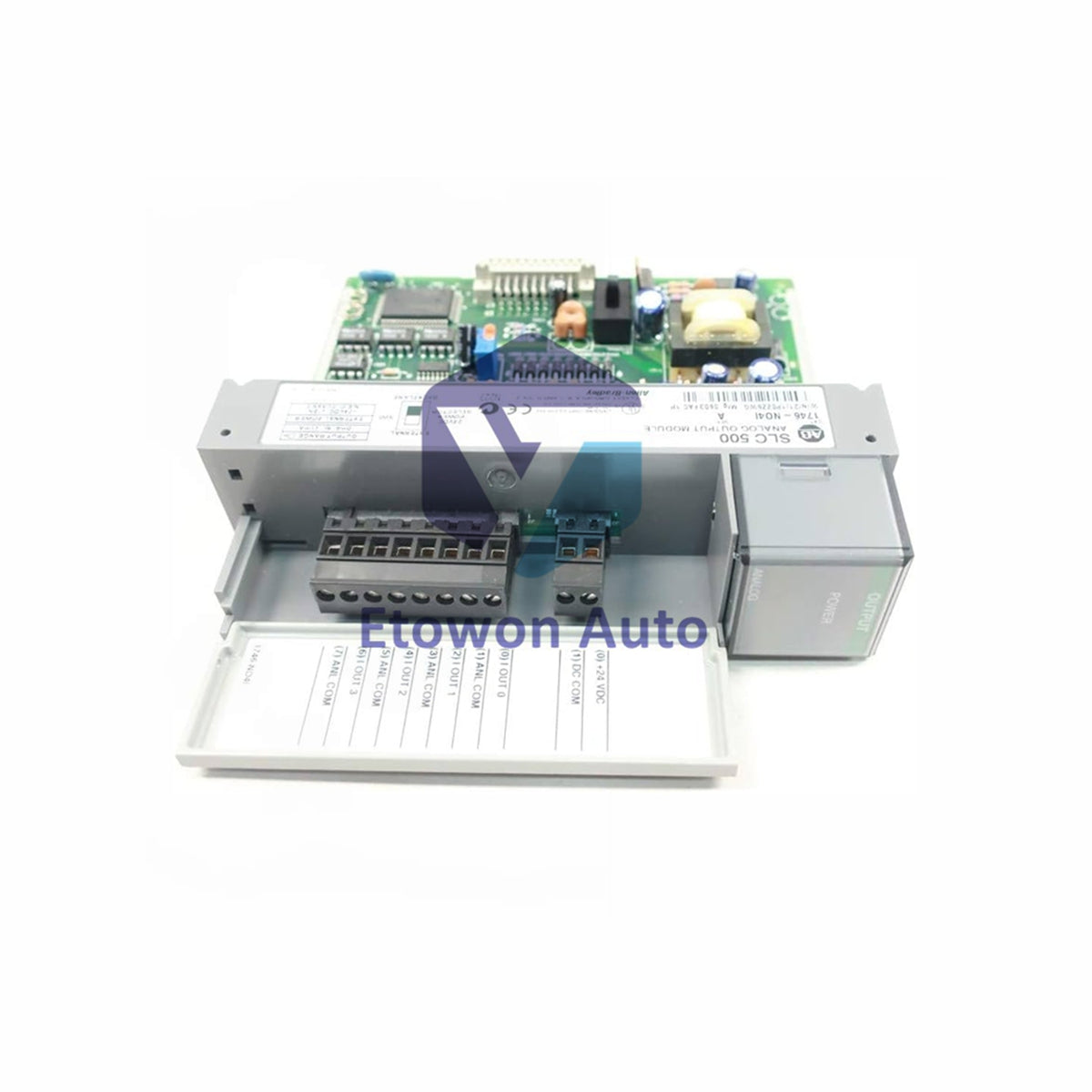

Allen-Bradley 1746-NO4V SLC 500 4-Point Voltage Output

Skladda bar (25 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1746-NO4V

  • Product Type: Analog Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 450g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Allen-Bradley 1746-NO4V SLC 500 Analog Output Module

Allen-Bradley 1746-NO4V is a 4-channel analog voltage output module for SLC 500 systems. Provides -10 to +10V DC output range with 14-bit resolution. Features 512 microsecond update time and 2.5 ms step response. Weight: 0.45 kg (1.00 lbs).

Technical Specifications

Parameter Specification
Manufacturer Allen-Bradley / Rockwell Automation
Model 1746-NO4V
Series SLC 500
Module Type Analog Output Module
Number of Outputs 4
Output Voltage Range -10 to +10V DC
Full Scale Output 10V DC
Resolution 14 bits
Conversion Method R-2R Ladder
Voltage Output Coding -32,768 to +32,764
Update Time 512 microseconds
Step Response 2.5 milliseconds
Backplane Current (5V) 55 mA
Backplane Current (24V) 145 mA
Isolation 500V DC field wiring to backplane
Max Load Reactance 1 µF
Max Load Current 10 mA
Accuracy Drift ±54 ppm/°C full scale
Operating Temperature 0°C to +60°C
Storage Temperature -40°C to +85°C
Humidity 5% to 95% non-condensing
Weight 0.45 kg (1.00 lbs)

Key Features

  • 4 analog voltage output channels for SLC 500 systems
  • -10 to +10V DC output range with 14-bit resolution
  • 512 microsecond update time for all channels in parallel
  • 2.5 millisecond step response at 95%
  • SW1 external power selection
  • Removable terminal block for simplified wiring
  • LED status indicator for module monitoring
  • Factory-calibrated for accurate performance

Installation Guidelines (Field Engineer Notes)

Power Selection: Activate SW1 external to use an external 24V DC power supply. If backplane power is sufficient, use backplane power instead of external supply.

Wiring: Use 14 AWG maximum wire size. Limit to 2 wires per terminal. Use shielded cable for analog signals. Ground shield at the module end only.

Slot Selection: Install away from AC or high DC voltage sources. Install away from system power supply. Preferred chassis is nearest to enclosure bottom for thermal considerations.

Load Connection: Maximum load reactance is 1 µF. Maximum load current is 10 mA. Verify load compatibility before connection.

Power Removal: Do not remove module under power. Electrical arcs may damage electronic circuitry.

FAQs

Q1. What is the output voltage range of the 1746-NO4V?
A1. The module provides -10 to +10V DC output range with 14-bit resolution.

Q2. Can the module use external power?
A2. Yes. Activate SW1 external to use an external 24V DC power supply. If backplane power is sufficient, use backplane power instead.

Q3. What is the maximum load current?
A3. The module supports maximum load current of 10 mA with maximum load reactance of 1 µF.
