  • 1734-AENTRK-1
1 3

1734-AENTRK

Allen-Bradley 1734-AENTRK 24VDC Industrial Network Interface

Skladda bar (17 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1734-AENTRK

  • Product Type: Adapter Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 110g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

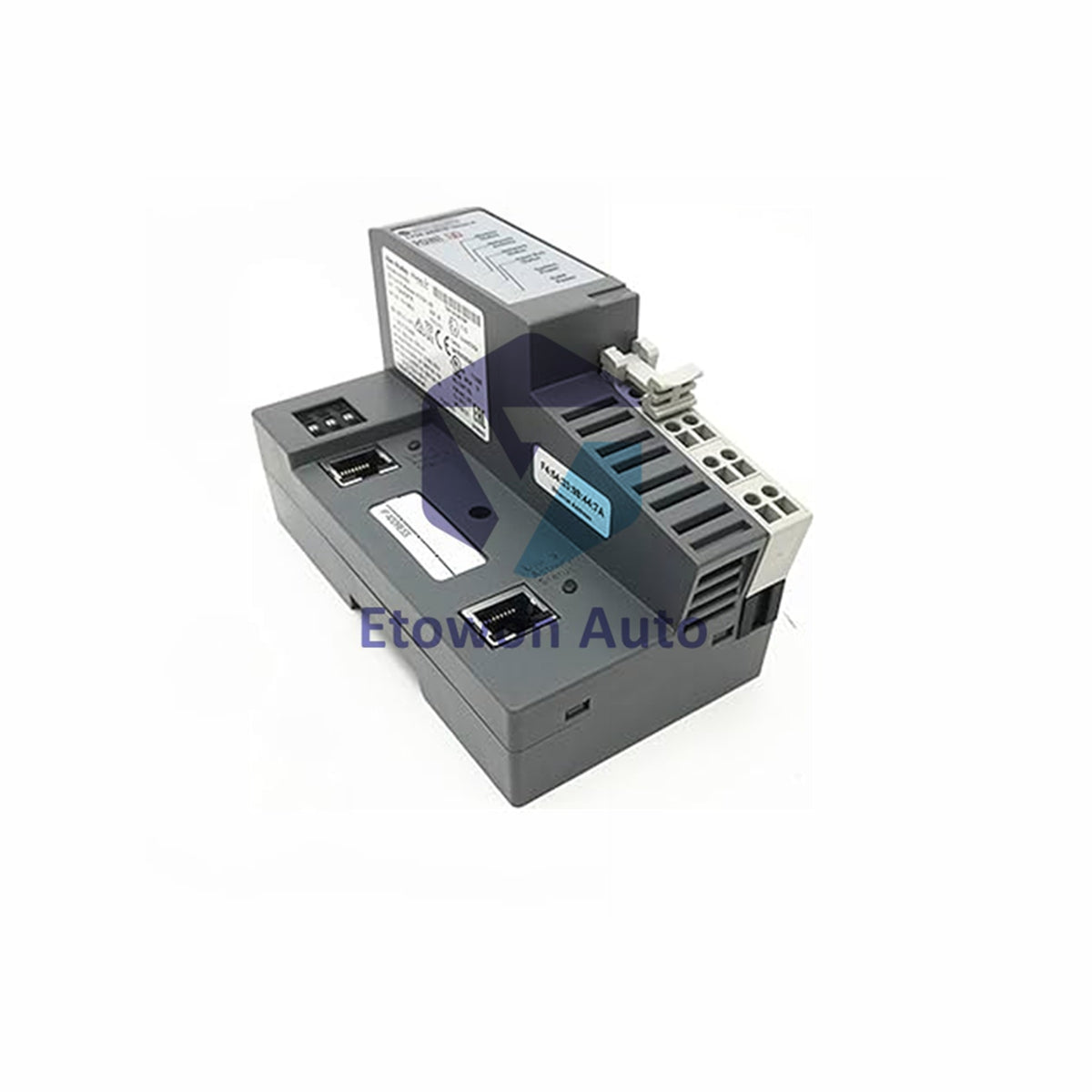

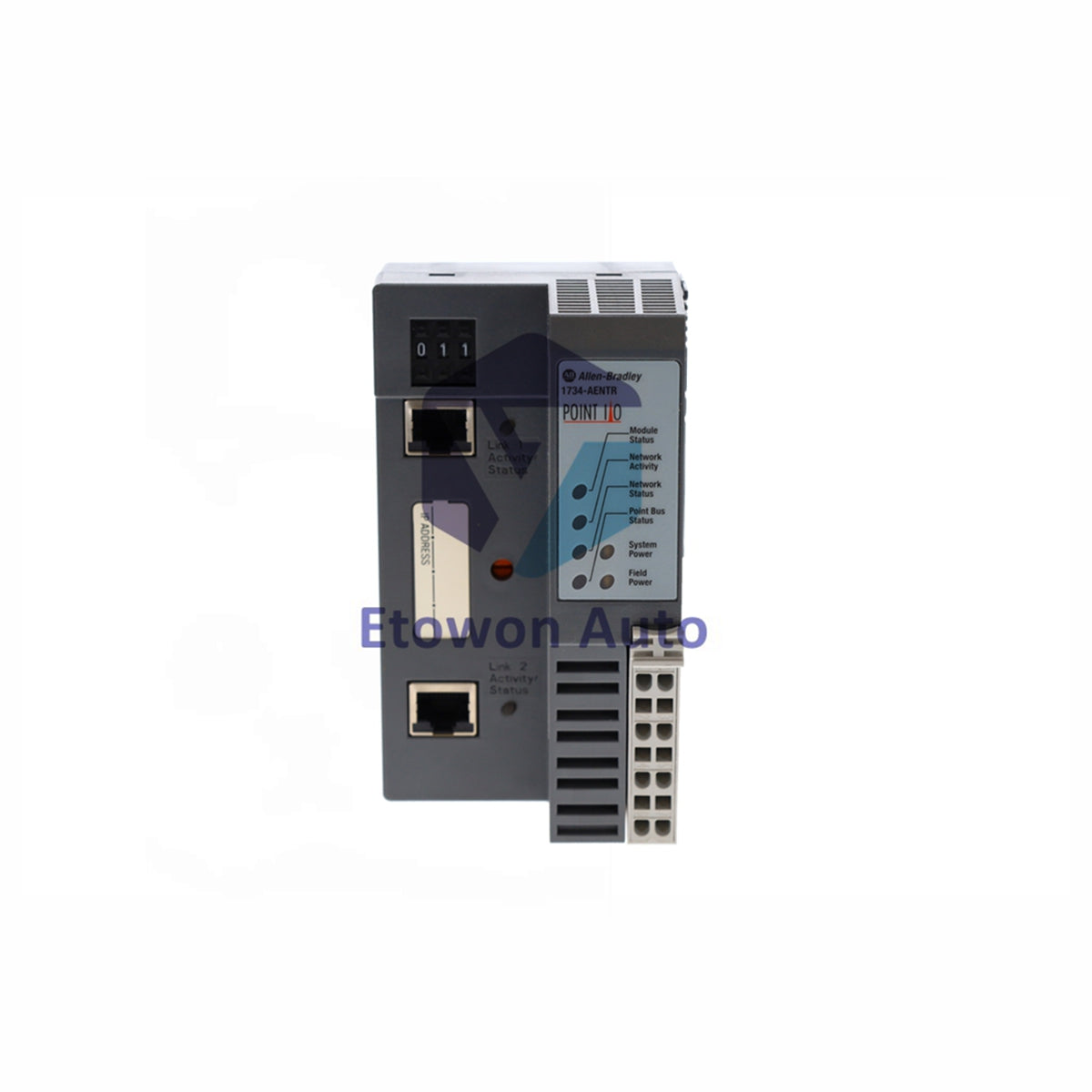

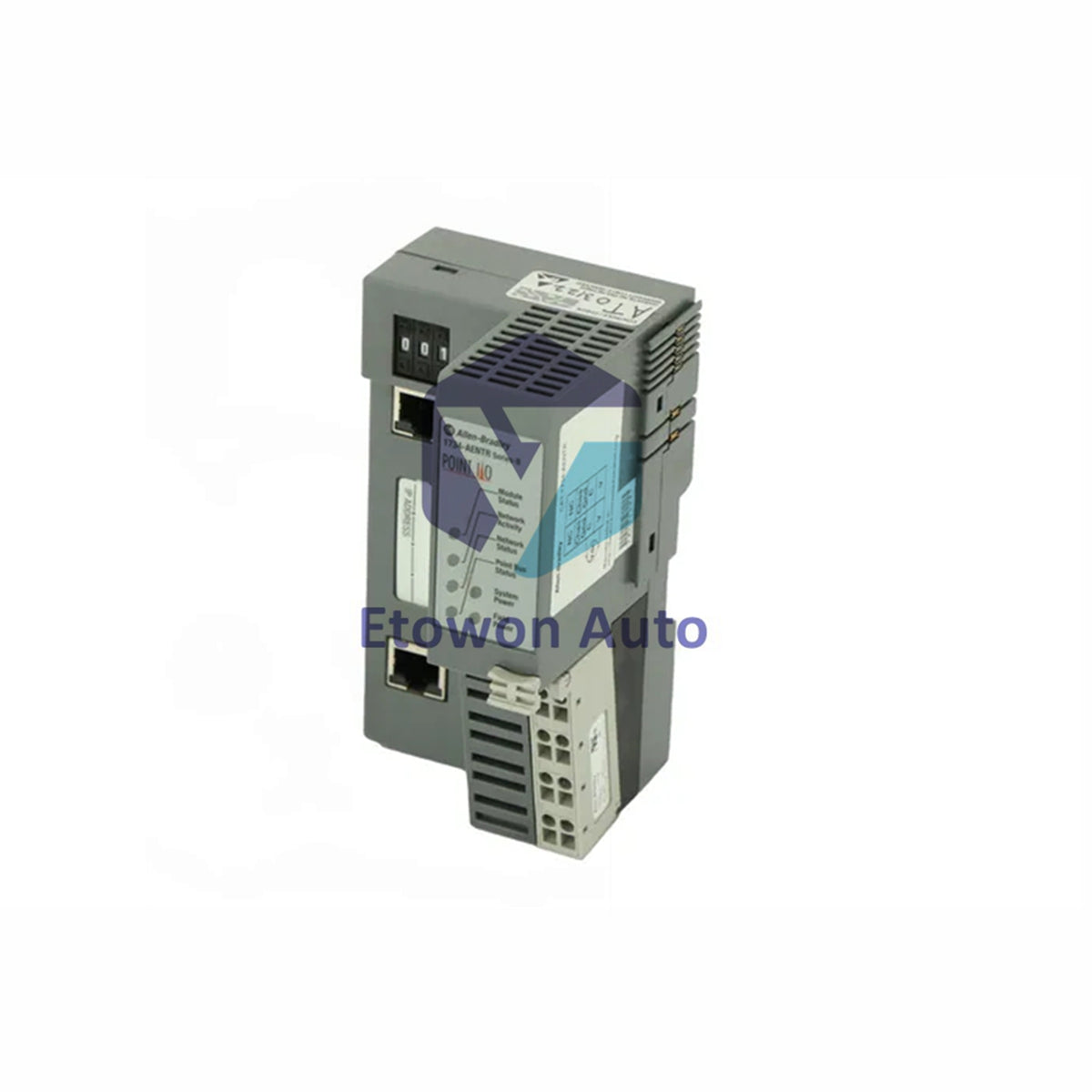

Allen-Bradley 1734-AENTRK POINT I/O Dual Port Network Adapter

The Allen-Bradley 1734-AENTRK is a high-performance POINT I/O dual-port EtherNet/IP network adapter module designed for real-time industrial automation and distributed control systems. Featuring 10/100 Mbps communication speed with full and half-duplex capabilities, this 24VDC powered adapter supports Device Level Ring (DLR) topologies for fault-tolerant network redundancy. Weighing approximately 0.11 kg (0.24 lbs), its ultra-compact enclosure facilitates high-density panel integration across extended operating temperature ranges.

Technical Specifications

Manufacturer & Series Rockwell Automation / Allen-Bradley POINT I/O
Catalog / Part Number 1734-AENTRK
Product Type Dual Port EtherNet/IP Network Adapter Module
Input Voltage Rating 24 VDC (10–28.8 VDC Range)
Maximum Power Consumption 10.4 W at 28.8 VDC
Communication Rate 10/100 Mbit/s, Half or Full-Duplex
Dimensions (H x W x D) 141.0 mm x 91.4 mm x 87.6 mm (5.55 x 3.60 x 3.45 in)
Operating Temperature -20°C to 60°C (-4°F to 140°F)
Enclosure Rating Open Style Industrial Enclosure
Approximate Net Weight 0.11 kg (0.24 lbs)

Quick Installation Guide

  • Mount the 0.11 kg adapter onto a standard DIN rail at the starting position of the POINT I/O backplane base assembly.
  • Connect 24VDC power supply conductors to the removable terminal block and verify correct polarity.
  • Plug RJ45 Ethernet cables into the dual ports to form linear or Device Level Ring (DLR) network connections.

Technical FAQs

Q1: What network protocols does the 1734-AENTRK support?
A1: Supports EtherNet/IP protocol over 10/100 Mbps communication with dual-port DLR capabilities.

Q2: What is the operating power input requirement?
A2: Operates on 24VDC nominal power with a maximum power consumption of 10.4 Watts at 28.8VDC.

Q3: What are the physical footprint specifications?
A3: Measures 141.0 x 91.4 x 87.6 mm with an approximate net weight of 0.11 kg (0.24 lbs).

🏷️ Tags: Adapter Module
