DI562

ABB DI562 Digital Input Module 1TNE968902R2102 AC/DC

Diňe 10 sany galdy

  • Manufacturer: ABB

  • Product No.: DI562

  • Product Type: Digital Input Module

  • Product Origin: SE

  • Payment:T/T, Western Union

  • Weight: 215g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

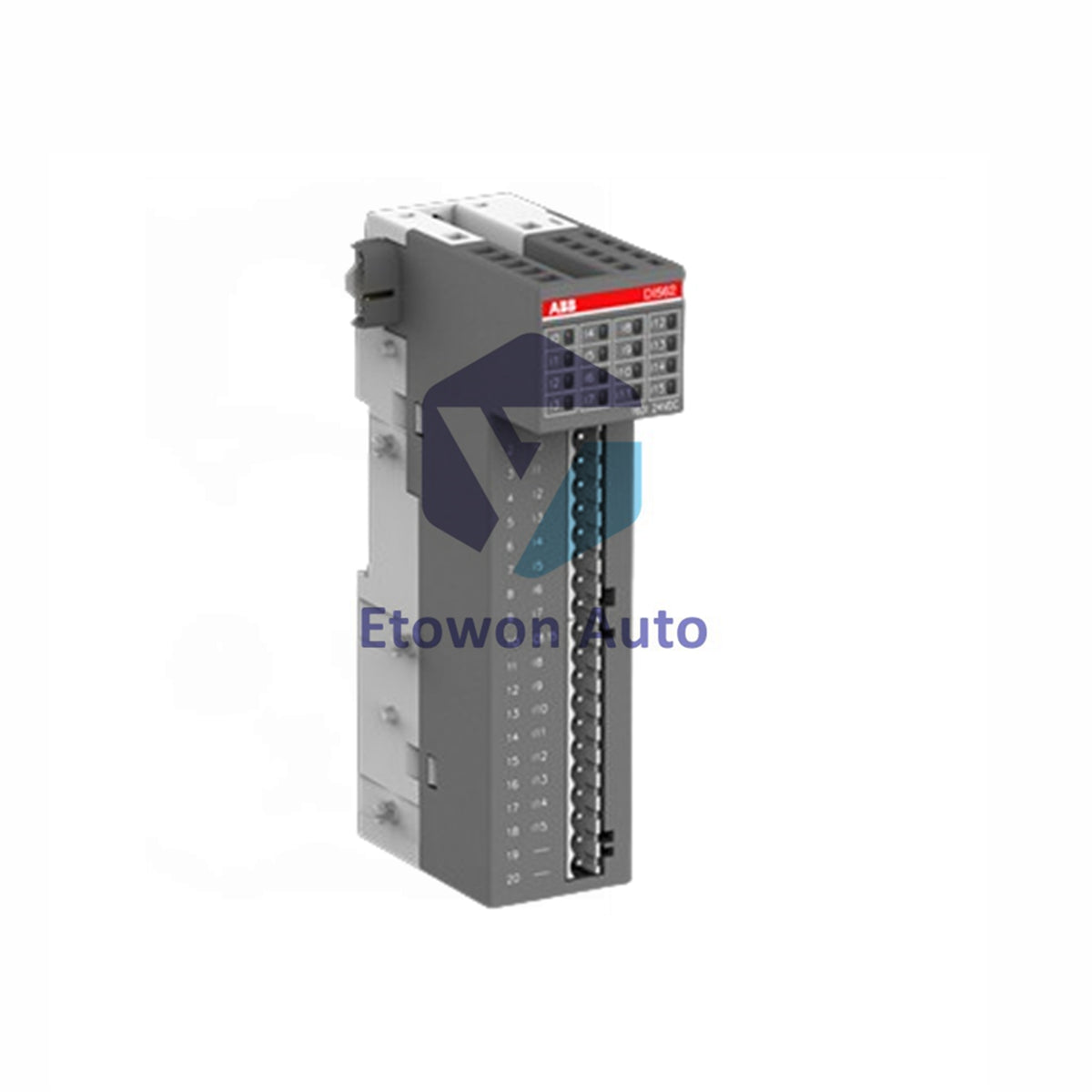

The DI562 (Order Code: 1TNE968902R2102) is a 16-channel digital input expansion module designed by ABB for AC500-eCo PLCs. It processes AC and DC signals with sink or source wiring. Operating from 20.4 to 28.8 V DC with an 8 ms signal delay, it delivers fast, reliable I/O data acquisition. Featuring pluggable connections and an IP20 housing, it weighs 0.215 kg in a compact 135 mm x 34 mm x 74 mm frame.

Core Technical Advantages

  • 16 Digital Inputs: High channel density in a standard 34 mm module layout.
  • Flexible Wiring: Supports both sink and source AC/DC input configurations up to 30 V DC.
  • Pluggable Connectors: Allows quick maintenance and simplified cabinet pre-wiring.

Technical Specifications

Parameter Specification Details
Brand & Manufacturer ABB
Model Designation DI562
Order Code (ID) 1TNE968902R2102
Product Type Digital Input Module
Digital Inputs 16 Channels (Sink/Source)
Input Voltage Type AC/DC (30 V DC Max)
Supply Voltage Range 20.4 to 28.8 V DC
Input Current per Channel 5 mA
Signal Delay Time (τ) 8 ms
Degree of Protection IP20
Pluggable Connections Yes
Operating Temperature 0°C to +60°C
Storage Temperature -40°C to +70°C
Unit Dimensions (LxWxH) 135 mm x 34 mm x 74 mm
Package Dimensions (LxWxH) 93 mm x 63 mm x 170 mm
Product Net Weight 0.215 kg

Industrial Applications

  • Factory Automation: Connects limit switches and sensors to AC500-eCo PLCs.
  • Packaging Systems: Reads optical position feedback across conveyor lines.
  • Building Control: Monitors damper contacts and relay status in control panels.

Wiring & Installation

  • DIN Rail Mounting: Snap onto a standard 35 mm DIN rail alongside the CPU module.
  • Input Terminal Wiring: Wire sensors to pluggable blocks for sink or source configuration.
  • Power Supply Connection: Connect 20.4–28.8 V DC power to terminals to energize inputs.

Engineering Advantages

  • Lightweight Design: Weighs only 0.215 kg to minimize DIN rail strain.
  • Noise Filtering: Built-in 8 ms input delay suppresses contact bounce.
  • Wide Thermal Range: Operates reliably in ambient temperatures from 0°C to +60°C.

Technical FAQs

Q1: Does the DI562 module support sink and source wiring?
A1: Yes, all 16 digital input channels support sink or source wiring layouts.

Q2: What is the maximum input voltage rating for the DI562?
A2: The module operates at 20.4–28.8 V DC with a maximum limit of 30 V DC.

Q3: Are the terminal connections removable on the DI562?
A3: Yes, pluggable terminal blocks allow easy replacement without un wiring.
