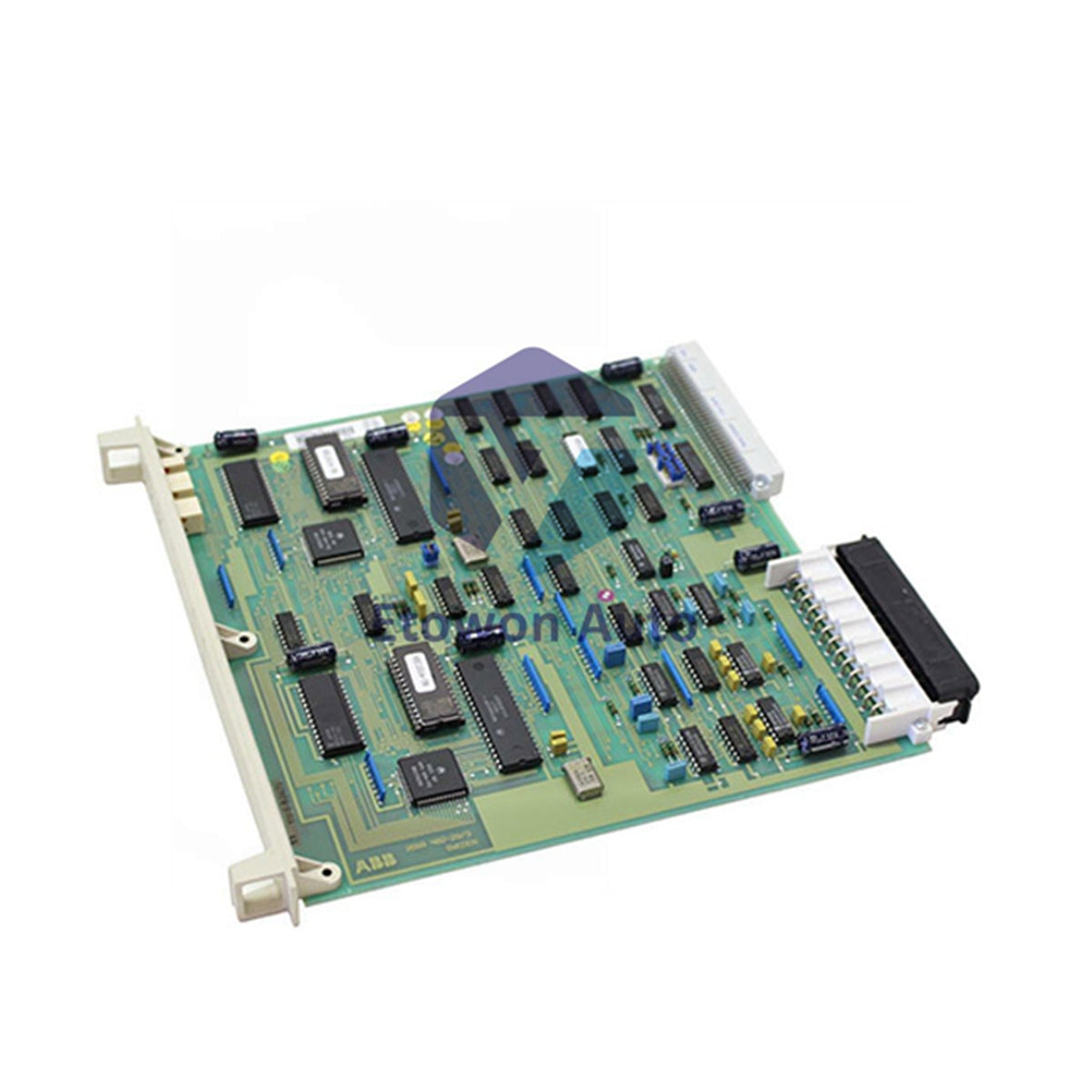

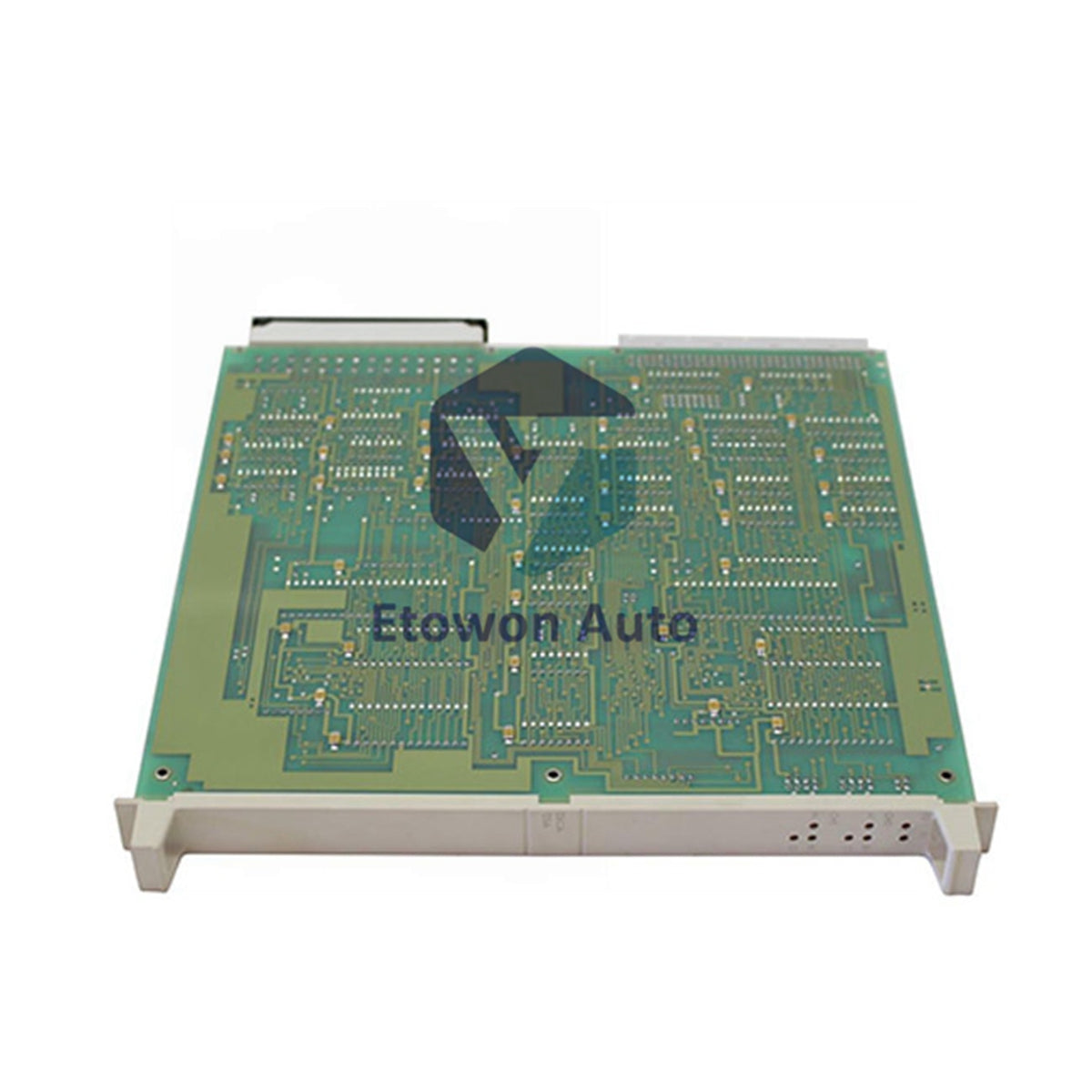

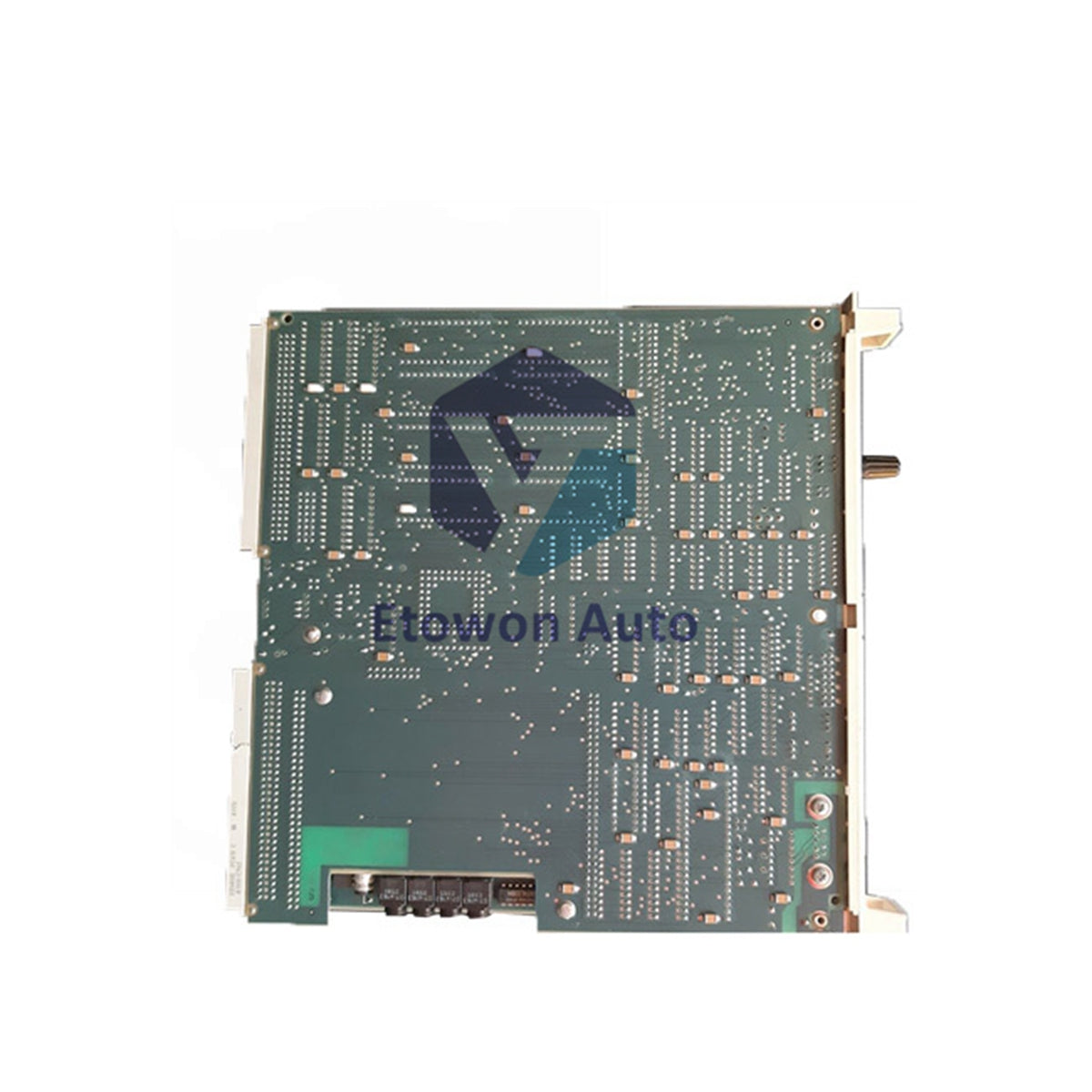

ABB 57520001-KX DSCS 145 | Communication Module

Diňe 10 sany galdy

  • Manufacturer: ABB

  • Product No.: DSCS145

  • Product Type: Communication Processor

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 620g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The ABB DSCS 145 (Product ID: 57520001-KX) is a high-performance Master Bus 300E (MB300E) communication processor board designed for advanced ABB control systems and DCS architectures. Built to facilitate fast, reliable industrial network interfacing, this module enables high-speed data exchange across complex control networks. Operating on a nominal 24 VDC power supply with an input current consumption of under 150 mA, the DSCS 145 supports modern industrial networking protocols including Modbus, Ethernet, and PROFINET. Featuring a lightweight net weight of 0.62 kg (1.37 lbs) and an extended operating temperature range from -20°C to +70°C, it delivers long-term durability in high-demand process automation environments.

Technical Specifications

Parameter Specification
Product ID / Part Number 57520001-KX
ABB Type Designation DSCS 145
Product Type / Catalog Description DSCS 145 MB300E Communication Processor
Manufacturer / Brand ABB Automation
Operating Voltage 24 VDC
Max Input Current 150 mA max
Supported Communication Protocols Modbus, Ethernet, PROFINET, MB300E
Operating Temperature Range -20°C to +70°C (-4°F to +158°F)
Storage Temperature Range -40°C to +85°C (-40°F to +185°F)
Customs Tariff Code 85389091
Unit Net Weight 0.62 kg (1.37 lbs)

Key Design & Performance Features

  • MB300E Communication Backbone: Processes high-throughput network transactions across ABB Master Bus 300E distributed control architectures.
  • Multi-Protocol Flexibility: Seamlessly interfaces with Modbus, Ethernet, and PROFINET networks for reliable field device data streaming.
  • Low Thermal Footprint: Consumes a maximum of 150 mA at 24 VDC, helping lower overall cabinet heat dissipation.
  • Wide Temperature Operating Window: Rated to withstand temperature swings from -20°C to +70°C, making it ideal for severe industrial processing plants.

Installation & Field Wiring Guidelines

1. Rack / Subrack Insertion: Power down the system subrack before inserting the DSCS 145 module into its dedicated backplane slot. Ensure edge connectors seat securely into the backplane frame.

2. Network Cable Interconnection: Connect Master Bus 300E and Ethernet communication lines to the designated front-panel ports, ensuring shielded cabling is grounded according to ABB installation guidelines.

3. Power Supply Connection: Ensure stable, regulated 24 VDC control power is supplied to the module power feed terminals to prevent communication packet dropouts.

Frequently Asked Questions (FAQs)

Q1: What is the primary function of the ABB DSCS 145 module?
A1: The DSCS 145 (57520001-KX) serves as an MB300E (Master Bus 300E) communication processor board that manages real-time network communications across ABB control systems.

Q2: What is the operating voltage and power consumption for the DSCS 145?
A2: The module operates on 24 VDC power and has a maximum input current draw of 150 mA.

Q3: What protocols does the DSCS 145 support?
A3: In addition to MB300E bus communication, the module supports Modbus, Ethernet, and PROFINET protocol interfaces.
