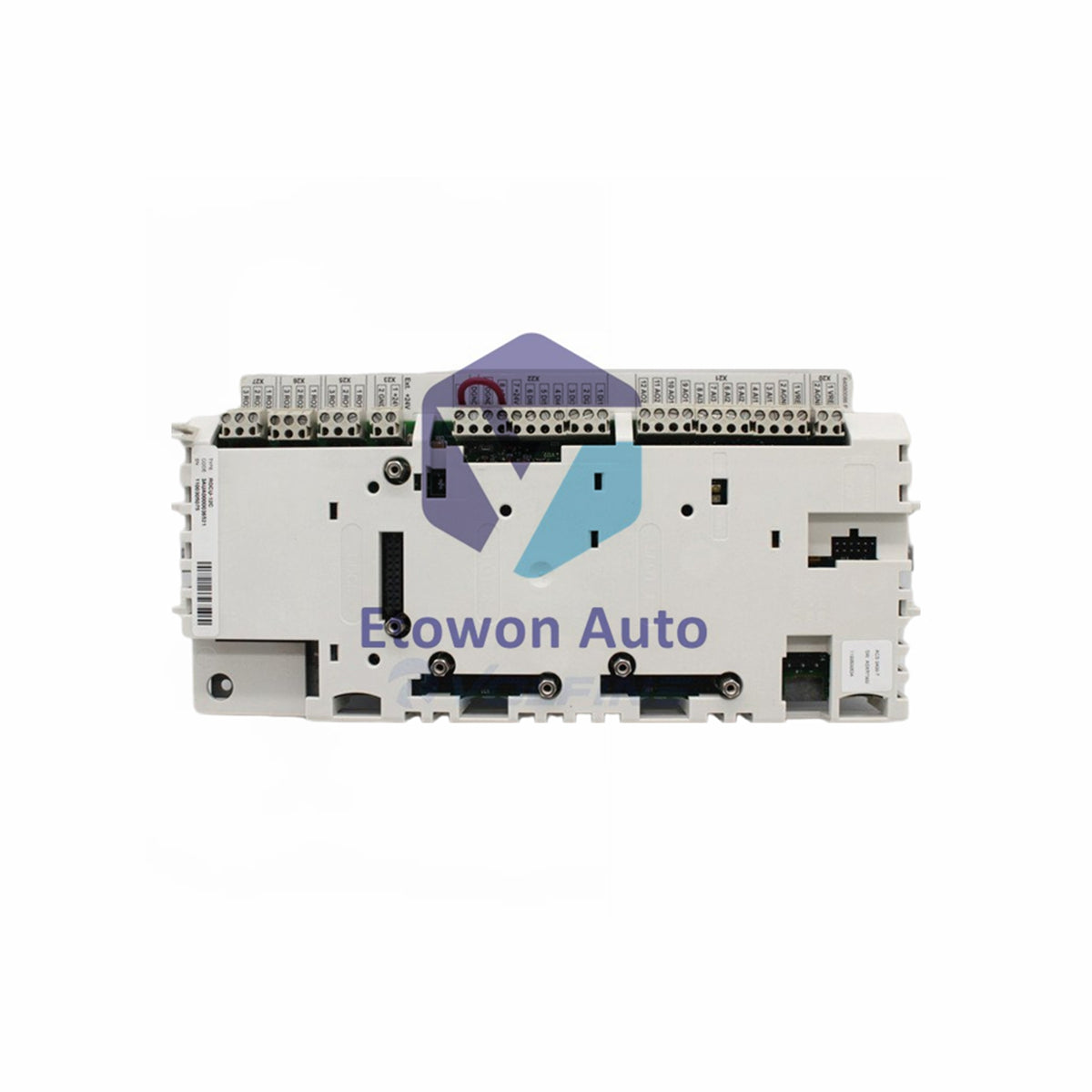

  • RDCU-02C

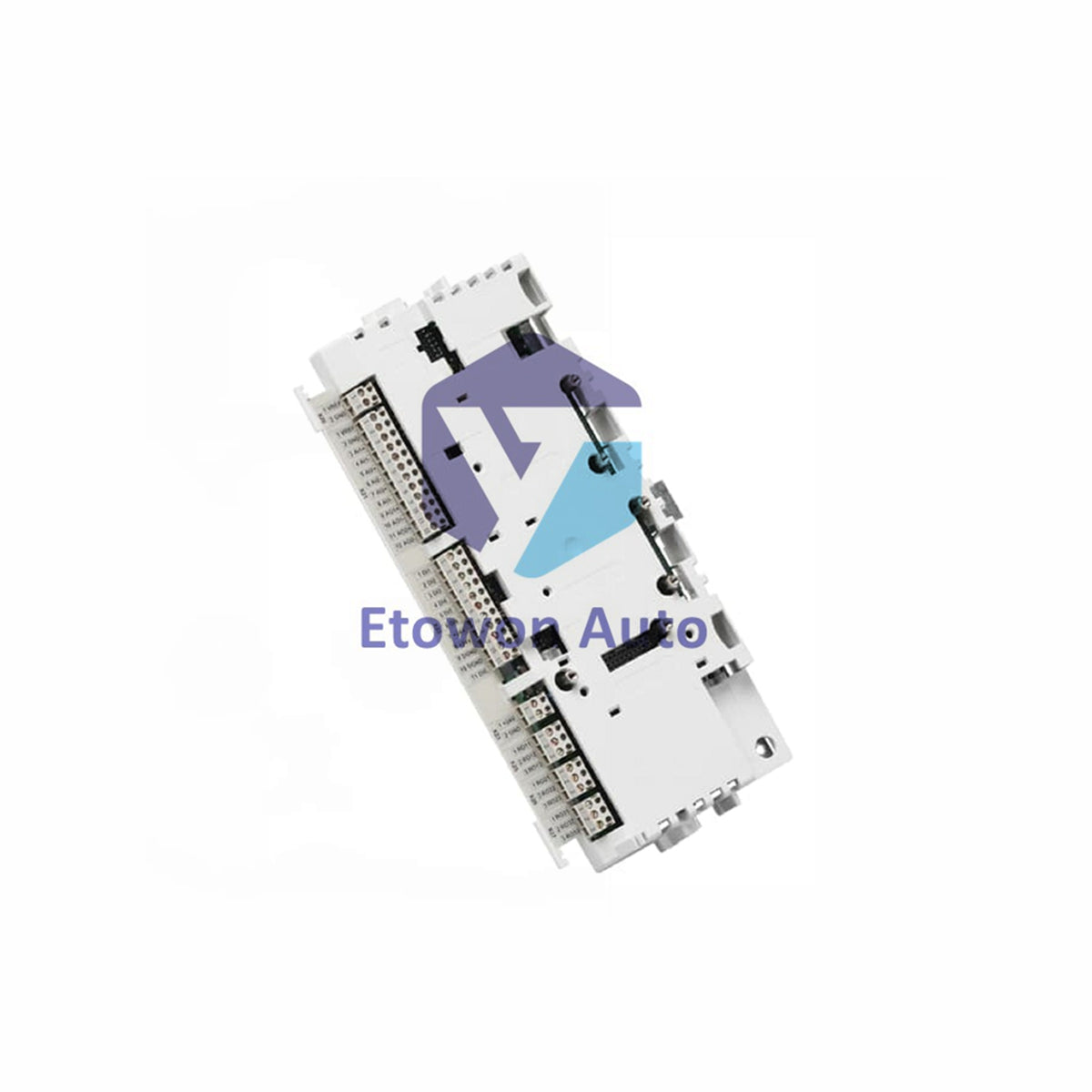

  • RDCU-02C-1

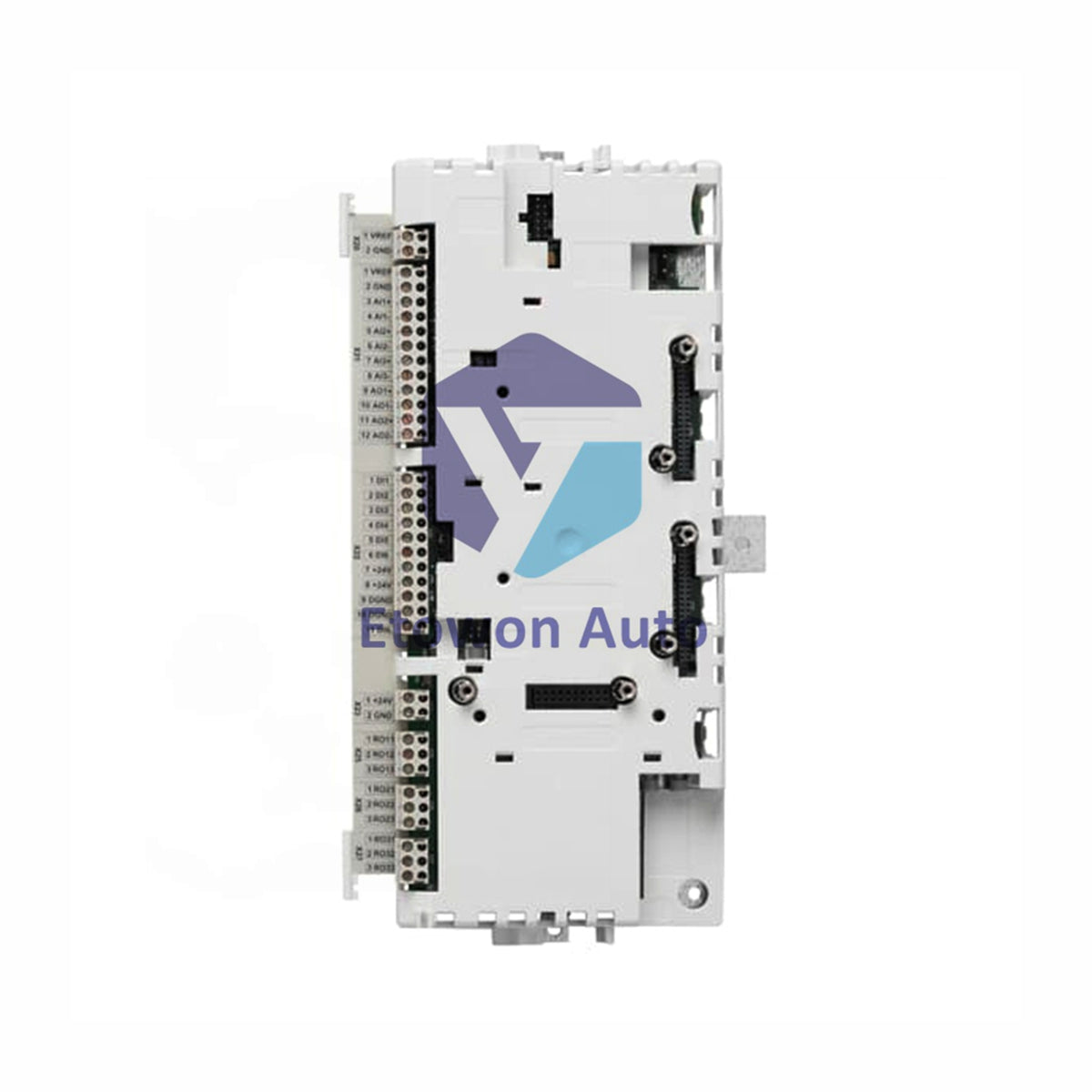

  • RDCU-02C-2
1 3

RDCU-02C

64607901 ABB RDCU-02C Dual RS-232 Ethernet Control Board

Skladda bar (12 sany), ibermek üçin taýýar

  • Manufacturer: ABB

  • Product No.: RDCU-02C

  • Product Type: Control Unit

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 600g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

ABB RDCU-02C Drive Control Unit Module

The module functions as a high-performance central control unit engineered to manage complex system loops and processing variables within ABB industrial drive architectures. Weighing exactly 0.6 kg, this high-density controller runs on a stable 24V DC auxiliary power supply, utilizing an integrated 16-channel structure alongside dedicated dual RS-232 and Ethernet communication interfaces to command industrial heavy-machinery lines securely under an IP20 protection baseline.

Technical Specifications

Manufacturer ABB Automation
ABB Type Designation RDCU-02C
Product ID / Catalog Code 64607901
Component Profile Drive Control Main Processing Unit
Total Execution Channels 16 Configurable Channels
Primary Input Power 24 V DC auxiliary system line
Maximum Current Draw 1.5 A continuous peak computation load
Integrated Network Ports 2 x RS-232 serial channels | 1 x High-speed Ethernet interface
Safety Enclosure Rating IP20 finger-safe protection classification
Chassis Mounting Layout Standard 35mm DIN Rail Mount orientation
Environmental Tolerances Operating: -20°C to +60°C | Storage: -40°C to +85°C structural window
Physical Block Dimensions 100 mm × 150 mm × 90 mm (WxHxD)
Hardware Net Weight 0.6 kg / 1.32 lbs typical balanced baseline mass
Compliance Accreditations CE, UL industrial safety standard certifications

Quick Installation Guide

  • Isolate all primary high-voltage lines and the auxiliary 24V DC supply rails from the drive enclosure before mounting or managing connections.
  • Snap the 0.6 kg RDCU-02C unit directly onto a standard 35mm DIN rail track, verifying the locking spring latch snaps firmly into place against the rail plate.
  • Route signaling lines to the 16-channel terminal array, connecting the necessary local network runs to the dual RS-232 sockets or the front Ethernet port.
  • Verify that terminal wires are securely clamped, re-engage the auxiliary 24V DC feed loop, and confirm baseline logic execution via the front processing status LEDs.

Technical FAQs

Q1: What are the layout advantages of combining both RS-232 and Ethernet interfaces on the RDCU-02C module?
A1: The simultaneous presence of dual RS-232 ports and an Ethernet interface allows the module to separate local field diagnostics from plant-wide network arrays. Technicians can use the RS-232 connections for localized laptop configuration or drive-to-drive interlocking lines while the main Ethernet port streams real-time operational diagnostics to a centralized SCADA system.

Q2: Why is a precise 1.5 A current capacity limit specified for a compact 0.6 kg control unit framework?
A2: At a baseline net weight of 0.6 kg, the unit houses dense microprocessor circuitry and signal transceivers for all 16 channels. A 1.5 A peak current consumption profile ensures the module has ample headroom to handle multiple simultaneous communication demands and high-frequency switching tasks across extended -20°C to +60°C operating spans.

Q3: Does the IP20 enclosure rating require specialized environmental considerations inside factory panels?
A3: Yes. An IP20 rating means the 0.6 kg chassis is safe from physical finger contact but provides no protection against fine airborne dust particles or moisture penetration. To shield internal trace paths from shorts and premature wear, the control card must be mounted inside a sealed electrical cabinet equipped with clean, filtered ventilation layouts.
