369B1844G5004 GE MDO53 Output Module 16 Channel 24V

Diňe 7 sany galdy

  • Manufacturer: General Electric

  • Product No.: MDO53

  • Product Type: Digital Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 400g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

GE MDO53 369B1844G5004 Digital Output Module

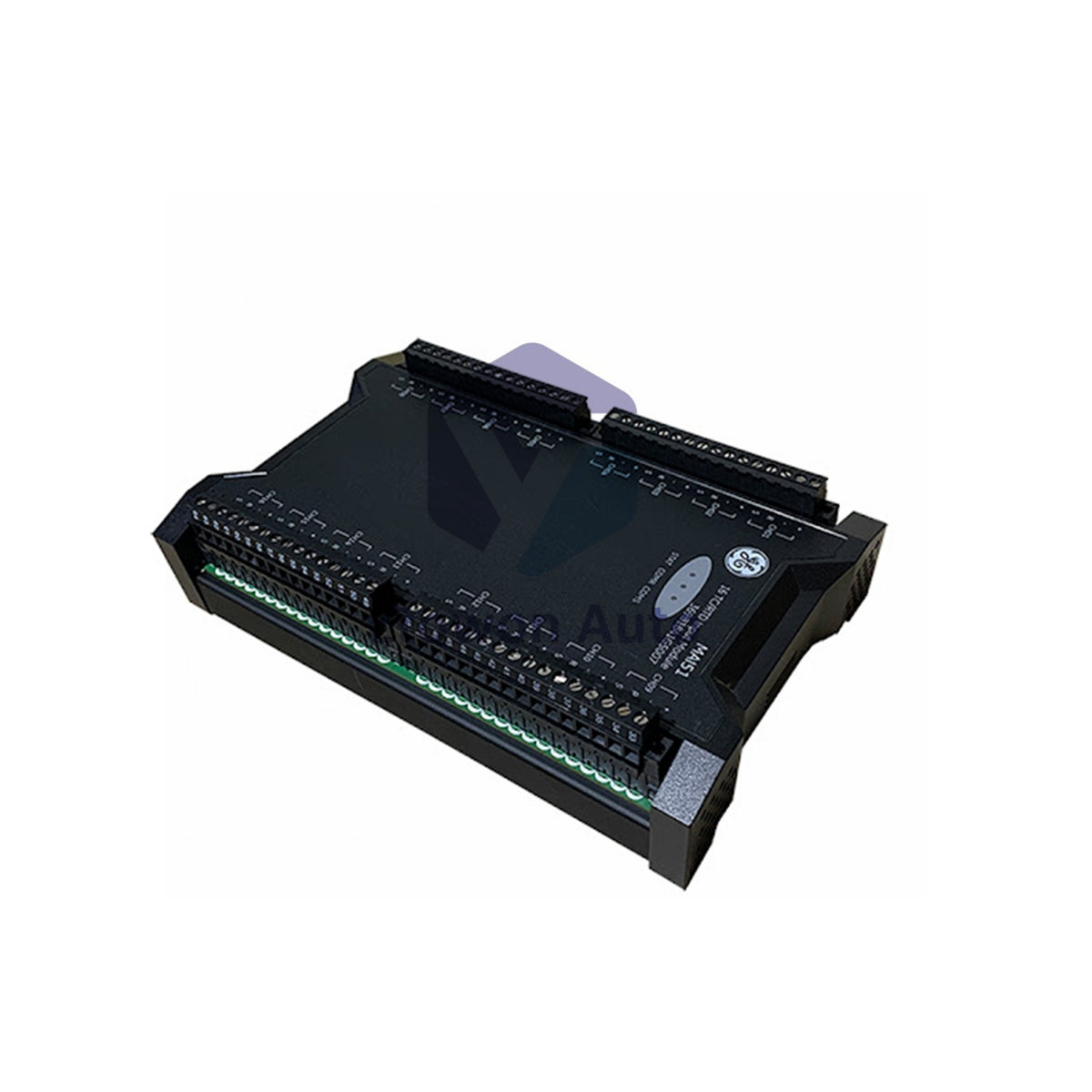

The GE MDO53 (369B1844G5004) is a 16-channel digital output module with AC relay outputs. Each channel provides 12A @ 250V AC (resistive) and 7.5A @ 250V AC (inductive) contact capacity. Operating on 24 V DC / 100 mA control signal, this module features channel output LED indicators and comprehensive diagnostics. Weighing 0.4 kg (0.88 lbs), it measures 49 x 14 x 2.7 cm.

Technical Specifications

Parameter Value
Manufacturer GE
Model MDO53 (369B1844G5004)
Product Type Digital Output Module
Output Channels 16 AC Relay Outputs
Control Signal 24 V DC / 100 mA
Contact Rating (Resistive) 12A @ 250V AC, 12A @ 30V DC
Contact Rating (Inductive) 7.5A @ 250V AC, 6A @ 30V DC
Isolation Voltage (Channel-Channel) 1000V AC
Isolation Voltage (Channel-Ground) 2500V AC
Isolation Voltage (Channel-System) 3000V AC
Power Consumption (Typical) 1.3 W
Power Consumption (Maximum) 11 W
Dimensions (W x H x D) 49 x 14 x 2.7 cm (19.3 x 5.5 x 1.1 in)
Weight 0.4 kg (0.88 lbs)
LED Indicators Channel Output, Run Status, Communication, Fault Alarm
Certification CE (with system)

Installation & Field Application Guide

  • Mount the module in the designated Nexus system slot. Ensure proper backplane connection.
  • Wire AC/DC loads to the 16 relay output terminals. Observe contact rating limits for resistive and inductive loads.
  • For inductive loads, install external suppression (RC snubbers or MOVs) across each contact.
  • Monitor LED indicators for channel status (output on/off), module run, communication, and fault conditions.

Why Choose the MDO53 Module

  • 16 relay outputs with 12A contact capacity for heavy AC/DC loads.
  • High isolation (3000V AC channel-system) ensures safety in industrial environments.
  • Comprehensive LED diagnostics simplify troubleshooting and maintenance.
  • CE certified for compliance with European standards.

Field Engineer FAQs

Q1: What is the maximum switching frequency for the relay outputs?

A1: The relay outputs are rated for mechanical life of 10 million operations and electrical life of 100,000 operations at rated load. Maximum switching frequency is 360 operations per hour at rated load.

Q2: Can I mix AC and DC loads on the same module?

A2: Yes, each channel can independently switch AC or DC loads within the rated contact capacity.

Q3: What is the recommended external suppression for inductive loads?

A3: For AC inductive loads, use an RC snubber (0.1µF + 100Ω). For DC inductive loads, use a freewheeling diode across the load.
