330701-00-30-90-02-00

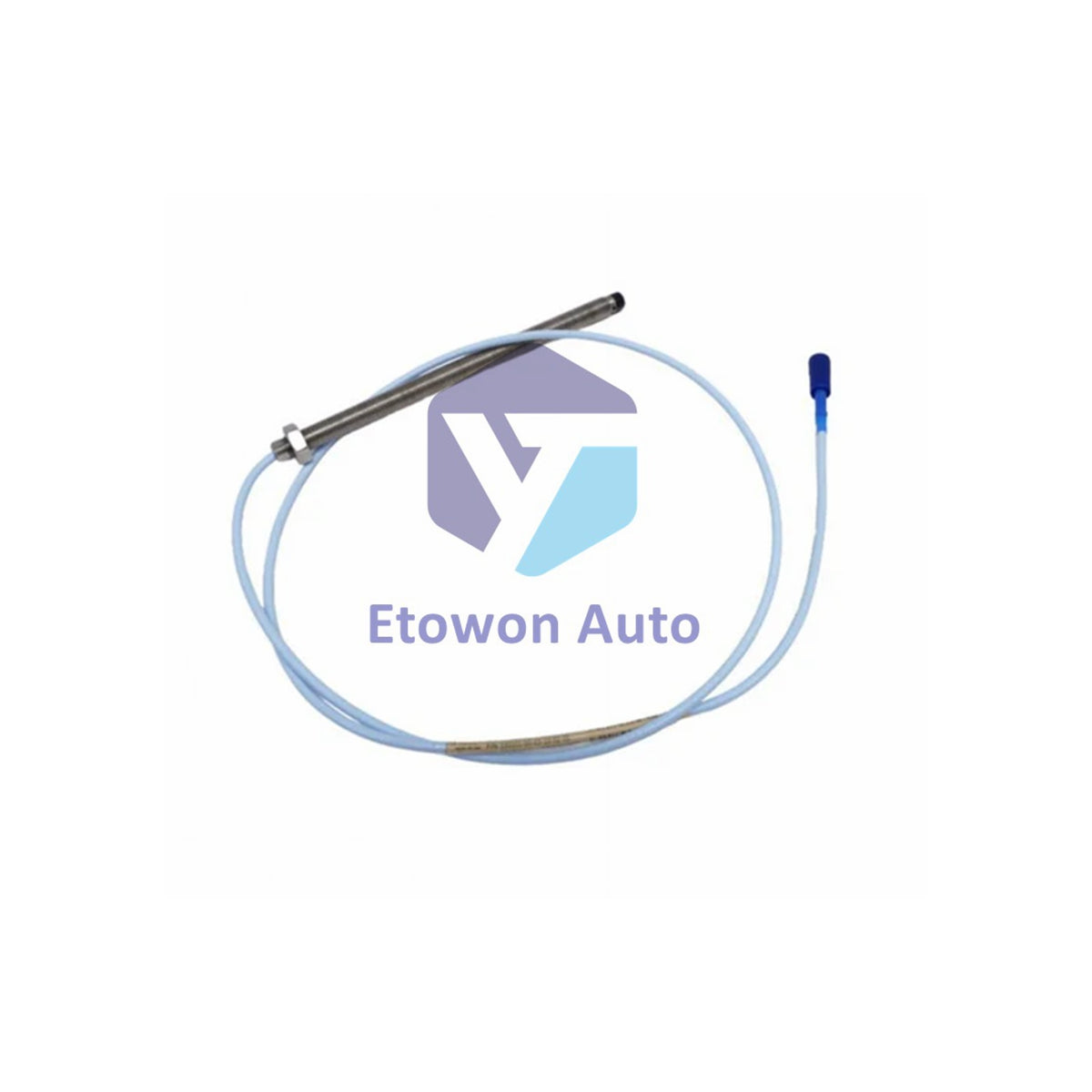

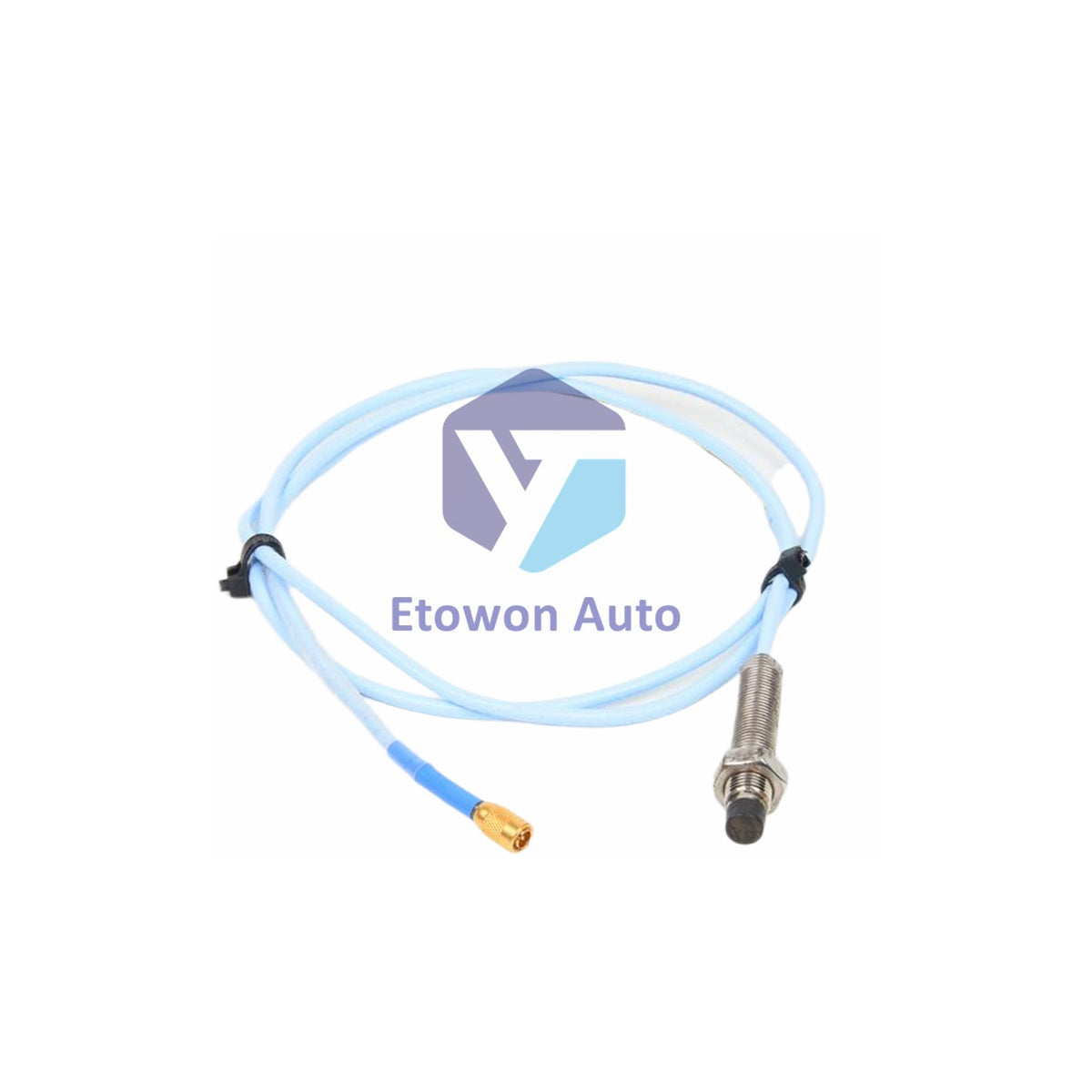

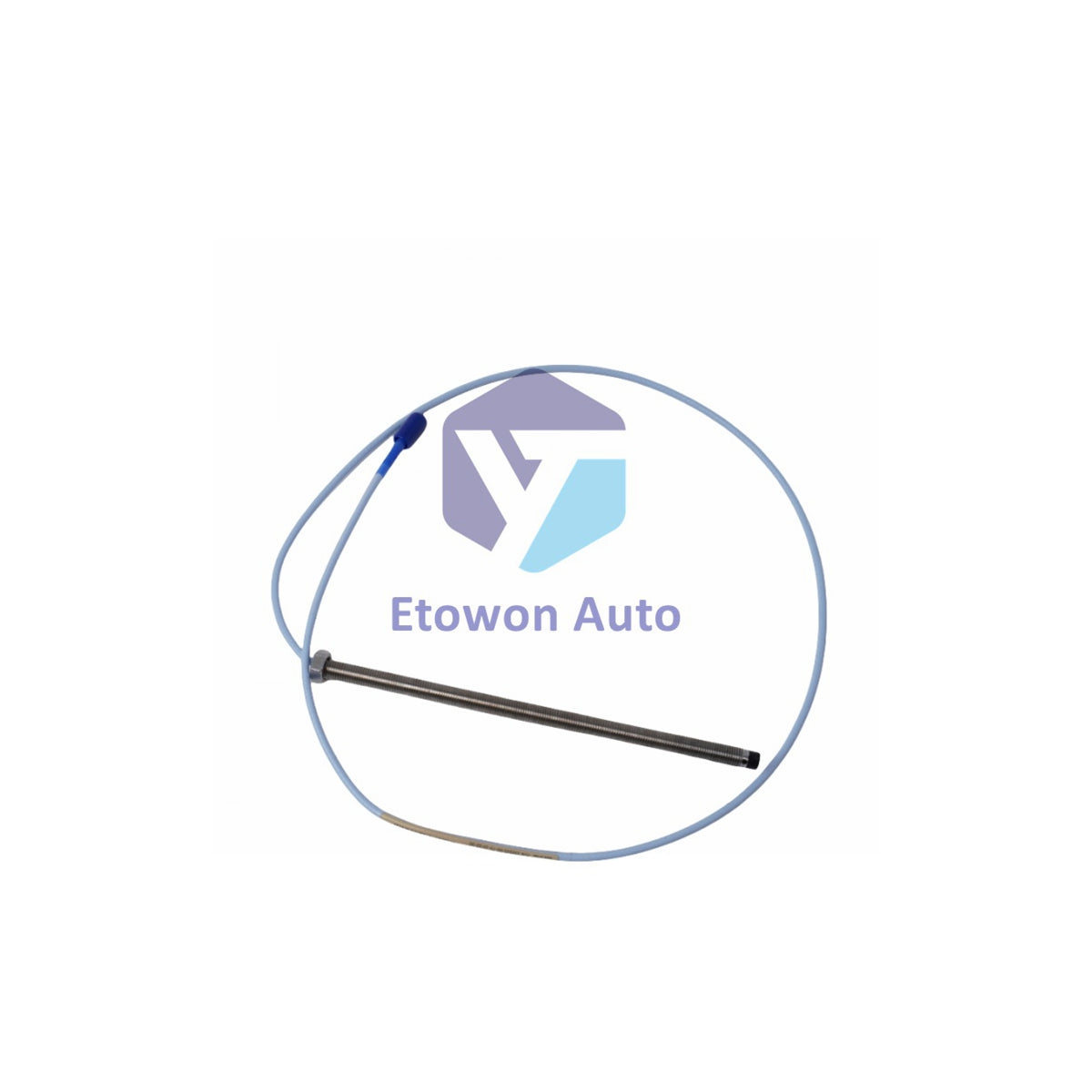

330701-00-30-90-02-00 Bently Nevada 11mm Proximity Probe 9m

Diňe 10 sany galdy

  • Manufacturer: Bently Nevada

  • Product No.: 330701-00-30-90-02-00

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 170g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The Bently Nevada 330701-00-30-90-02-00 is a high-precision 3300 XL 11 mm proximity probe designed for continuous critical machinery condition monitoring and vibration measurement. Engineered with a 1/2-20 UNF thread, a fully threaded 3.0-inch overall case length (0.0 in unthreaded), and an integrated 9.0-meter (29.5 ft) standard 75 Ω triaxial cable, this sensor delivers precise linear measurement of shaft displacement and speed. With a lightweight shipping weight of 0.17 kg, a miniature coaxial ClickLoc™ connector, and durable FEP insulation, it operates reliably across extreme industrial temperature environments ranging from -52°C to +177°C.

Key Advantages

  • 11 mm High-Accuracy Sensing: Provides extended linear measurement range for shaft vibration, thrust position, and speed detection on critical rotating equipment.
  • Integrated 9.0 m Triaxial Cable: Long integrated FEP-insulated 75 Ω triaxial cable eliminates the need for intermediate extension cables in distant junction box installations.
  • ClickLoc™ Coaxial Connector: Features a secure miniature coaxial ClickLoc connector to prevent accidental disconnects in high-vibration machinery environments.
  • Extreme Thermal Endurance: Designed to withstand harsh operating temperature extremes from -52°C up to +177°C (-62°F to +350°F).
  • Lightweight Physical Profile: Weighs approximately 0.17 kg for cost-effective handling and low-mass installation setup.

Technical Specifications

Manufacturer / Brand Bently Nevada
Part / Complete Model Number 330701-00-30-90-02-00
Sensor Type / System 3300 XL 11 mm Proximity Probe
Thread Size & Case Length 1/2-20 UNF | 3.0 in Case Length (0.0 in Unthreaded)
Cable Length & Type 9.0 meters (29.5 ft) | Standard 75 Ω Triaxial, FEP Insulation
Connector Option Miniature Coaxial ClickLoc™ Connector
Probe Resistance (RPROBE) 8.5 ± 1.1 ohms
Minimum Cable Bend Radius 25.4 mm (1.0 in)
Operating Temperature Range -52°C to +177°C (-62°F to +350°F)
Shipping Weight 0.17 kg (0.37 lbs)
Agency Approval Option 00 (No Agency Approval)

Frequently Asked Questions

Q1: What does the model code 330701-00-30-90-02-00 represent?

A1: It designates a 3300 XL 11mm probe with 0.0 in unthreaded length, 3.0 in case length, 9.0m cable, and ClickLoc connector.

Q2: What is the operating temperature range for this proximity probe?

A2: The probe is rated to operate reliably in ambient temperatures from -52°C to +177°C.

Q3: What is the total shipping weight of the 330701-00-30-90-02-00?

A3: The unit has a total shipping weight of approximately 0.17 kg.

Product Resources

📄 Download PDF
🏷️ Tags: 3300 XL 11 mm Probe Proximity Probe
