330701-00-20-50-02-00

330701-00-20-50-02-00 Bently Nevada 11mm Probe 5m

Skladda bar (18 sany), ibermek üçin taýýar

  • Manufacturer: Bently Nevada

  • Product No.: 330701-00-20-50-02-00

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 170g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

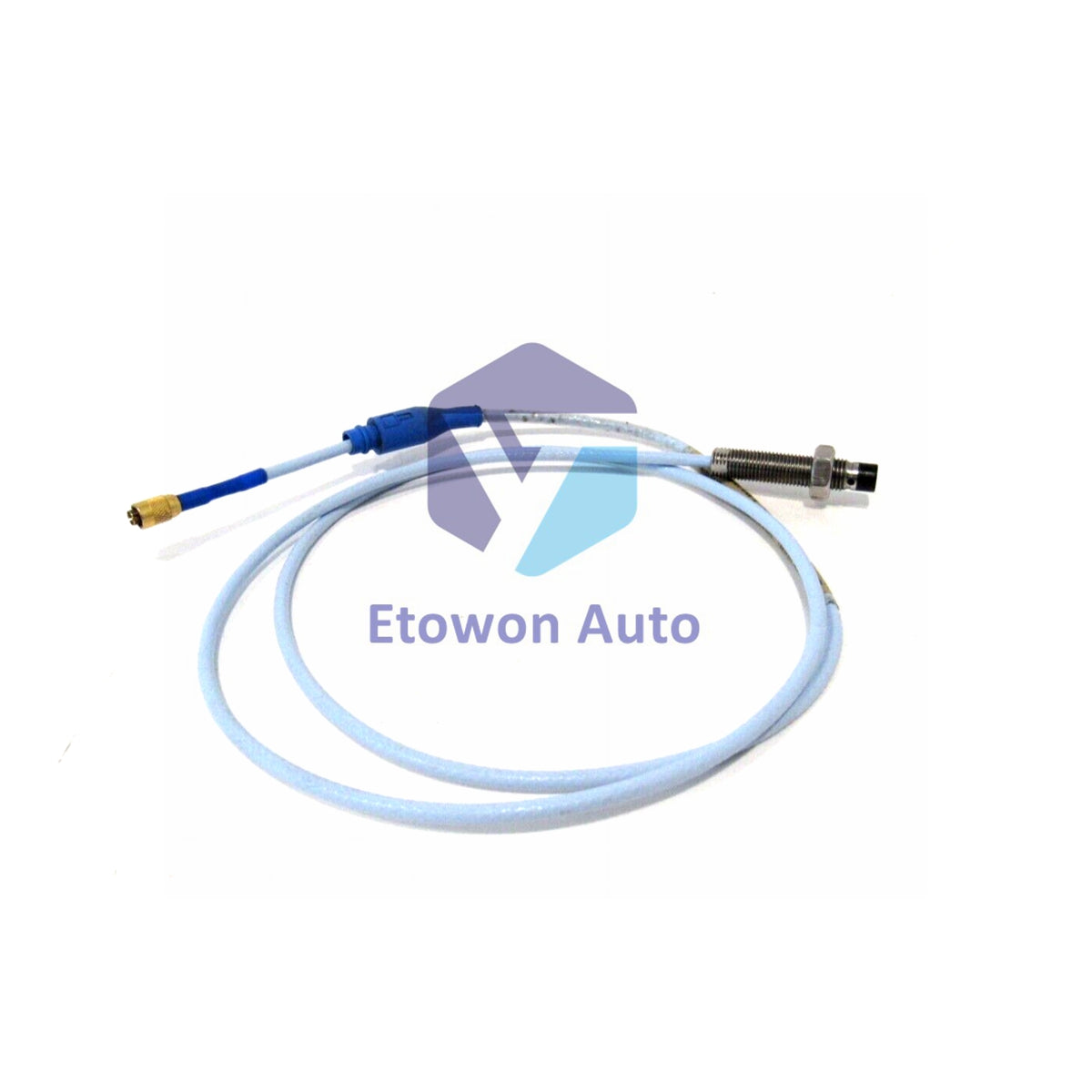

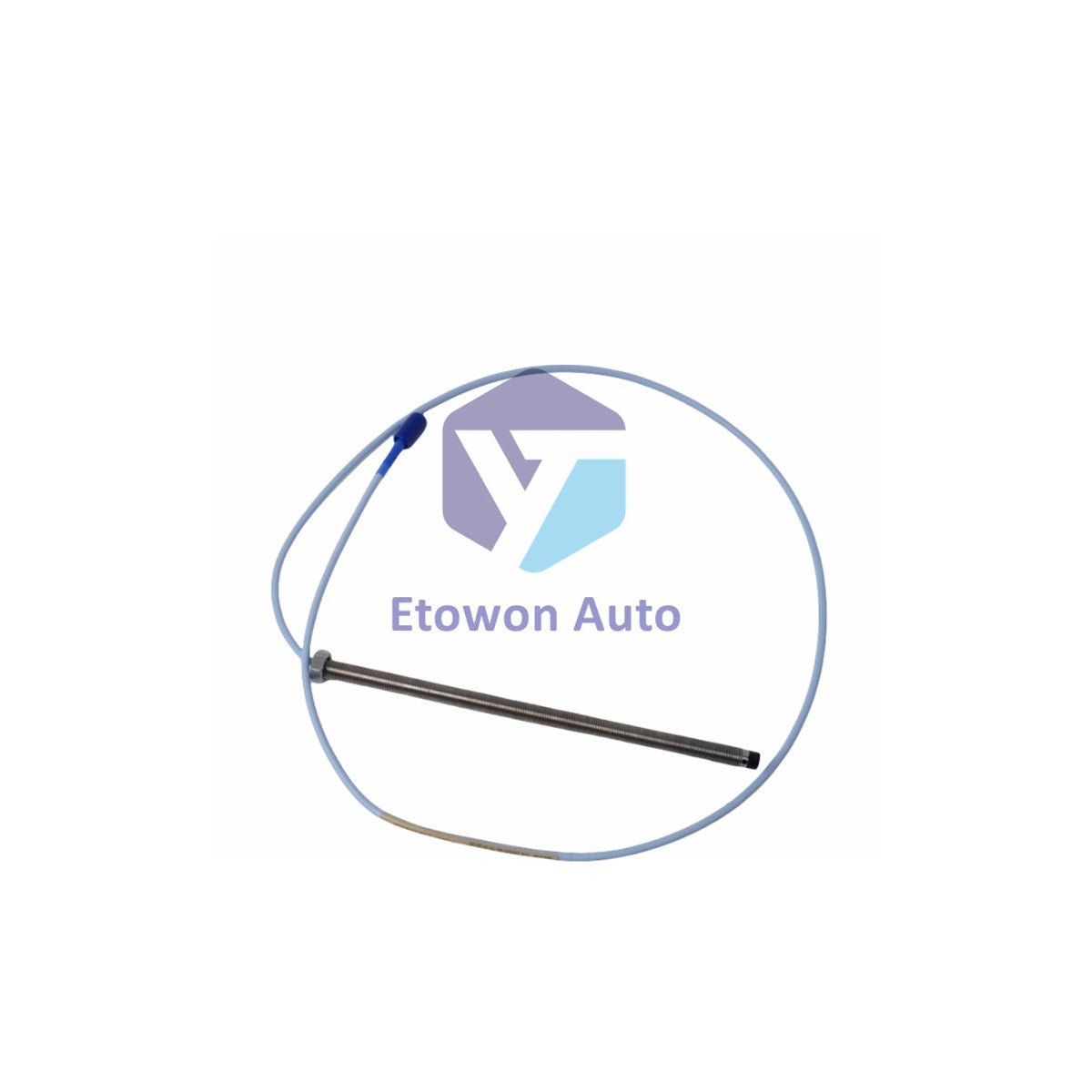

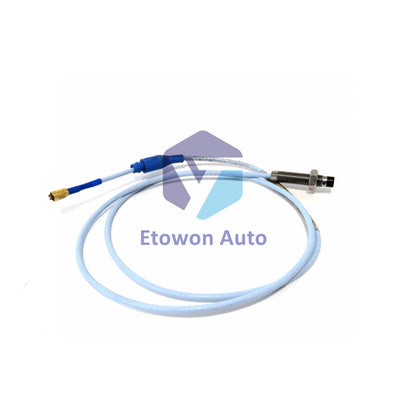

330701-00-20-50-02-00 Bently Nevada 3300 XL 11mm Proximity Probe – 5m

The Bently Nevada 330701-00-20-50-02-00 is a 3300 XL 11 mm proximity probe with 1/2-20 UNF thread, without armor. 2.0 inch case length, 5.0 metre total length with ClickLoc connector. Designed for use with the five meter Proximitor Sensor only.

Product Information

Manufacturer Bently Nevada
Product Number 330701-00-20-50-02-00
Product Type 3300 XL 11 mm Probe
Thread Type 1/2-20 UNF
Armor Without Armor
Unthreaded Length 0.0 in
Overall Case Length 2.0 in
Total Length 5.0 metres (16.4 feet)
Connector Type Miniature Coaxial ClickLoc with Standard Cable
Agency Approval Not Required (00)
Weight 0.17 kg
Origin U.S.A.
Certificate Certificate of Origin (COO) Available

Model Breakdown

330701 3300 XL 11 mm Probe, 1/2-20 UNF, No Armor
00 0.0 in Unthreaded Length
20 2.0 in Overall Case Length
50 5.0 metre Total Length (16.4 ft)
02 ClickLoc Connector, Standard Cable
00 No Agency Approval Required

Technical Specifications

Probe Tip Material Polyphenylene Sulfide (PPS)
Probe Case Material AISI 304 Stainless Steel
Probe Cable Specification 75 Ω Triaxial, FEP Insulated
Nominal DC Resistance (5m) 7.2 ± 0.8 Ω
Maximum Thread Engagement (1/2-20) 0.750 in
Recommended Torque (1/2-20 Case) 15.2 N·m (133 in·lb)
Connector Torque Finger Tight (Max 0.565 N·m / 5 in·lb)
Minimum Bend Radius 25.4 mm (1.0 in)

Temperature and Environment

Operating and Storage Temperature -51°C to +177°C (-60°F to +351°F)
Seal Material Viton O-Ring

Features

  • 3300 XL 11 mm proximity probe
  • 1/2-20 UNF thread without armor
  • 2.0 inch overall case length
  • 5.0 metre total length with ClickLoc connector
  • Designed for use with five meter Proximitor Sensor
  • PPS probe tip for rugged durability
  • 75 Ω triaxial FEP insulated cable
  • Certificate of Origin available

Applications

  • Radial vibration monitoring
  • Thrust position measurement
  • Eccentricity monitoring
  • Turbine supervisory systems
  • Compressor condition monitoring

FAQs

Q1: What is the case length and total length?
A1: 2.0 inch overall case length with 5.0 metre (16.4 feet) total length.

Q2: What is the thread type and weight?
A2: 1/2-20 UNF thread with weight of 0.17 kg.

Q3: What is the operating temperature range?
A3: -51°C to +177°C (-60°F to +351°F).

Product Resources

📄 Download PDF
🏷️ Tags: 3300 XL 11 mm Probe Proximity Probe
