330104-00-06-05-01-CN

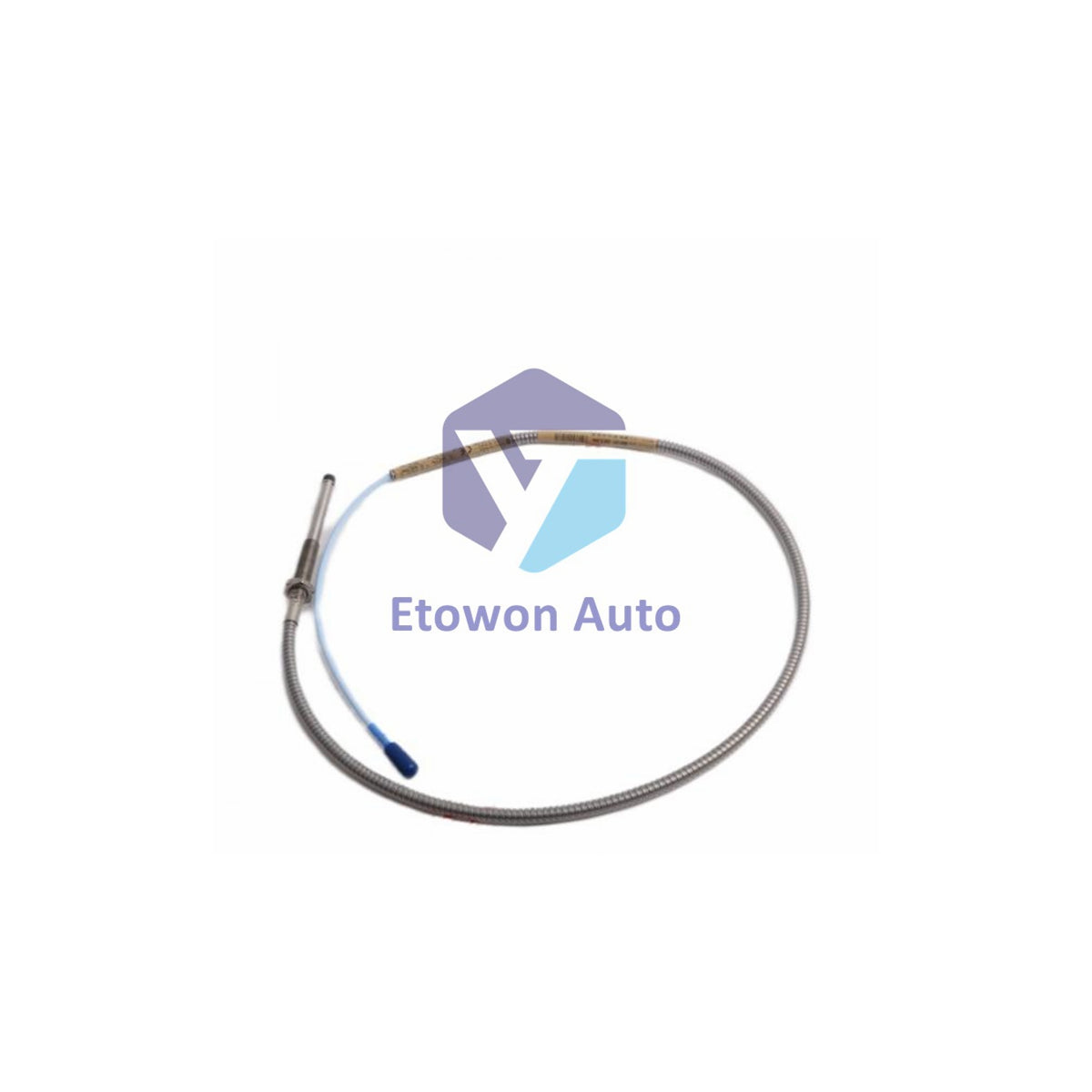

330104-00-06-05-01-CN Bently Nevada | 8mm XL Probe 0.5m

Skladda bar (26 sany), ibermek üçin taýýar

  • Manufacturer: Bently Nevada

  • Product No.: 330104-00-06-05-01-CN

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 120g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The Bently Nevada 330104-00-06-05-01-CN is a 3300 XL 8mm Proximity Probe with M10×1 armored thread and 0.5m cable. This compact probe features PPS polymer tip, AISI 303/304 stainless steel case, and ClickLoc connector. It delivers reliable non-contact vibration and position measurement for rotating machinery.

Ordering Configuration

Option Code Description
Base Model 330104 8mm Probe, M10×1 thread, armored
Unthreaded Length 00 0 mm
Case Length 06 60 mm
Cable Length 05 0.5 m
Connector Type 01 ClickLoc connector, standard cable
Agency Approval CN Country specific approvals

Technical Specifications

Parameter Value
Part Number 330104-00-06-05-01-CN
Sensing Diameter 8 mm
Thread Size M10 x 1 (armored)
Unthreaded / Case Length 0 mm / 60 mm
Cable Length 0.5 m
Probe DC Resistance 7.45Ω ± 0.5Ω
Connector Type ClickLoc
Probe Tip Material PPS Polymer (-40°C to +120°C)
Case Material AISI 303/304 Stainless Steel
Sealing Viton® O-ring
Supply Voltage -17.5 to -26 Vdc (12mA max)
Supply Sensitivity < 2mV per volt change
Output Resistance 50Ω
Calibration Gap 1.27 mm (50 mils)
Load Impedance 10 kΩ
Altitude Rating 2000 m
Certification CN country approval, non-incendive (DW-140979)
Weight Approx. 0.12 kg (0.26 lbs)
Country of Origin USA

Installation Guide

Thread the probe into the mounting hole using M10×1 thread. Gap the probe at 1.27 mm (50 mils) to an AISI 4140 steel target for optimal linear range. Connect the ClickLoc connector with finger-tight torque. Ensure the armored cable maintains minimum bend radius. Verify probe DC resistance of 7.45Ω ± 0.5Ω before system start-up.

Engineering Advantages

This probe delivers reliable measurement with PPS polymer tip stability from -40°C to +120°C. The armored M10×1 thread protects the cable in harsh environments. Viton O-ring seals differential pressure. Non-incendive circuit certification enables use in hazardous locations. At just 0.12 kg, it minimizes mechanical loading.

Technical FAQs

Q1: Suffix code meanings?
A1: 00=0mm unthreaded, 06=60mm case, 05=0.5m cable, 01=ClickLoc connector, CN=country approvals.

Q2: Supply and resistance specs?
A2: -17.5 to -26 Vdc at 12mA max. Probe DC resistance 7.45Ω ± 0.5Ω. Output resistance 50Ω.

Q3: Target material and gap?
A3: Calibrated to AISI 4140 steel target. Gap at 1.27 mm (50 mils) with 10kΩ load impedance.
