330103-00-14-10-02-CN Bently Nevada 14mm Case Probe New

Technical Specifications

Product Overview

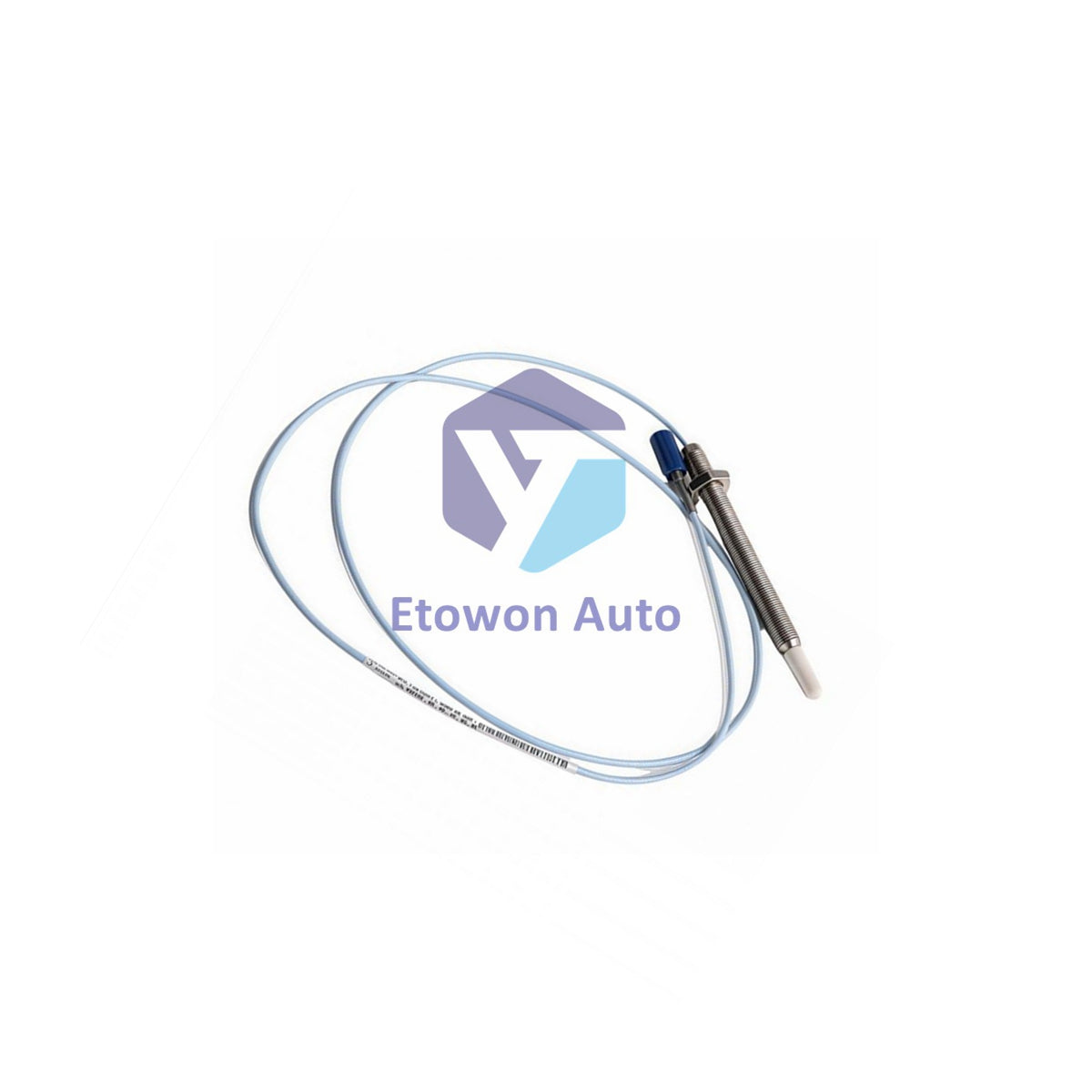

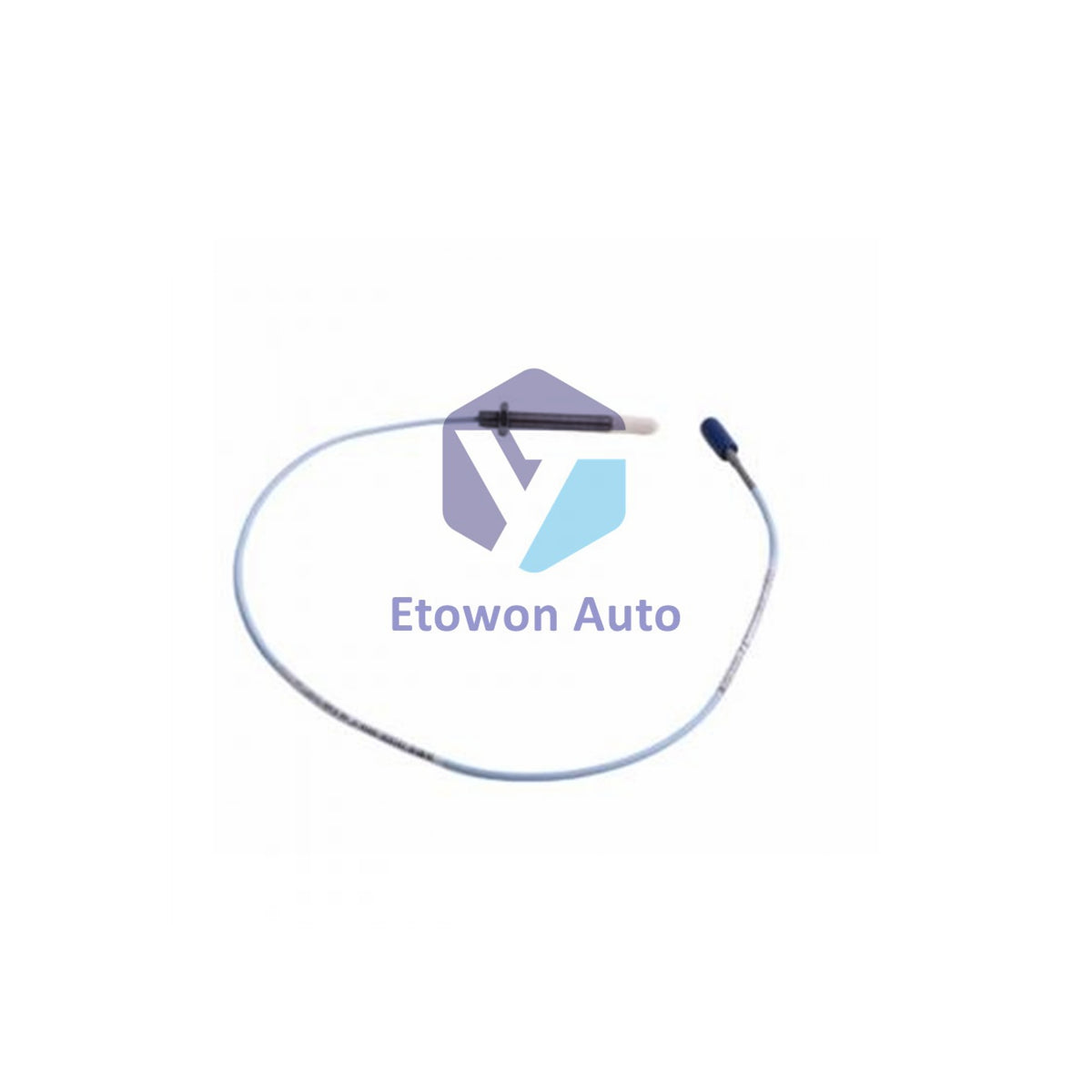

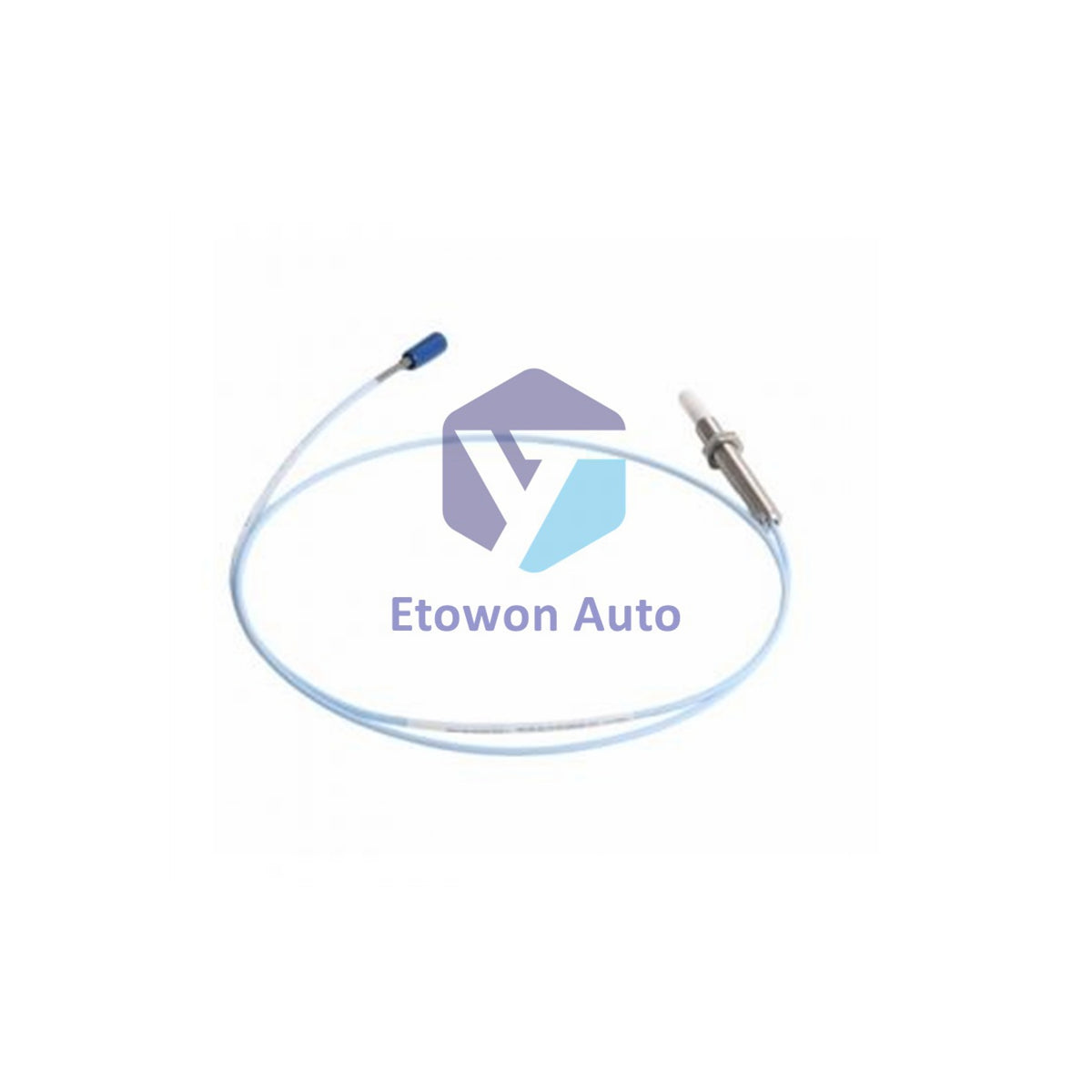

The Bently Nevada 330103-00-14-10-02-CN is a high-reliability 3300 XL 8mm Industrial Proximity Probe optimized for critical machine vibration diagnostics. Weighing a sturdy 0.323 kg, this dynamic sensor is constructed with a 14mm case length, an unarmored M10 × 1 metric thread housing, and a 1.0-meter heavy-duty Viton®-jacketed triad cable. Featuring the specialized "CN" certification prefix, this transducer fulfills rigorous explosive-proof requirements, integrating multiple protection layers for Zone 0 and Class I Division 2 hazardous operating layouts.

Core Technical Advantages

• Enhanced Environmental Resilience: Built with a high-grade PPS tip stable up to +218°C and a Viton® jacket enduring continuous +260°C temperatures, ensuring reliable performance in harsh conditions.
• Superior Moisture Protection: Limits Incremental Scale Factor (ASF) drift to under 3% even during extended exposure profiles of 93% relative humidity for 56 consecutive days.
• Broad Measuring Range: Delivers linear measurement tracking across a wide 0.25 mm to 2.3 mm window with an exceptional peak vibration safety limit of 20g.
• Certified Hazardous Compliance: The 0.323 kg assembly incorporates comprehensive ATEX, IECEx, and NEC 500 intrinsic safety ratings (ia, ec, nA) for deployment in explosive areas.

Installation Guide

Thread the M10 × 1 probe case into the machine housing layout, minding the maximum thread engagement depth of 15mm. Calibrate the target distance to the optimal physical air gap of 1.27 mm to establish a -9 Vdc baseline calibration signal. Ensure the 0.323 kg housing is fully torque-anchored and route the Viton® cable safely away from mechanical hazards. Long-distance field wiring hookups up to 305 meters are fully supported, maintaining high signal integrity with only a 5% roll-off at 100 kHz frequency levels.

Technical FAQs

Q1: What does the "CN" suffix indicate on this 3300 XL proximity probe model?
A1: The CN modifier denotes Country-Specific Hazardous Area Compliance, validating that the probe contains intrinsic safety barriers matching regional ex-proof certifications.

Q2: Can this specific probe handle pressure-sealed installation environments?
A2: Yes. The probe features a premium Viton® O-ring intended to seal differential pressures between the tip and case body. Custom factory pressure testing can be ordered if required.

Q3: How much does the cable type choice modify the physical weight profile?
A3: This model utilizes a rugged, fluid-resistant Viton®-jacketed triad cable configuration, carrying a total base hardware weight specification of 323g/m (±2% deviation tolerance).
