330103-00-05-90-02-05

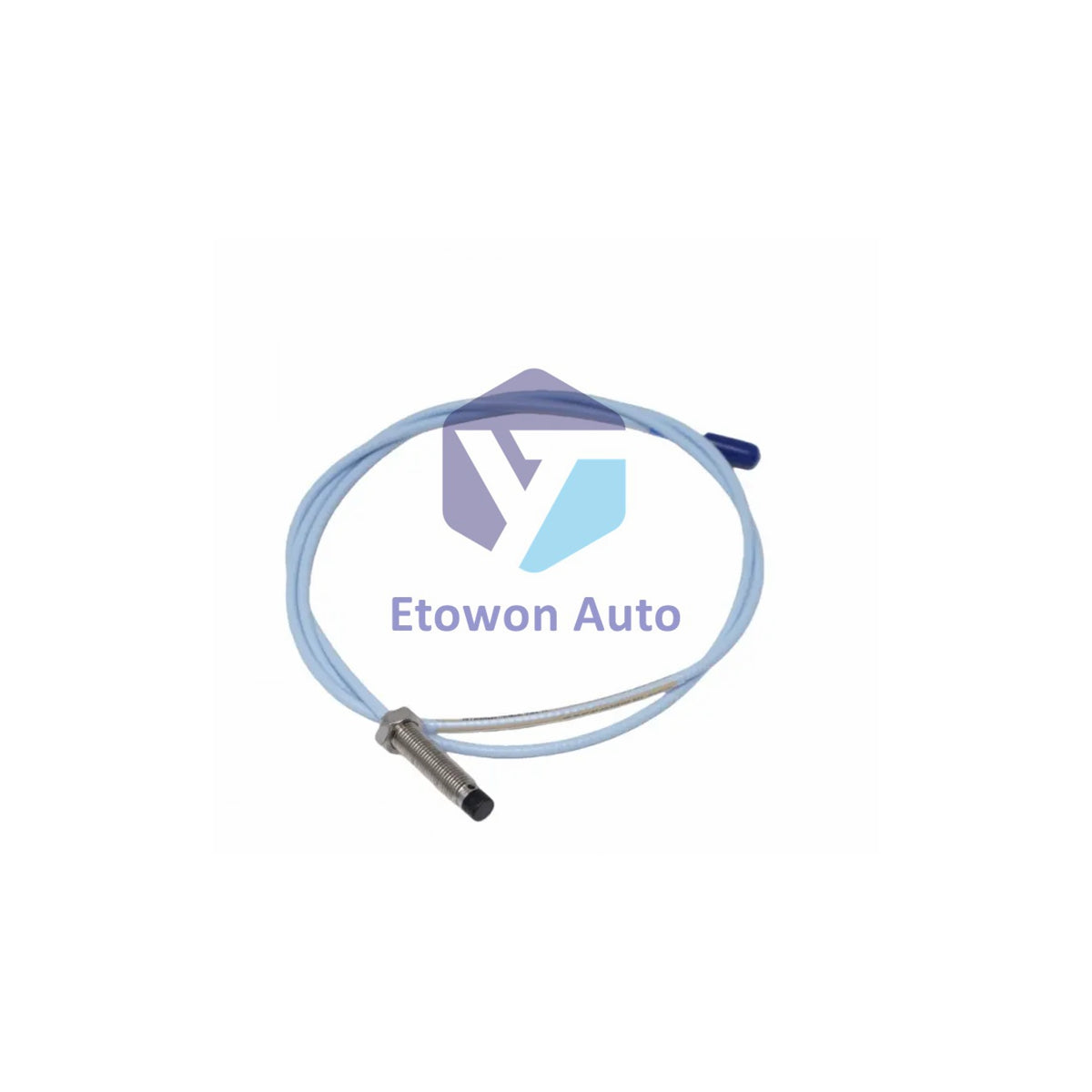

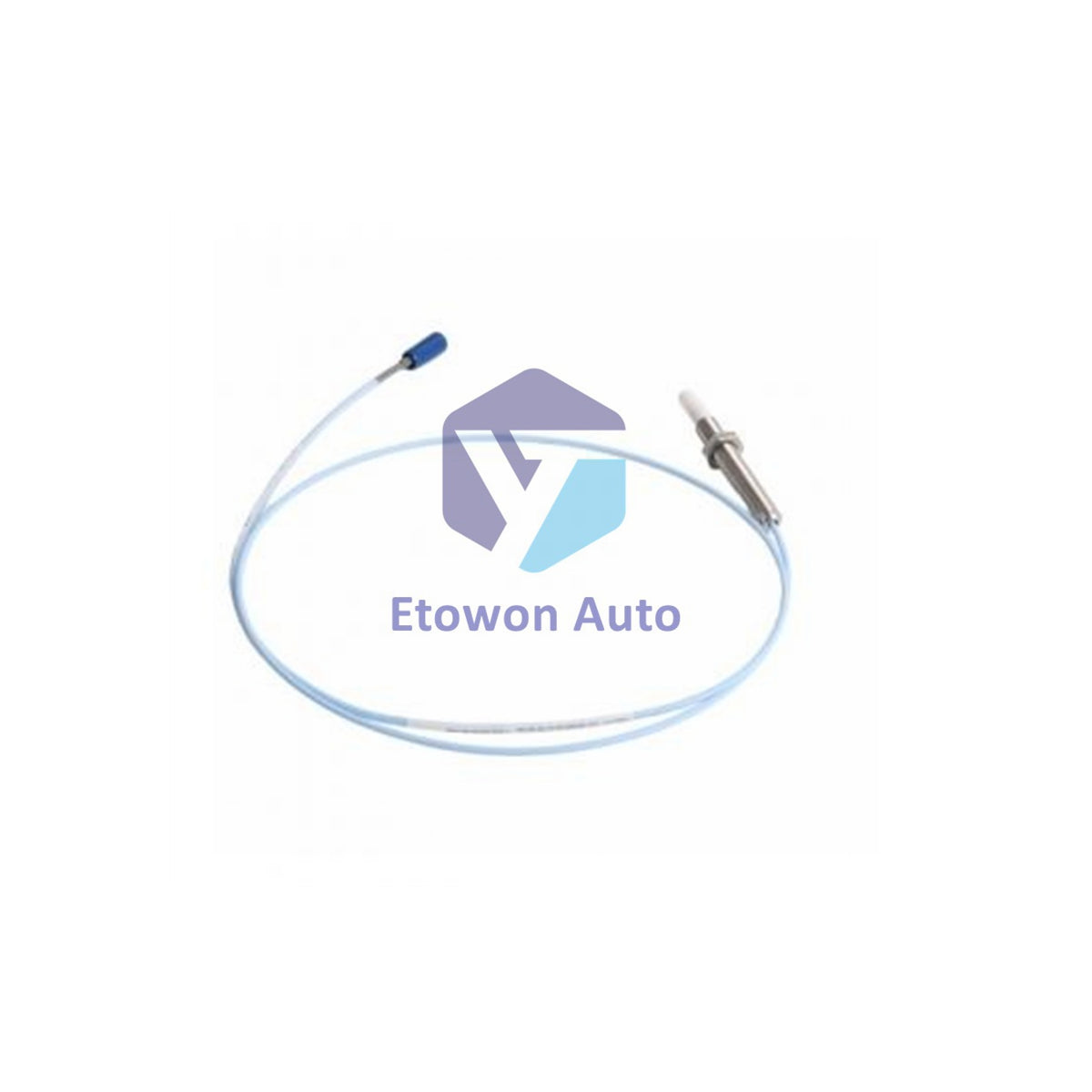

330103-00-05-90-02-05 Bently Nevada 8mm Probe M10x1

Skladda bar (19 sany), ibermek üçin taýýar

  • Manufacturer: Bently Nevada

  • Product No.: 330103-00-05-90-02-05

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 323g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

330103-00-05-90-02-05 Bently Nevada 3300 XL 8mm Proximity Probe – M10x1

The Bently Nevada 330103-00-05-90-02-05 is a 3300 XL 8 mm proximity probe with M10 x 1 thread, without armor. 50 mm case length, 9.0 metre total length with ClickLoc connector. Weight is 0.323 kg.

Product Information

Manufacturer Bently Nevada
Product Number 330103-00-05-90-02-05
Product Type 3300 XL 8 mm Probe
Thread Type M10 x 1
Armor Without Armor
Overall Case Length 50 mm
Total Length 9.0 metres (29.5 feet)
Connector Type Miniature Coaxial ClickLoc with Standard Cable
Agency Approvals CSA, ATEX, IECEx
Weight 0.323 kg (323 g/m / 11.4 oz)
Origin U.S.A.
Certificate Certificate of Origin (COO) Available

Model Breakdown

330103 3300 XL 8 mm Probe, M10 x 1, Without Armor
00 0 mm Unthreaded Length
05 50 mm Overall Case Length
90 9.0 metre Total Length (29.5 ft)
02 ClickLoc Connector, Standard Cable
05 CSA, ATEX, IECEx Approvals

Technical Specifications

Linear Range 2 mm (80 mils) from 0.25 to 2.3 mm (10 to 90 mils)
Recommended Gap (Radial Vibration) -9 Vdc (1.27 mm / 50 mils)
Incremental Scale Factor (9m System) 7.87 V/mm (200 mV/mil) ±6.5%
Nominal DC Resistance (9.0m) 9.87 ± 0.50 Ω
Power Supply -17.5 Vdc to -26 Vdc (12 mA max)
Output Resistance 50 Ω
Supply Sensitivity < 2 mV per Volt Change

Temperature and Environment

Operating Temperature (Standard) -52°C to +177°C (-62°F to +350°F)
Probe Tip Material Polyphenylene Sulfide (PPS)
Probe Case Material AISI 303 or 304 Stainless Steel
Seal Material Viton O-Ring

Features

  • 3300 XL 8 mm proximity probe
  • M10 x 1 thread without armor
  • 50 mm overall case length
  • 9.0 metre total length with ClickLoc connector
  • CSA, ATEX, and IECEx approvals
  • Patented TipLoc molding for robust tip-to-body bond
  • CableLoc design with 330 N (75 lbf) pull strength
  • PPS probe tip for rugged coil encapsulation
  • Lightweight at 0.323 kg
  • Certificate of Origin available

Applications

  • Radial vibration monitoring
  • Thrust position measurement
  • Eccentricity monitoring
  • Turbine supervisory systems
  • Compressor condition monitoring

FAQs

Q1: What is the case length and total length?
A1: 50 mm overall case length with 9.0 metre (29.5 feet) total length.

Q2: What is the thread type and approvals?
A2: M10 x 1 thread with CSA, ATEX, and IECEx approvals.

Q3: What is the weight and DC resistance?
A3: 0.323 kg with nominal DC resistance of 9.87 ± 0.50 Ω.
