25B-D030N114

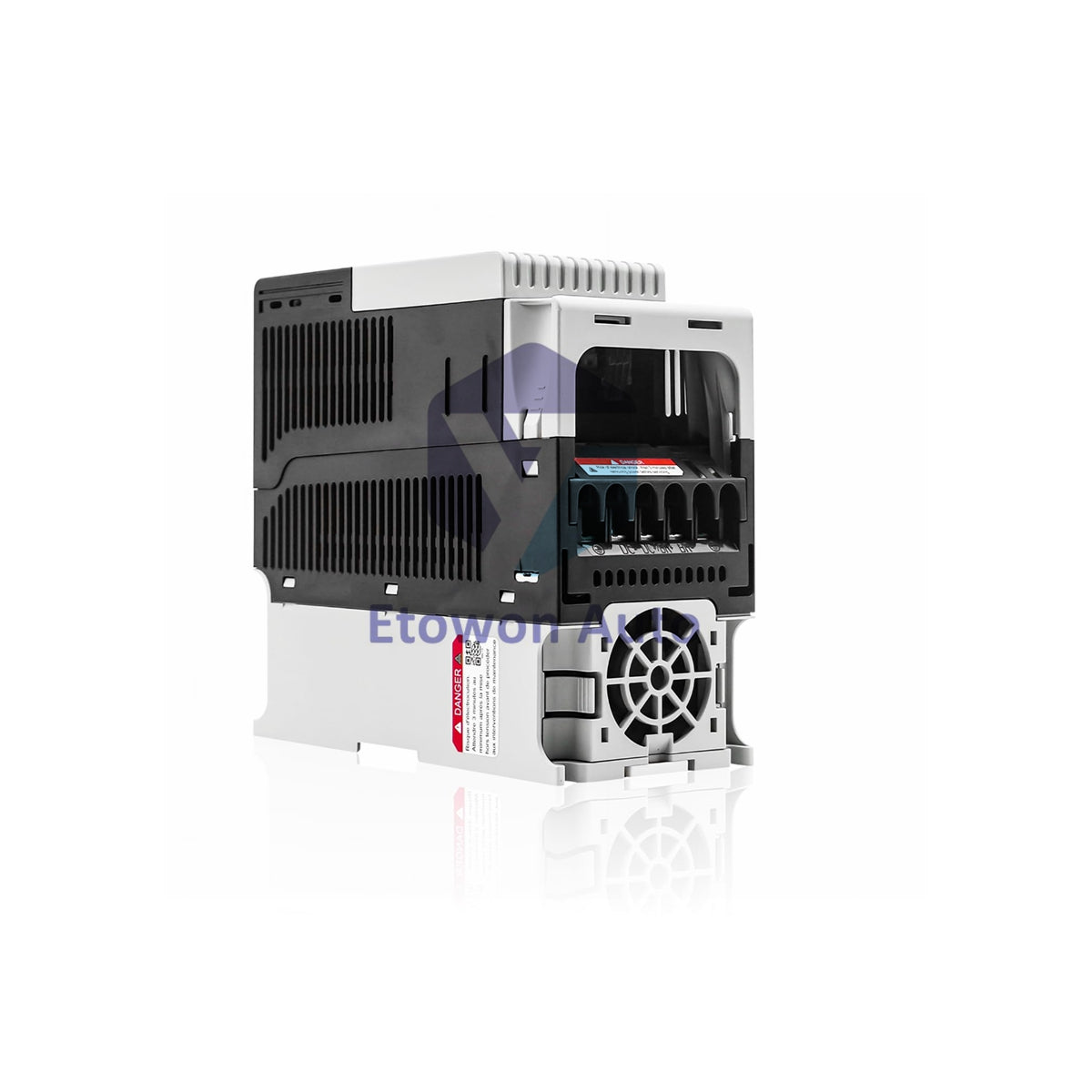

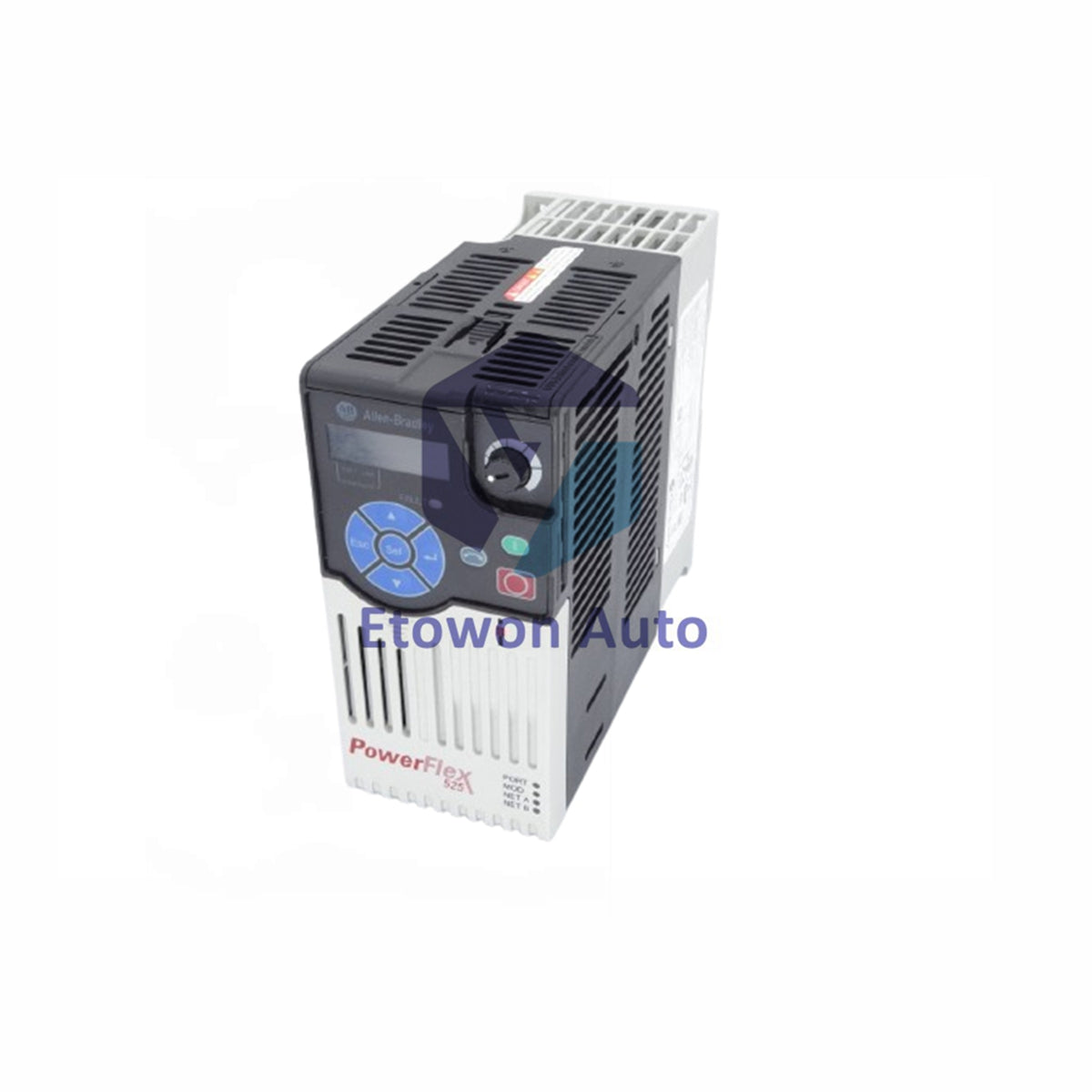

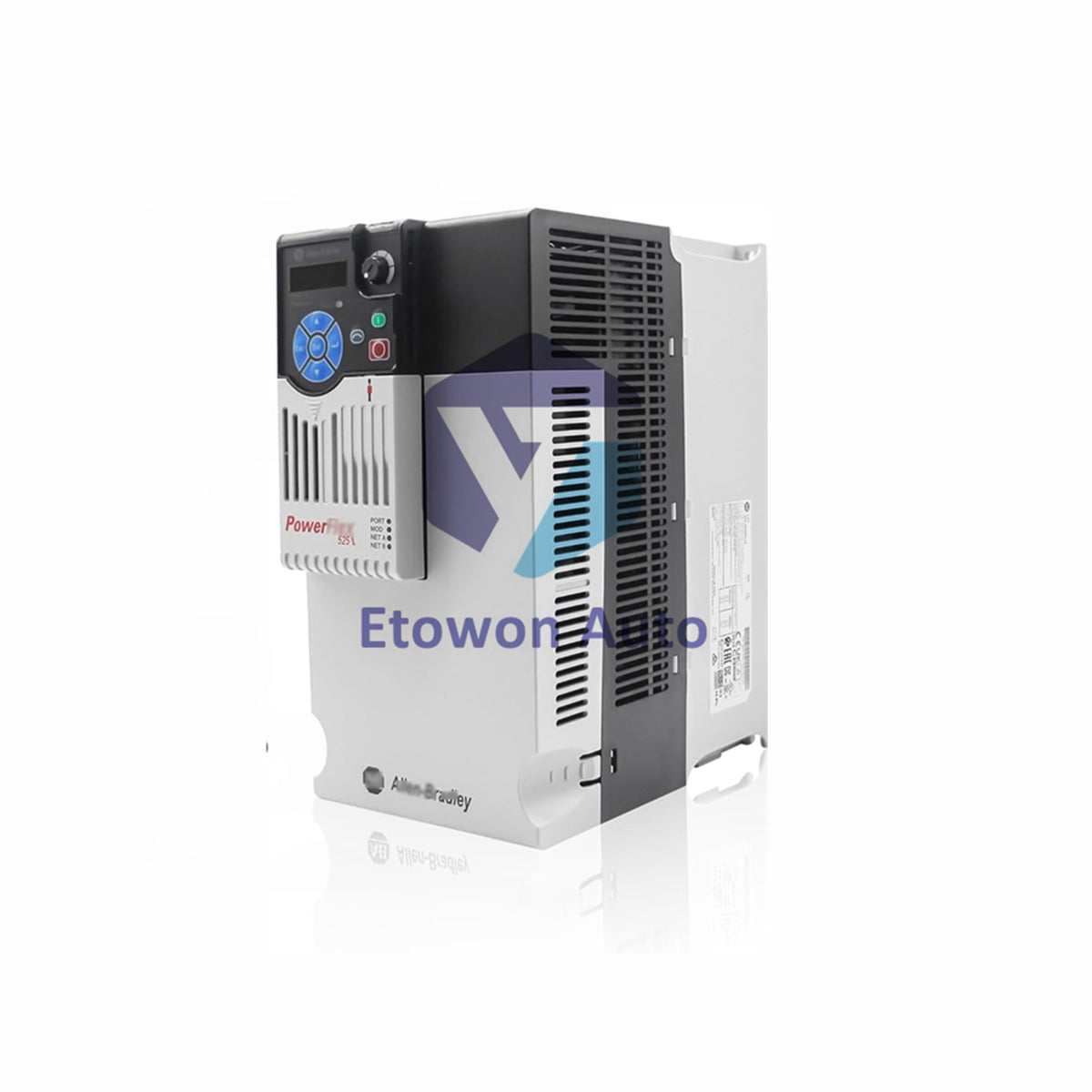

25B-D030N114 Allen-Bradley PowerFlex 525 VFD 3-Phase 30A

Skladda bar (18 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 25B-D030N114

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 8000g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Allen-Bradley PowerFlex 525 Variable Frequency Drive (25B-D030N114)

The Allen-Bradley 25B-D030N114 is an industrial-grade PowerFlex 525 variable frequency drive (VFD) designed for modulating motor speed control across complex automation systems. Powered by a 3-phase 323–528V AC input, this Frame D drive provides a rated output current of 30.0 A and a output capacity of 15.0 kW (20.0 HP) for both normal and heavy-duty applications. Housed in a robust IP20 / NEMA UL Open Type enclosure weighing approximately 8.0 kg (17.6 lbs), it features embedded EtherNet/IP and RS485/DSI interfaces, an integral EMC filter, a dynamic brake transistor, and a multi-language LCD Human-Machine Interface (HMI) for local programming.

Key Performance Advantages

Supports multiple control algorithms, including Volts-per-Hertz, Sensorless Vector Control (SVC), Closed Loop Velocity Vector Control, and Permanent Magnet Motor control. Engineered for safety and panel efficiency, it integrates Safe Torque-Off (SIL2 / PLd Cat 3), Automatic Device Configuration (ADC), and zero-stacking installation to optimize cabinet footprint.

Technical Specifications

Manufacturer & Series Rockwell Automation / Allen-Bradley (PowerFlex 525 Series)
Part / Catalog Number 25B-D030N114
Input Voltage & Phase 323–528 VAC (480V Nominal) / 3-Phase / 33.0 A Input
Output Rating & Current 0–460 VAC / 30.0 A / 15.0 kW (20.0 HP)
Frame Size & Weight Frame D / Approx. 8.0 kg (17.6 lbs) / IP20 Open Type
EMC Filter & Safety Integral EMC Filter / Safe Torque-Off (SIL2 / PLd Cat 3)
Integrated I/O Channels 7 Discrete Inputs, 2 Opto Outputs, 2 Relay Contacts, 2 Analog In, 1 Analog Out
Communication Interfaces Embedded EtherNet/IP & RS485/DSI (Optional: Dual EtherNet/IP, DeviceNet, Profibus DP)

Installation & Maintenance Guidelines

  • Panel Mounting & Weight Support: Secure the Frame D housing (weighing 8.0 kg) directly to a heavy-duty panel plate or reinforced DIN rail setup. Zero-stacking is supported side-by-side; ensure top and bottom clearance for proper airflow around the integrated heat sink.
  • Power & Ground Wiring: Connect the 3-phase 480V AC supply through appropriate branch circuit protection and line reactors if required. Properly ground the integral EMC filter using short, low-impedance connections.
  • Network & Parameter Configuration: Use the embedded LCD module or Studio 5000 environment via EtherNet/IP to program motor parameters, configure Automatic Device Configuration (ADC), and set Safe Torque-Off functions.

Frequently Asked Questions

Q1: Has EMC filter?
A1: Yes, features an integral EMC filter.

Q2: Key feature vs PF523?
A2: Safe Torque-Off & embedded EtherNet/IP.

Q3: Drives 3-phase motors?
A3: Yes, drives 3-phase motors up to 20 HP (15 kW).
