22B-B033F104

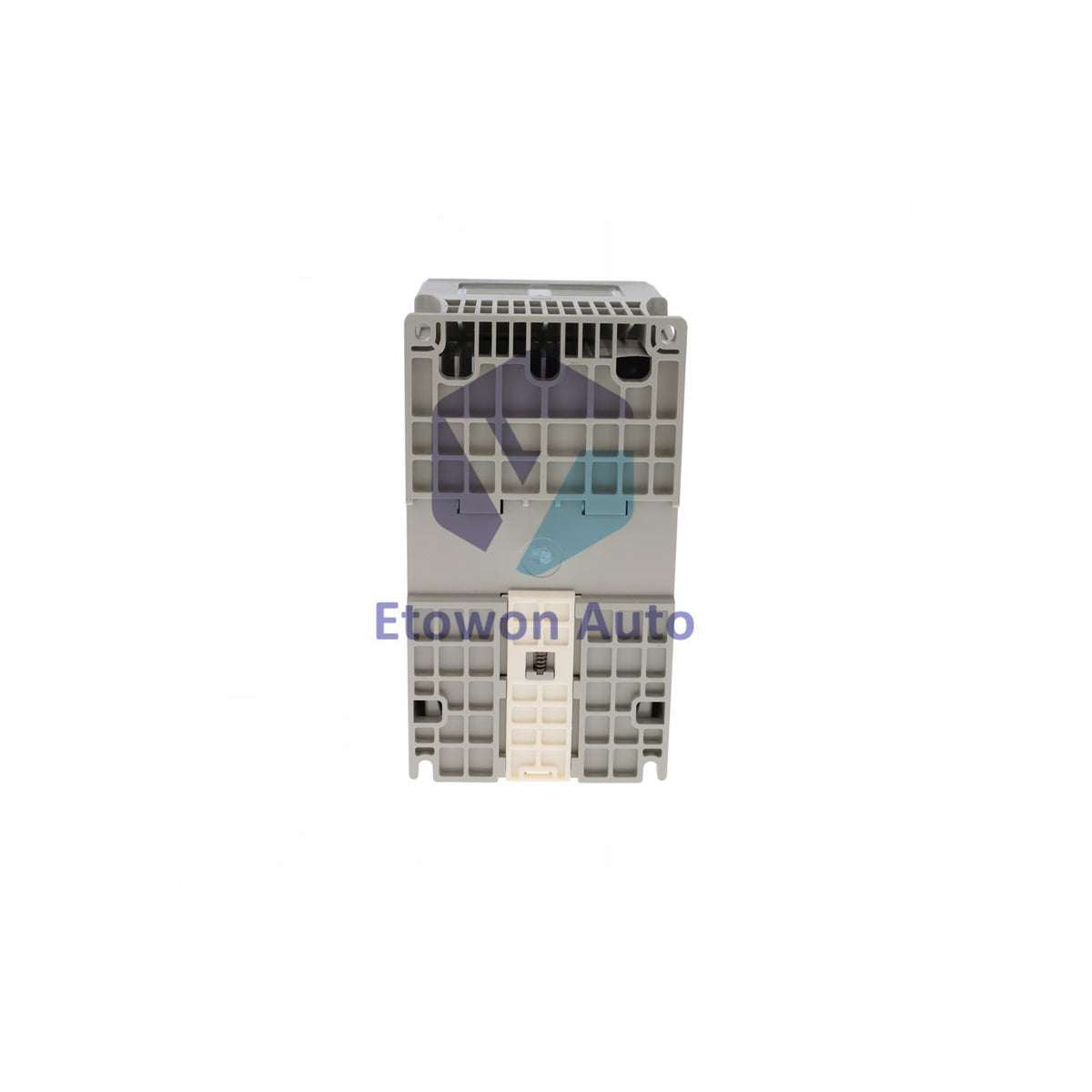

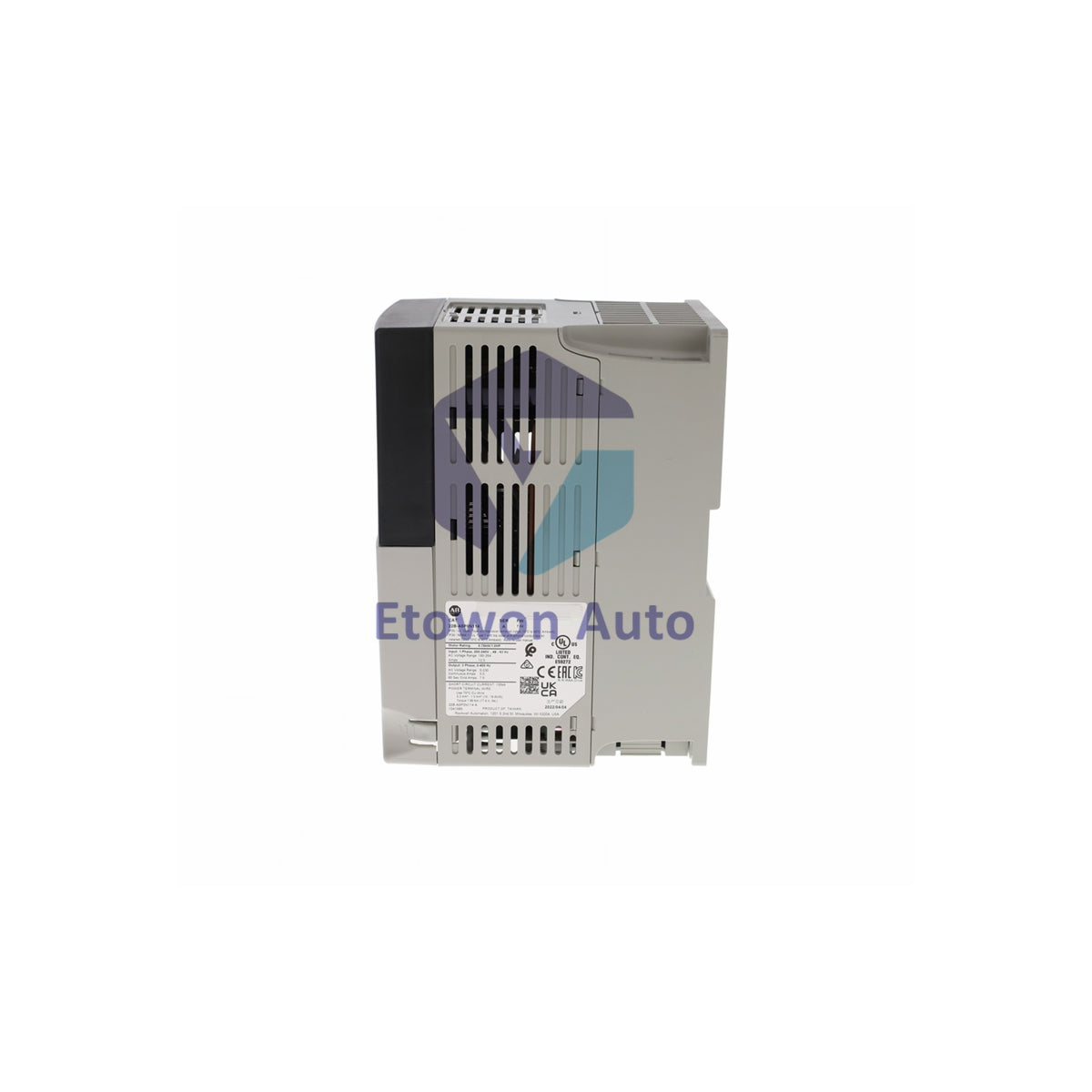

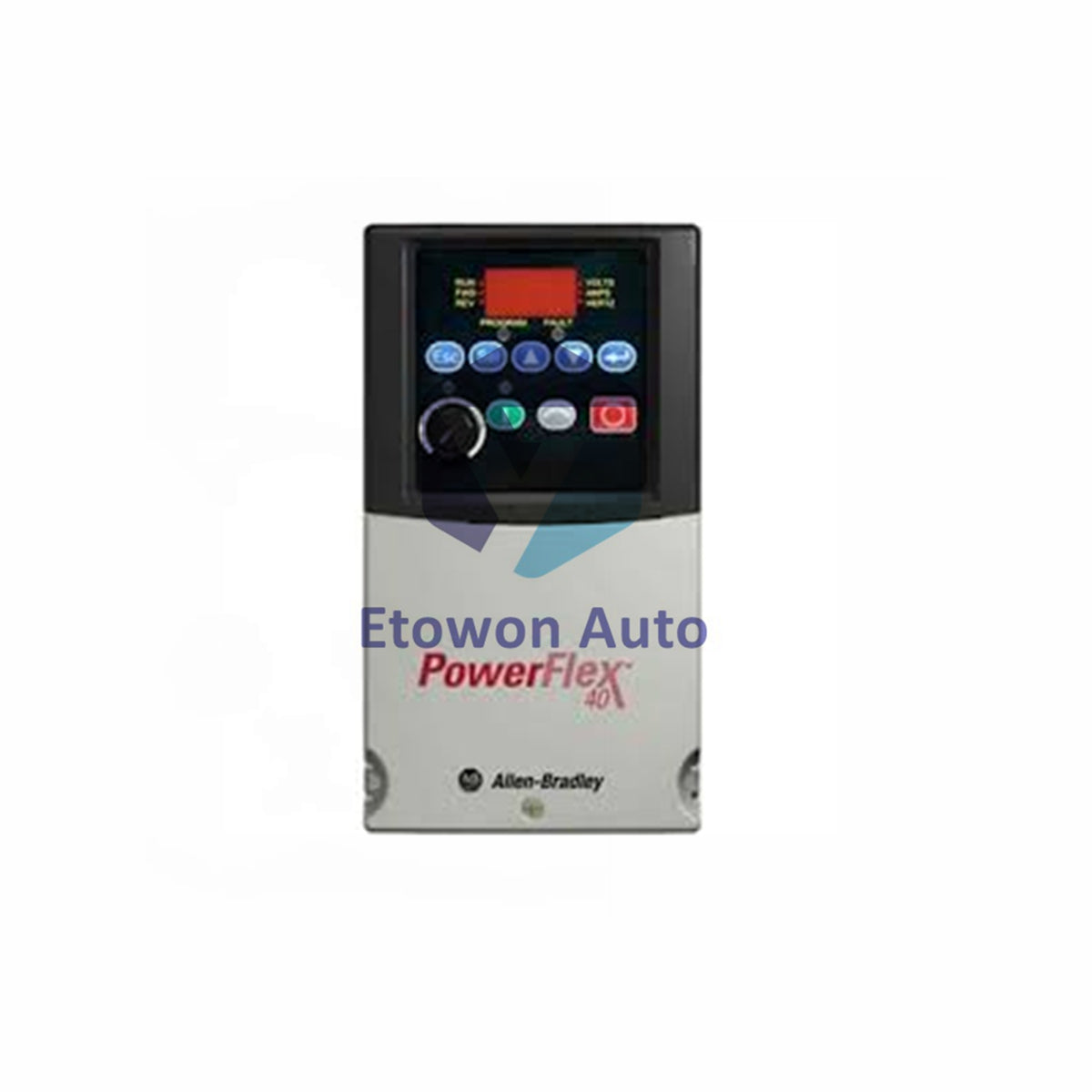

22B-B033F104 Allen-Bradley PowerFlex 40 AC Drive 240V 33A

Skladda bar (11 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 22B-B033F104

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1360g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Allen-Bradley 22B-B033F104 PowerFlex 40 AC Drive

Product Overview

Allen-Bradley 22B-B033F104 is a PowerFlex 40 series adjustable frequency drive. It delivers 10 HP (7.5 kW) output power at 33 Amps. Operates on 200 240V AC 3 phase input at 50 60Hz. Features sensorless vector control for low speed torque performance. Flange mount IP20 enclosure with integral cooling fan.

Technical Specifications

Parameter Value
Brand Allen-Bradley / Rockwell Automation
Model 22B-B033F104
Series PowerFlex 40
Output Power 10 HP (7.5 kW)
Output Current 33 A
Input Voltage 240V AC
Voltage Range 200 240V AC
Phase 3 Phase
Frequency 50 60 Hz
Enclosure Flange Mount IP20, NEMA UL Type Open
Control Type Sensorless Vector Control
Communication RS 485
Input Type Keypad
CE Filter No
Cooling Integral fan
Operating Temperature 0°C to +60°C (32°F to 140°F)
Storage Temperature 40°C to +85°C (40°F to 185°F)
Humidity 5% to 95% non condensing
Operating Shock 30 g (3 pulses, 11 ms)
Nonoperating Shock 50 g (3 pulses, 11 ms)
Altitude 2000 m max
Weight 1.36 kg

Features

Sensorless vector control provides low speed torque for improved application performance. Intuitive programming structure for easy setup. Integral cooling fan for thermal management. RS 485 communication for network integration. Flange mount IP20 enclosure for flexible installation. Meets EN 50081 2 and EN 50082 2 EMC standards.

Installation

Mount in enclosure with proper ventilation. Do not install above 2000m altitude. Ensure adequate cooling air flow around drive. Use 3 phase input 200 240V AC at 50 60Hz. Follow PowerFlex 40 installation manual for wiring and configuration.

Applications

Industrial fans and pumps. Material handling conveyors. Machine tools and processing equipment. Retrofit projects requiring low speed torque performance.

FAQ

Q1: What is the output power rating?
A1: The drive delivers 10 HP (7.5 kW) output power at 33 Amps on 200 240V AC 3 phase input.

Q2: What control type does this drive use?
A2: The drive features sensorless vector control for low speed torque requirements, improving application performance compared to V/Hz only drives.

Q3: What are the EMC certifications?
A3: This drive meets EN 50081 2 Generic Emission Standard for industrial environments and EN 50082 2 Generic Immunity Standard Part 2.
