21000-28-05-20-050-04-02

21000-28-05-20-050-04-02 Bently Nevada Probe Housing 8mm

Skladda bar (11 sany), ibermek üçin taýýar

  • Manufacturer: Bently Nevada

  • Product No.: 21000-28-05-20-050-04-02

  • Product Type: Housing Assembly

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1100g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

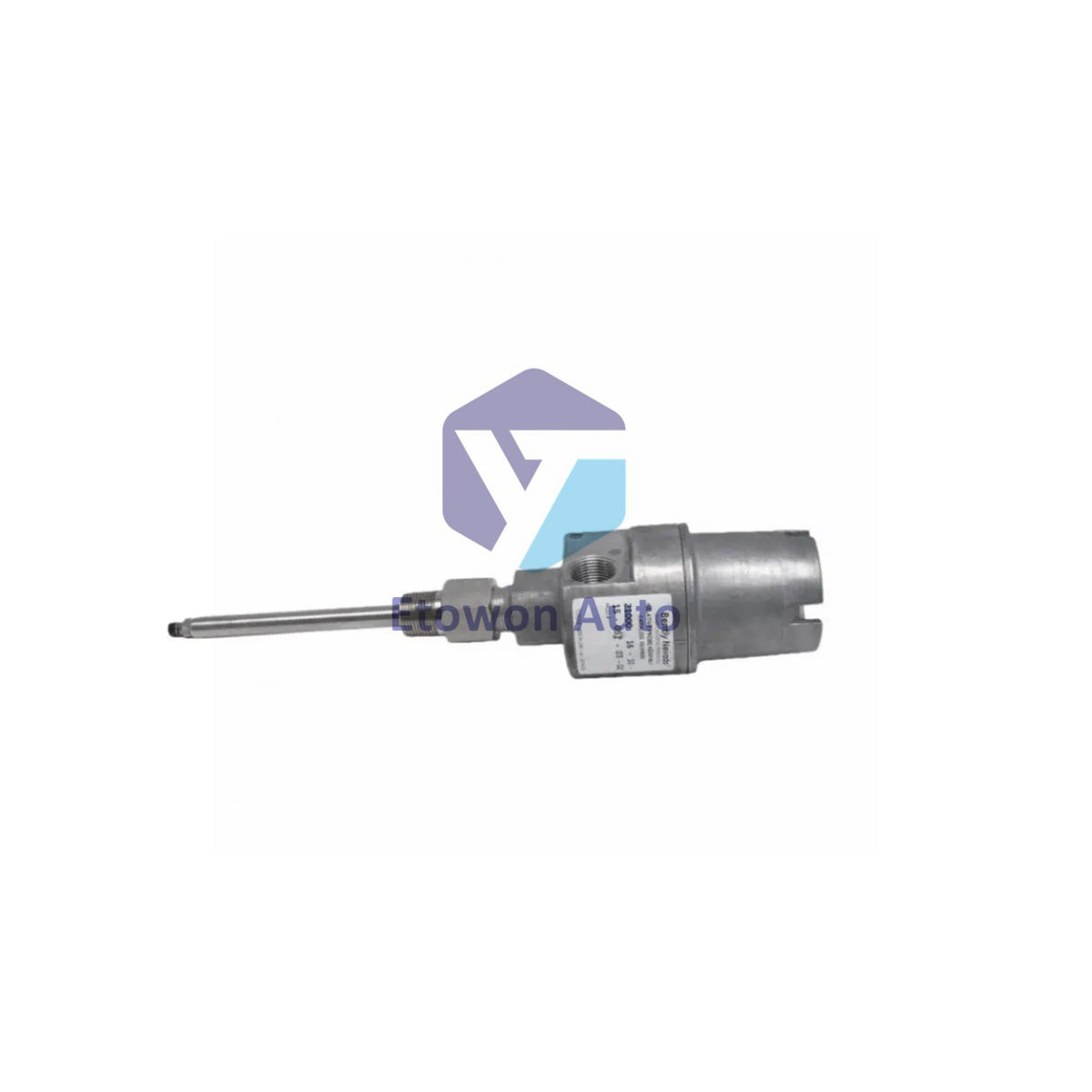

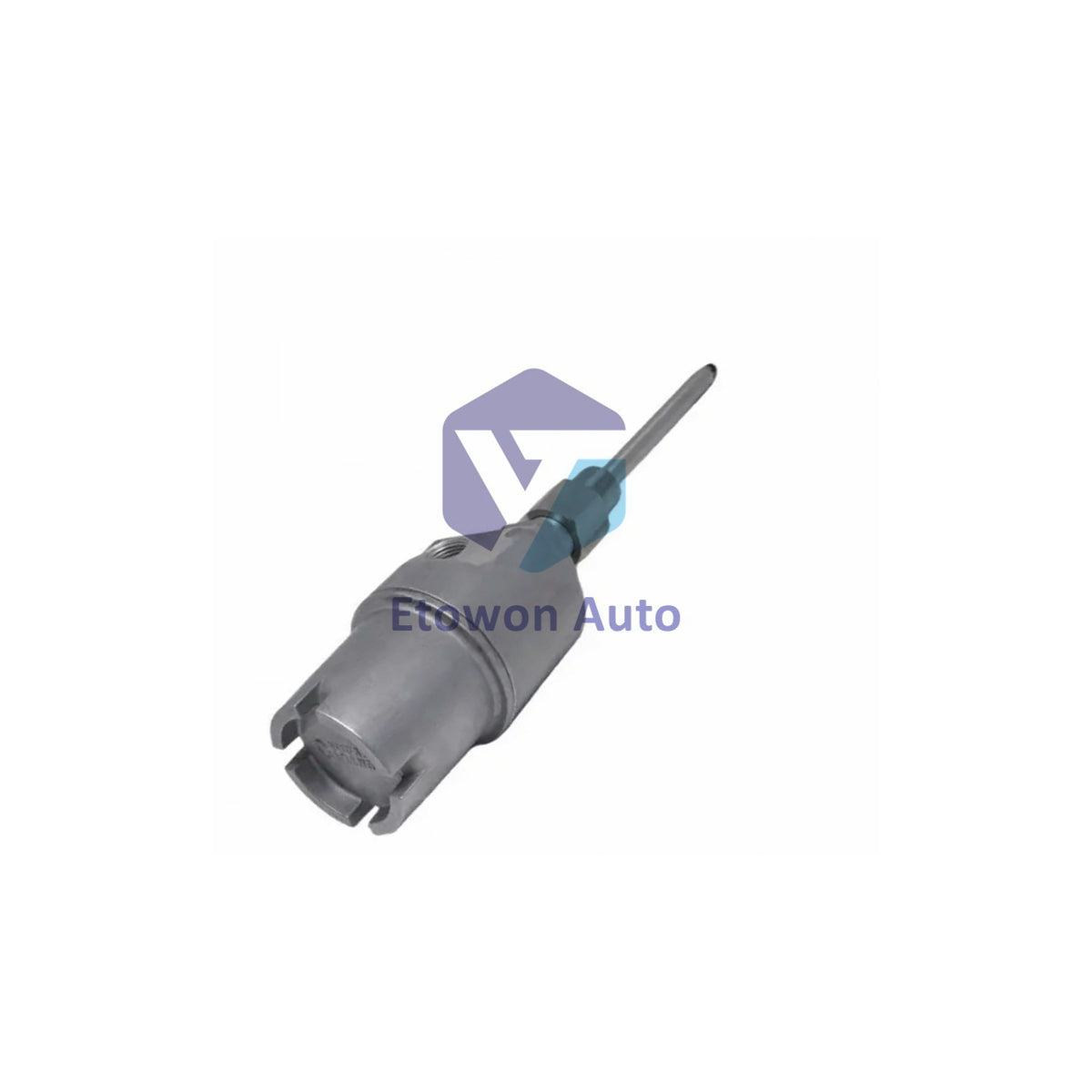

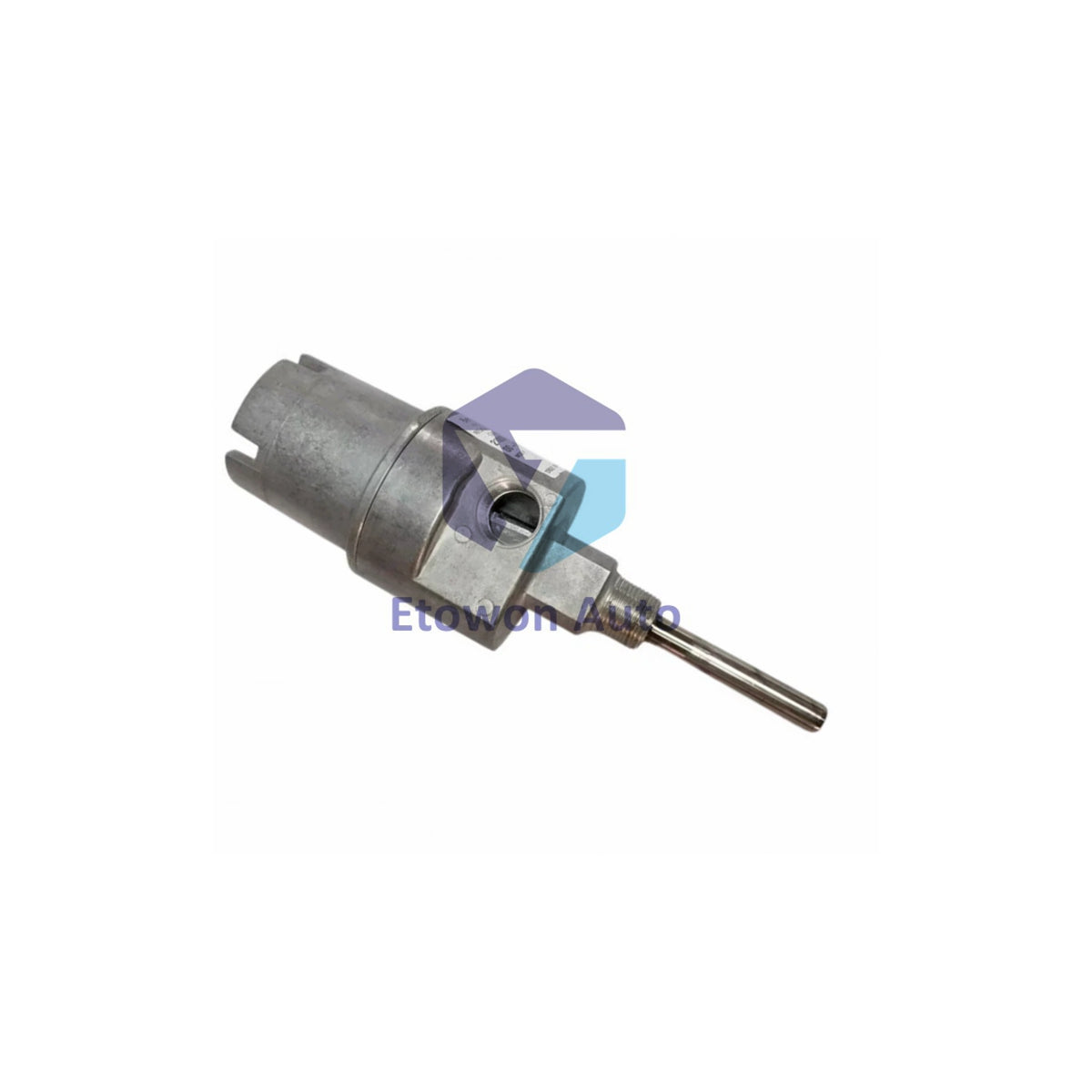

21000-28-05-20-050-04-02 Bently Nevada Proximity Probe Housing Assembly

The Bently Nevada 21000-28-05-20-050-04-02 is an aluminum proximity probe housing assembly for hazardous area monitoring. Includes 3300 XL 8 mm probe with CSA certification.

Product Information

Manufacturer Bently Nevada
Model 21000-28-05-20-050-04-02
Product Type Proximity Probe Housing Assembly
Housing Material Aluminum Body with 304 Stainless Steel Sleeve
Probe Option 3300 XL 8 mm Probe, Hazardous Area Approved
Cable Length 0.5 m (20 in)
Standoff Adapter 2 in (51 mm)
Probe Penetration 5 in (127 mm)
Fitting One 3/4-14 NPT Plug
Mounting Thread 3/4-14 NPT
Enclosure Rating CSA Type 4
Weight 1.1 kg (2.4 lb)

Model Breakdown

28 3300 XL 8 mm Probe, Hazardous Area Approved
05 0.5 m (20 in) Probe Cable
20 2.0 in Standoff Adapter
050 5.0 in Probe Penetration
04 One 3/4-14 NPT Plug Only
02 3/4-14 NPT Mounting Thread

Environmental and Certifications

Operating Temperature -50°C to +80°C (-58°F to +176°F)
Storage Temperature -51°C to +177°C (-60°F to +351°F)
Hazardous Area Approval CSA Explosion-Proof: Class I Div 1/2 Groups C/D, Class II Div 1/2 Groups E/F/G, Class III
Compliance RoHS 2011/65/EU, API 670

Features

  • Aluminum housing with 304 stainless steel sleeve
  • 3300 XL 8 mm proximity probe with hazardous area approval
  • CSA Type 4 enclosure for explosion-proof applications
  • CSA certified Class I/II/III Div 1/2
  • Compliant with API 670 standard
  • RoHS compliant
  • Includes dome cover, probe sleeve, O-rings, thread seal
  • 12-month factory warranty

Applications

  • Oil and gas turbines
  • Power generation
  • Heavy machinery vibration monitoring
  • Position monitoring in hazardous areas
  • Compressor monitoring

FAQs

Q1: What probe is included in this housing assembly?
A1: A 3300 XL 8 mm probe with hazardous area approval (option 28).

Q2: What are the temperature limits?
A2: Operating range -50°C to +80°C with storage down to -51°C.

Q3: What certifications does this housing hold?
A3: CSA Type 4, CSA Explosion-Proof Class I/II/III Div 1/2, RoHS, API 670 compliant.

Product Documentation

Download Detailed Product Specifications PDF
