1SAP541510R0001

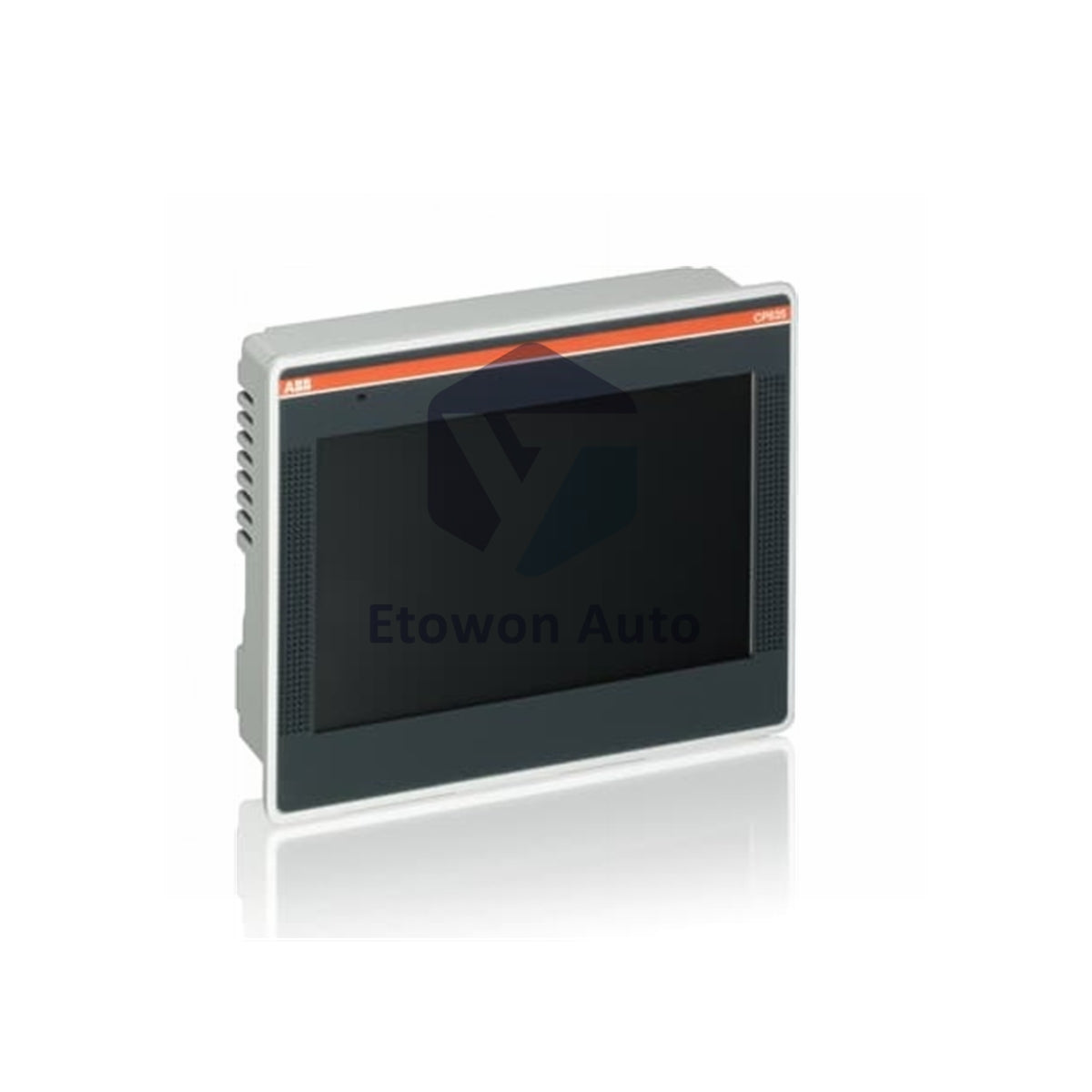

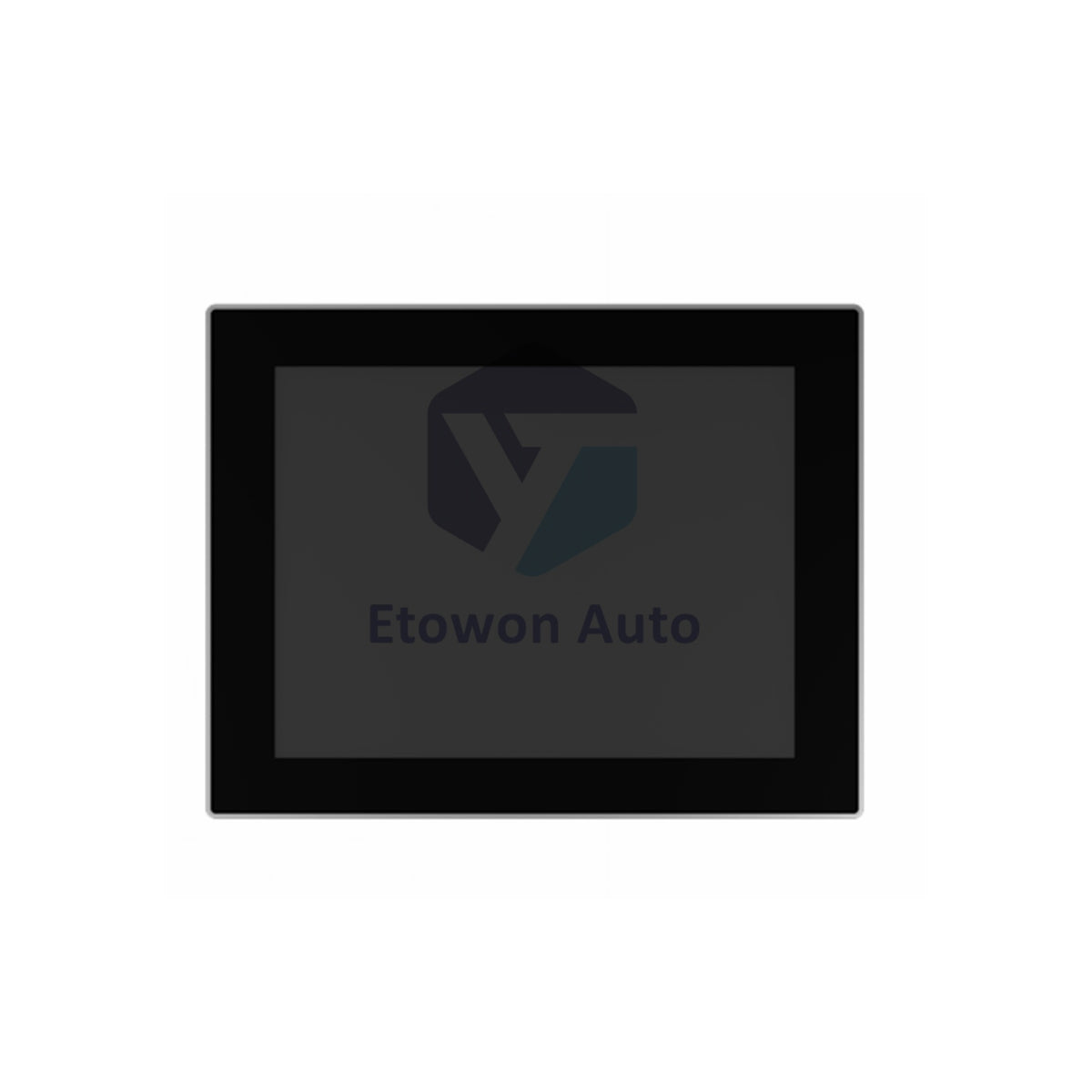

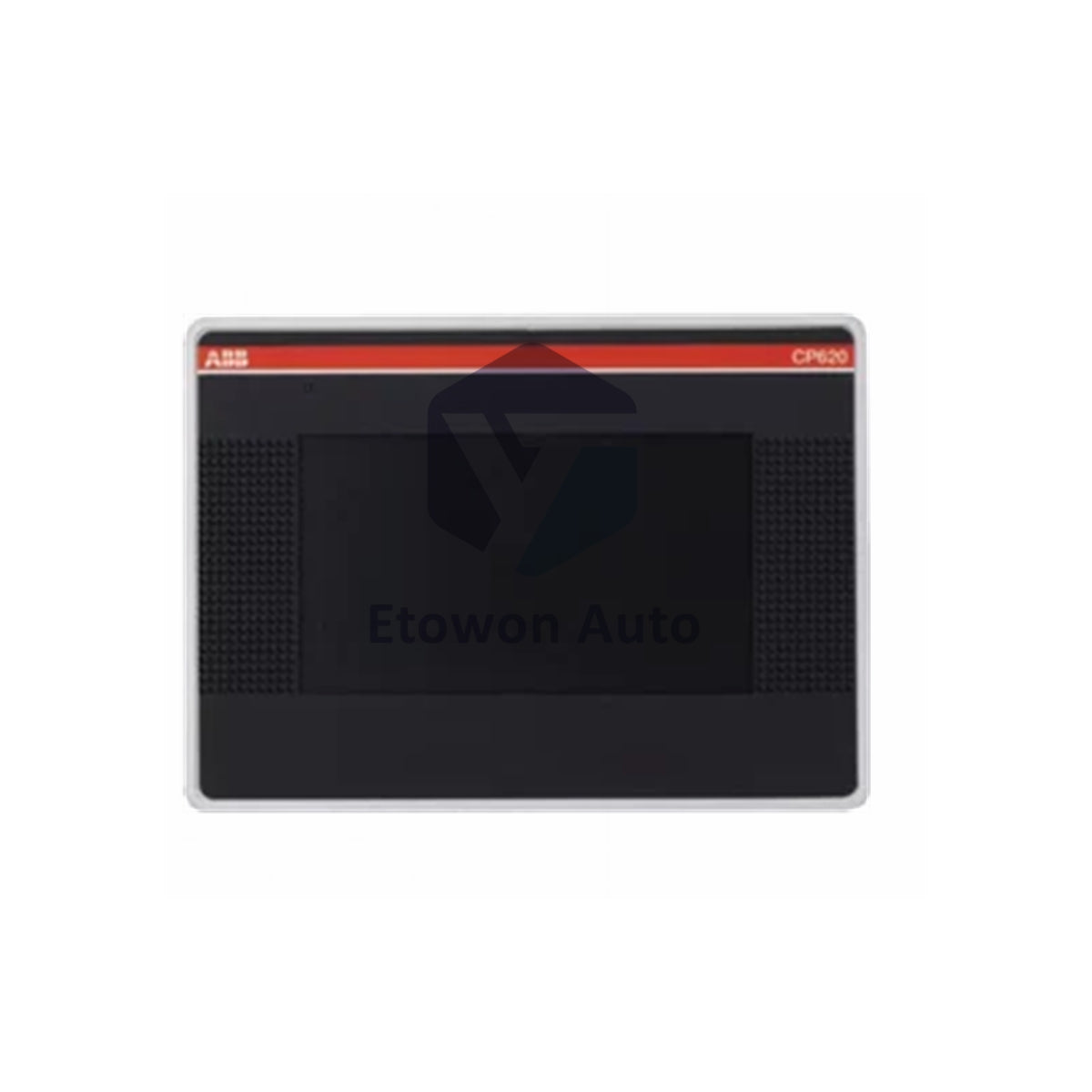

1SAP541510R0001 ABB CP6415 CP600 Control Panel

Skladda bar (22 sany), ibermek üçin taýýar

  • Manufacturer: ABB

  • Product No.: 1SAP541510R0001

  • Product Type: Control Panel

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 3190g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The ABB 1SAP541510R0001 (Model Designation: CP6415) is a high-performance 15-inch human-machine interface (HMI) control panel from the ABB CP600 series family. Built for advanced industrial visualization and equipment control, this unit features a 15" TFT color touch display (1024 x 768 pixels, 64 K colors) with integrated Chromium Browser capabilities and PB610 application support.

Powered by an extended 18 to 32 V DC auxiliary input voltage, the 1SAP541510R0001 is encased in a rugged enclosure featuring an IP66 front panel rating to withstand harsh industrial environments, moisture, and dust exposure. Weighing 3.19 kg (7.03 lbs) net unit weight with an estimated shipping weight of 4.20 kg (9.26 lbs), it provides an expansive control interface for modern automation lines.

Core Technical Advantages

  • High-Resolution Touchscreen: Crisp 15-inch TFT display delivering 1024 x 768 pixel resolution for detailed multi-parameter process display.
  • Embedded Web Technologies: Integrated Chromium Browser supports modern HTML5 visualization alongside standard PB610 application protocols.
  • IP66 Front Protection: Sealed front bezel ensures complete ingress protection against high-pressure water jets and particulates in challenging industrial settings.
  • Wide Operating Temperature: Operates reliably across wide ambient temperature conditions ranging from -20 °C to +60 °C.

Technical Specifications

Parameter Specification Details
Brand / Manufacturer ABB
Part Number / Ordering ID 1SAP541510R0001
Extended Product Type CP6415 (CP600 Platform)
EAN / GTIN Barcode 4013614553264
Display Size & Type 15" TFT Touch Screen (64 K Colors)
Resolution 1024 x 768 pixels
Application Memory Size 150,000 kB (150 MB)
Input Voltage Range 18 V DC to 32 V DC
Protection Rating Front IP66 Rated
Enclosure Dimensions (W x H x D) 392 mm x 307 mm x 47 mm (Cutout Built-in Depth: 40 mm)
Ambient Operating Temperature -20 °C to +60 °C (-4 °F to +140 °F)
Estimated Net / Shipping Weight Net Unit: 3.19 kg (7.03 lbs) | Gross Shipping: 4.20 kg (9.26 lbs)

Installation & Mounting Recommendations

  • Cutout Dimensioning: Cut cabinet door to match outer panel dimensions (392 mm x 307 mm) while ensuring a minimum internal depth of 40 mm for thermal management.
  • Gasket Sealing Check: Ensure outer face gasket remains flush against cabinet cutout edge during clamp installation to preserve front IP66 protection.
  • Power & Grounding: Connect direct current supply within 18–32 V DC tolerance and verify solid protective chassis grounding.

Technical FAQs

Q1: What is the main model designation for part number 1SAP541510R0001?
A1: The model designation is CP6415, belonging to ABB's CP600 series control panel range.

Q2: What is the display resolution of the 1SAP541510R0001 touch panel?
A2: It features a 15-inch TFT color screen displaying 1024 x 768 pixels with 64 K color depth.

Q3: What power supply range is required to run this module?
A3: It requires a direct current (DC) input voltage between 18 V DC and 32 V DC.
