1771-IL

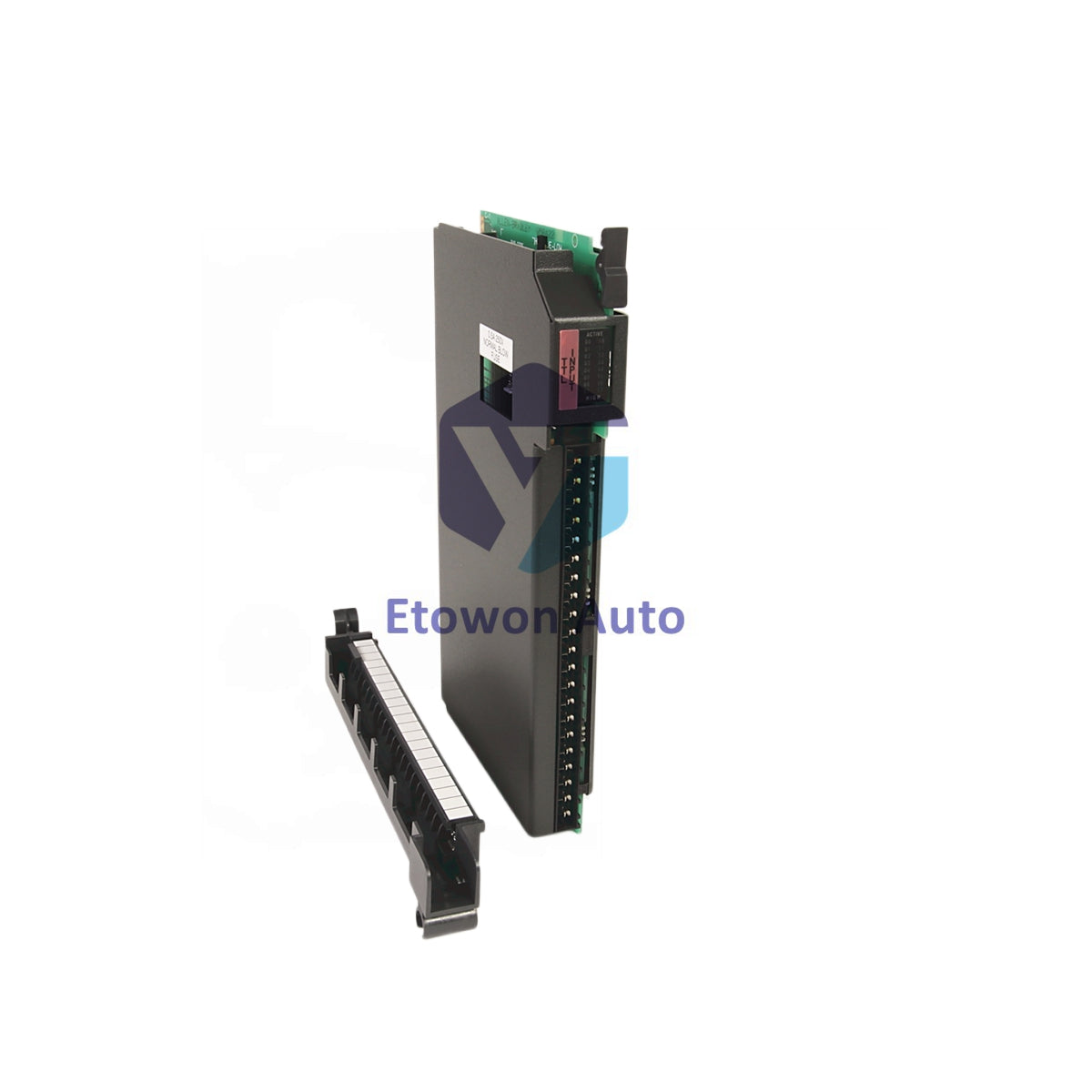

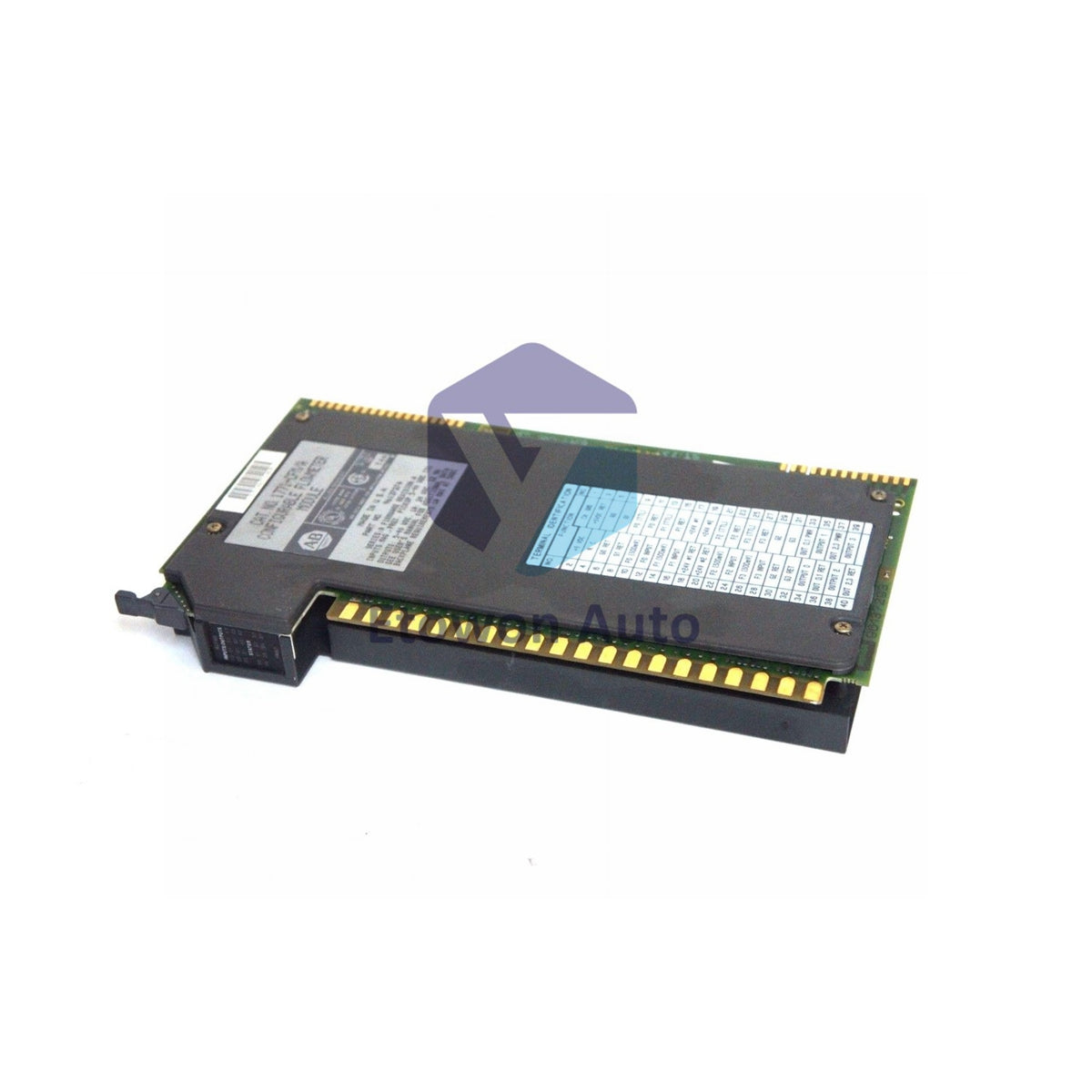

1771-IL Allen-Bradley PLC 5 Isolated Analog Input Module

Skladda bar (21 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1771-IL

  • Product Type: Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 450g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

1771-IL Allen-Bradley PLC 5 Isolated Analog Input Module – 8 Channels

The Allen-Bradley 1771-IL is an isolated analog input module for the PLC 5 platform. Provides 8 fully isolated differential input channels with 1000V isolation. Weight is approximately 0.45 kg.

Product Information

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number 1771-IL
Product Type Isolated Analog Input Module
Number of Inputs 8 Isolated Differential (1000V)
Chassis Compatibility Any 1771 I/O Chassis
Slot Width 1 Slot
Wiring Arm 1771-WG
Mounting Rack Mountable
UPC 10612598141620
Weight Approx. 0.45 kg (1.0 lb)

Input Specifications

Voltage Ranges 1-5V DC, 0-5V DC, -5 to +5V, -10 to +10V DC, 0-10V DC
Current Ranges 4-20mA, 0-20mA, -20 to +20mA
Resolution 16-bit Binary Over Full Range (15 bits + sign)
Internal Scan Rate 50 ms for 8 Channels
Channel Update 500 ms / 8 Channels
Data Format Natural Binary or BCD Scaling to ±9999

Accuracy and Power Specifications

Voltage Accuracy (Typical) 0.01% of Full Scale @ 25°C
Voltage Accuracy (Max) 0.05% of Full Scale @ 25°C
Current Accuracy (Typical) 0.06% of Full Scale @ 25°C
Current Accuracy (Max) 0.1% of Full Scale @ 25°C
Backplane Current 1.3 Amperes
External Power Required No

Features

  • 8 fully isolated differential input channels
  • 1000V isolation between channels
  • 16-bit binary resolution over full range
  • Integral open circuit detection
  • Input overvoltage protection
  • Auto-calibration capability
  • Block transfer data format
  • Compatible with any 1771 I/O chassis
  • Rack mountable single slot design

Applications

  • PLC 5 control systems
  • Process control monitoring
  • Industrial automation
  • Analog signal acquisition

FAQs

Q1: How many input channels does the 1771-IL provide?
A1: 8 fully isolated differential input channels with 1000V isolation.

Q2: What signal ranges are supported?
A2: Voltage: 1-5V, 0-5V, ±5V, ±10V, 0-10V DC. Current: 4-20mA, 0-20mA, ±20mA.

Q3: What wiring arm and weight does this module have?
A3: 1771-WG wiring arm with weight of approximately 0.45 kg (1.0 lb).
