1762-OF4

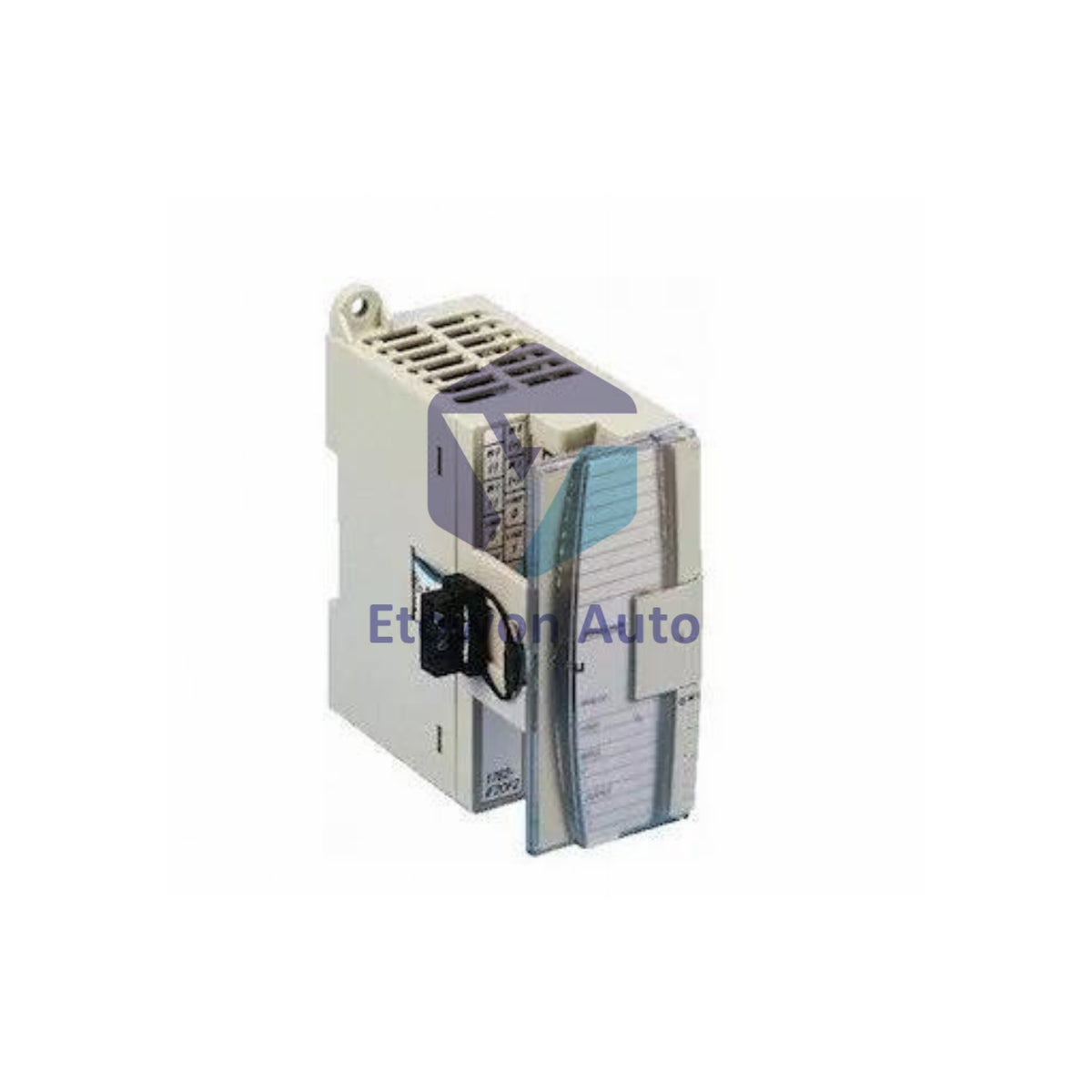

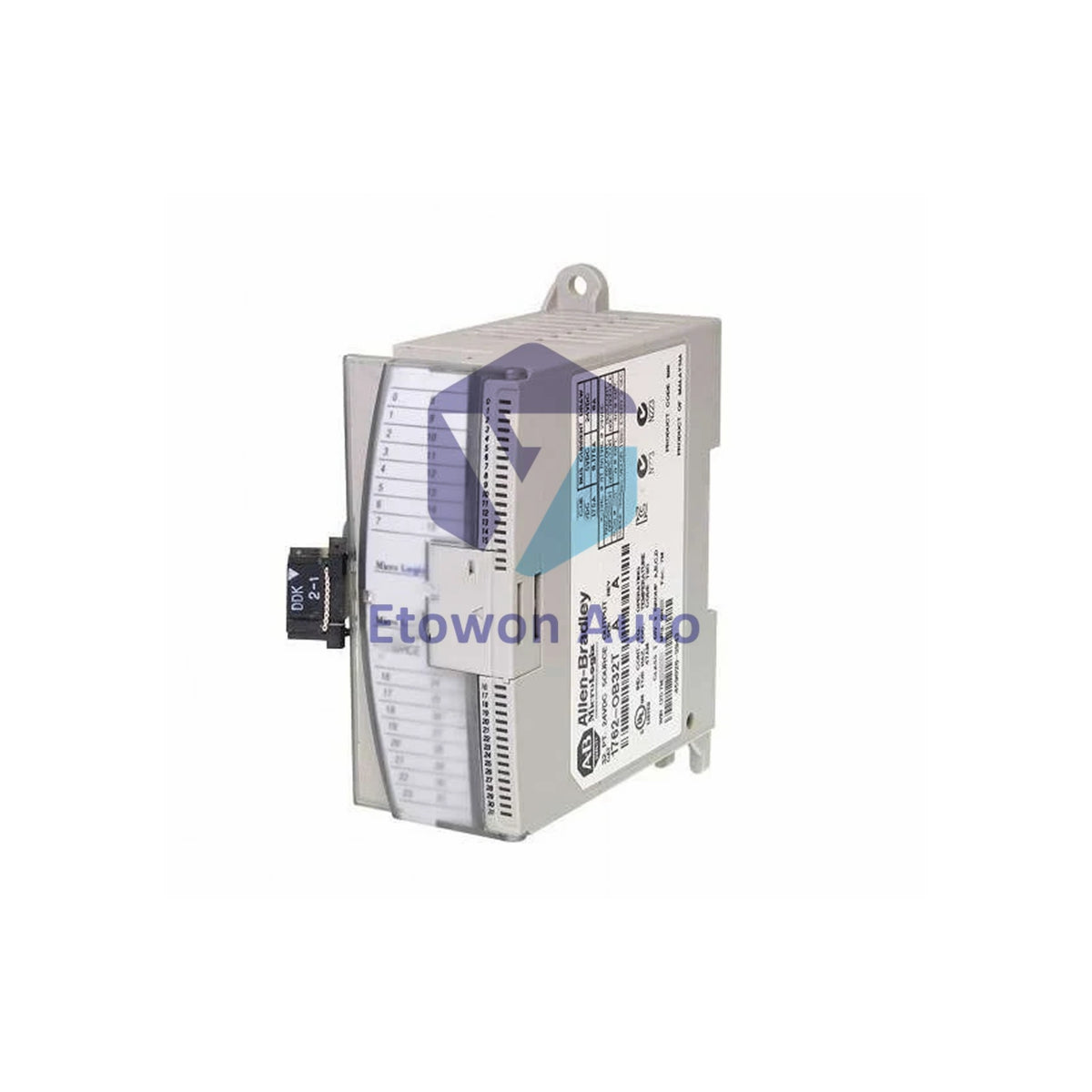

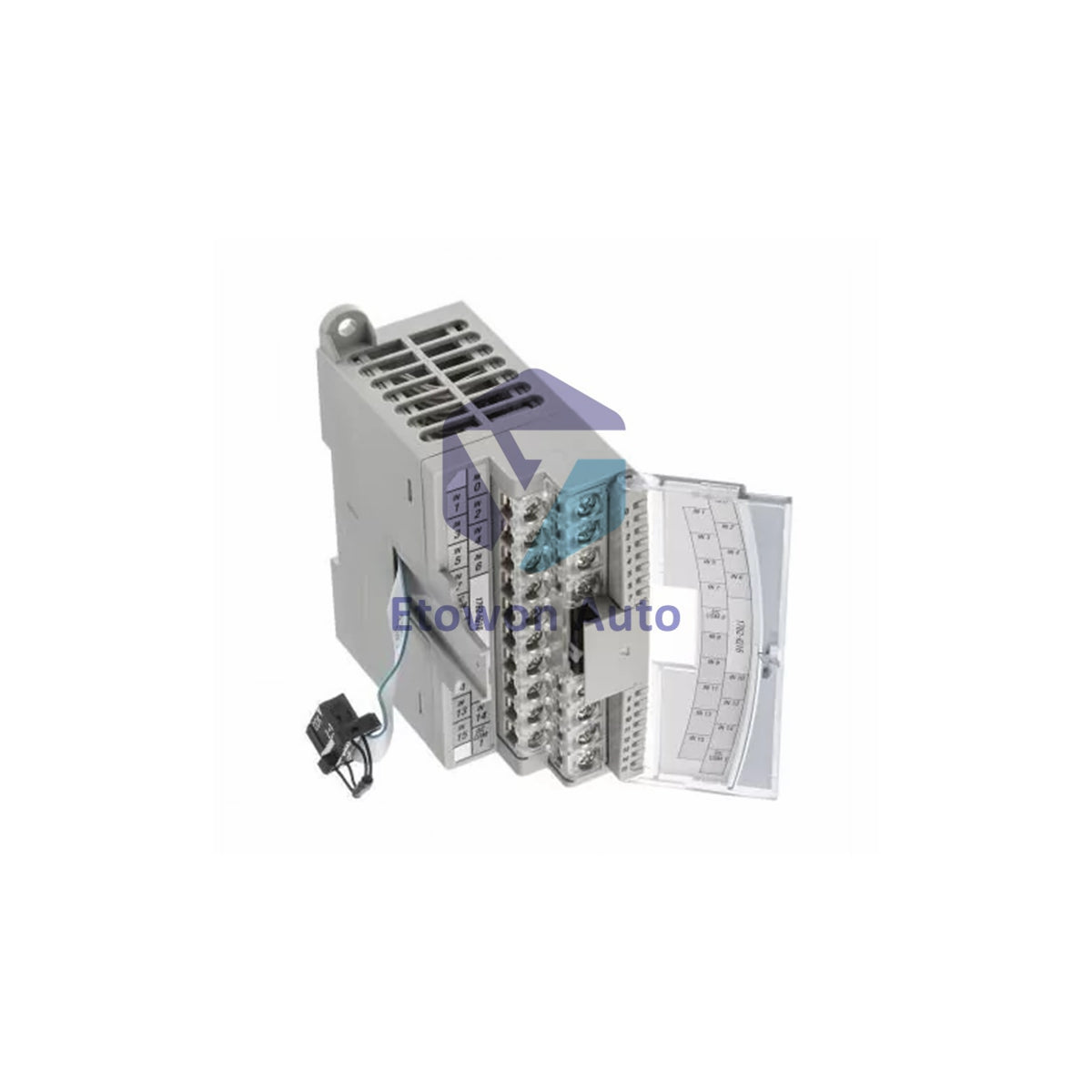

1762-OF4 Allen-Bradley MicroLogix Analog Output Module 4 Ch

Skladda bar (25 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1762-OF4

  • Product Type: Analog Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 235g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

1762-OF4 Allen-Bradley MicroLogix 4 Channel Analog Output Module

The Allen-Bradley 1762-OF4 is a 4-channel analog output expansion module for the MicroLogix series. Provides 4 single-ended output channels configurable for voltage and current signals. Weight is approximately 235 grams.

Product Information

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number 1762-OF4
Series MicroLogix
Product Type Analog Output Module
Number of Outputs 4 Single-Ended
Input Power 24V DC
Resolution 12 Bits (Unipolar)
Converter Type R-2R Ladder Voltage Switching
UPC 10662468153246
Weight 235 g

Output Specifications

Analog Normal Operating Range 0-10V DC, 4-20 mA
Full Scale Analog Ranges 0-10.5V DC, 0-21 mA
Accuracy at 25°C ±0.5% Full Scale
Accuracy at -20 to 65°C ±1.17% Full Scale
Repeatability ±0.12%
Output Update Time 2.5 ms
Output Protection ±32 mA
Heat Dissipation 2.8 W

Compatibility and Module Capacity

MicroLogix 1100 Up to 4 Modules
MicroLogix 1200 Up to 6 Modules
MicroLogix 1500 Up to 7 Modules
Recommended Cable Belden 8761 (Shielded)

Features

  • 4 single-ended analog output channels
  • Configurable for 0-20mA, 4-20mA, ±10V, 0-10V, 0-5V, 1-5V DC
  • 12-bit resolution with R-2R Ladder converter
  • ±0.12% repeatability
  • 2.5 ms output update time
  • Supports Raw/Proportional and Scaled-for-PID data formats
  • DIN rail mounting with horizontal orientation
  • Compact 235 g design

Applications

  • Valve and damper control
  • Variable frequency drive control
  • Louver and actuator positioning
  • Signal retransmission to indicators and data loggers
  • PID controller output

FAQs

Q1: How many output channels does the 1762-OF4 provide?
A1: 4 single-ended analog output channels.

Q2: What signal ranges are supported?
A2: 0-20mA, 4-20mA, ±10V DC, 0-10V DC, 0-5V DC, and 1-5V DC.

Q3: What is the weight and resolution?
A3: 235 grams with 12-bit unipolar resolution.
