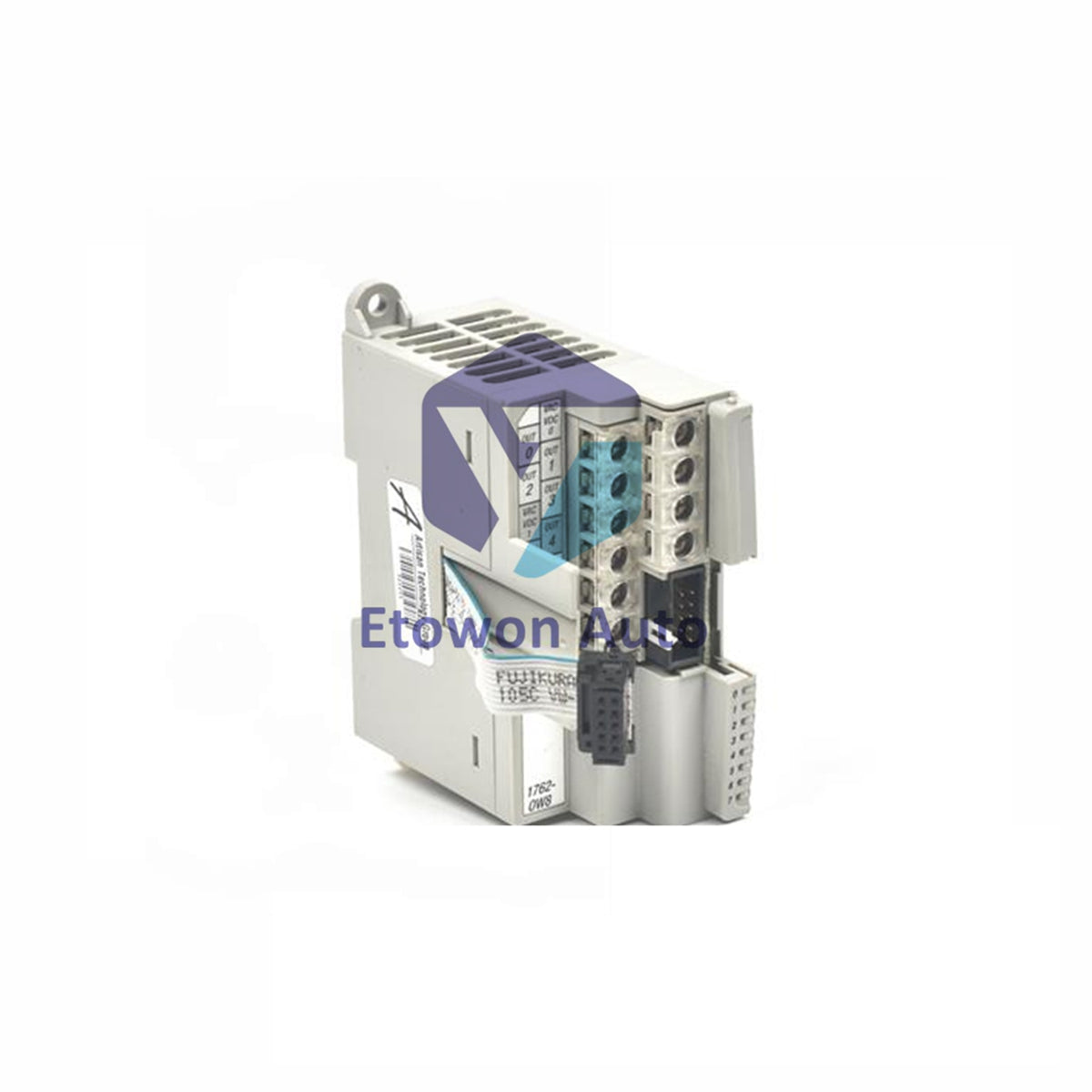

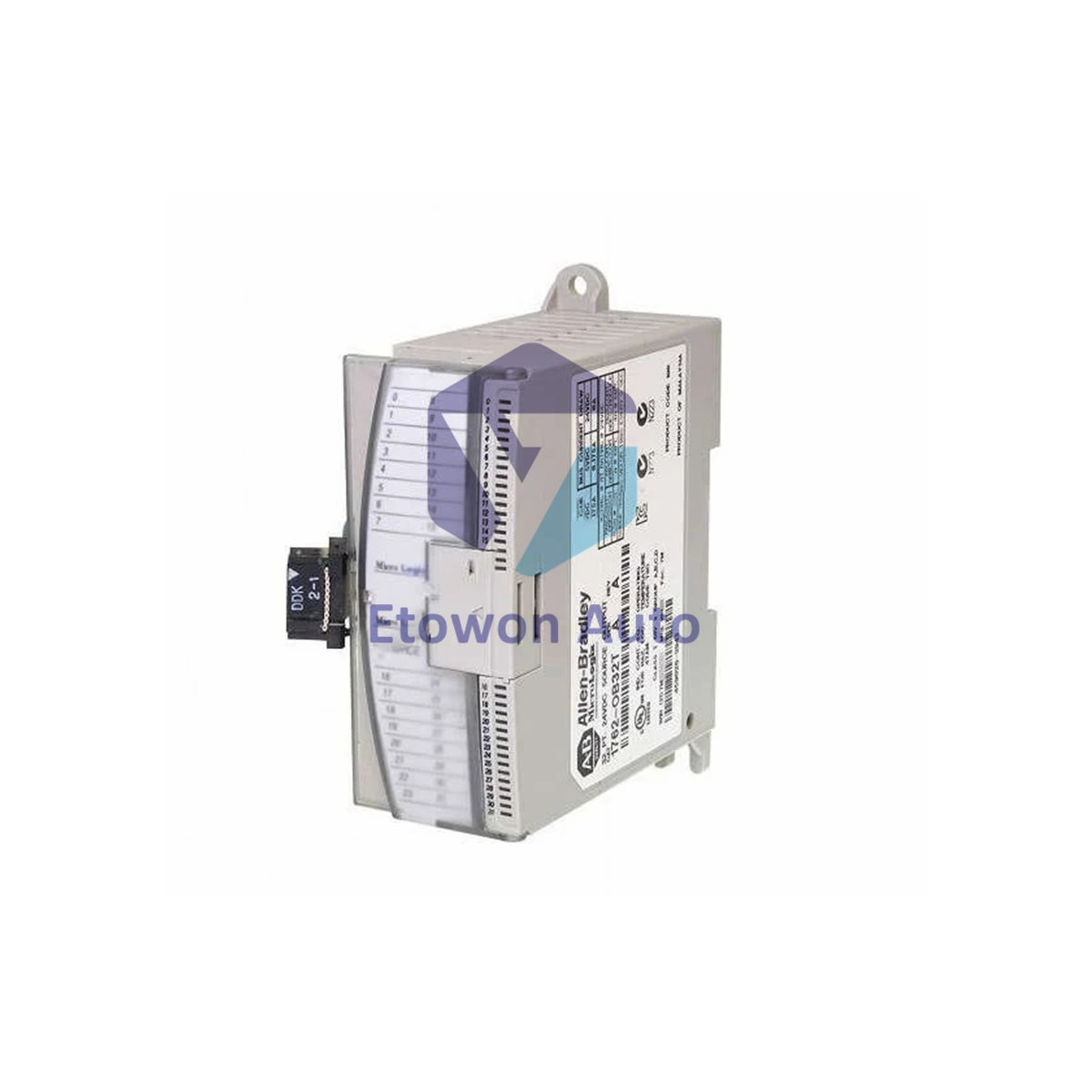

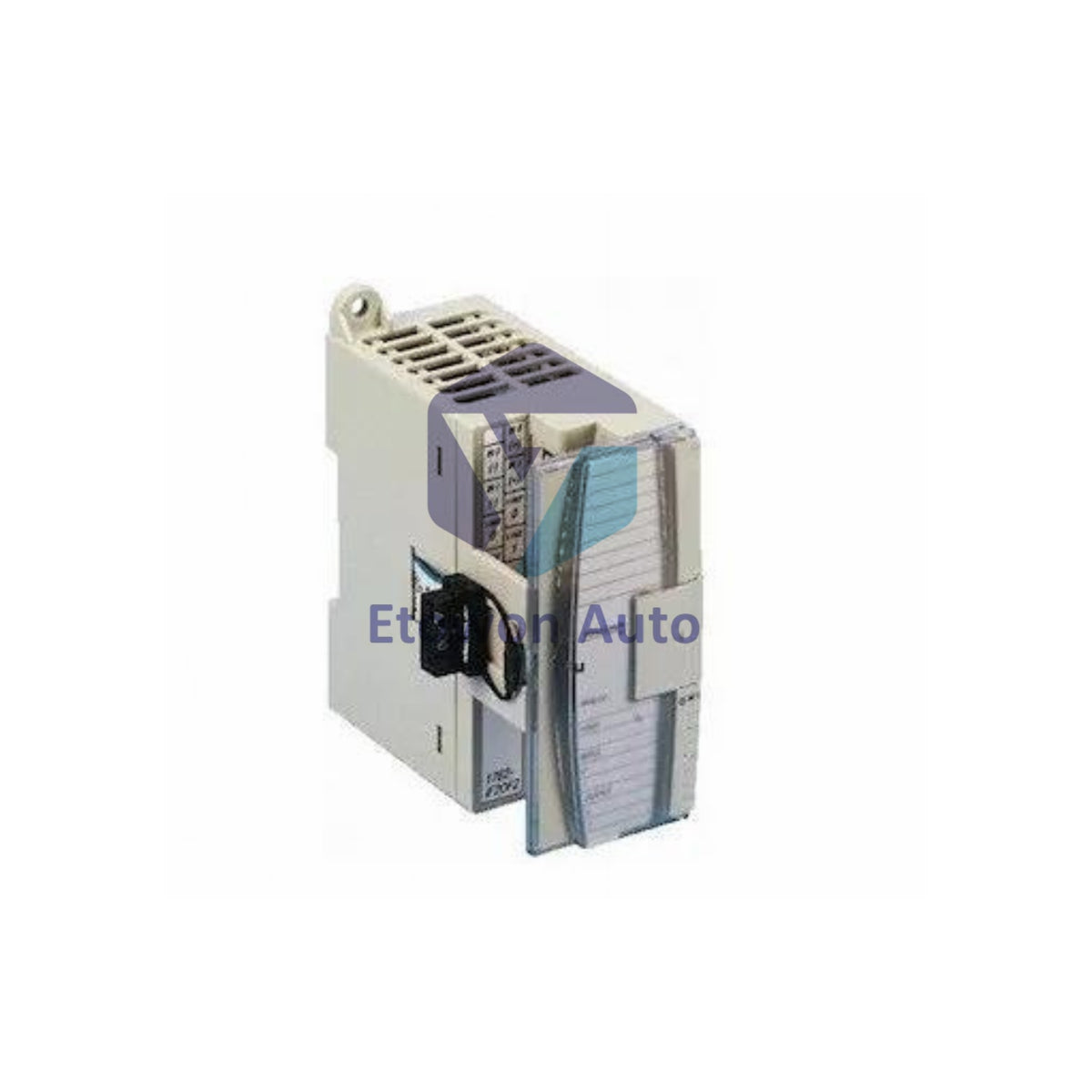

1762-OB8 Allen-Bradley MicroLogix 8 Point DC Output Module

Skladda bar (21 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1762-OB8

  • Product Type: Discrete Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 210g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

1762-OB8 Allen-Bradley MicroLogix 8 Point Digital DC Output Module

The Allen-Bradley 1762-OB8 is an 8-point digital DC output module for the MicroLogix 1200 expansion I/O series. Provides 8 digital 24V DC sourcing outputs. Weight is approximately 210 grams.

Product Information

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number 1762-OB8
Series MicroLogix 1200
Product Type Solid-State Expansion Module
Outputs 8
Voltage Category 24V DC
Operating Voltage Range 20.4-26.4V DC
Backplane Current 115 mA at 5V DC
Mounting DIN Rail
UPC 10611320152118
Weight Approx. 210 g

Output Specifications

Max ON-State Voltage 1.0V DC
Max ON/OFF Leakage Current 1.0 mA
Current Load per Point 0.5 A Max
Aggregate Current per Module 4 A
Intermittent Surge 2 A for 10 ms, Repeatable Every 2 Seconds
Signal Delay (ON) 0.1 ms Max
Signal Delay (OFF) 1.0 ms Max
Isolation Voltage 1200V AC / 1697V DC for 1 Second
Power Dissipation 1.6 W

Environmental Specifications

Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Relative Humidity 5% to 95% Non-Condensing
Max Operating Altitude 6561 Feet
Shock Resistance 30G
Vibration Resistance 5G at 500 Hz

Certifications

  • UL Certified
  • c-UL Certified
  • CE Certified

Features

  • 8 digital 24V DC sourcing outputs
  • 20.4-26.4V DC operating voltage range
  • 0.5A maximum per point with 4A aggregate
  • 2A intermittent surge capability
  • 1.6W power dissipation
  • DIN rail mounting
  • 1200V AC isolation tested
  • Compact 210 g design

Applications

  • MicroLogix 1200 expansion systems
  • Industrial automation
  • Machine control
  • Process control

FAQs

Q1: How many outputs does the 1762-OB8 provide?
A1: 8 digital 24V DC sourcing outputs.

Q2: What is the current rating per point and per module?
A2: 0.5A maximum per point with 4A aggregate per module.

Q3: What is the weight and backplane current?
A3: Approximately 210 grams with 115 mA backplane current at 5V DC.
