Haryt kody:1762-L40BWA
1762-L40BWA Allen-Bradley Controller | Sink Source 4 Fast Inputs
Manufacturer: Allen-Bradley
Product No.: 1762-L40BWA
Product Type: Controller Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1090g
Shipping port: Xiamen
Warranty: 12 months
Paýlaş
- Çalt eltip berme
- 24/7 goldaw
- Hil üpjünçiligi
Düşündiriş

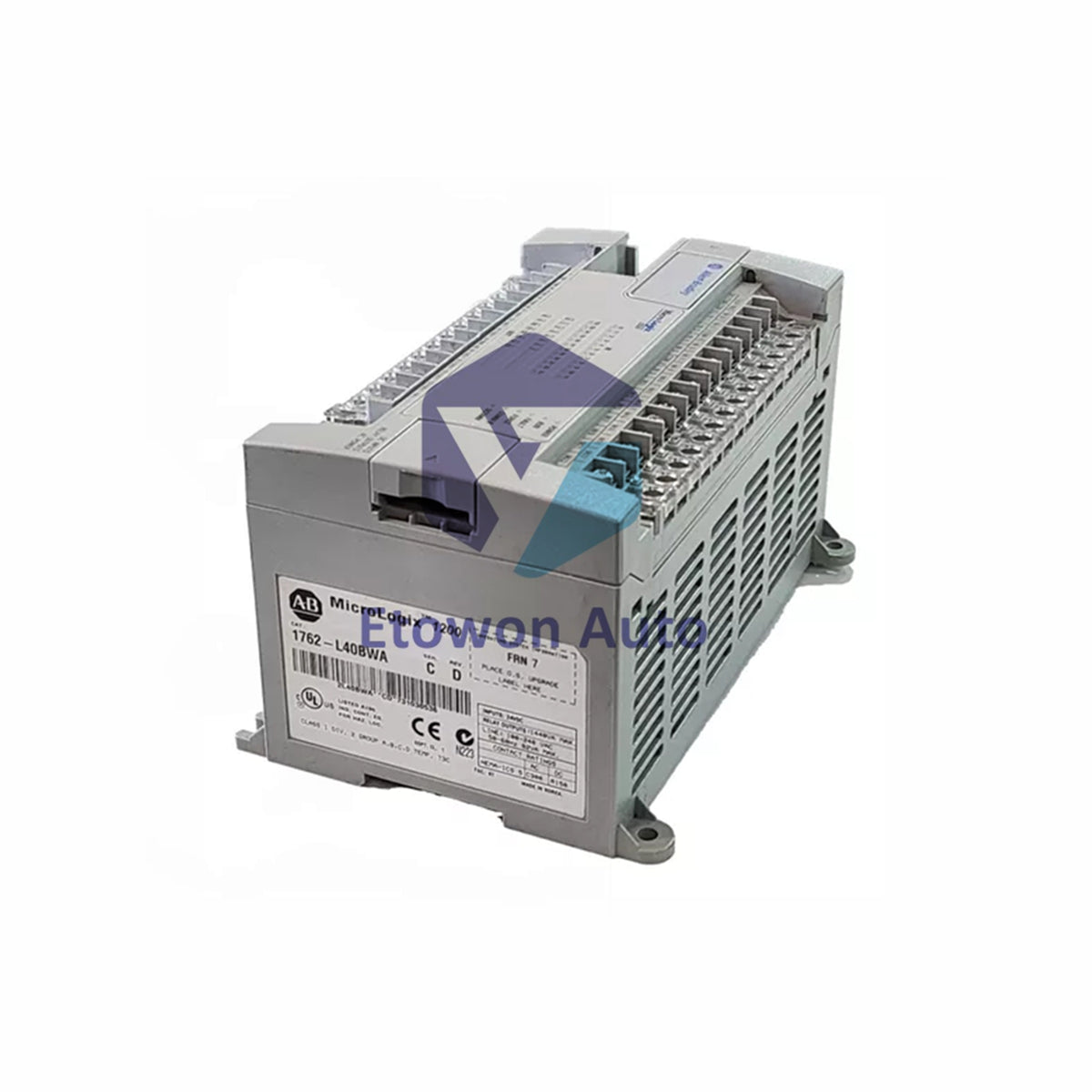

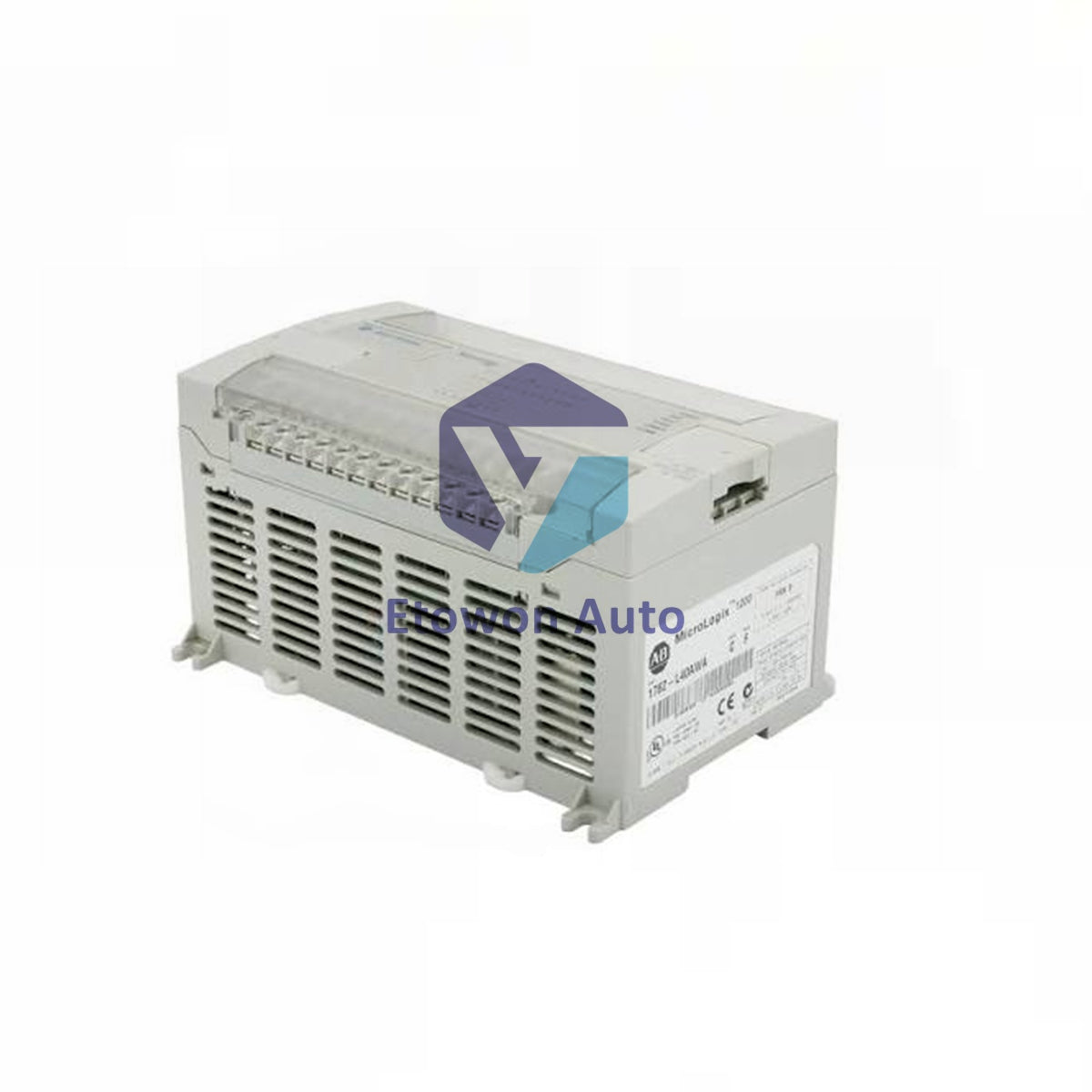

Allen-Bradley 1762-L40BWA MicroLogix 1200 Controller
Product Overview
The Allen-Bradley 1762-L40BWA is a 40-point programmable logic controller from the MicroLogix 1200 series. It features 24 inputs compatible with 24 VDC signal voltage supporting sinking or sourcing wiring configuration and 16 relay outputs. The controller includes an integrated 8-pin mini-DIN RS232 communication port. Weight is 2.4 lbs (1.09 kg).
Specifications
| Parameter | Value |
|---|---|
| Brand | Allen-Bradley / Rockwell Automation |
| Model | 1762-L40BWA |
| Series | MicroLogix 1200 |
| Module Type | Programmable Logic Controller |
| Input Power | 120-240 VAC, 47-63 Hz |
| Inputs | 24 (20 regular 24 VDC + 4 fast 24 VDC) |
| Input Circuit Type | 24 VDC Sink/Source |
| Outputs | 16 Relay |
| Relay Contact Rating | 24-125 VDC; 120-240 VAC |
| Mechanical Cycles | 20,000,000 |
| Load Current | 10 A minimum |
| Communication Port | 1 x 8-Pin mini-DIN RS232 |
| Supported Protocols | DF1, DH-485, ASCII, MODBUS |
| Internal Power Supply | Yes |
| Power Supply Usage | 82 VA |
| Inrush Current (120V AC) | 25 A for 8 ms |
| Inrush Current (240V AC) | 40 A for 4 ms |
| Dimensions (H x W x D) | 90 x 160 x 87 mm (104 mm with DIN latch open) |
| Operating Temperature | 0 to 55 °C |
| Weight | 2.4 lbs (1.09 kg) |
| UPC | 10612598207234 |
Key Features
- 40-point controller with 24 inputs and 16 relay outputs
- 24 VDC sink/source input configuration for wiring flexibility
- Includes 20 regular inputs and 4 fast 24 VDC inputs
- Relay contact rating 24-125 VDC / 120-240 VAC
- 20,000,000 mechanical cycle relay life
- Integrated 8-pin mini-DIN RS232 communication port
- Supports DF1 Full/Half Duplex, DH-485, MODBUS, ASCII
- Peer-to-peer configuration for DF1, ASCII, and MODBUS
- Internal power supply for simplified installation
- DIN rail or panel mounting options
Installation Notes
Install the controller in an enclosure providing adequate protection for electronic devices. Maintain enclosure temperature between 0 and 55 °C using climate control devices such as heaters or fans depending on the installation location. The 8-pin mini-DIN port supports DH-485 network bus connections via a 1761-NET-AIC external converter. RS232 to Ethernet or RS232 to RS485 converters may be used to multiplex the serial port for multi-device communication.
FAQs
Q1: What is the input configuration of the 1762-L40BWA?
A1: 24 inputs total: 20 regular 24 VDC inputs and 4 fast 24 VDC inputs, supporting sink/source wiring.
Q2: What communication protocols does this controller support?
A2: DF1 Full and Half Duplex, DH-485, MODBUS Master/Slave, and ASCII.
Q3: How do I connect the controller to a DH-485 network?
A3: Use an external converter such as the 1761-NET-AIC to connect the 8-pin mini-DIN port to a DH-485 network bus.
