1762-IQ8OW6

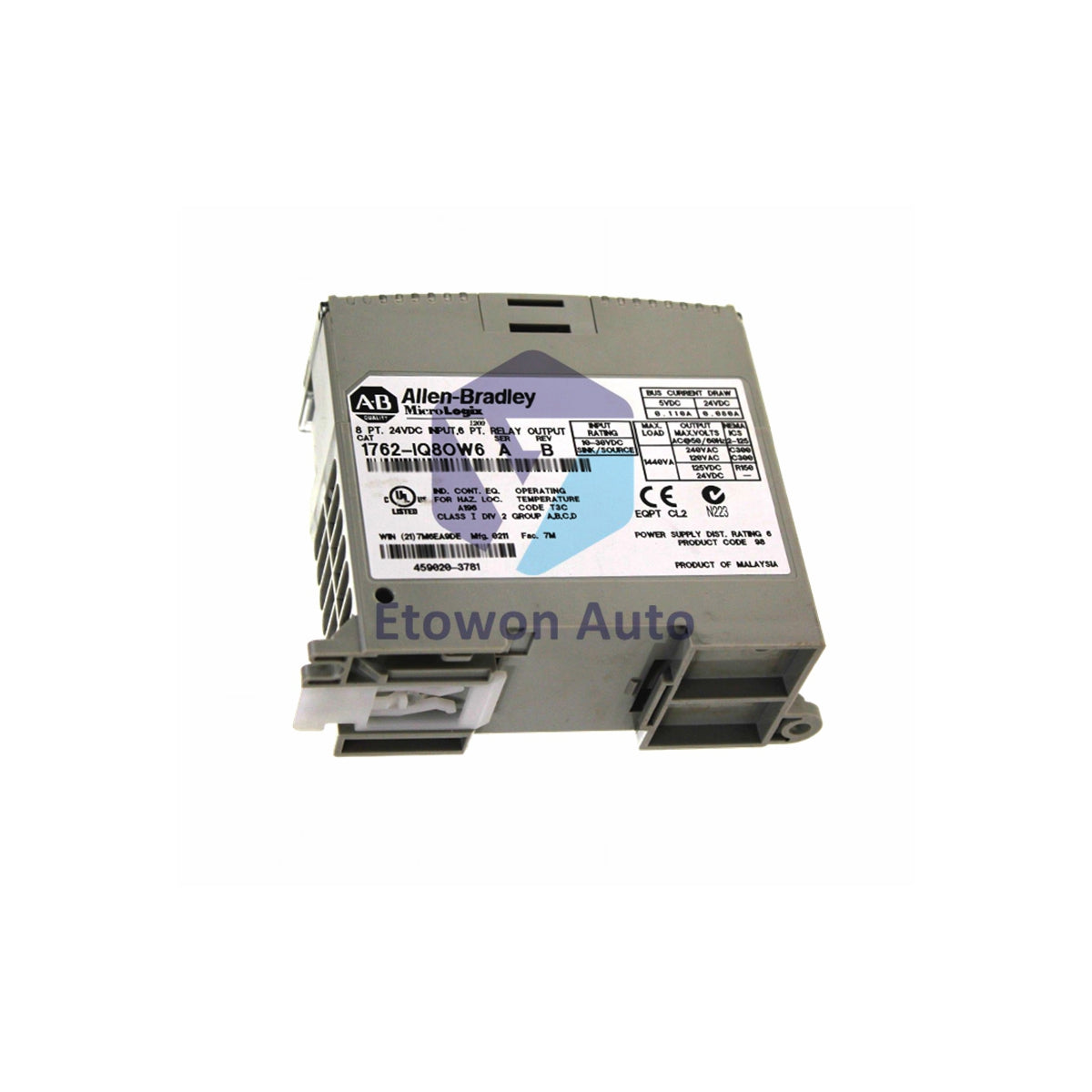

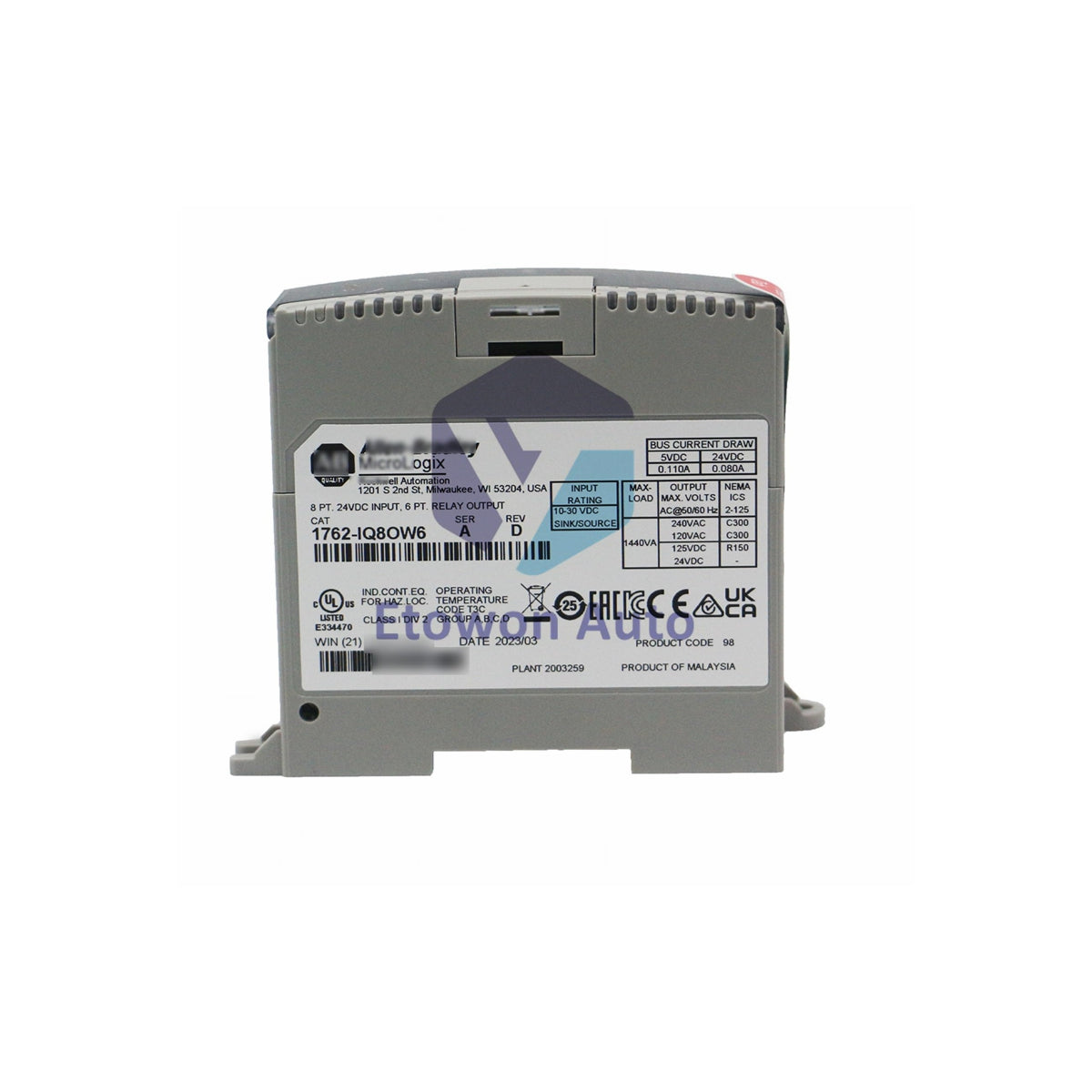

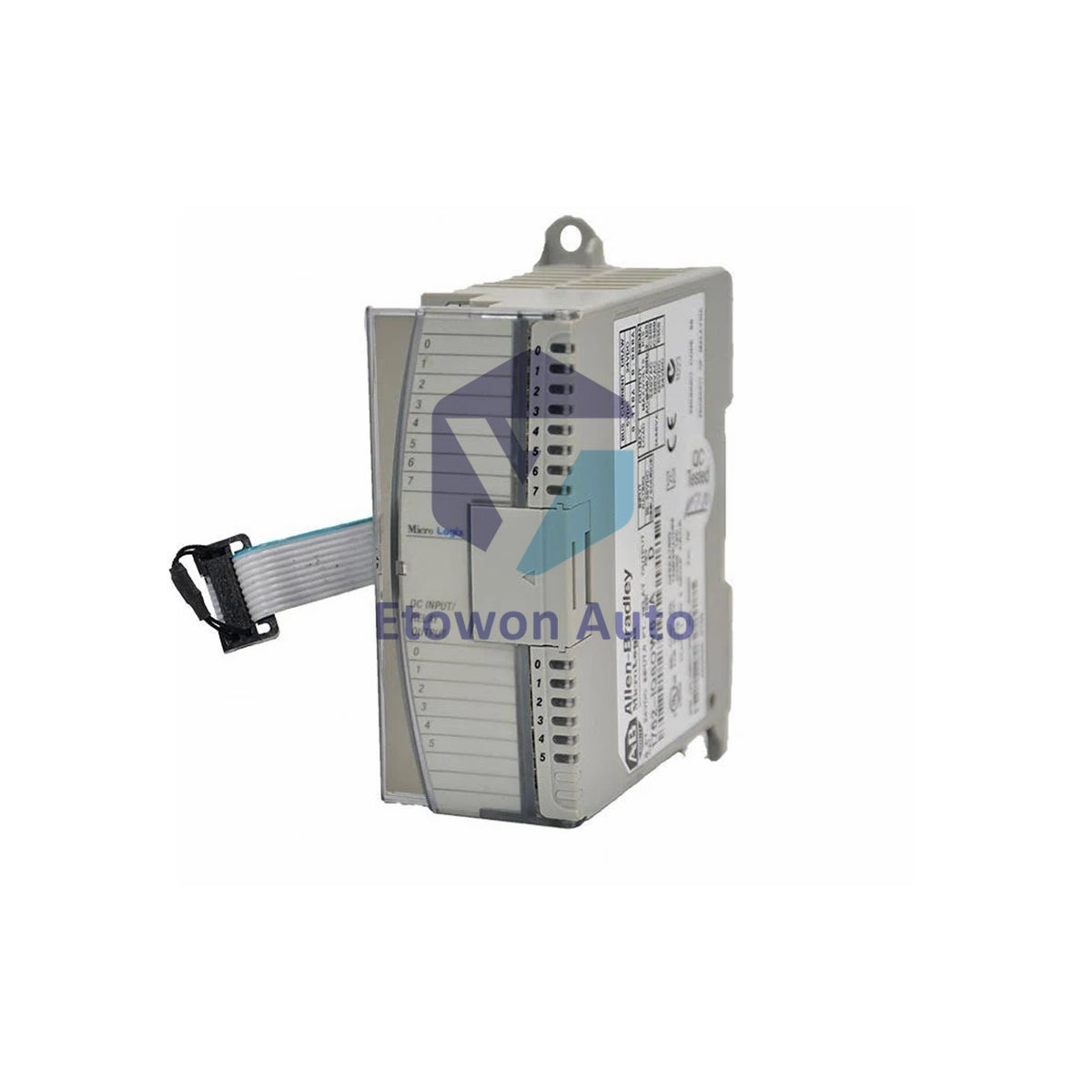

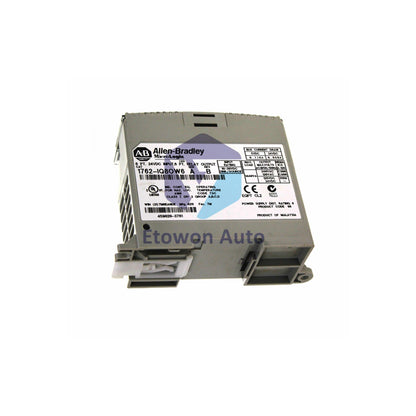

1762-IQ8OW6 Allen-Bradley 8 Input 6 Relay Output Module

Skladda bar (24 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1762-IQ8OW6

  • Product Type: Relay Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 280g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Product Overview

The Allen-Bradley 1762-IQ8OW6 is a MicroLogix combination I/O module featuring 8 sink or source input channels and 6 Form A relay outputs. Weighing approximately 280 g, it operates on 10-30 VDC inputs and 5-265 VAC or 5-125 VDC relay outputs for flexible control applications.

Key Features

8 sink or source inputs with 10-30 VDC operating range. 6 Normally Open relay outputs rated for 5-265 VAC and 5-125 VDC. Backplane current draw of 110 mA at 5V DC and 80 mA at 24V DC. Power supply distance rating of 6 modules. Three I/O groups for organized wiring. Compact 280 g design with 90 x 40.4 x 87 mm dimensions.

Technical Specifications

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number 1762-IQ8OW6
Series MicroLogix
Module Type Combination I/O Module
Number of Inputs 8 Sink / Source
Input Voltage Range 10-30 VDC @ 30°C, 10-26.4 VDC @ 65°C
Number of Outputs 6 Form A Relay (N.O.)
Output Voltage Range 5-265 VAC, 5-125 VDC
Output Contact Rating 2.5 A at 240/120 VAC, 1.0 A at 125 VDC, 2.0 A at 24 VDC
Max Current per Module 8 A
Backplane Current (5V) 110 mA
Backplane Current (24V) 80 mA
Heat Dissipation 5.0 W at 30V, 4.4 W at 26.4V
Input Signal Delay 8 ms (On and Off)
Output Switching Delay 10 ms (On and Off)
Power Supply Distance 6 Modules Maximum
Dimensions (H x W x D) 90 x 40.4 x 87 mm
Weight Approximately 280 g

Installation Guide

Install the 1762-IQ8OW6 (approx. 280 g) within 6 slots of the power supply. Wire input devices to the 8 sink or source channels, observing 10-30 VDC rating. Connect relay outputs to loads rated for 5-265 VAC or 5-125 VDC. Maintain continuous current below 8 A per module. Group 1 covers inputs 0-3, Group 2 covers inputs 4-7, and Group 3 covers all outputs for organized wiring.

Engineering Advantages

Combined input and output channels in one module saves chassis space. Sink or source input flexibility simplifies field device integration. Relay outputs handle both AC and DC loads for versatile control. Lightweight 280 g design reduces mounting strain. Power supply distance rating of 6 modules allows flexible rack placement. Fast 8 ms input and 10 ms output response for responsive control.

Frequently Asked Questions

Q1: How many inputs and outputs does the 1762-IQ8OW6 provide?

A1: It provides 8 sink or source inputs and 6 Form A Normally Open relay outputs.

Q2: What is the output voltage range?

A2: Relay outputs operate from 5-265 VAC and 5-125 VDC.

Q3: How far can this module be installed from the power supply?

A3: It must be within 6 modules of the power supply due to its distance rating.
