1734-4IOL

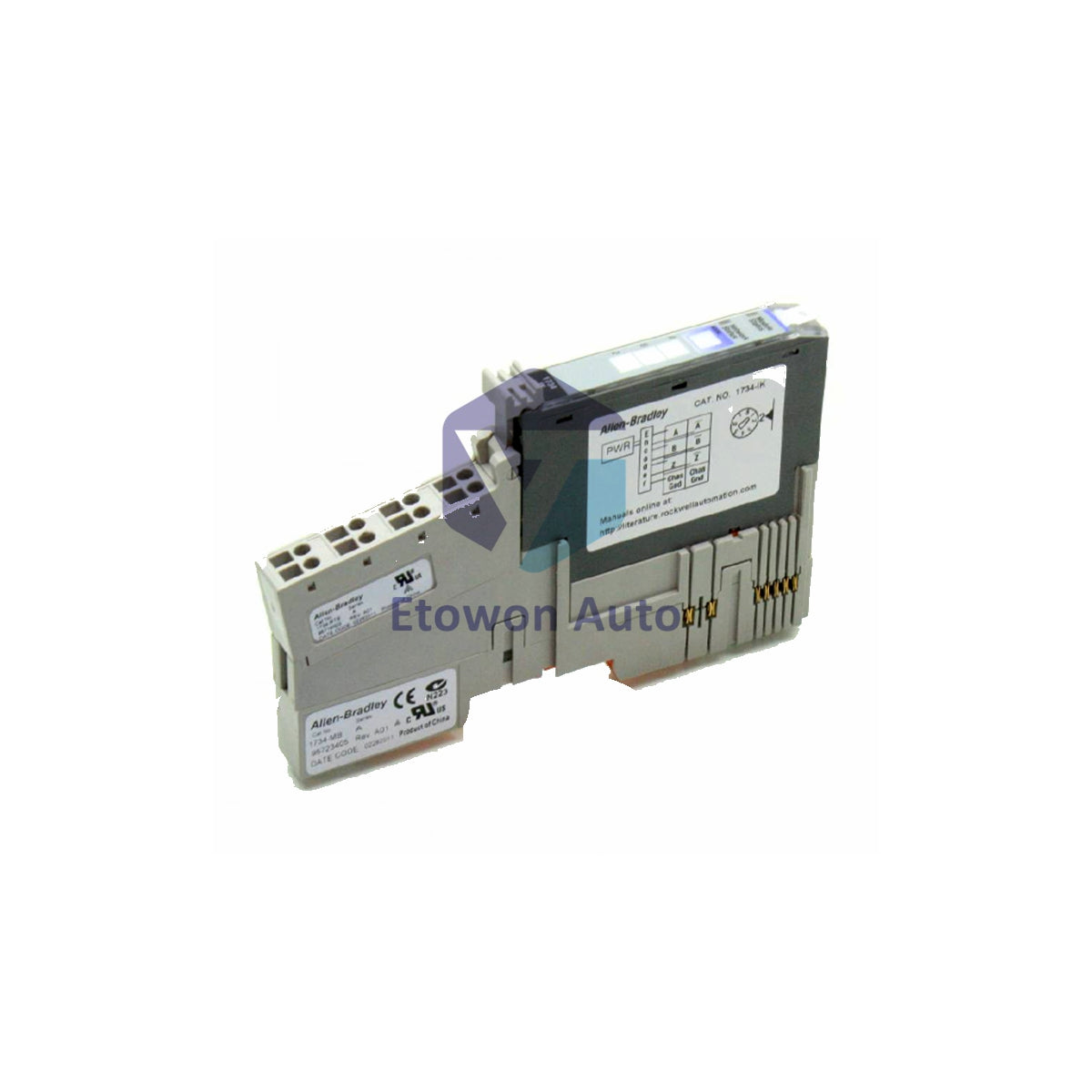

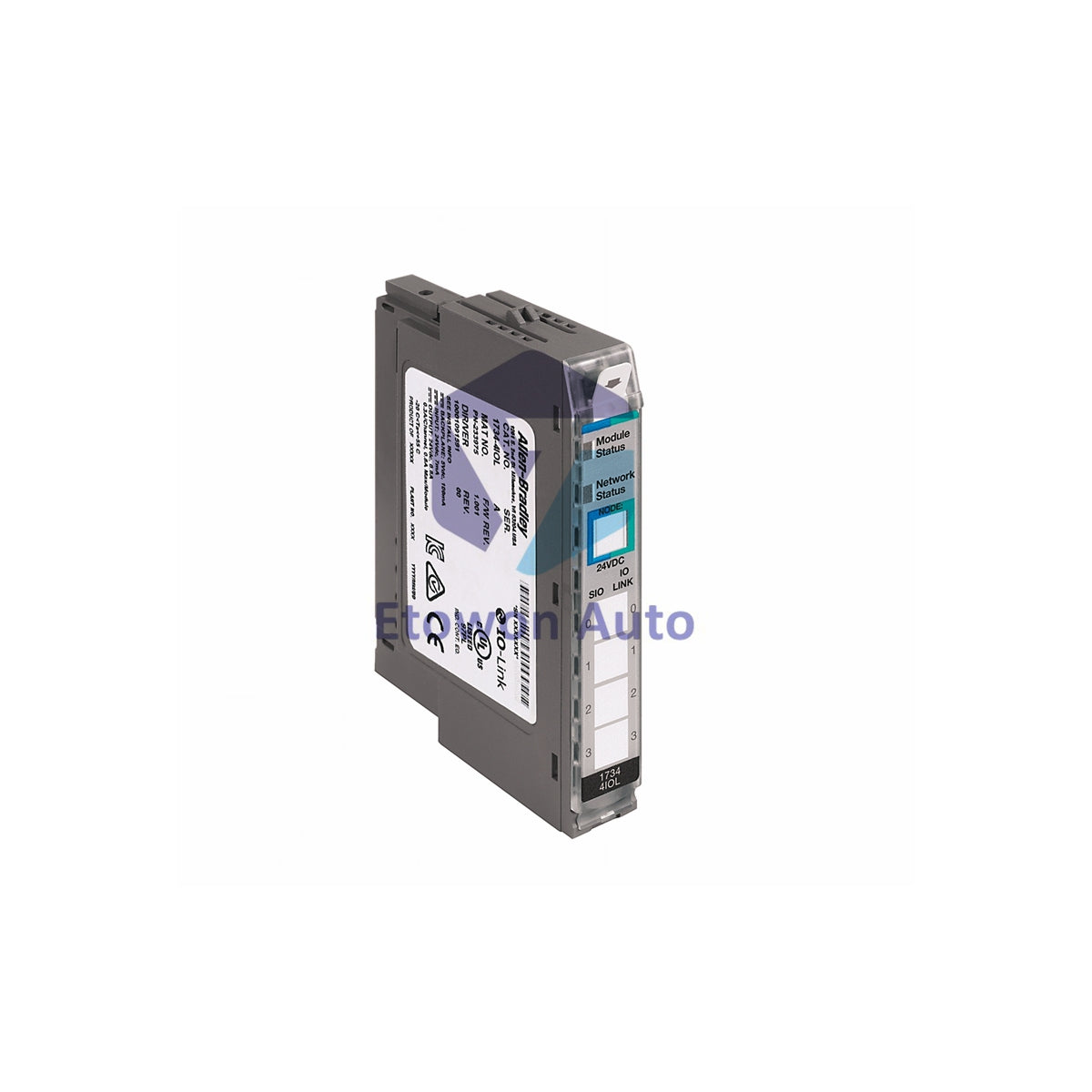

1734-4IOL Allen-Bradley 4-Channel IO-Link Master Module

Skladda bar (21 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 1734-4IOL

  • Product Type: Master Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 100g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Allen-Bradley 1734-4IOL POINT I/O 4-Channel IO-Link Master Module

The Allen-Bradley 1734-4IOL is a high-performance 4-channel IO-Link Master module engineered for seamless integration into the POINT I/O architecture. Weighing approximately 0.10 kg (0.22 lbs), this compact module bridges intelligent IO-Link field sensors and actuators directly with industrial PLC networks, enabling real-time telemetry, configuration, and diagnostics across automated production environments.

Key Electrical & Functional Features

Operating on a 5V DC backplane supply drawing just 100 mA, the 1734-4IOL efficiently manages four independent IO-Link communication channels. It processes 24V DC input signals (12 mA rating) with an acceptable voltage range of 13V DC to 30V DC. For field output control, it delivers a regulated 24V DC range (19.2V DC to 28.8V DC) at 0.15 mA per channel. Built to endure harsh plant conditions, it functions across extended operating temperatures from -20 °C to 55 °C (-4 °F to 131 °F).

Technical Specifications

Manufacturer & Brand Rockwell Automation | Allen-Bradley
Series & Catalog Number POINT I/O | 1734-4IOL
Module Type & Channels IO-Link Master Module | 4 Independent Channels
Backplane Power & Current 5V DC @ 100 mA Consumption
Input Specifications 24V DC Nominal (12 mA) | 13V…30V DC Range
Output Specifications 24V DC Nominal (0.15 mA/ch) | 19.2V…28.8V DC Range
Operating Temperature -20 °C to +55 °C (-4 °F to +131 °F)
Storage Temperature & Weight -40 °C to +85 °C (-40 °F to +185 °F) | Approx. 0.10 kg

Installation & Handling Guidelines

  • DIN Rail Insertion: Snap the lightweight 0.10 kg module into a standard 1734 terminal base unit (such as 1734-TB or 1734-TBS) until the locking mechanism fully engages.
  • Wiring & Cable Routing: Connect standard 3-wire unshielded IO-Link sensor cables up to 20 meters in length to maintain high-speed digital communications without interference.
  • Power Budgeting: Verify that total POINTBus 5V DC current consumption remains within adapter limits when combining multiple 1734-4IOL modules in a single node.

Frequently Asked Questions

Q1: How many IO-Link devices can a single 1734-4IOL module connect?
A1: The module features 4 distinct channels, allowing direct connection of up to 4 individual IO-Link smart sensors or actuators.

Q2: What is the backplane power requirement for the Allen-Bradley 1734-4IOL?
A2: It requires 5V DC backplane power with a current draw of 100 mA.

Q3: What are the input and output voltage ranges supported by this module?
A3: Input voltage ranges from 13V to 30V DC (24V DC nominal), while output voltage ranges from 19.2V to 28.8V DC.
