2094-BM01-M

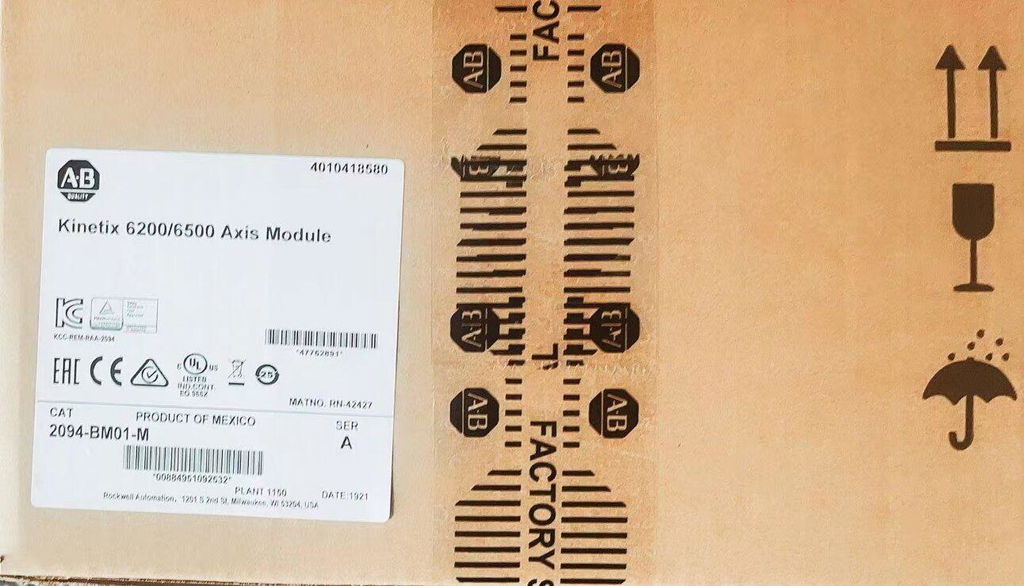

Allen-Bradley 2094-BM01-M Integrated Axis Module 9A Inverter

Skladda bar (24 sany), ibermek üçin taýýar

  • Manufacturer: Allen-Bradley

  • Product No.: 2094-BM01-M

  • Product Type: Axis Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 3180g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 günlük yzyna gaýtaryş syýasaty · 12 aýlyk kepillik
  • Çalt eltip berme
  • 24/7 goldaw
  • Hil üpjünçiligi

Düşündiriş

Allen-Bradley 2094-BM01-M Kinetix 6000 Axis Module

The 2094-BM01-M is an Allen-Bradley Kinetix 6000 modular axis module. This 400V class inverter is a core component for building multi-axis servo drive systems. It offers a balance of power, integrated safety, and diagnostic features in a modular package.

Core Technical Specifications

  • Brand & Model: Allen-Bradley 2094-BM01-M
  • Product Line: Kinetix 6000 Multi-Axis Drive
  • Input Voltage: 650 V DC (typical system bus)
  • Output Voltage: 400/460 V AC, 3-Phase
  • Continuous Output Current: 6.1 A RMS
  • Peak Output Current: Up to 15.3 A (Series B/C)
  • Continuous Power Output: 3.9 kW
  • Efficiency: 98%
  • Key Feature: Modular design for integration on a shared power rail with control modules.

Physical Data & Advanced Features

  • Weight: 3.18 kg (7.0 lbs)
  • Dimensions: 70 mm x 302 mm x 336 mm (2.76" x 11.9" x 13.2")
  • Power Dissipation: 57 - 126 W (depending on load)
  • Internal Shunt: 115 Ohm resistor, 50W continuous, 5.6 kW peak.
  • Advanced Safety: Supports Safe Speed, Safe Direction, Safe Maximum Acceleration, and other integrated safety functions.
  • Performance: 500 Hz velocity loop, 1300 Hz current loop bandwidth.
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)

Frequently Asked Questions

  • Q: What is the difference between the -M and -S suffix models?
    A> The -M suffix typically denotes a modular version designed for integration with separate control modules on a Kinetix power rail. The -S versions often include more integrated safety features like STO as standard.
  • Q: What are the "Safe Speed" and similar functions?
    A> These are embedded safety functions that allow the drive to restrict speed, direction, or acceleration to safe levels under specific conditions, enabling continued operation while protecting personnel.
  • Q: How is this module installed?
    A> It mounts directly onto a Kinetix 6000 power rail alongside other modules like the Integrated Axis Module (IAM) and control modules, sharing the common DC bus.
