X20DMF320

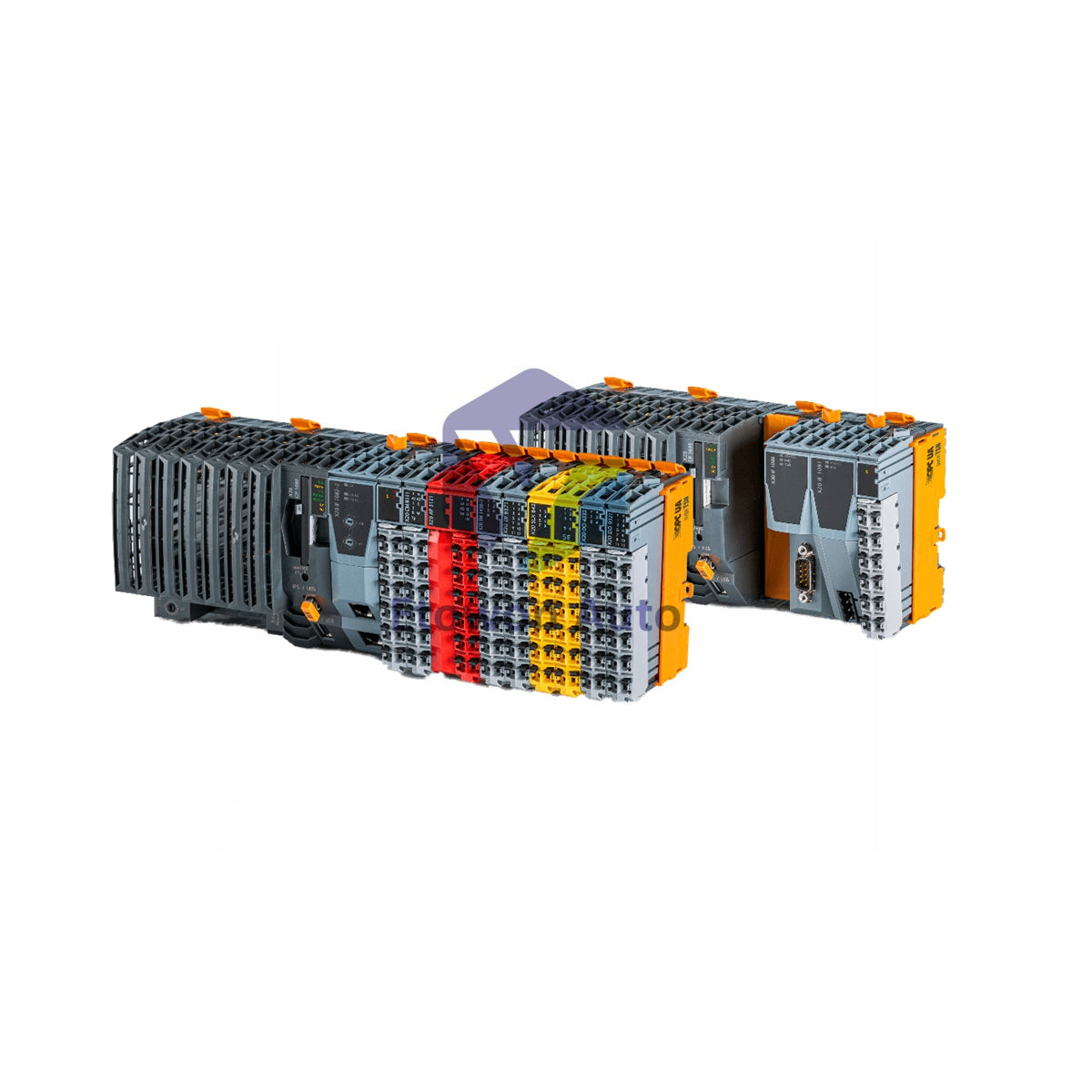

X20DMF320 B&R Counter PWM Module

In stock (12 units), ready to be shipped

  • Manufacturer: B&R

  • Product No.: X20DMF320

  • Product Type: I/O Module

  • Product Origin: AT

  • Payment:T/T, Western Union

  • Weight: 500g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

B&R X20DMF320 16DI + 16 Mixed I/O with Counter & PWM

B&R X20DMF320 delivers 16 dedicated digital inputs plus 16 configurable mixed channels. Features 40kHz counters, ABR encoder support, PWM outputs, and 1-wire connections. Designed for advanced industrial control applications.

Digital Inputs

  • 16 digital inputs, sink circuit
  • 2 counter inputs with 40 kHz max frequency
  • ABR incremental encoder support
  • Period duration and gate time measurement
  • 1-wire connections

Mixed Channels

  • 16 channels configurable as input or output
  • Source circuit for outputs
  • Integrated output protection
  • 3 PWM outputs available
  • 1-wire connections for all channels

Interfaces & Diagnostics

  • 1x X2X Link interface
  • B&R ID code: 0x2E86
  • Status indicators per channel for I/O function
  • Operating state and module status LEDs
  • Diagnostics via LED and software for module run/error
  • Output state monitoring via LED and software

Power Consumption

  • Bus power: 0.04 W
  • Internal I/O power: 2.7 W
  • Additional actuator power dissipation: 0.312 W (resistive)

Package Includes

  • B&R X20DMF320 I/O module unit
  • Documentation and quick start guide

Shipping

  • FedEx, UPS, DHL worldwide with tracking

FAQ

What is the max counter frequency?

Counter inputs support up to 40 kHz for high-speed applications.

Can I use mixed channels as PWM outputs?

Yes. Up to 3 mixed channels can output PWM signals.

Does this support ABR encoders?

Yes. The X20DMF320 handles ABR incremental encoders.
