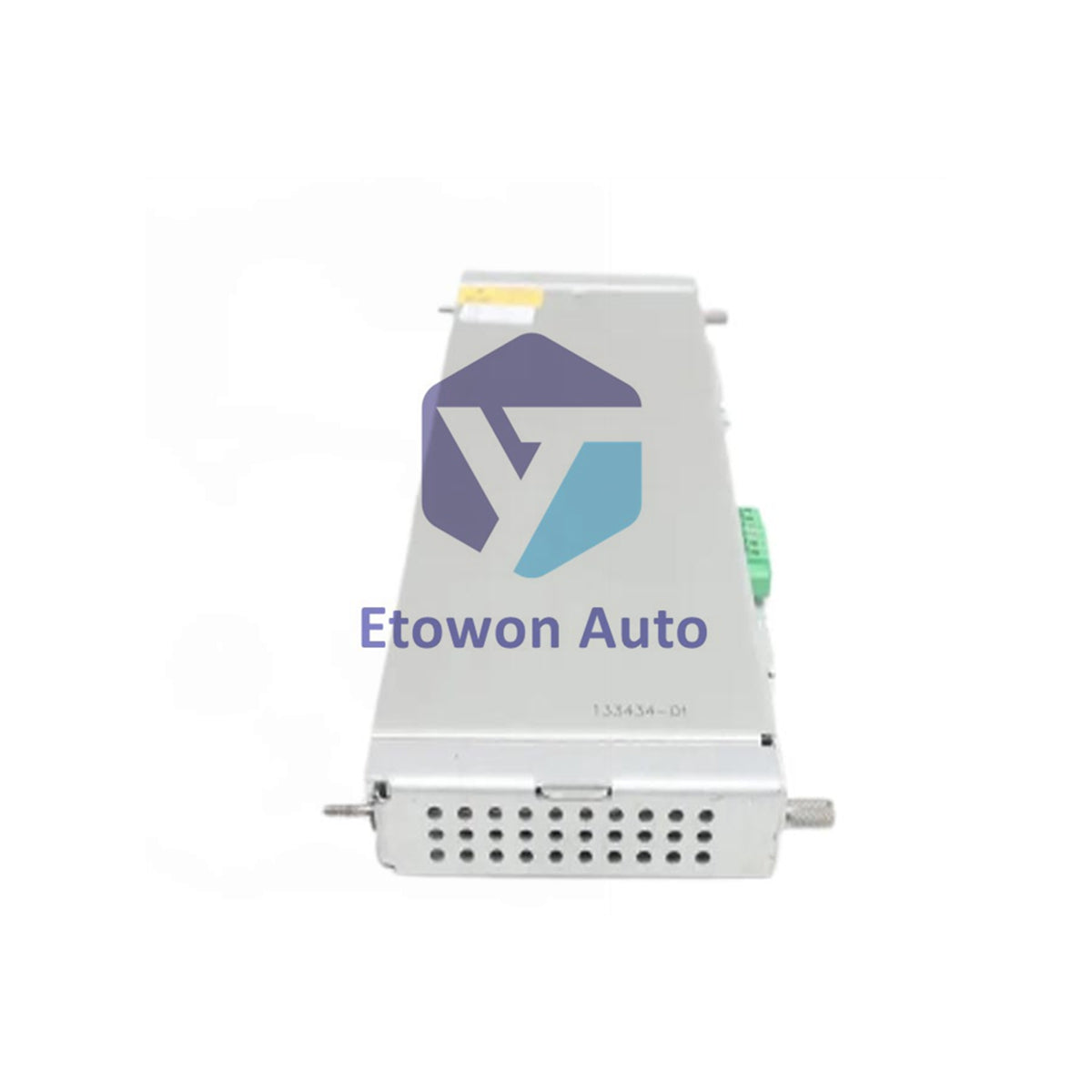

  • 3500/61 133819-02

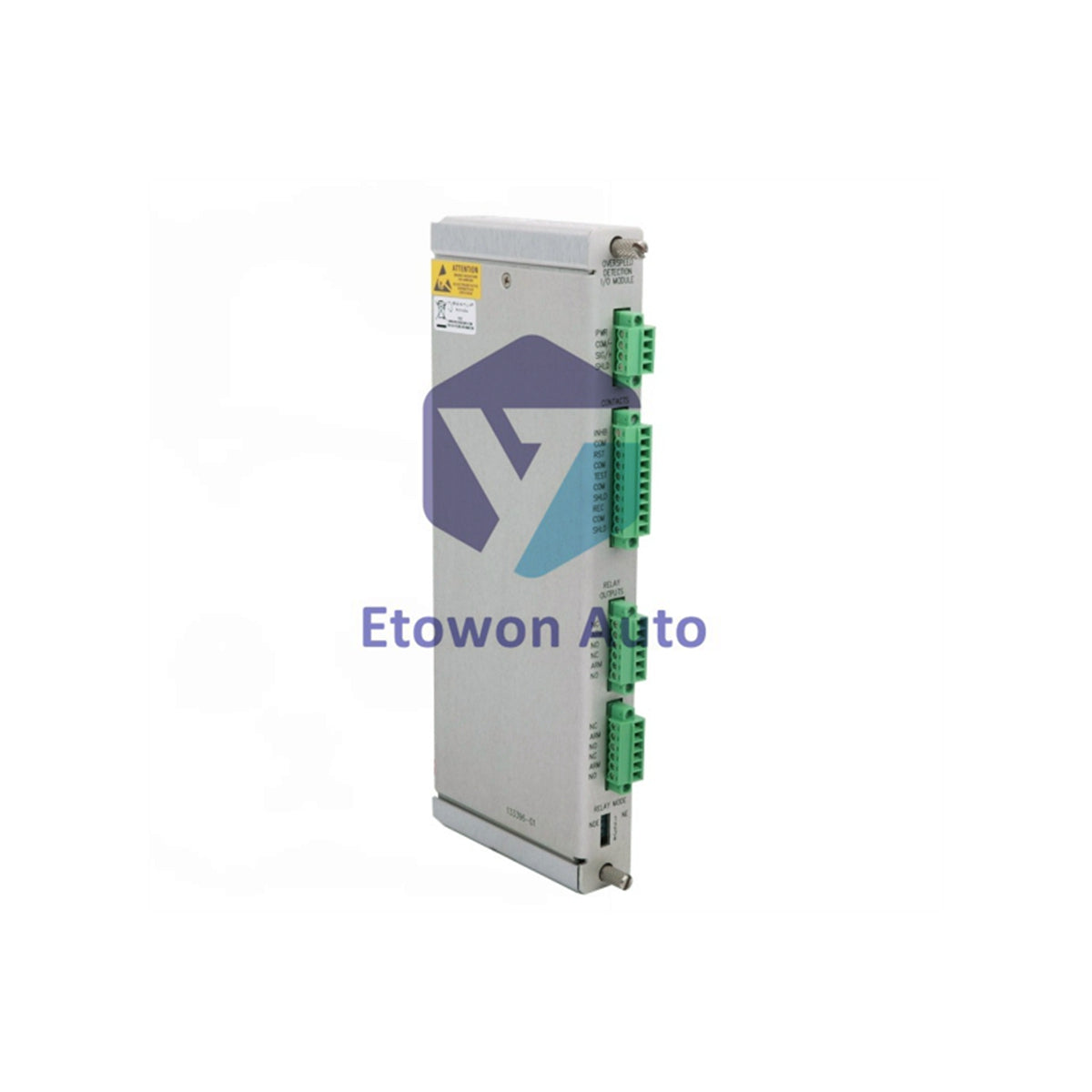

  • 3500/61 133819-02-1
  • 3500/61 133819-02-2
1 3

133819-02

Bently Nevada 133819-02 3500/61 I/O Module RTD TC Non-Isolated

In stock (18 units), ready to be shipped

  • Manufacturer: Bently Nevada

  • Product No.: 133819-02

  • Product Type: I/O Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 450g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Bently Nevada 133819-02 3500/61 RTD TC Non-Isolated I/O Module

Product Overview

Bently Nevada 133819-02 is a 3500/61 RTD TC non-isolated I/O module with internal terminations. Accepts 1 to 6 RTD or thermocouple signals. Input impedance 10 MΩ per lead. Power consumption 9 W nominal. Module weight 0.45 kg. SIL2 certified.

Technical Specifications

Parameter Value
Manufacturer Bently Nevada
Product Number 133819-02
Module Type 3500/61 RTD TC Non-Isolated I/O with Internal Terminations
Inputs 1 to 6 RTD or TC transducer signals
Input Impedance 10 MΩ per lead input
Power Consumption 9 W nominal
RTD Current Source 925 ±15 µA @ 25°C
Recorder Output +4 to +20 mA (0 to 600 Ω load)
Resolution 1°C or 1°F
Accuracy (RTD TC) ±3°C at 25°C
Cold Junction Accuracy ±1°C at 25°C
Alarm Accuracy 0.13% of desired value
Alert Delay 1 to 60 seconds (1 second intervals)
Danger Delay 1 to 60 seconds (0.5 second intervals)
Operating Temperature -30°C to +65°C (-22°F to +150°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Dimensions (H x W x D) 241.3 x 24.4 x 99.1 mm
Weight 0.45 kg

RTD Input Types

RTD Type Temperature Range
100Ω Platinum (0.00385 alpha) -200°C to +850°C
100Ω Platinum (0.00392 alpha) -200°C to +700°C
120Ω Nickel RTD -80°C to +260°C
10Ω Copper RTD -100°C to +260°C

TC Input Types

TC Type Temperature Range
Type E -100°C to +1000°C
Type J -18°C to +760°C
Type K -18°C to +1370°C
Type T -160°C to +400°C

Key Features

  • Accepts 1 to 6 RTD or TC transducer signals
  • Input impedance 10 MΩ per lead
  • 9 W nominal power consumption
  • Resolution 1°C or 1°F
  • Under and over alarm setpoints
  • User programmable alarm delays
  • Recorder outputs +4 to +20 mA
  • Cold junction compensation ±1°C at 25°C
  • SIL2 certified
  • FCC, EMC, RoHS, Maritime and Functional Safety approvals

FAQs

Q1: How many inputs does 133819-02 accept?
A1: 1 to 6 RTD or TC transducer signals with 10 MΩ input impedance.

Q2: What is the power consumption and weight?
A2: 9 W nominal. Module weight 0.45 kg.

Q3: What accuracy does this module provide?
A3: ±3°C at 25°C for RTD and TC, ±1°C for cold junction compensation. Alarm accuracy 0.13%.
