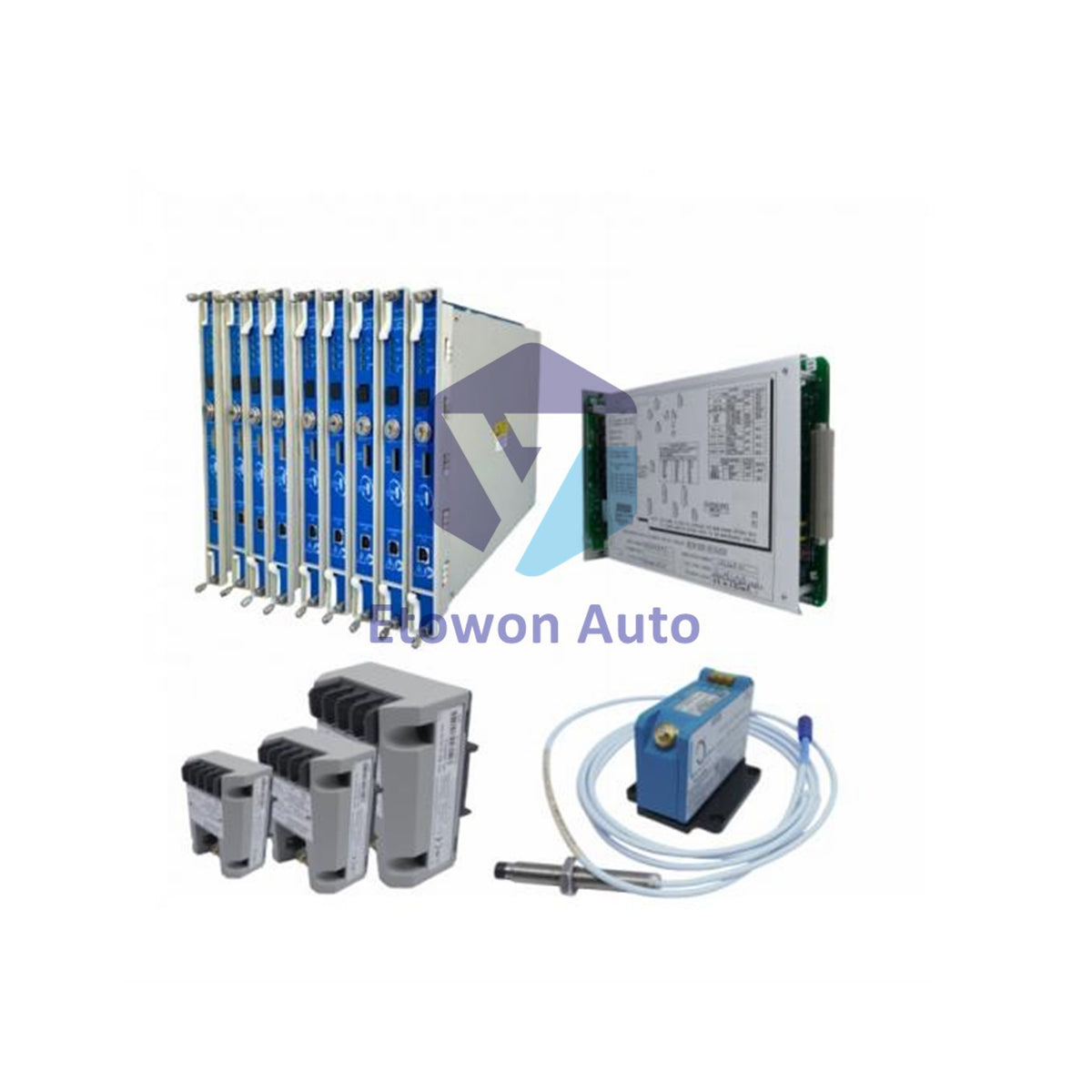

  • 3500/53-03-00

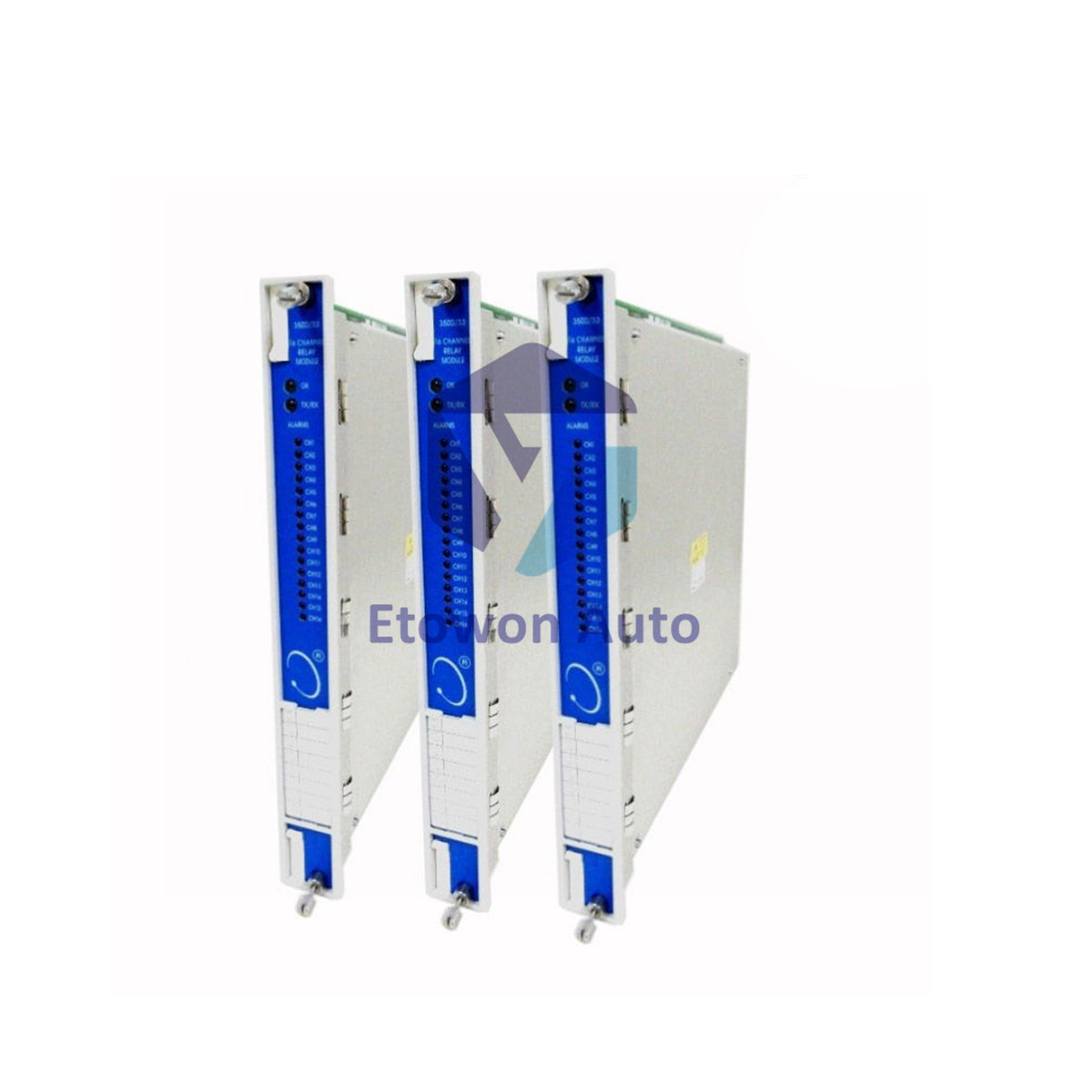

  • 3500/53-03-00-1

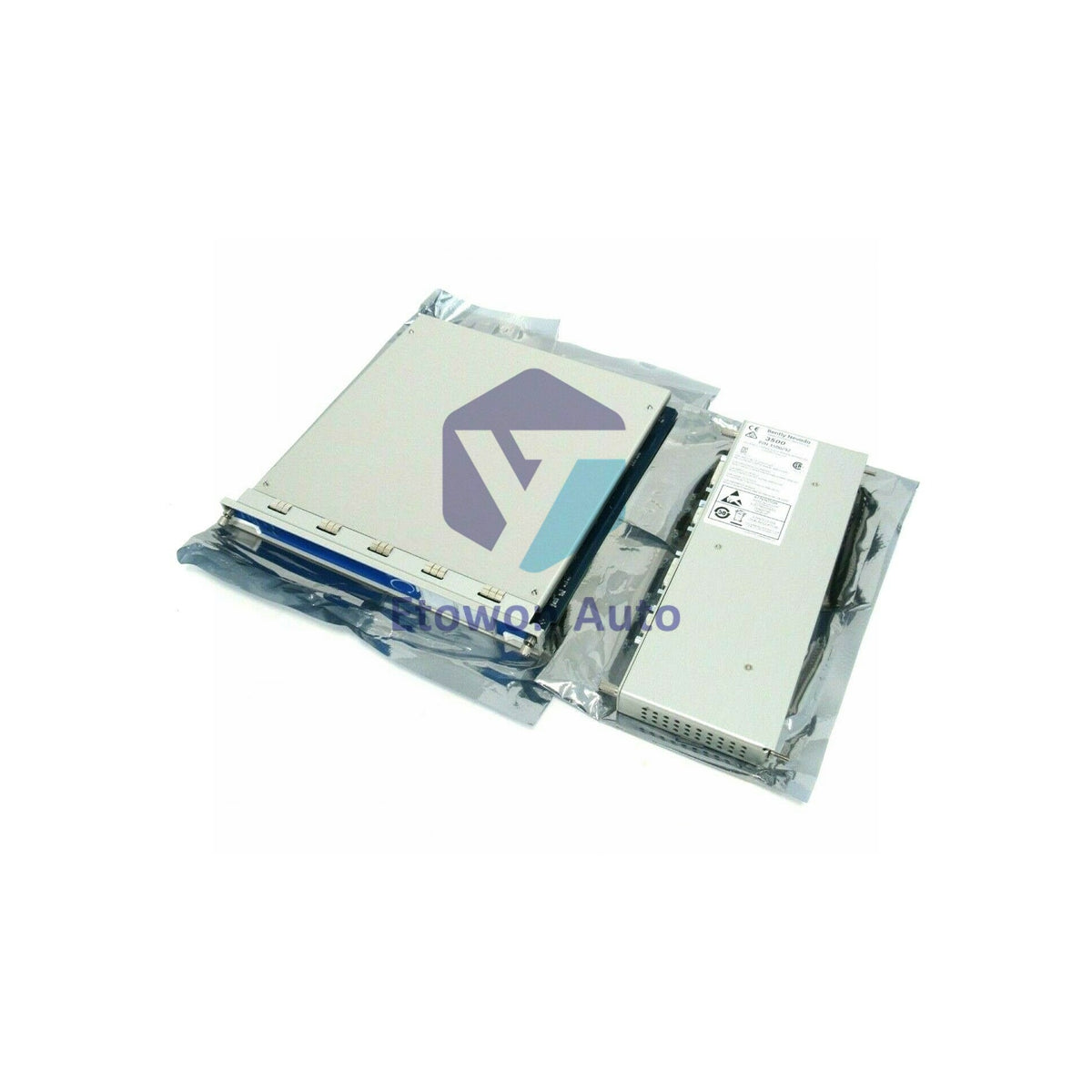

  • 3500/53-03-00-2
1 3

3500/53-03-00

Bently Nevada 3500/53-03-00 Overspeed Detection 3CH

In stock (20 units), ready to be shipped

  • Manufacturer: Bently Nevada

  • Product No.: 3500/53-03-00

  • Product Type: Position Monitor

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 820g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Bently Nevada 3500/53-03-00 Electronic Overspeed Detection System

Bently Nevada 3500/53-03-00 is a three-channel electronic overspeed detection system accepting proximity probe or magnetic pickup signals. Features 20 kΩ input impedance, 8.0W typical power consumption, and SPDT relays with arc suppressors.

Ordering Configuration

Option Code Description
Channel Option 03 Three Channel System
Agency Approval 00 None

Key Specifications

Parameter Value
Input Signal Range +10.0V to -24.0V
Input Impedance 20 kΩ
Power Consumption 8.0W typical
Transducer Power Supply -24V dc, 40mA max
Output Impedance 550Ω
Recorder Output +4 to +20 mA (0-600Ω load)
Monitor Module Weight 0.82 kg (1.8 lb)
I/O Module Weight 0.45 kg (1.0 lb)

Relay Specifications

Parameter Value
Relay Type SPDT, epoxy sealed
Max Switched Power (DC) 120W
Max Switched Power (AC) 600VA
Max Switched Current 5A
Max Switched Voltage (DC) 30V
Max Switched Voltage (AC) 250V
Contact Life 100,000 cycles @ 5A
Arc Suppressors 250 Vrms, standard

Dimensions

Component H x W x D
Monitor Module 241.3 x 24.4 x 241.8 mm (9.50 x 0.96 x 9.52 in)
I/O Module 241.3 x 24.4 x 99.1 mm (9.50 x 0.96 x 3.90 in)

Environmental Limits

Parameter Value
Operating Temperature -30°C to +65°C (-22°F to +149°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Humidity 95% non-condensing

Front Panel LEDs

  • OK LED: Indicates proper operation
  • TX/RX LED: Communication status
  • Bypass LED: Indicates Bypass Mode
  • Test Mode LED: Indicates Test Mode
  • Alarm LEDs: Indicates alarm condition with associated relay

Compatible Transducers

  • Bently Nevada 3300 8mm Proximitor
  • 3300 16mm HTPS, 7200 5mm, 8mm, 11mm, 14mm Proximitor
  • 3300 RAM Proximitor
  • Magnetic pickups

FAQs

Q1: How many channels does the 3500/53-03-00 have?
A1: Three channel system.

Q2: What is the input impedance?
A2: 20 kΩ with +10.0V to -24.0V signal range.

Q3: What is the recorder output range?
A3: +4 to +20 mA, proportional to full-scale rpm.
