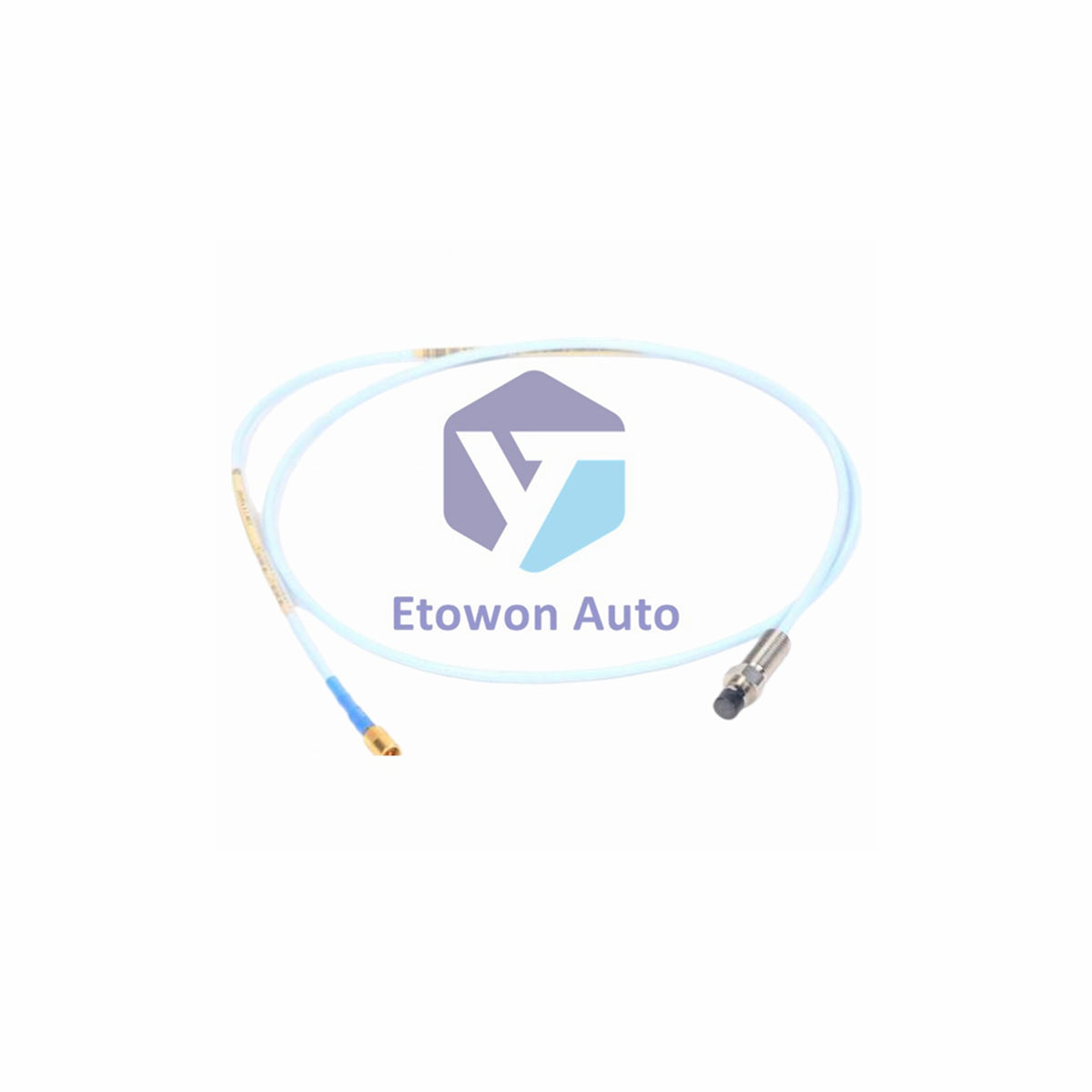

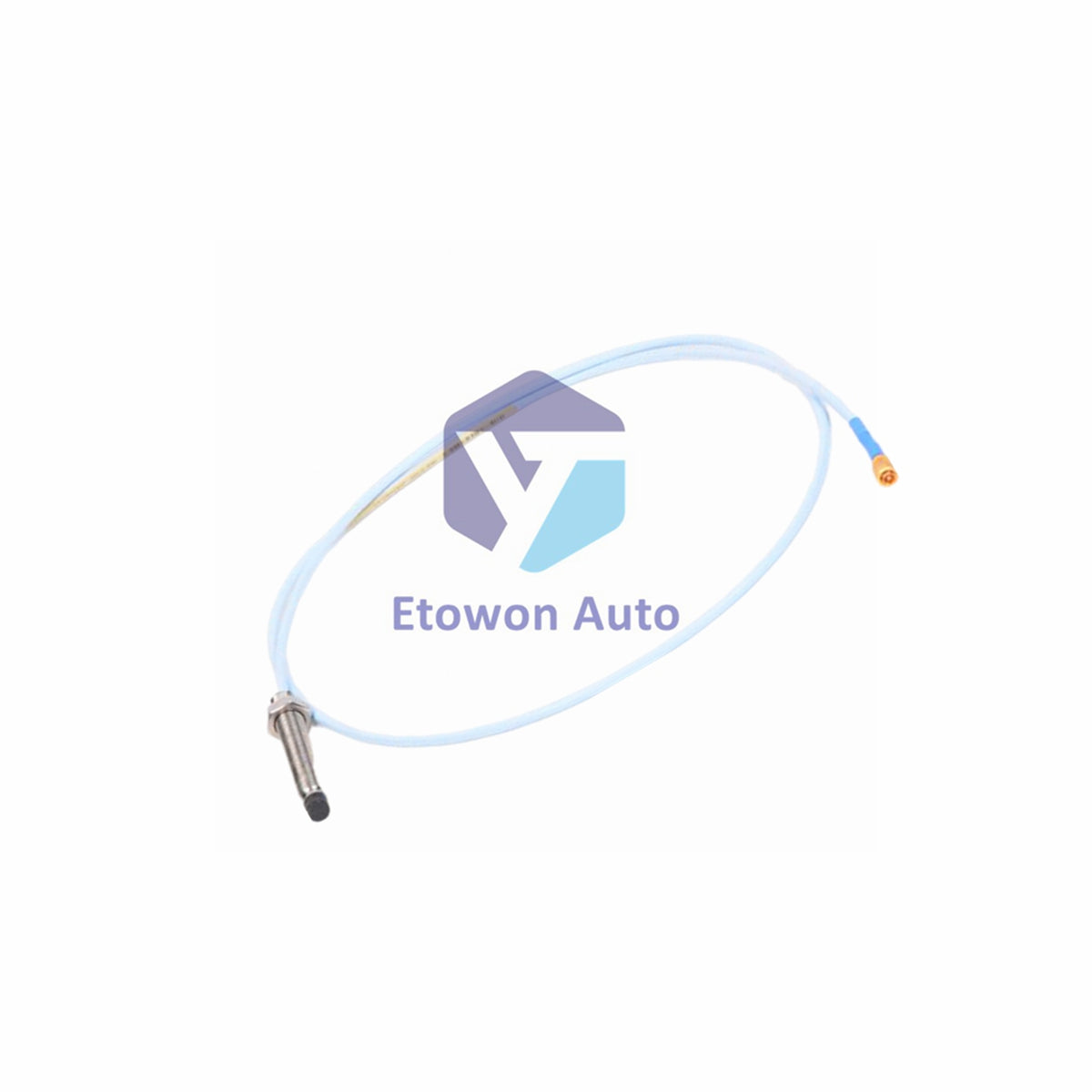

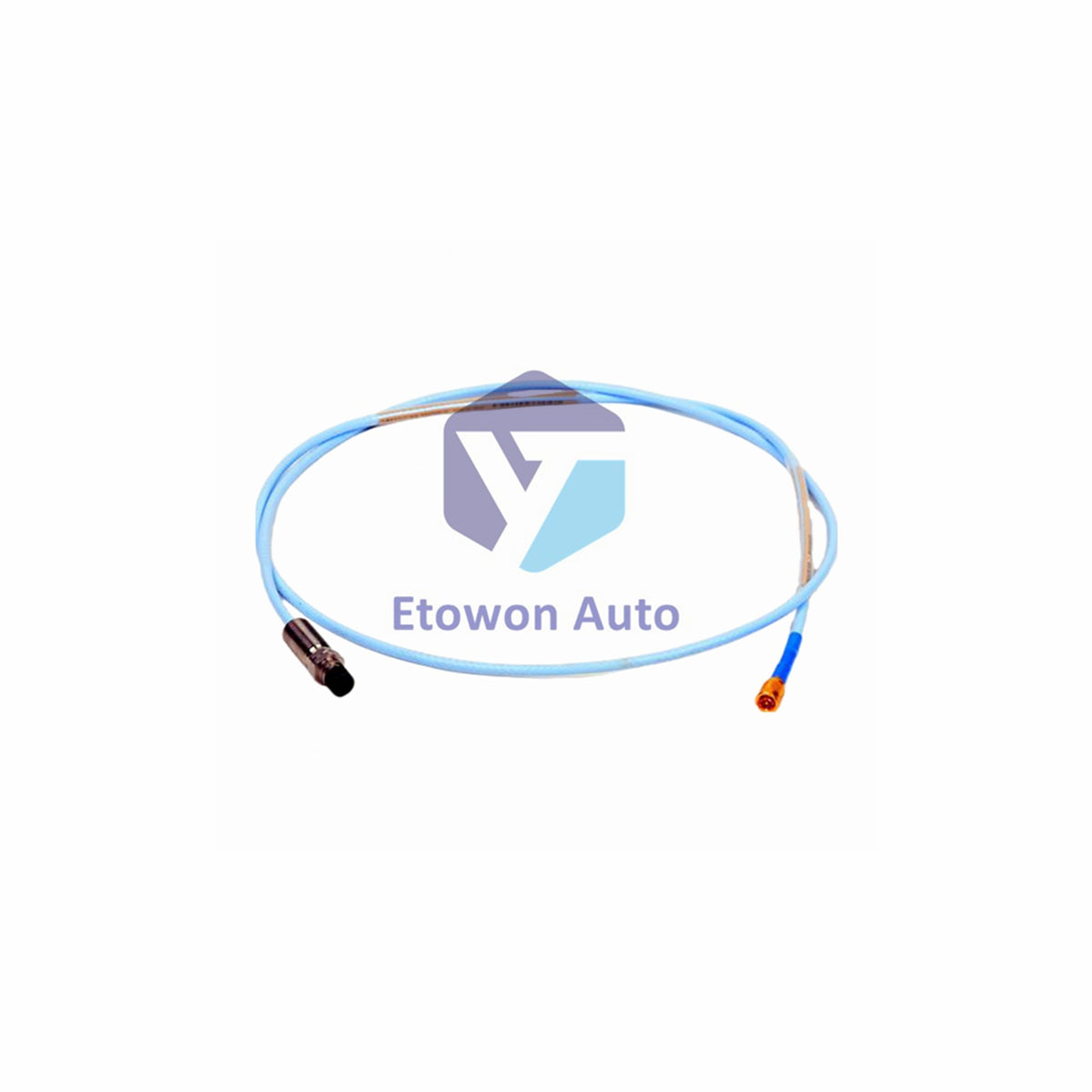

Vibration Probes Bently Nevada 330101-00-15-10-02-CN

In stock (23 units), ready to be shipped

  • Manufacturer: Bently Nevada

  • Product No.: 330101-00-15-10-02-CN

  • Product Type: Proximity Probes

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 320g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Bently Nevada 3300 XL 8mm Proximity Probe 330101-00-15-10-02-CN

The Bently Nevada 330101-00-15-10-02-CN is an 8mm eddy current proximity probe from the 3300 XL system. It features patented TipLoc and CableLoc technology for robust performance in high-temperature and demanding industrial environments.

Technical Specifications

  • Brand & Model: Bently Nevada 330101-00-15-10-02-CN
  • Series: 3300 XL Monitoring System
  • Probe Type: 8mm Eddy Current Proximity
  • Case Length: 1.5 inches (38.1 mm)
  • Cable Length: 1.0 meter (3.3 ft)
  • Connector: Miniature Coaxial ClickLoc
  • Mounting Thread: 3/8-24 UNF
  • Probe Tip: 8 mm PPS Plastic with Viton O-Ring
  • Case Material: AISI 303/304 Stainless Steel
  • Linear Range: 2 mm (80 mils)
  • Sensitivity (Scale Factor): 7.87 V/mm (±5%)
  • Electrical Specs: DC Resistance: 7.59±0.50Ω; Capacitance: 69.9 pF/m
  • Operating Temperature: Standard: -52°C to +177°C; Extended: Tip +218°C, Cable +260°C
  • Humidity Resistance: <3% signal variation after 56 days at 93% RH
  • Pull Strength: Up to 330 N (75 lbf)
  • Cable Run: Supports up to 305 meters (1000 ft)
  • Approvals: Country-Specific (CN), EMC, RoHS
  • Probe Weight: 0.32 kg (323 g/m)
  • Shipping Weight: Approx. 0.55 kg

Installation & Compatibility

  • Install in standard 3/8-24 UNF mounting holes
  • Connect to Bently Nevada 3300 XL monitor frames via ClickLoc connector
  • Ideal for vibration, position, and eccentricity measurement on turbines, compressors, and pumps
  • Calibrate gap and sensitivity with compatible 3300 XL driver modules

Shipping Information

  • 1x Proximity Probe (330101-00-15-10-02-CN)
  • Includes protective tip cap
  • Secure protective packaging
  • Shipped via FedEx, UPS, or DHL

FAQ

  • What is the purpose of TipLoc/CableLoc?
    These are mechanical locking features that prevent the probe tip and cable from loosening or detaching due to vibration, ensuring long-term measurement integrity.
  • What is the FluidLoc option?
    An enhanced sealing method that provides an IP68 rating, allowing the probe to be used in applications where it may be submerged in fluid.
  • What target material is it calibrated for?
    Standard calibration is for AISI 4140 steel. Sensitivity changes with different target materials; consult specifications for compensation factors.
