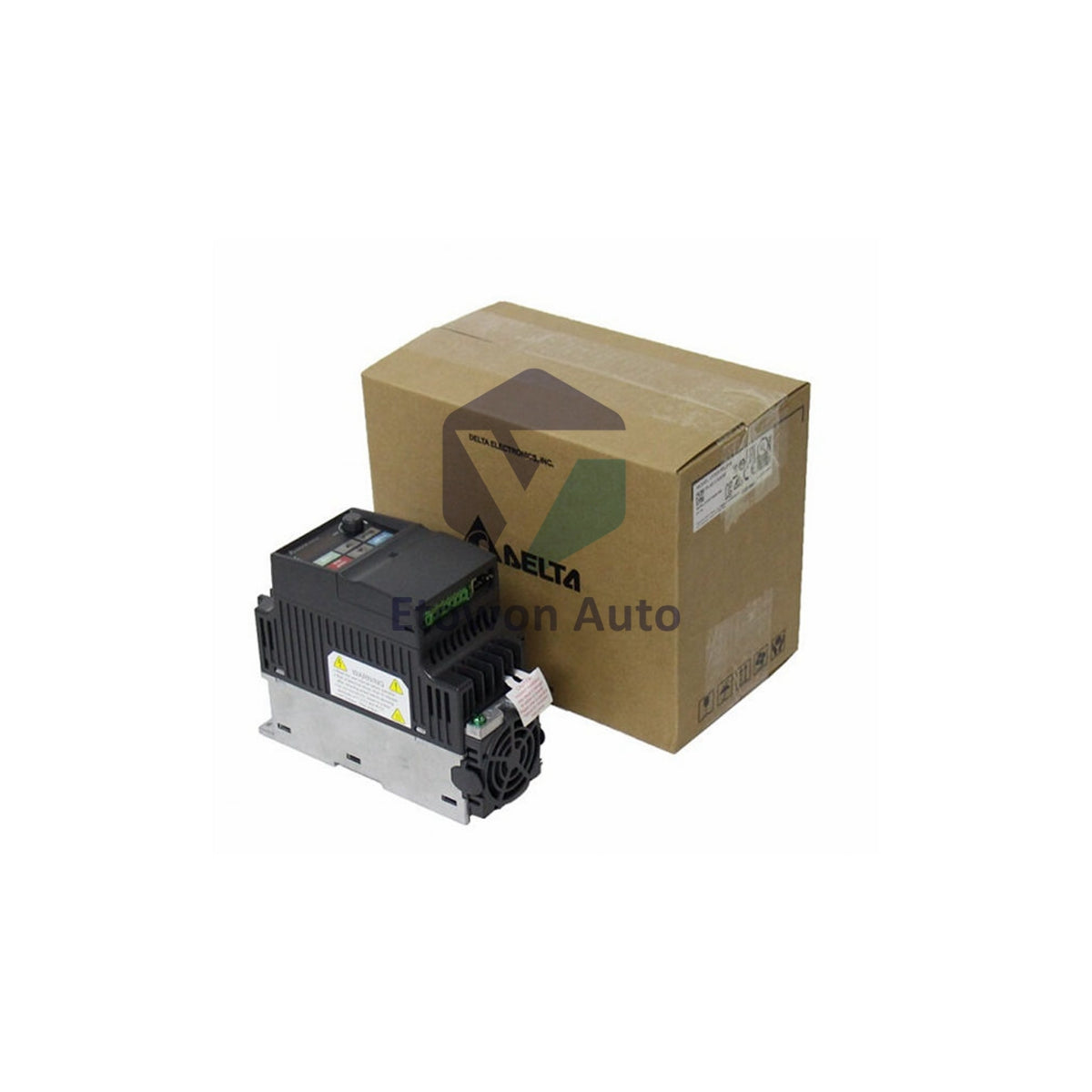

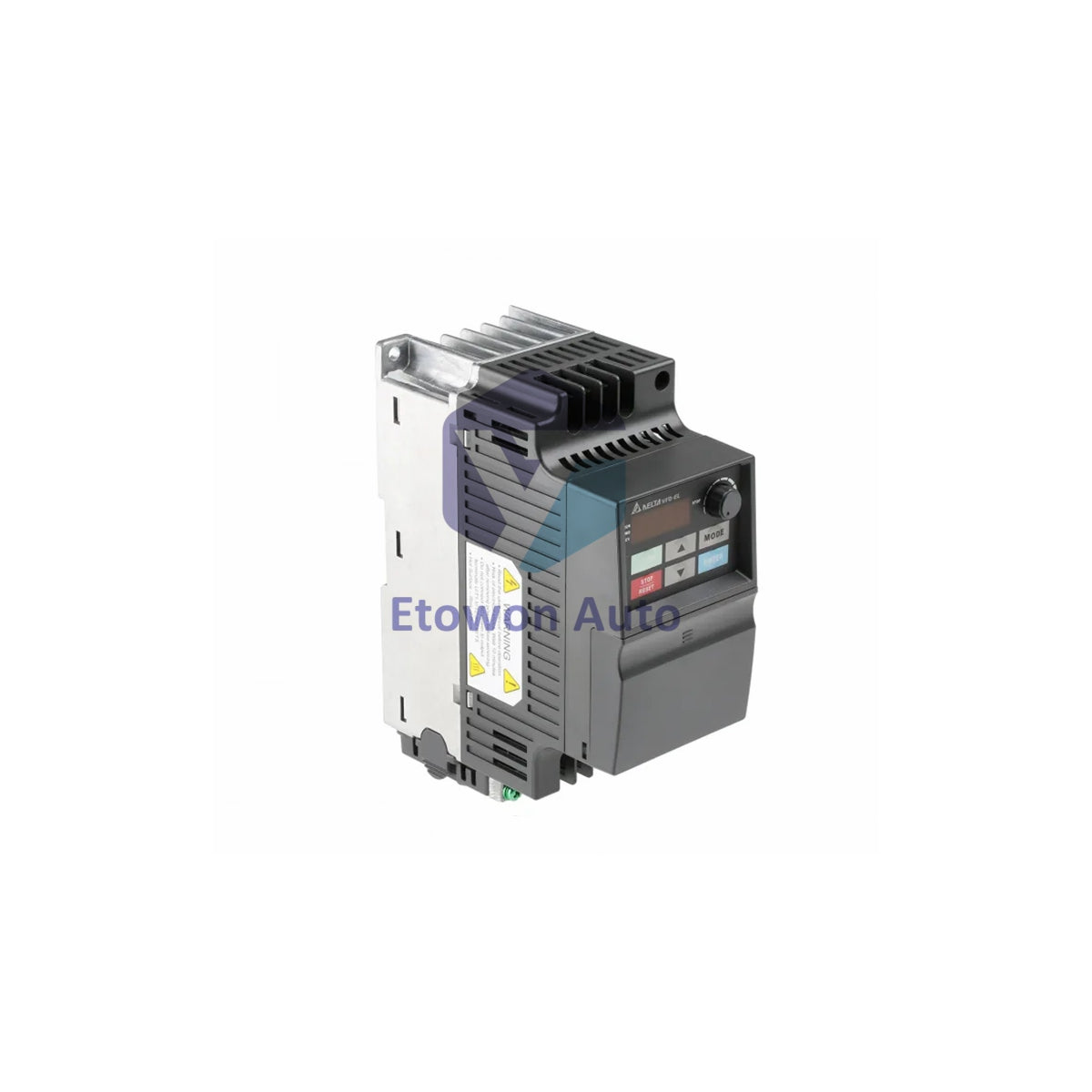

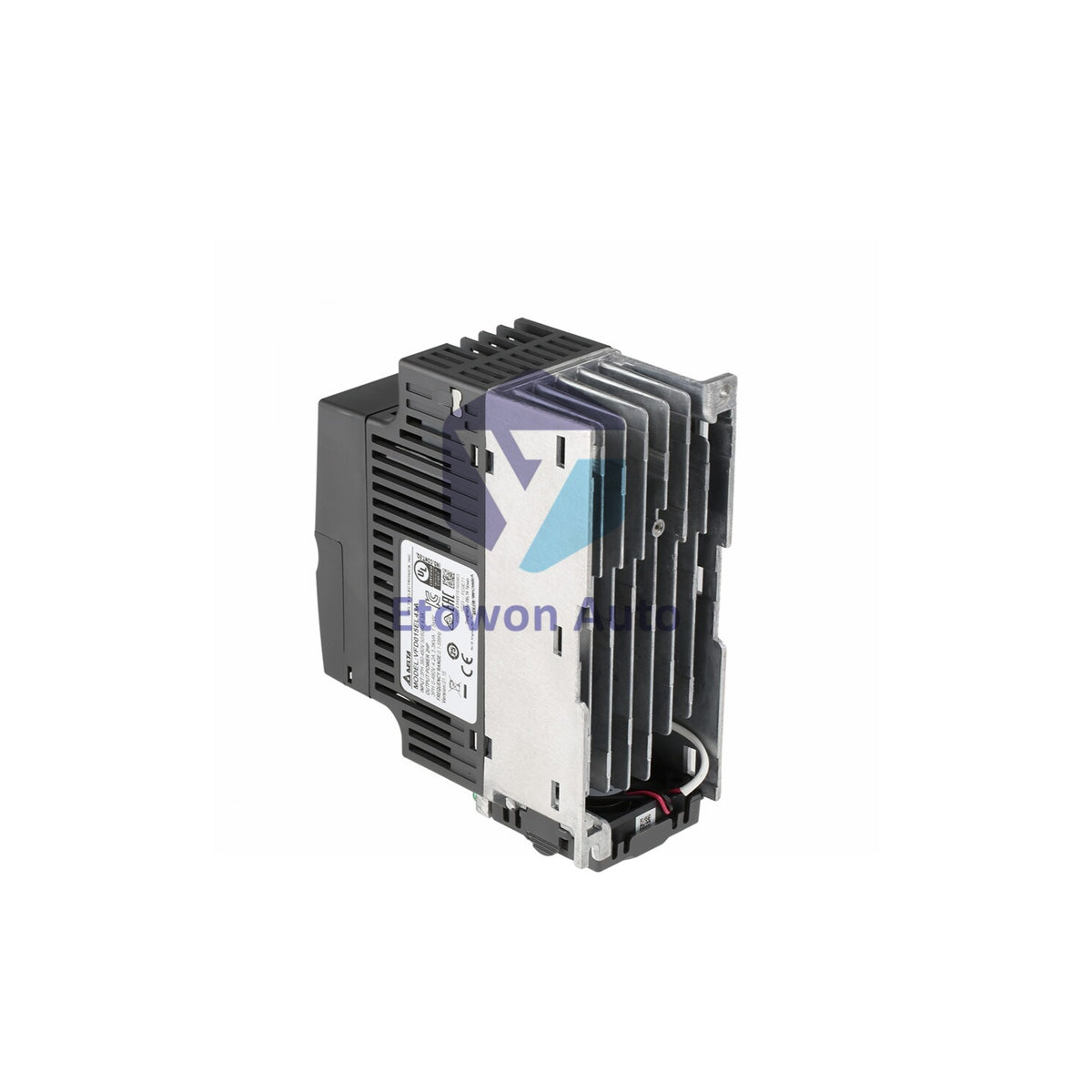

VFD015E43T Delta 460V VFD – 2HP 4.2A Sensorless Vector Drive

Delta VFD015E43T VFD-E Series – 480V 2HP 3-Phase AC Drive

The Delta VFD015E43T is a compact 480V 3-phase drive from the VFD-E Series. It delivers 2HP (1.5kW) with 4.2 Amps output. Features sensorless vector control for superior motor performance in a small footprint.

• 2HP Output: 1.5kW power with 4.2 Amps current rating
• 480V Input: Accepts 380-480V AC, 3-phase
• 600Hz Max Freq: Handles high-speed applications
• Advanced Control: Sensorless vector for better torque
• Compact Frame A: Only 2.83 inches wide for tight spaces

Technical Specs – Delta VFD015E43T

This VFD-E Series Drive offers sensorless vector control in an ultra-compact package. Key specs below:

• Brand: Delta Products
• Model: VFD015E43T
• Input: 380-480V AC, 3-phase
• Output: 2HP (1.5kW), 4.2 Amps
• Control Mode: Sensorless Vector / V/Hz
• Freq Range: 0-600 Hz
• Braking: DC injection + dynamic braking transistor
• Enclosure: IP20
• Frame Size: A
• Dimensions: 5.59 x 2.83 x 5.98 inches

Installation & Package

The Delta VFD015E43T requires external operator controls (sold separately). Frame A size is ideal for space-constrained panels.

• Controls: Keypad sold separately – see accessories
• Mounting: Panel mount with included hardware
• Space Saving: Ultra-slim 2.83 inch width
• Wiring: Easy-access terminals for 4.2A connections
• Package: 1x drive, manual, mounting accessories
• Shipping: Via FedEx, UPS, or DHL

FAQ

1. What keypad works with this drive?

The VFD015E43T uses Delta's standard VFD-E series keypad. Check our accessories for compatible models. The drive requires an external keypad for operation.

2. What's the advantage of sensorless vector control on a 2HP drive?

Sensorless vector provides better starting torque and speed regulation. The VFD-E Series handles varying loads more smoothly than standard V/Hz drives.

3. How small is the Frame A size?

At only 2.83 inches wide, the VFD015E43T fits in extremely tight spaces. Perfect for panels where every inch matters.
