VFD004E21T

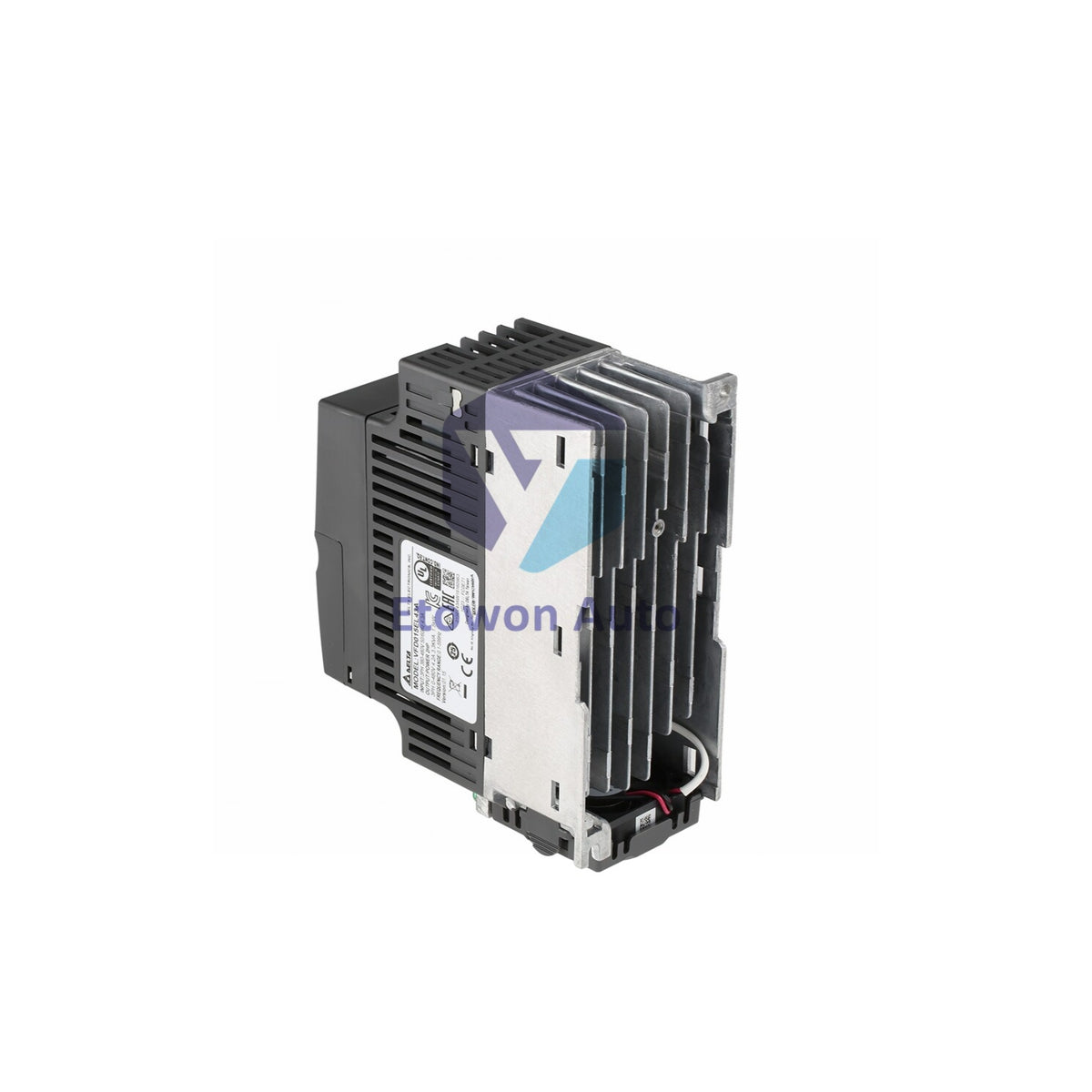

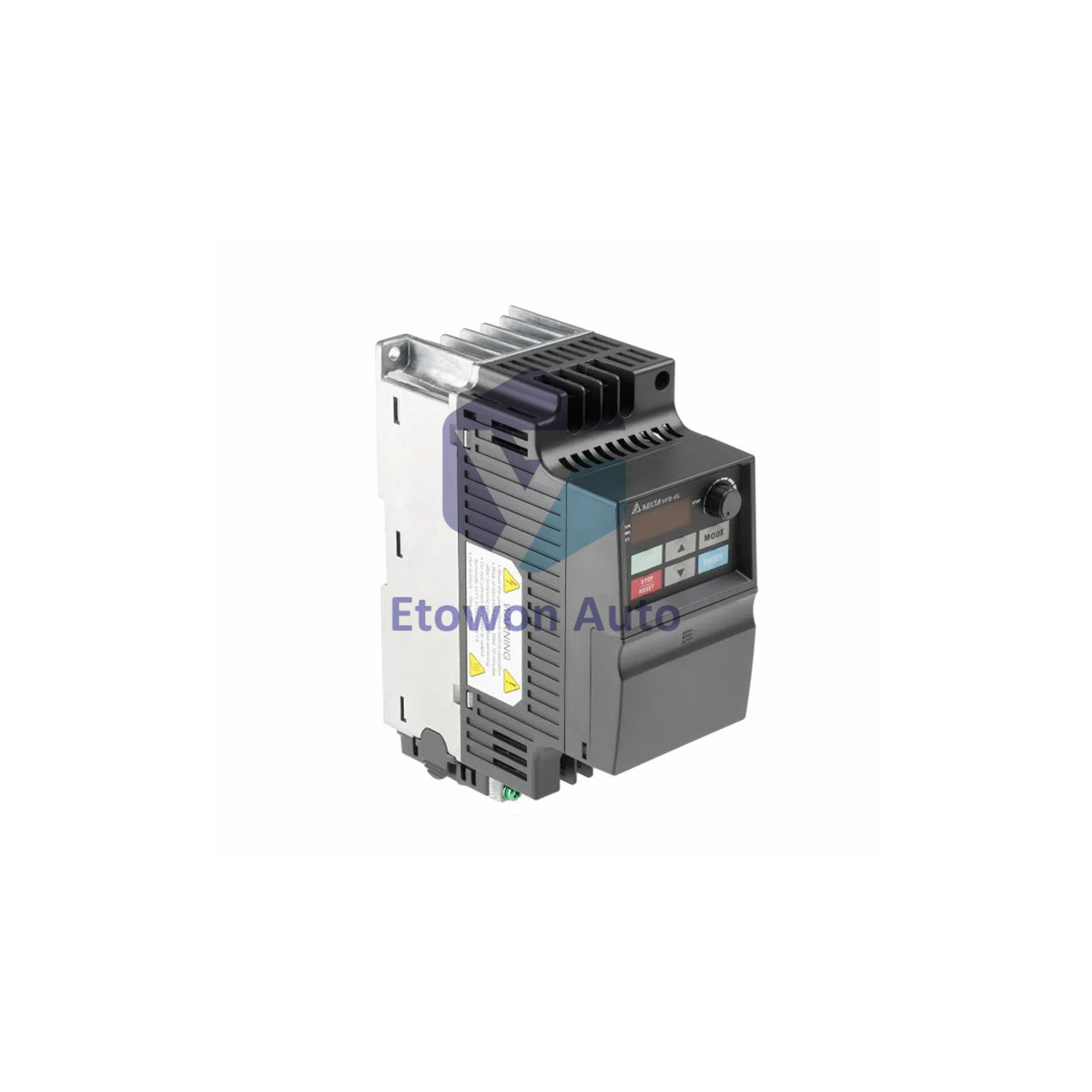

VFD004E21T Delta VFD-E Series Sensorless Vector AC Drive

In stock (16 units), ready to be shipped

  • Manufacturer: Delta

  • Product No.: VFD004E21T

  • Product Type: AC Drive

  • Product Origin: CN

  • Payment:T/T, Western Union

  • Weight: 1200g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Delta VFD004E21T VFD-E Series AC Drive

Delta VFD004E21T VFD-E Series AC drive. 0.5 HP, 0.375 kW, 230V 1-phase input, 3-phase output. Sensorless vector control, 600Hz max frequency, IP20 enclosure.

Key Specifications

  • Model: VFD004E21T
  • Series: VFD-E
  • Horsepower: 0.5 HP (CT)
  • Power Rating: 0.375 kW
  • Input Voltage: 200-240V AC, 1-phase
  • Output Current: 2.5 Amps (CT)
  • Input Phase: 1
  • Max Frequency: 600 Hz
  • Motor Control: Open Loop Vector (Sensorless Vector)
  • Braking Type: DC Injection, Dynamic Braking (transistor included)
  • Enclosure Rating: IP20
  • Frame Size: A
  • Weight: 1.2 kg (2.65 lbs)

Dimensions

  • Height: 5.59 inches (142 mm)
  • Width: 2.83 inches (72 mm)
  • Depth: 5.98 inches (152 mm)

Additional Specifications

  • Output Frequency Resolution: 0.01 Hz
  • Carrier Frequency: 2-15 kHz (adjustable)
  • Overload Capacity: 150% for 60 seconds
  • V/Hz Pattern: Adjustable
  • Accel/Decel Time: 0.1-600 seconds
  • Built-in PLC Function: Yes
  • Modbus Communication: Built-in RS-485
  • Protection Features: Overvoltage, undervoltage, overload, overheat, stall prevention
  • Cooling Method: Natural convection / Fan cooled

Features

  • Sensorless vector control for high performance
  • Built-in dynamic braking transistor
  • Integrated PLC functionality
  • Built-in RS-485 Modbus communication
  • Compact Frame A size
  • Operator controls sold separately (accessory required)

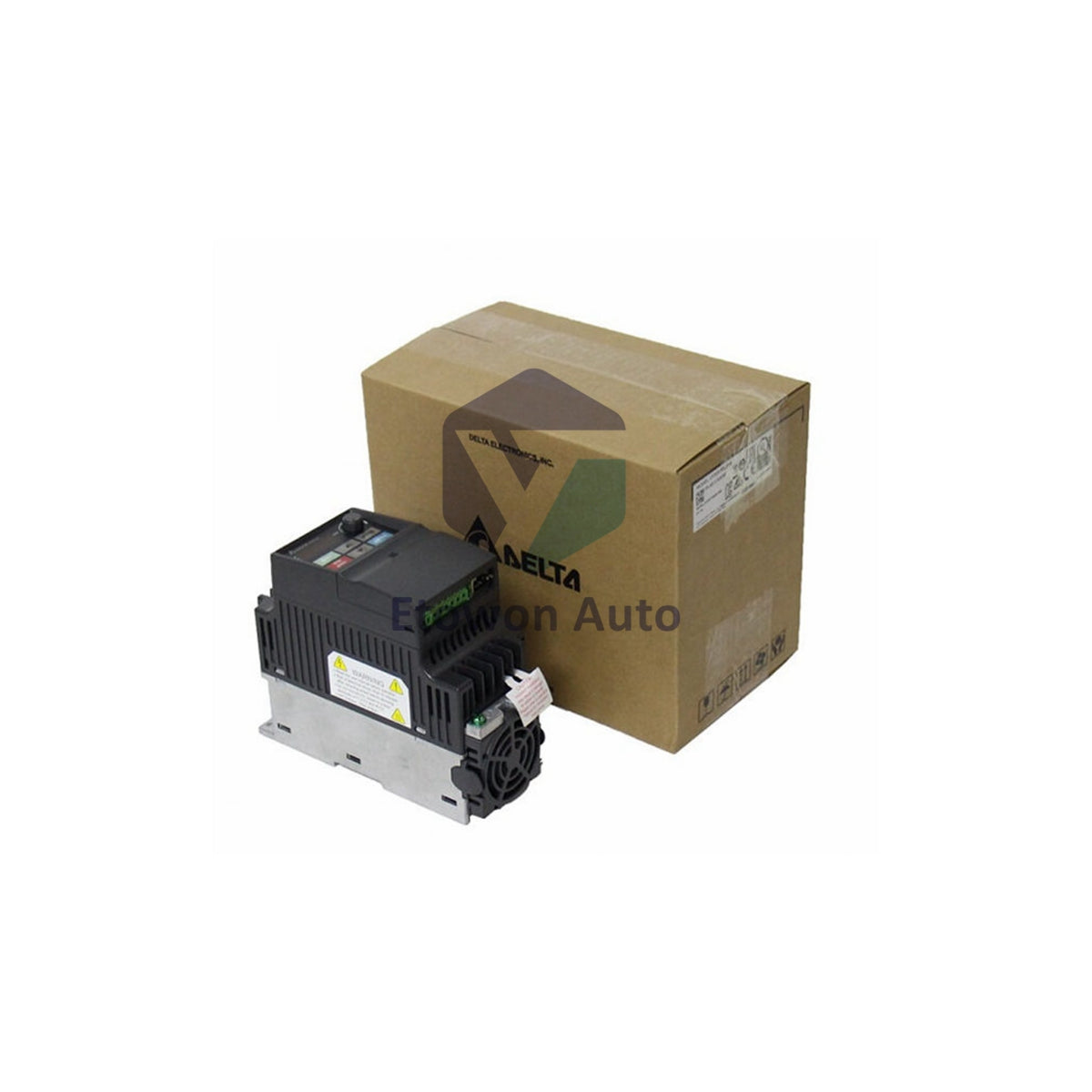

Package Contents

  • VFD004E21T AC drive
  • Documentation
  • Shipping: FedEx, UPS, DHL
  • 12-month warranty

FAQ

Q: Power and voltage rating?
A: 0.5 HP, 0.375 kW, 200-240V 1-phase input, 2.5A output, 600Hz max frequency.

Q: Control method?
A: Sensorless vector control (open loop) with built-in dynamic braking transistor.

Q: Weight and dimensions?
A: 1.2 kg, 5.59 x 2.83 x 5.98 inches. IP20 enclosure, Frame A.
