140DRC83000C

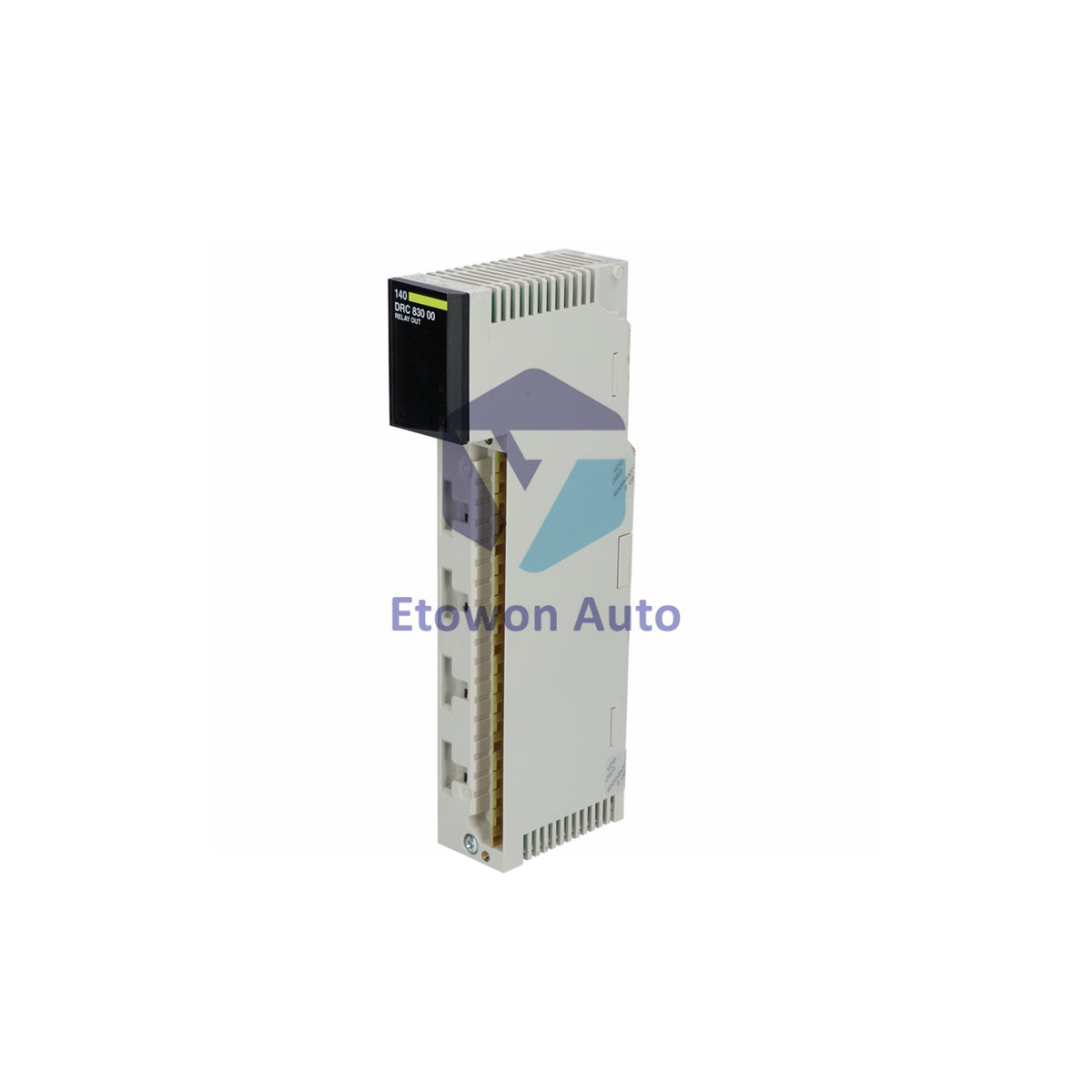

Schneider Quantum 140DRC83000C | 8-Channel Relay Output Module

In stock (14 units), ready to be shipped

  • Manufacturer: Schneider

  • Product No.: 140DRC83000C

  • Product Type: Output Module

  • Product Origin: FR

  • Payment:T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

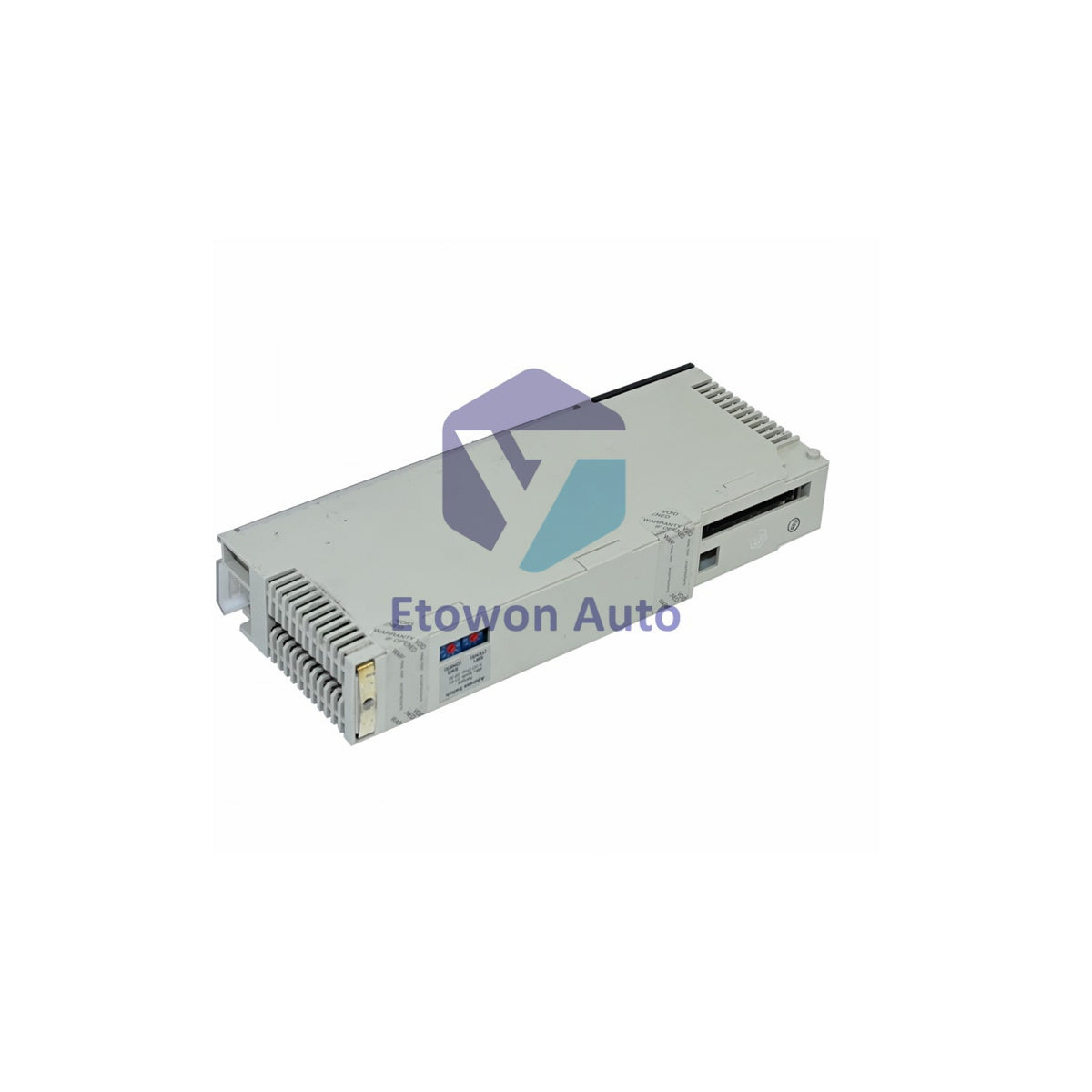

140DRC83000C Schneider Electric Modicon Quantum Relay Output Module

The 140DRC83000C is a relay output module from Schneider Electric Modicon Quantum series. Features 8 Form C relay channels with NO/NC contacts.

Key Specifications

  • Part Number: 140DRC83000C | Series: Modicon Quantum
  • Type: Relay discrete output module
  • Output Channels: 8 | Contact Form: Form C (1 NO/NC each)
  • Output Voltage: 20-250 VAC, 5-150 VDC
  • Max Load Current: 5A at 250/30 VAC/VDC resistive
  • Surge Current: 20A for 10ms capacitive
  • Switching Capacity: 1250 VA resistive
  • Mechanical Durability: 10,000,000 cycles
  • Addressing: 0.5 output word
  • Bus Current: 560 mA
  • Power Dissipation: 2.75W + (0.5 x points on)
  • Isolation: 1780 Vrms channel/channel and channel/bus
  • Weight: 0.3 kg (0.7 lbs)
  • EAN: 3595861136168

Response Times

  • Off to On: ≤10 ms
  • On to Off: ≤20 ms

Environmental Specifications

  • Operating Temp: 0 to 60°C (32 to 140°F)
  • Storage Temp: -40 to 85°C (-40 to 185°F)
  • Humidity: 95% max, non-condensing
  • Operating Altitude: ≤ 5000m
  • ESD Resistance: 4 kV contact, 8 kV air (IEC 801-2)
  • EMF Resistance: 10 V/m 80-2000 MHz (IEC 801-3)

Package Details

  • Package Dimensions: 31.2 x 4.5 x 16.3 cm
  • Package Weight: 498 g (17.6 oz)

FAQ

1. How many outputs does 140DRC83000C have?

8 Form C relay outputs with both NO and NC contacts per channel.

2. What voltage ranges are supported?

20-250 VAC, 30-150 VDC, and 5-30 VDC for flexible applications.

3. What is the mechanical durability rating?

10 million cycles, ensuring long-term reliability in demanding environments.
