172JNN21032C

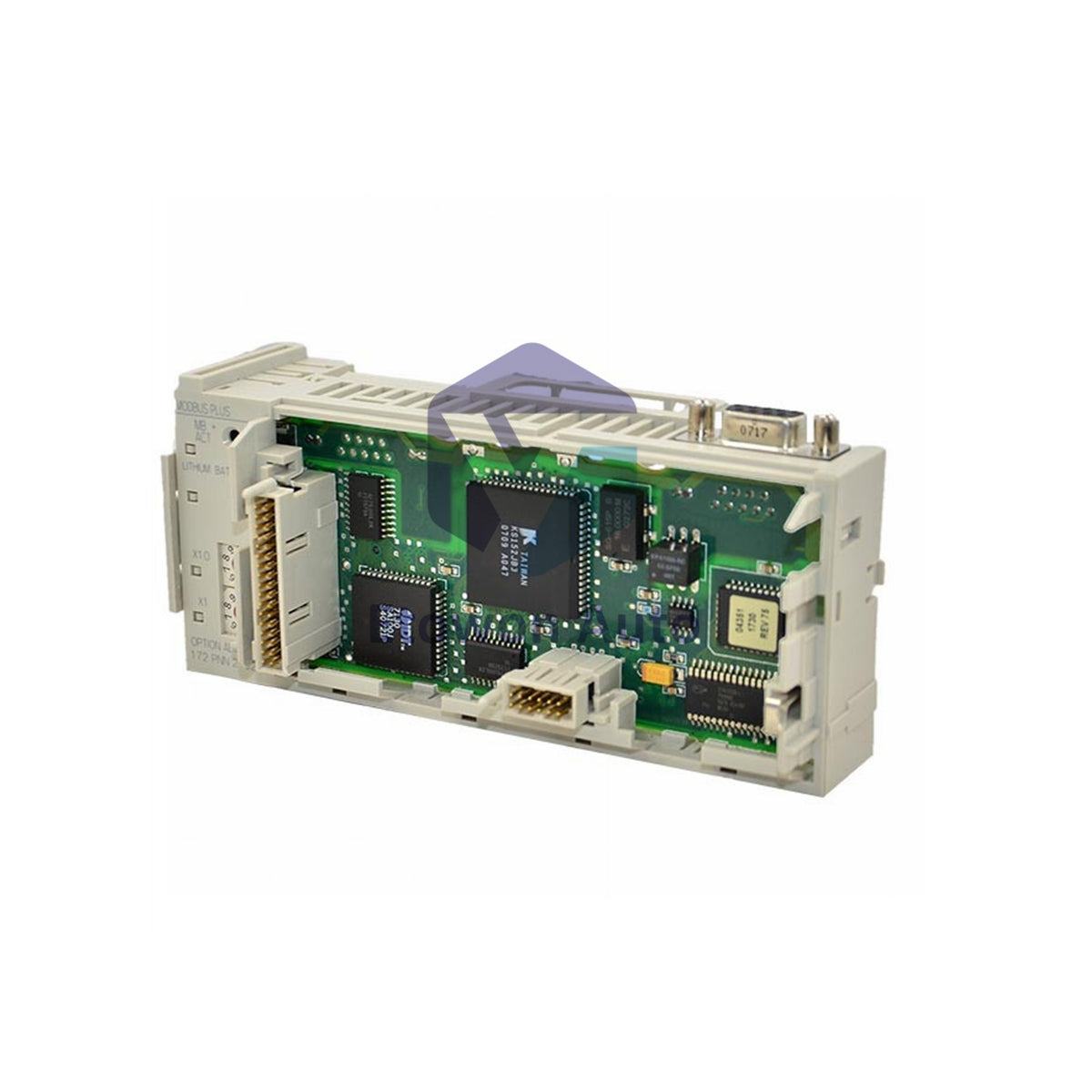

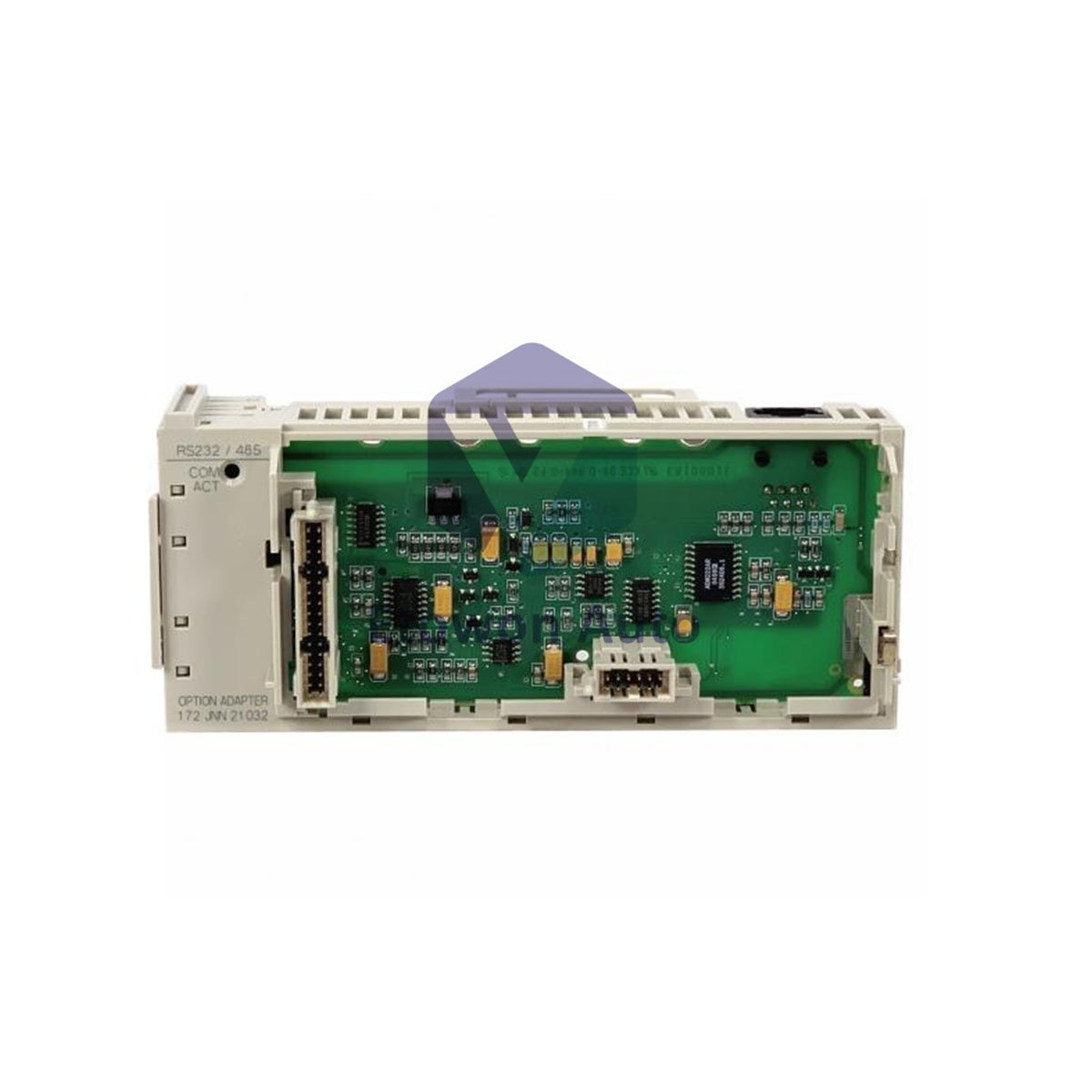

Schneider Electric 172JNN21032C Serial Link Adaptor Modicon

Only 8 units left

  • Manufacturer: Schneider

  • Product No.: 172JNN21032C

  • Product Type: Adaptor Module

  • Product Origin: FR

  • Payment:T/T, Western Union

  • Weight: 85g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Schneider Electric 172JNN21032C Serial Link Option Adaptor

Schneider Electric 172JNN21032C | Serial link option adaptor for Modicon Momentum automation platform. Selectable RS232 or RS485 serial communication. Compact design with single LED status indicator. UL, CUL, CE, FM certified for industrial applications. Weight: 85.05 g (3.00 oz).

Key Features

Selectable RS232 or RS485 serial communication. 5 V DC rated supply voltage ±5% via I/O base. 700 mA current consumption. Lithium 2/3 AA battery with 5-year life. One D-shell 9-pin connector. Single LED for communication status. IP20 protection (IEC 529). Operating temperature 0°C to 60°C. Dielectric strength 500 V DC. Lexan material with Humiseal 1A33 conformal coating.

Technical Specifications

Manufacturer Schneider Electric
Part Number 172JNN21032C
Product Type Serial Link Option Adaptor
Product Line Modicon Momentum
Communication Port RS232 or RS485 selectable
Rated Supply Voltage 5 V DC ± 5%
Current Consumption 700 mA @ 12 V DC
Battery Type Lithium 2/3 AA
Battery Life 5 years
Battery Autonomy <30 days after low battery @ 40°C
Dielectric Strength 500 V DC
Electrical Connection 1 D-shell 9-pin connector
Local Signaling 1 LED for communication status
Material Lexan
Height 25 mm (1.0 in)
Width 143.1 mm (5.6 in)
Depth 60.06 mm (2.36 in)
Net Weight 85.05 g (3.00 oz)
Protection Class IP20 (IEC 529)
Operating Temperature 0°C to +60°C (32°F to 140°F)
Storage Temperature -40°C to +85°C (-40°F to 185°F)
Relative Humidity 5-95% (non-condensing)
Operating Altitude ≤ 2000 m (6561 ft)
Standards IEC 529, CSA, NEMA 250 Type 1
Certifications UL, CUL, CE, FM
Conformal Coating Humiseal 1A33
Vibration Resistance 1 gn (57-150 Hz), 0.075mm (10-57 Hz)
Shock Resistance ±15 gn, 11ms half sine wave
Country of Origin France

Installation Notes

Mount in standard Modicon Momentum I/O base. Select RS232 or RS485 via configuration. Connect D-shell 9-pin connector for Modbus Plus communication. Ensure 5 V DC supply within ±5% tolerance. IP20 rating requires installation in protected enclosure. Observe 0°C to 60°C operating temperature range. Replace lithium battery after 5 years or low battery indication.

Engineering Advantages

Selectable RS232/RS485 provides flexible integration with legacy and modern systems. 5-year battery life minimizes maintenance. Compact Lexan housing withstands industrial environments. Conformal coating protects against moisture and contaminants. Multiple certifications (UL, CUL, CE, FM) enable global installation. LED status simplifies troubleshooting.

FAQs

Q1: What communication protocols are supported?
A1: Selectable RS232 or RS485 serial link via configuration.

Q2: What is the battery life and replacement interval?
A2: Lithium 2/3 AA battery provides 5-year life. Replace after low battery indication.

Q3: What certifications does this adaptor carry?
A3: UL, CUL, CE, and FM certified for industrial applications.
