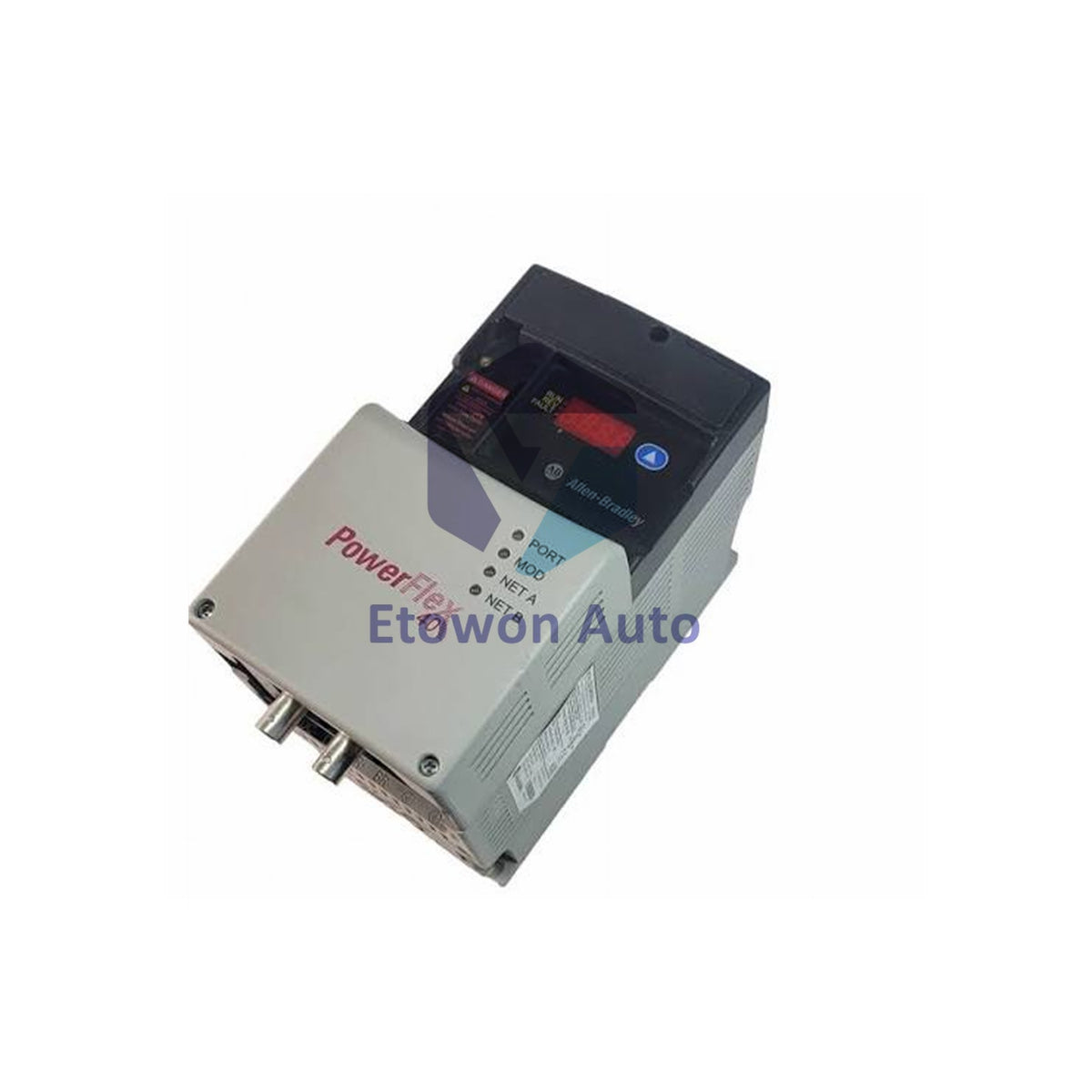

  • 22D-D6P0N104

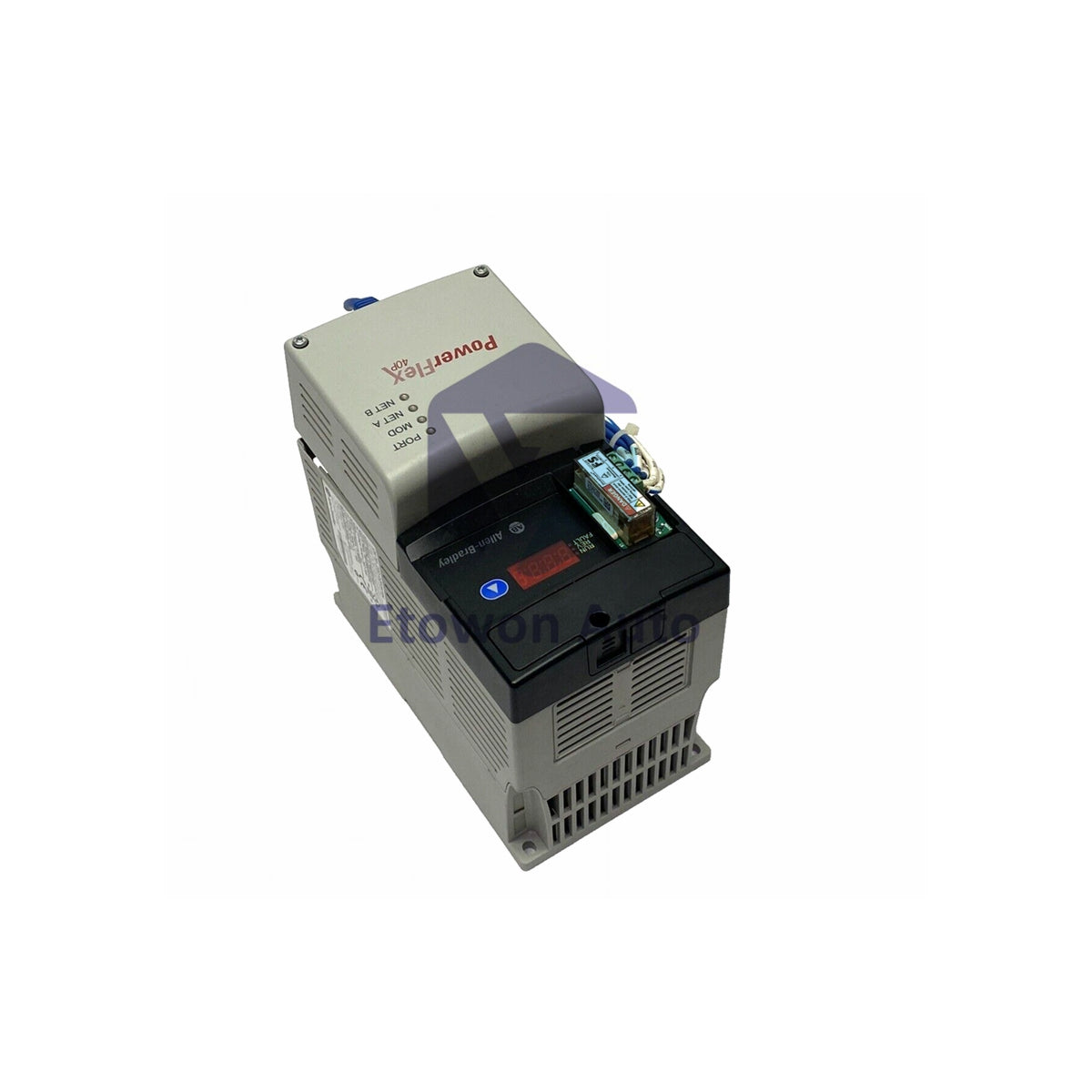

  • 22D-D6P0N104-1

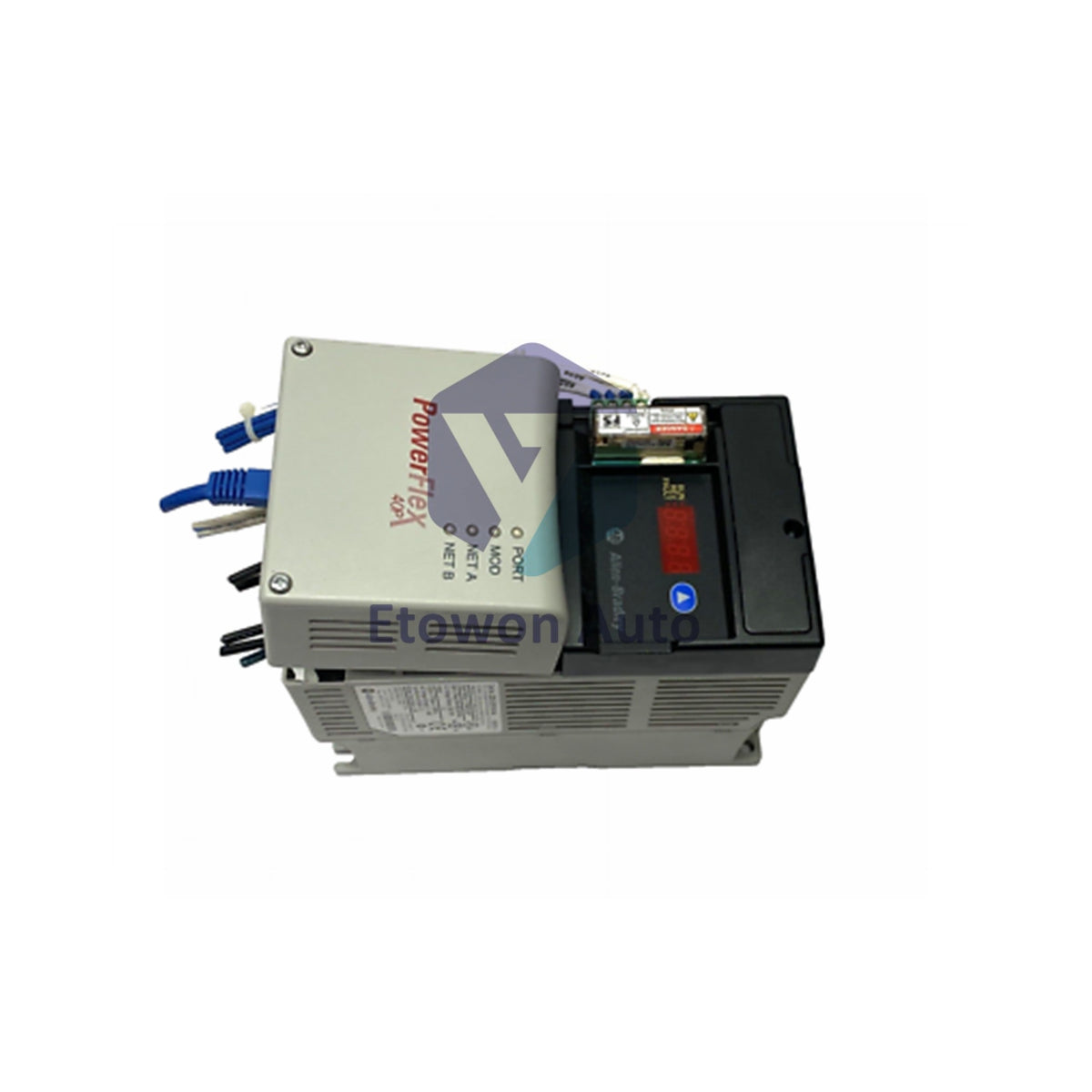

  • 22D-D6P0N104-2
1 3

22D-D6P0N104

PowerFlex 40P 22D-D6P0N104 2.2kW Sensorless Vector Allen-Bradley

In stock (24 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 22D-D6P0N104

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1800g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Allen-Bradley 22D-D6P0N104 PowerFlex 40P AC Drive

Allen-Bradley 22D-D6P0N104 is a PowerFlex 40P adjustable frequency AC drive for Fan and Pump applications. Features 380-480VAC input, 6.0A output, 2.2kW (3.0 HP), and sensorless vector control. Panel mount with IP20 enclosure.

Key Specifications

Parameter Value
Catalog No. 22D-D6P0N104
Input Voltage 380-480VAC, 3-Phase (7.5A)
Output Voltage 0-460VAC, 3-Phase
Output Current 6.0A
Power 2.2 kW (3.0 HP)
Frame Size Size B
Enclosure IP20, Panel Mount
Control Methods V/Hz, Sensorless Vector, Sinusoidal PWM
Weight 1.8 kg (4.0 lb)

I/O Specifications

  • Discrete Inputs: 7 (Sink/Source)
  • Discrete Outputs: 2 Opto Output, 1 Form C Contact
  • Analog Input: 1 (0-10VDC / 0-20mA)
  • Analog Output: 1 (0-10VDC / 0-20mA)
  • Built-in Communication: RS485

Optional Communication Protocols

  • BacNet
  • LonWorks
  • ProfiBus
  • Ethernet
  • DeviceNet
  • ControlNet

Typical Applications

  • Fan and Pump systems
  • Beverage and Brewing Industry
  • Fibers and Textiles Industry
  • Automotive Industry
  • Material Handling
  • Diverters and packaging machines

FAQs

Q1: What is the output power rating?
A1: 2.2 kW (3.0 HP) with 6.0A output current.

Q2: What control methods are supported?
A2: V/Hz, Sensorless Vector Control, and Sinusoidal PWM.

Q3: What communication protocols are available?
A3: Built-in RS485 with optional BacNet, LonWorks, ProfiBus, Ethernet, DeviceNet, and ControlNet.
