PM866AK01

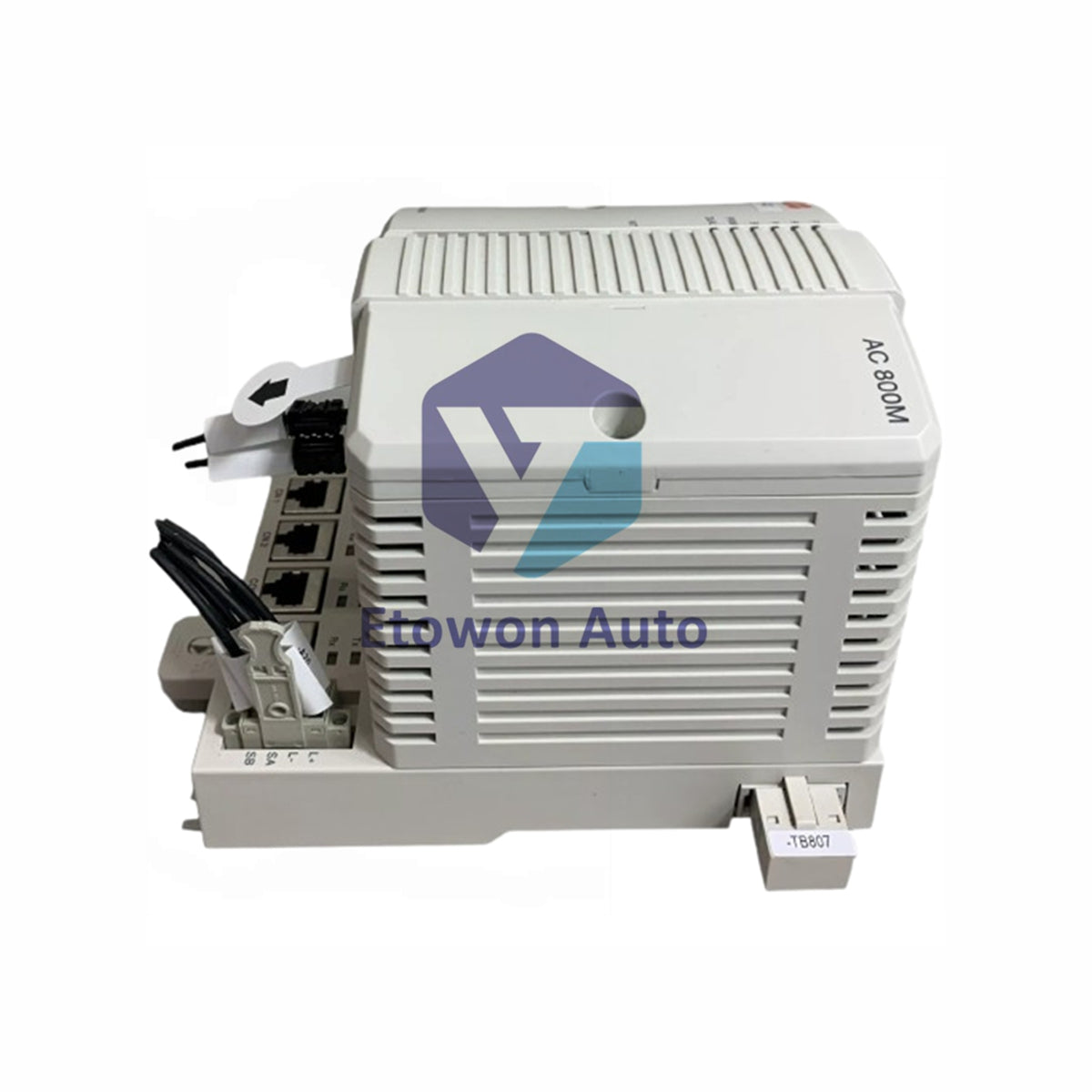

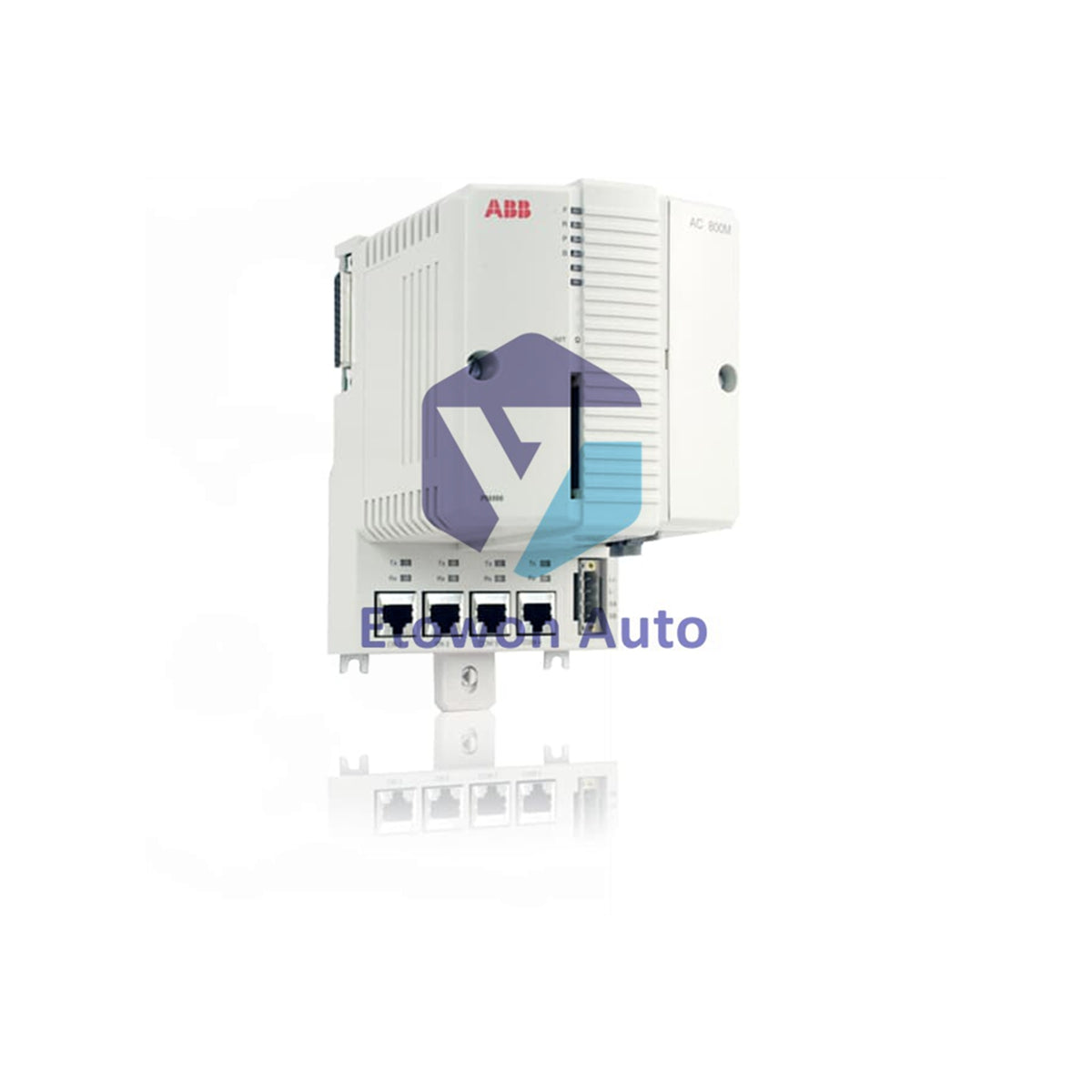

PM866AK01 ABB AC 800M Controller

In stock (25 units), ready to be shipped

  • Manufacturer: ABB

  • Product No.: PM866AK01

  • Product Type: Processor Unit

  • Product Origin: SE

  • Payment:T/T, Western Union

  • Weight: 1200g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

ABB PM866AK01 AC 800M Controller

The ABB PM866AK01 (3BSE076939R1) is a high-performance controller for AC 800M systems. This controller provides reliable process control with fast execution times. It supports modular expansion and features redundant communication interfaces.

Product Overview

  • Brand: ABB
  • Model: PM866AK01 (PM866/PM866A)
  • Type: AC 800M Process Controller
  • CPU Speed: 133 MHz clock frequency
  • Performance: 0.09 ms for 1000 boolean operations

Core Specifications

  • Processor: MPC866 processor type
  • Memory: 64 MB RAM total capacity
  • Application RAM: 51.389 MB available
  • Flash: 4 MB firmware storage
  • Cycle Time: Down to 1 ms minimum

Communication Interfaces

  • Ethernet: 2× RJ45 ports, 10 Mbit/s
  • Serial: 2× RS-232C ports (COM3, COM4)
  • Protocol: MMS and IAC protocols
  • Network: 100 Mbit/s recommended
  • Redundancy: CPU redundancy supported

I/O & System Capacity

  • I/O Modules: 96 max (single), 84 (redundant)
  • CEX Bus: 12 communication modules
  • ModuleBus: 0-100 ms scan rate
  • Applications: 32 per controller
  • Tasks: 32 tasks maximum

Power & Environmental

  • Power Supply: 24V DC (19.2-30V DC)
  • Consumption: 210 mA typical, 360 mA max
  • Temperature: +5 to +55°C operating
  • Storage: -40 to +70°C range
  • Protection: IP20, ISA 71.04 G3

Certifications

  • Safety: ISA Secure certified
  • Hazardous: Class 1 Zone 2, AEx nA IIC T4
  • Marine: DNV-GL, ABS, BV, LR approved
  • Standards: EN 61000-6-2/6-4, UL 61010-1
  • Environmental: RoHS, WEEE compliant

Physical Specifications

  • Dimensions: 119×186×135 mm
  • Weight: 1200 g (2.6 lbs)
  • Noise: <55 dB(A) emitted
  • Vibration: 0.5g acceleration (50-150 Hz)

FAQ

  • Q: What is PM866AK01?
    A: ABB AC 800M high-performance controller.
  • Q: Performance speed?
    A: 0.09 ms for 1000 boolean operations.
  • Q: I/O capacity?
    A: 96 I/O modules maximum capacity.
