ACS510-01-05A6-4

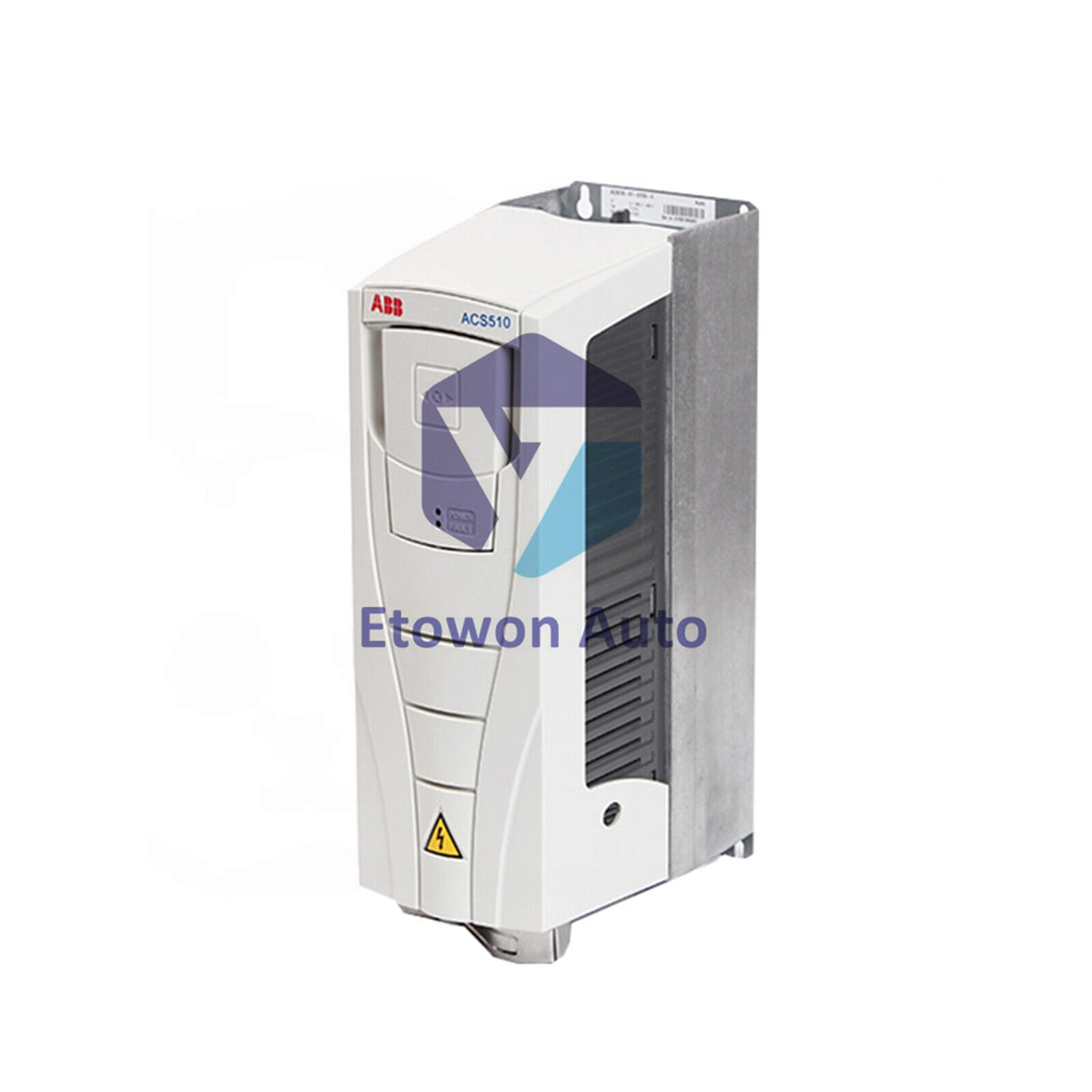

New Original Stock ABB ACS510-01-05A6-4 Variable Frequency Drive

In stock (22 units), ready to be shipped

  • Manufacturer: ABB

  • Product No.: ACS510-01-05A6-4

  • Product Type: Inverter Drive

  • Product Origin: SE

  • Payment:T/T, Western Union

  • Weight: 6100g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

ABB ACS510-01-05A6-4 Variable Frequency Drive

The ABB ACS510-01-05A6-4, also cataloged as the ACS510-01-05A6-4 Variable Frequency Drive, operates as a three-phase wall-mounted drive delivering 5.6 A normal-use output current and 2.2 kW output power from a 380 V to 480 V input supply within IP21 enclosures.

Hardware Specifications

Parameter Specification
Model ACS510-01-05A6-4
Brand ABB
Product ID 3ABD00015743-D
Product Type Variable Frequency Drive
Weight 6.1 kg
Dimensions 465 mm depth x 365 mm height x 225 mm width
Number of Phases 3
Input Voltage 380 V to 480 V
Frequency 47.5 Hz to 63 Hz
Output Current (Normal Use) 5.6 A
Output Power (Normal Use) 2.2 kW
Apparent Power Output 3.9 kV·A
Degree of Protection IP21
Enclosure Type NEMA Type 1
Frame Size R1
Mounting Type Wall-mounted
Efficiency Level IE2
Standby Loss 11 W

Drive Output and Enclosure Characteristics

Unit weight is 6.1 kg with dimensions of 465 mm depth, 365 mm height, and 225 mm width. The drive accepts a three-phase input of 380 V to 480 V at 47.5 Hz to 63 Hz and delivers 5.6 A at 2.2 kW normal use, with an apparent output power of 3.9 kV·A. Frame size R1 is configured for wall mounting in IP21 and NEMA Type 1 enclosures. Efficiency level is IE2 with a standby loss of 11 W. Exact control interface, fieldbus options, and overload ratings are not specified in the source data.

Frequently Asked Questions

Q: What is the weight and physical size of the ACS510-01-05A6-4?
A: 6.1 kg, with dimensions of 465 mm depth, 365 mm height, and 225 mm width.

Q: What input voltage range does this drive accept?
A: Three-phase 380 V to 480 V at 47.5 Hz to 63 Hz.

Q: What enclosure protection does the ACS510-01-05A6-4 provide?
A: IP21 and NEMA Type 1, suitable for wall-mounted installation inside a control room or cabinet environment.

Field Installation Guidelines

Mount the drive vertically on a wall or cabinet backplate with the heatsink airflow path unobstructed. Verify three-phase input voltage is within 380 V to 480 V and frequency within 47.5 Hz to 63 Hz before energizing. Route motor cables separate from control and signal cables. Ground the drive enclosure and motor frame per site grounding standards. Confirm the IP21 and NEMA Type 1 rating matches the installation environment; do not install in locations exposed to direct water spray. Verify motor cable length against the drive manual before commissioning.
