IC697MDL340

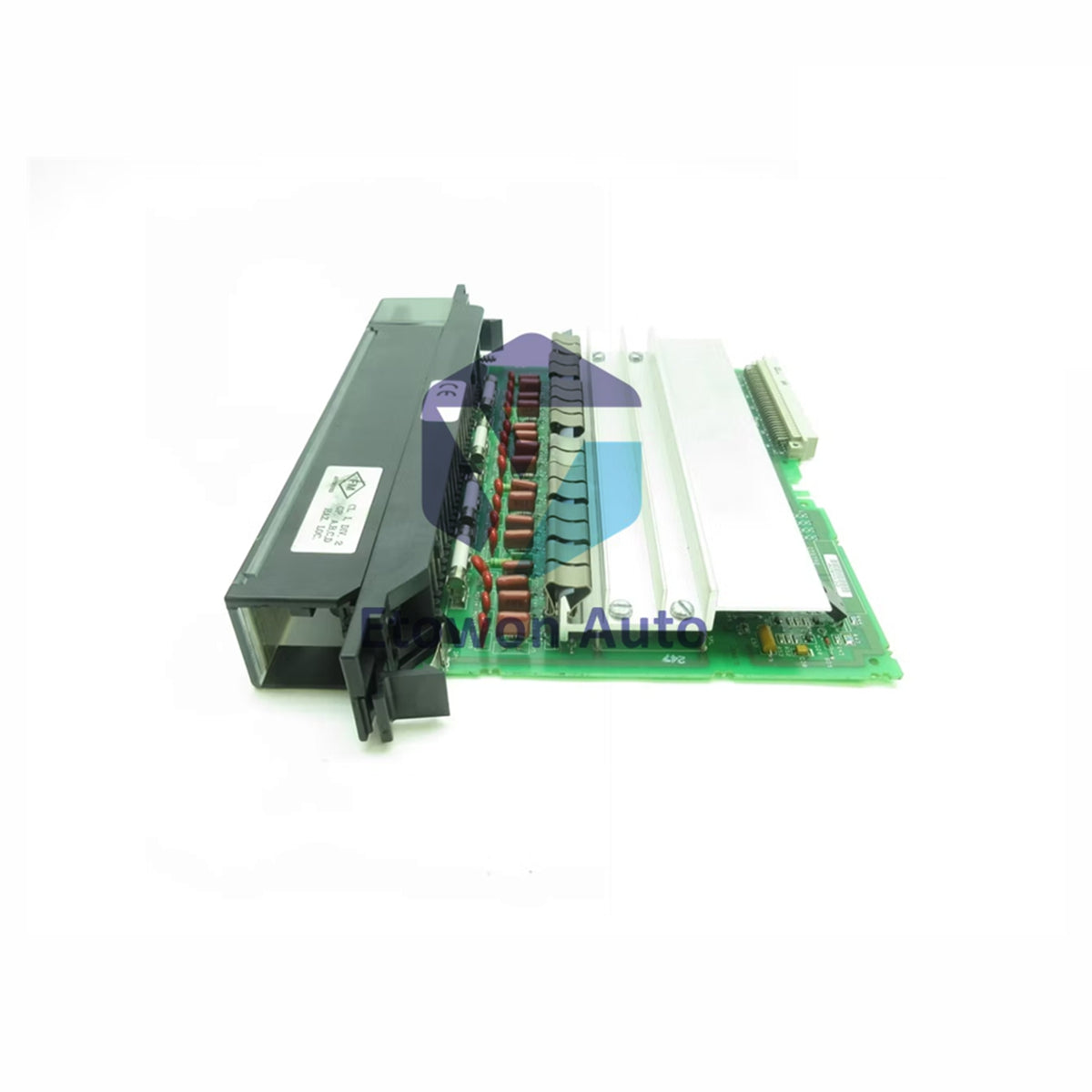

IC697MDL340 GE Intelligent Platforms Output Module 120V

In stock (22 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC697MDL340

  • Product Type: Discrete Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 500g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

IC697MDL340 GE Fanuc Discrete Output Module – 16 Points 120VAC

The GE Fanuc IC697MDL340 is a 16-point discrete output module for the Series 90-70 PLC platform. Rated at 120 VAC. 16 output points divided into four isolated groups of four points each.

Product Information

Brand GE Intelligent Platforms / GE Fanuc
Series Series 90-70
Part Number IC697MDL340
Product Type Output Module
Rated Voltage 120 VAC
Outputs 16
Isolation Groups 4 (four points per group)
Frequency 47-63 Hz
DC Power No
AC Power Yes
LED Indicators Yes
Weight 0.5 kg

Electrical Specifications

Output Voltage Range 85 to 132 VAC
Output Current Per Point 2 A max
Output Current Per Group 4 A max
Inrush Current 10x rated current
On Response Time 1 ms max
Off Response Time 1/2 cycle
Leakage Current 1.5 mA max

Power Requirements

5V Bus Current 0.25 A
Fuse Rating 10 A per group

Features

  • 16 digital output points in 4 isolated groups of 4 points each
  • Rated 120 VAC, operating range 85 to 132 VAC
  • 2 Amps continuous per point, 4 Amps per group
  • 10x inrush current capacity for incandescent and inductive loads
  • Each group separately fused with 10 Amp fuses
  • LED indicators for point on/off status and fuse status
  • Mechanical keying for correct module replacement
  • Configuration without jumpers or DIP switches
  • Compatible with motor starters, solenoids, and indicators
  • Works with most Size 4 contactors

FAQs

Q1: How many output points does the IC697MDL340 have?
A1: 16 digital output points arranged in four isolated groups of four points each.

Q2: What is the maximum current per point and per group?
A2: 2 Amps max per point, 4 Amps max per group. Each group is separately fused with a 10 Amp fuse.

Q3: What is the rated voltage and frequency?
A3: 120 VAC rated voltage with operating range 85 to 132 VAC at 47 to 63 Hz.
