IC660TSD021

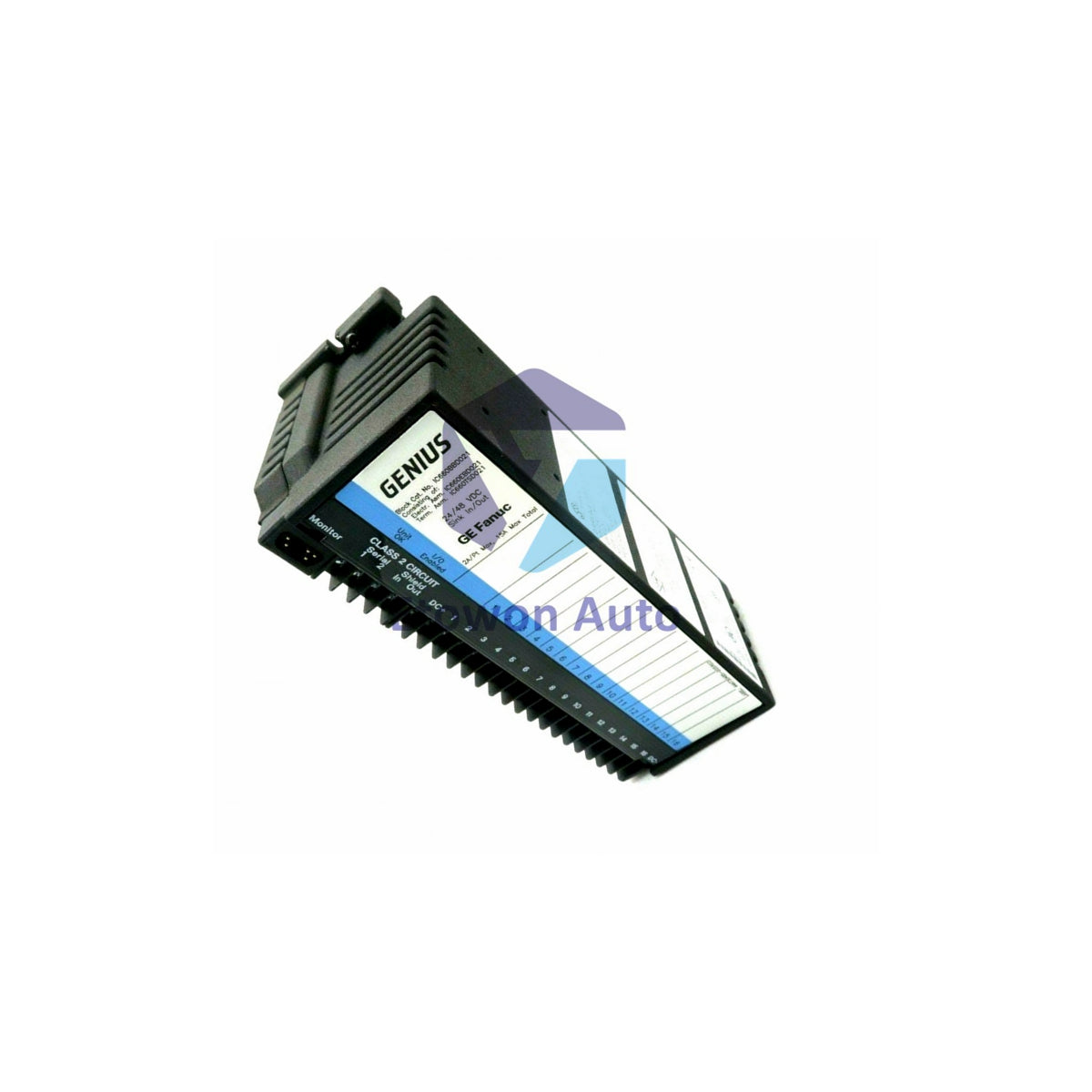

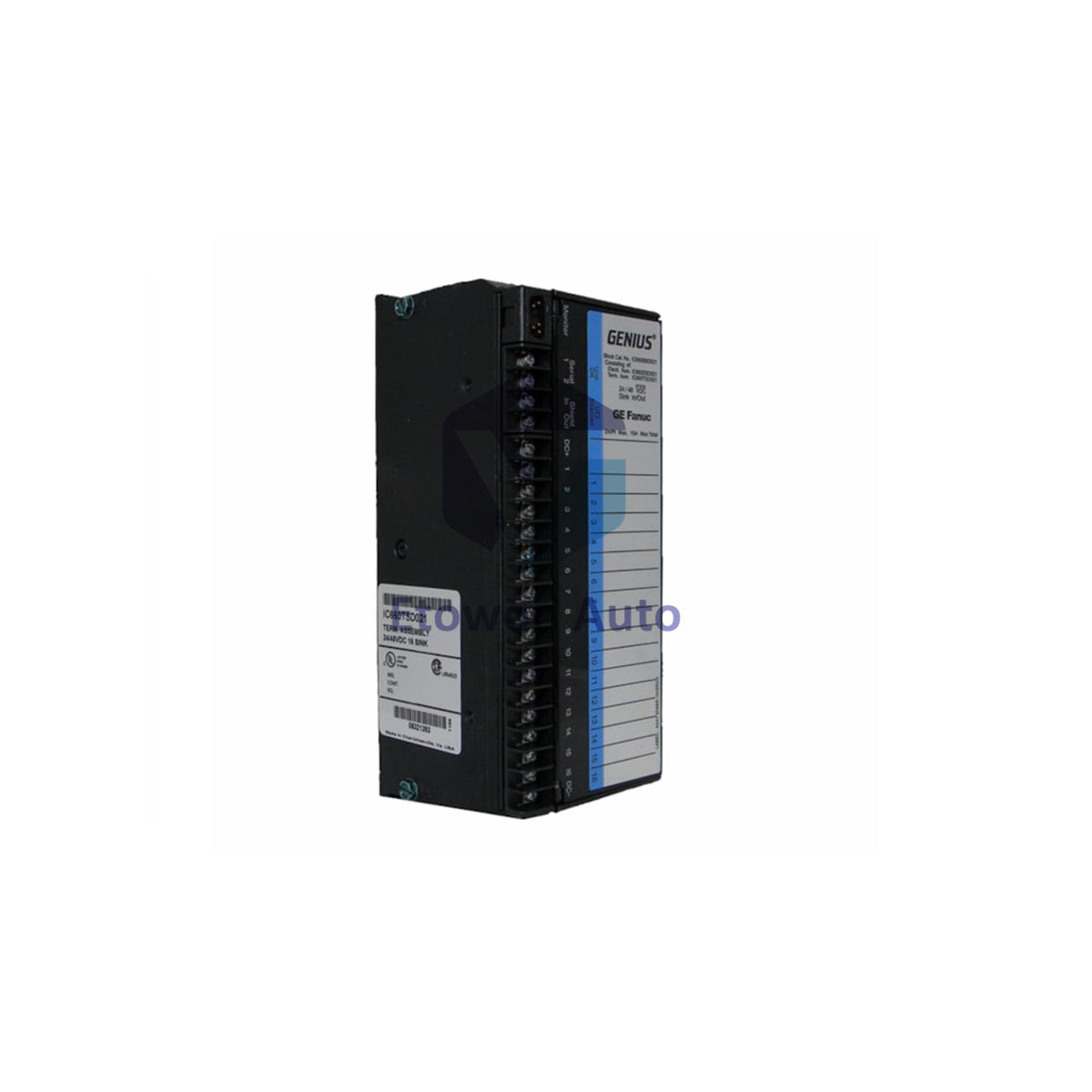

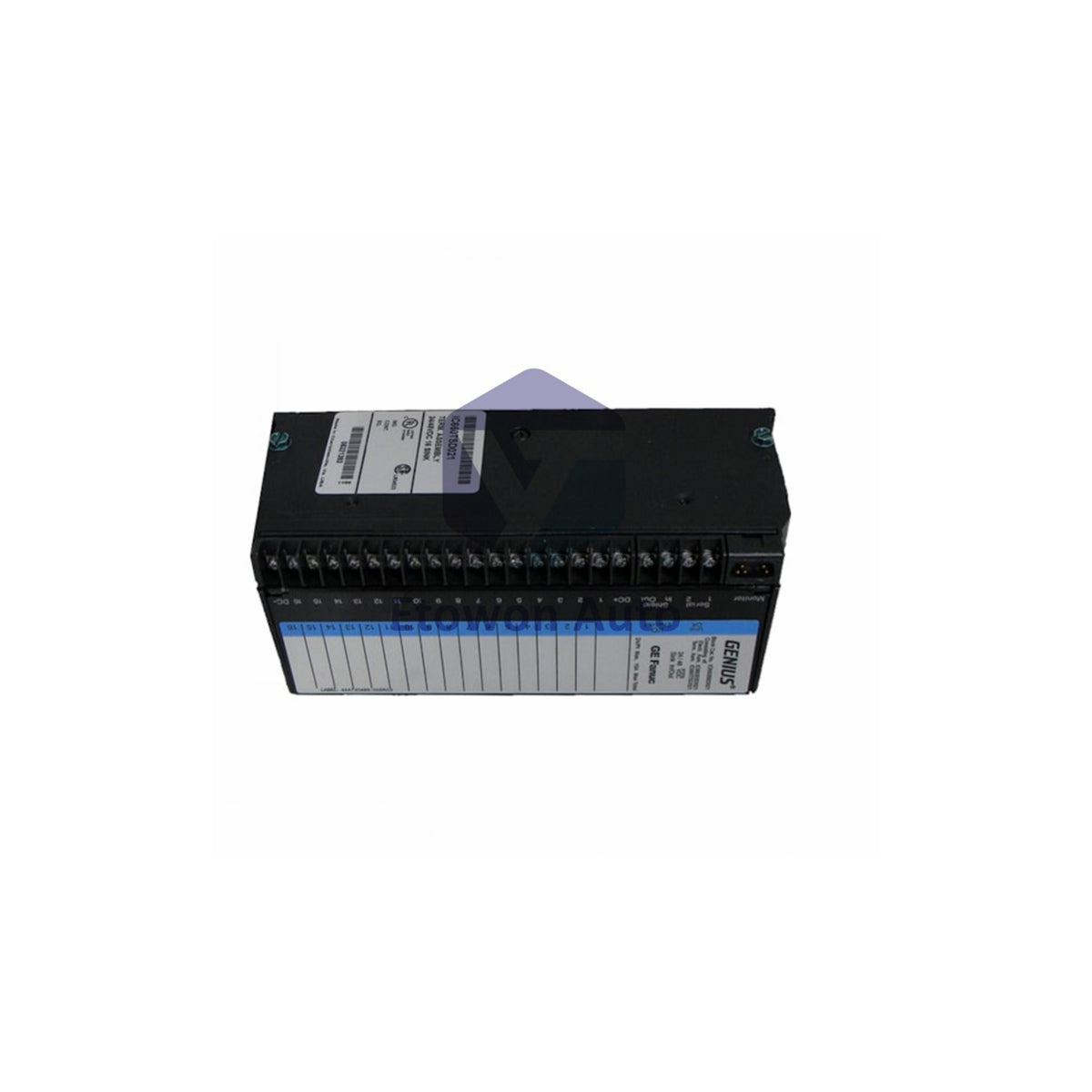

IC660TSD021 DC Sink Terminal Assembly 2A per GE Fanuc

In stock (16 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC660TSD021

  • Product Type: I/O Block

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 740g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

GE Fanuc IC660TSD021 16-Circuit DC Sink Terminal Assembly

The IC660TSD021 from GE Fanuc is a DC sink terminal assembly for the IC660BBD021 I/O block. It provides 16 independent screw-type connection points for sensors, indicators, and actuators.

Technical Specifications

  • Brand: GE Fanuc
  • Model: IC660TSD021
  • Series: Genius I-O
  • Compatible I/O Block: IC660BBD021
  • Compatible Electronics: IC660EBD021
  • Circuits: 16 independent sink inputs/outputs
  • Voltage: 24-48 VDC nominal
  • Output Current: 2 amps per point steady state
  • Inrush Current: 10 amps for 10 ms
  • Operating Temperature: 32 to 140°F (0 to 60°C)
  • Relative Humidity: 5 to 95% non-condensing
  • Heat Dissipation: 68.8 watts max
  • Power Consumption: 150 mA typical, 300 mA max
  • Input Filter Time: 5 to 100 ms configurable
  • Dimensions: 8.8 x 3.5 x 4.4 inches

Input Voltage Thresholds

  • 24 VDC Supply: ON at 0-8 VDC, OFF at 17-24 VDC
  • 48 VDC Supply: ON at 0-16 VDC, OFF at 34-48 VDC

Package Contents

  • 1x GE Fanuc IC660TSD021 Terminal Assembly
  • Installation reference guide

Shipping via FedEx, UPS, or DHL.

FAQs

  • Which I/O block works with this terminal?
    The IC660BBD021 24-48VDC sink I/O block with 16 circuits.
  • What diagnostics does it support?
    Open wire, failed switch, overtemperature, and short-circuit protection.
  • What is the maximum current per point?
    2 amps steady state, with 10 amp inrush for 10 milliseconds.
