IC200CBL510 GE Fanuc VersaMax 1m I/O Expansion Cable

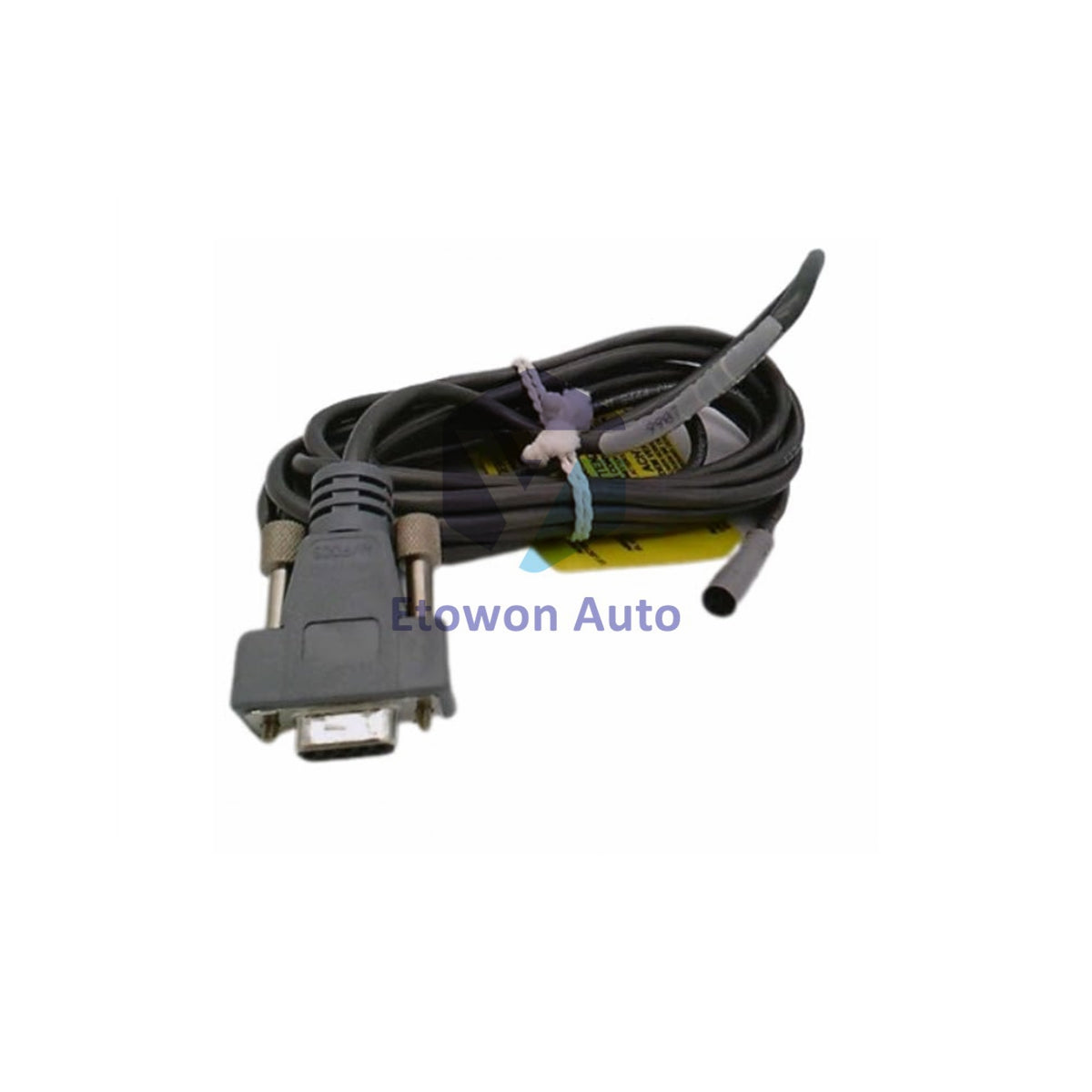

GE Fanuc IC200CBL510 VersaMax I/O Expansion Cable

Product Overview

The GE Fanuc IC200CBL510 is a 1-meter I/O expansion cable designed for the VersaMax Micro PLC and Nano PLC systems. This cable connects the main PLC or Network Interface Unit (NIU) to expansion receiver modules, enabling system scalability and distributed I/O configurations. Weight is 0.20 kg.

Specifications

Key Features

• 1-meter expansion cable for VersaMax Micro and Nano PLCs
• Connects PLC or NIU to expansion receiver modules
• Standard RS-485 differential expansion interface
• Supports system expansion up to multiple racks
• Essential accessory for VersaMax distributed I/O configurations

Compatibility Information

The IC200CBL510 is compatible with VersaMax Micro PLC, Nano PLC, and Network Interface Unit (NIU) I/O Stations. It connects the main unit to expansion receiver modules, facilitating system expansion in local and distributed control applications. For longer distances, refer to other IC200CBL6xx series cables with lengths up to 15 meters.

Installation Notes

Connect the cable between the Expansion Transmitter Module (or PLC) and the Expansion Receiver Module. The standard RS-485 differential interface supports reliable communication. The total allowable cable length depends on the receiver module type and data rate configuration. By default, the system operates at 250 Kbits/second for maximum cable length.

FAQs

Q1: What is the length of the IC200CBL510 cable?

A1: 1.0 meter.

Q2: What systems is this cable compatible with?

A2: VersaMax Micro PLC, Nano PLC, and NIU I/O Stations.

Q3: What expansion interface does the cable use?

A3: Standard RS-485 differential expansion interface [citation:11].
