  • TMPU-1002-3
1 3

TMPU-1002

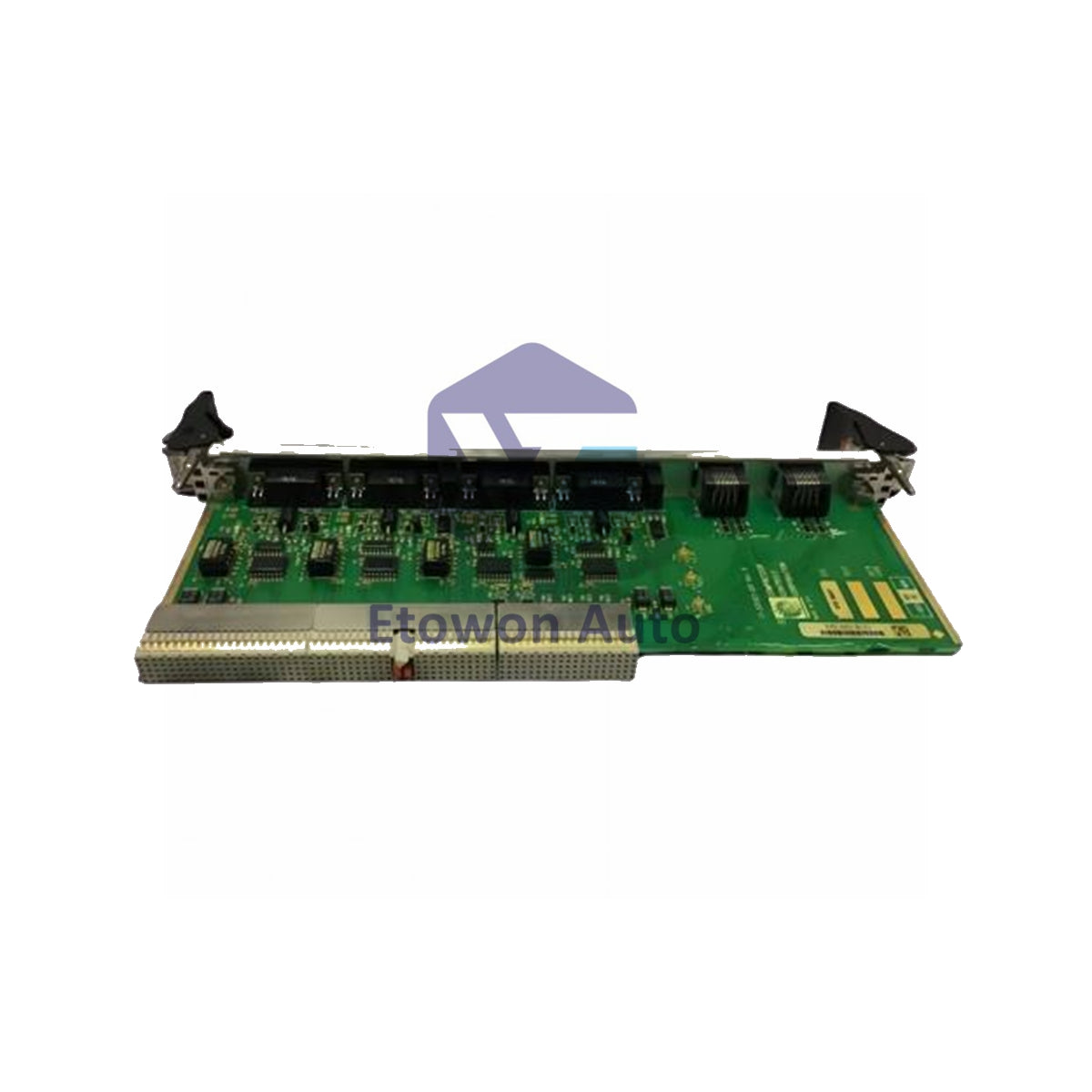

Honeywell TMPU-1002 Control Device Modbus RTU 24Vdc

In stock (13 units), ready to be shipped

  • Manufacturer: Honeywell

  • Product No.: TMPU-1002

  • Product Type: Conversion Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 450g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Honeywell TMPU-1002 Control Device

Product Overview

The Honeywell TMPU-1002 is a DIN rail mountable conversion module designed for industrial automation. It accepts a 24 Vdc input and provides an adjustable 0-5 V output with 1.0 A current capability. The module supports Modbus RTU communication and features 1500 V AC isolation. Operating temperature ranges from -20 °C to +70 °C.

Specifications

Parameter Value
Brand Honeywell
Part Number TMPU-1002
Category Control Devices / Conversion Modules
Input Voltage 24 Vdc
Output Voltage Adjustable 0-5 V
Current Rating 1.0 A
Operating Temperature -20 °C to +70 °C
Communication Protocol Modbus RTU
Response Time < 50 ms
Mounting Type DIN Rail
Isolation Voltage 1500 V AC
Weight 0.45 kg

Key Features

  • Adjustable 0-5 Vdc output for flexible integration
  • Modbus RTU communication for seamless system connectivity
  • Fast response time under 50 ms
  • 1500 V AC isolation for enhanced safety
  • DIN rail mountable for easy panel installation
  • Wide operating temperature range -20 °C to +70 °C

Installation Notes

Mount the module on standard 35 mm DIN rail. Ensure proper ventilation for optimal thermal performance. Adjust output voltage using the onboard potentiometer. For Modbus communication, use shielded twisted-pair cable and terminate the network as per RS-485 standards.

FAQs

Q1: What is the default communication setting?

A1: Default is Modbus RTU at 9600 baud, 8 data bits, 1 stop bit, no parity. Configurable via software.

Q2: Can the output be adjusted to 10 V range?

A2: No. The output is factory limited to 0-5 Vdc. External scaling is required for higher ranges.

Q3: What is the isolation rating between input and output?

A3: 1500 V AC for 1 minute, providing reliable protection against transients.
