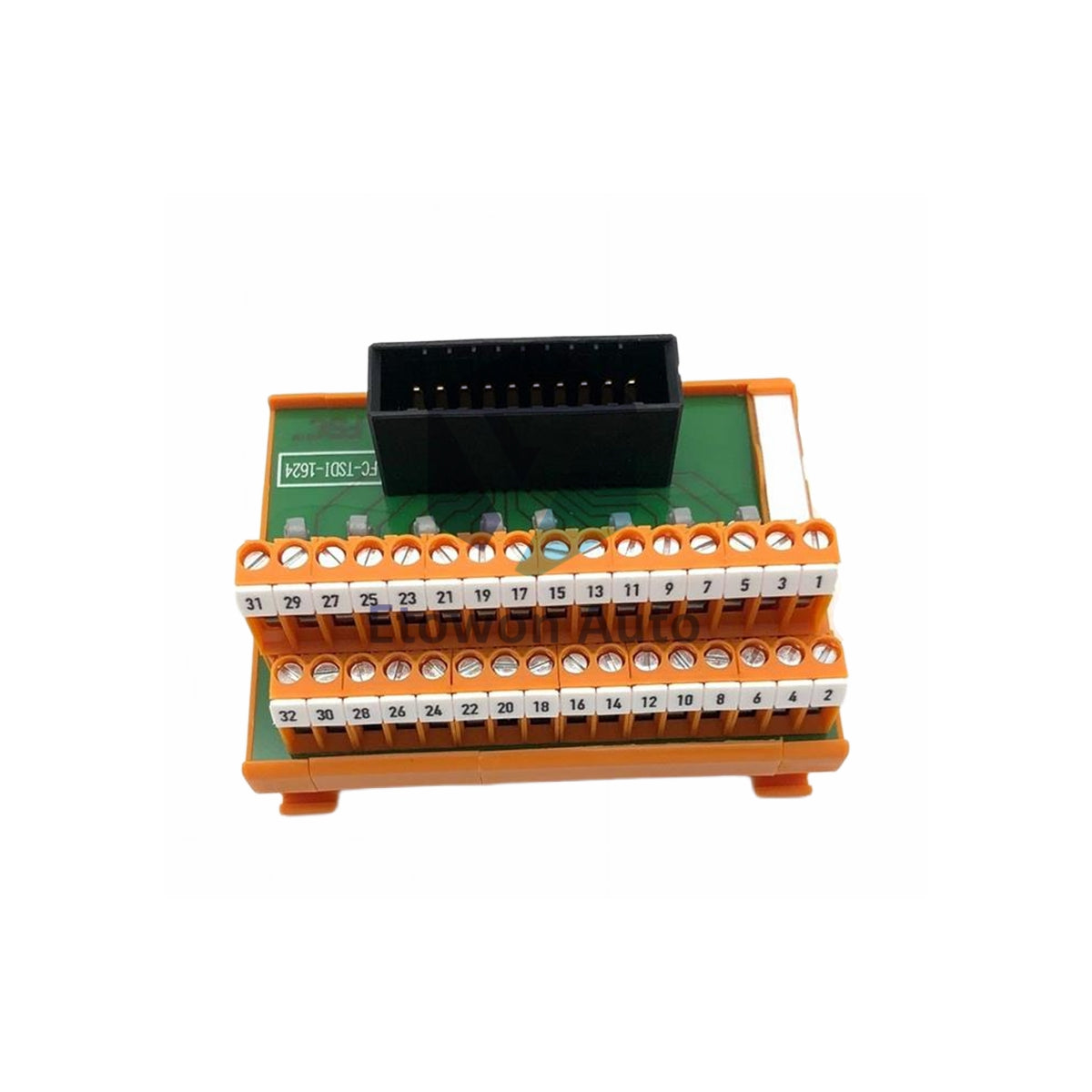

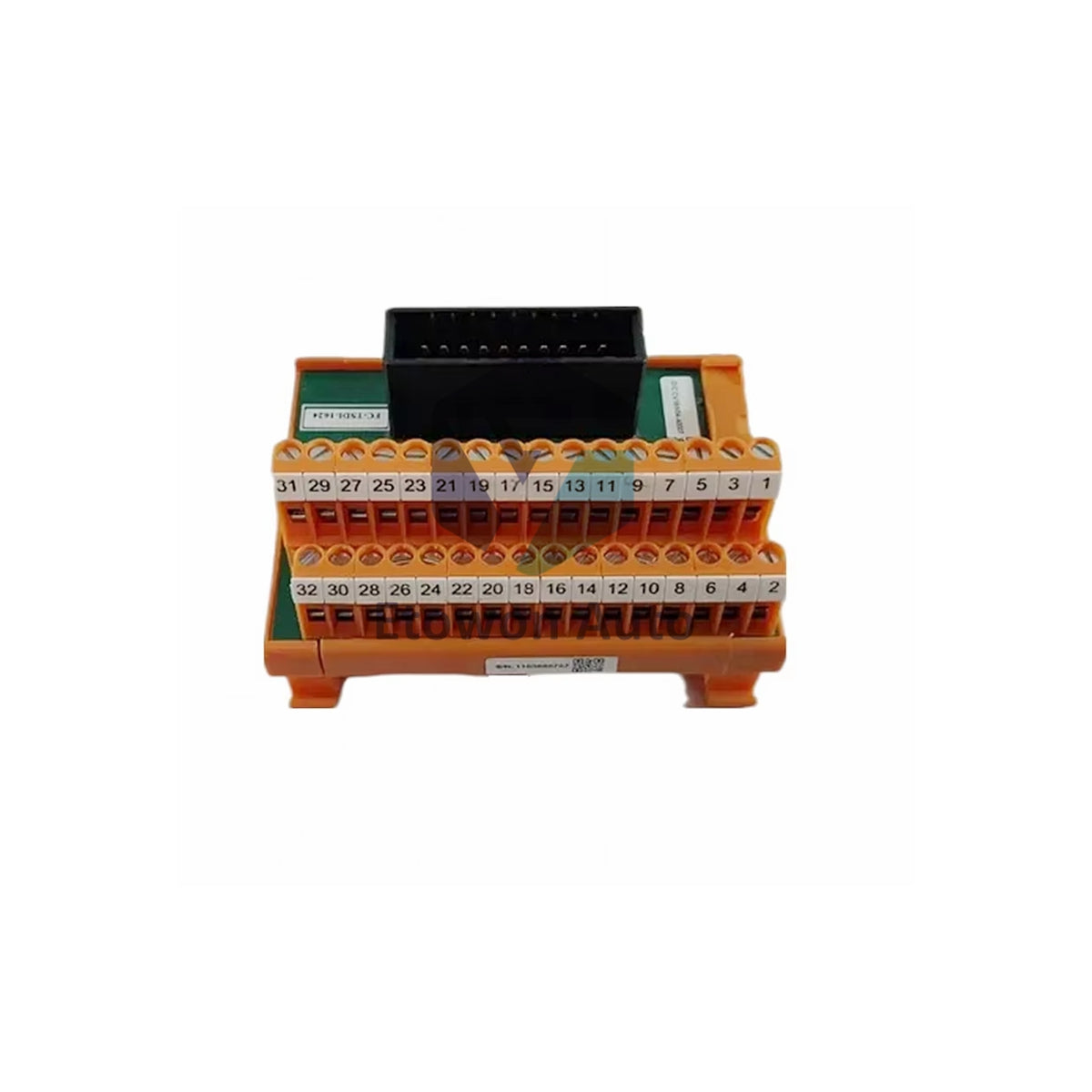

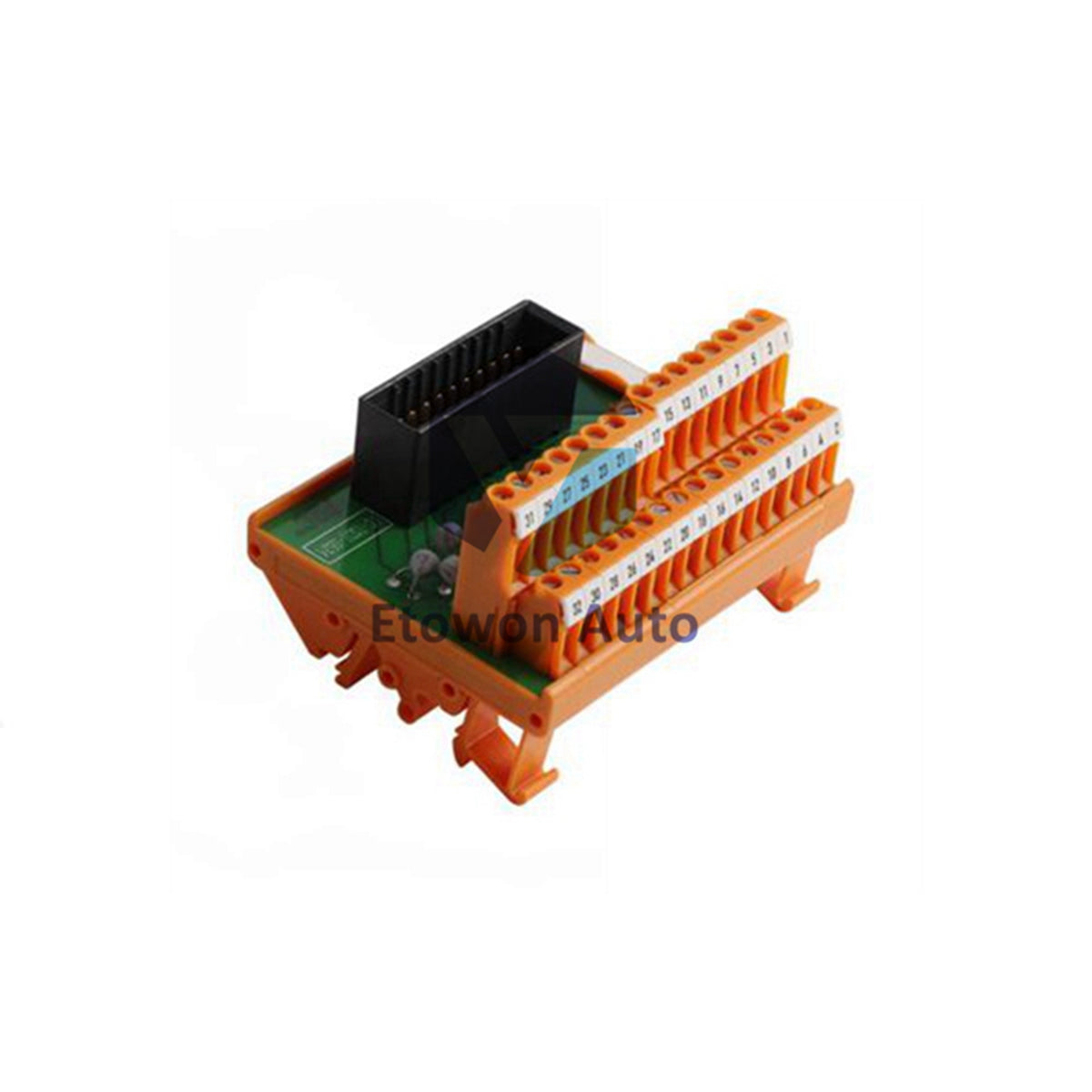

Honeywell FC-TSDI-1624C Safety Manager Input FTA Board

Only 8 units left

  • Manufacturer: Honeywell

  • Product No.: FC-TSDI-1624C

  • Product Type: Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The FC-TSDI-1624C is a Honeywell Field Termination Assembly (FTA) providing safe, current-limited interfacing for 16 digital inputs. It protects core safety systems in Class I, Division 2 hazardous locations and supports redundant SDI-1624 modules via SICC-0001/Lx cables.

Core Features

  • 16 Channels: Configured as 2 isolated groups of 8 channels.
  • Fault Isolation: Each group is protected by a 250 mA fuse in the common + line.
  • Redundancy Support: Interfaces directly with a redundant pair of SDI-1624 modules.
  • Industrial Mounting: Fits standard TS32 and TS35 × 7.5 DIN rails.

Technical Specifications

Parameter Data
Model Numbers FC-TSDI-1624C / FS-TSDI-1624C
Input Voltage 24 V DC (-15% to +30%)
Input Current ≤ 15 mA at 24 V DC
Igniting Current < 100 mA per channel at 24 V DC +30%
Fuse Specifications 250 mA, 400 V AC/DC (SOC SHV12), Max 175 mA output
Dimensions / Rail Length 170 × 70 × 60 mm / 171 mm rail length
Wire Size / Torque Max 2.5 mm² (AWG 14) / 0.5 Nm (0.37 ft.-lb)
Approvals CE, TUV, UL, CSA, FM

Installation & Field Circuit Data

  • Strip Length: Wire strip length must be exactly 7 mm (0.28 in).
  • Hydrogen Loops (Group A & B): Max 250 Ω resistance, 8 mH inductance, 0.3 µF capacitance.
  • Non-Hydrogen Loops (Group C & D): Min 15 kΩ resistance, 22 mH inductance, 7 µF capacitance.

Technical FAQs

Q1: What does the "C" suffix mean?
A1: Conformal Coating. It shields the internal circuits from humidity and harsh chemical contaminants.

Q2: Why is the continuous output capped at 175 mA for a 250 mA fuse?
A2: It provides a strict safety margin to prevent thermal fatigue and false trips during continuous load.

Q3: Does it support non-redundant installations?
A3: Yes. It works with a single SDI-1624 safety card, keeping the second port open for future upgrades.
