FC-TSAI-0410

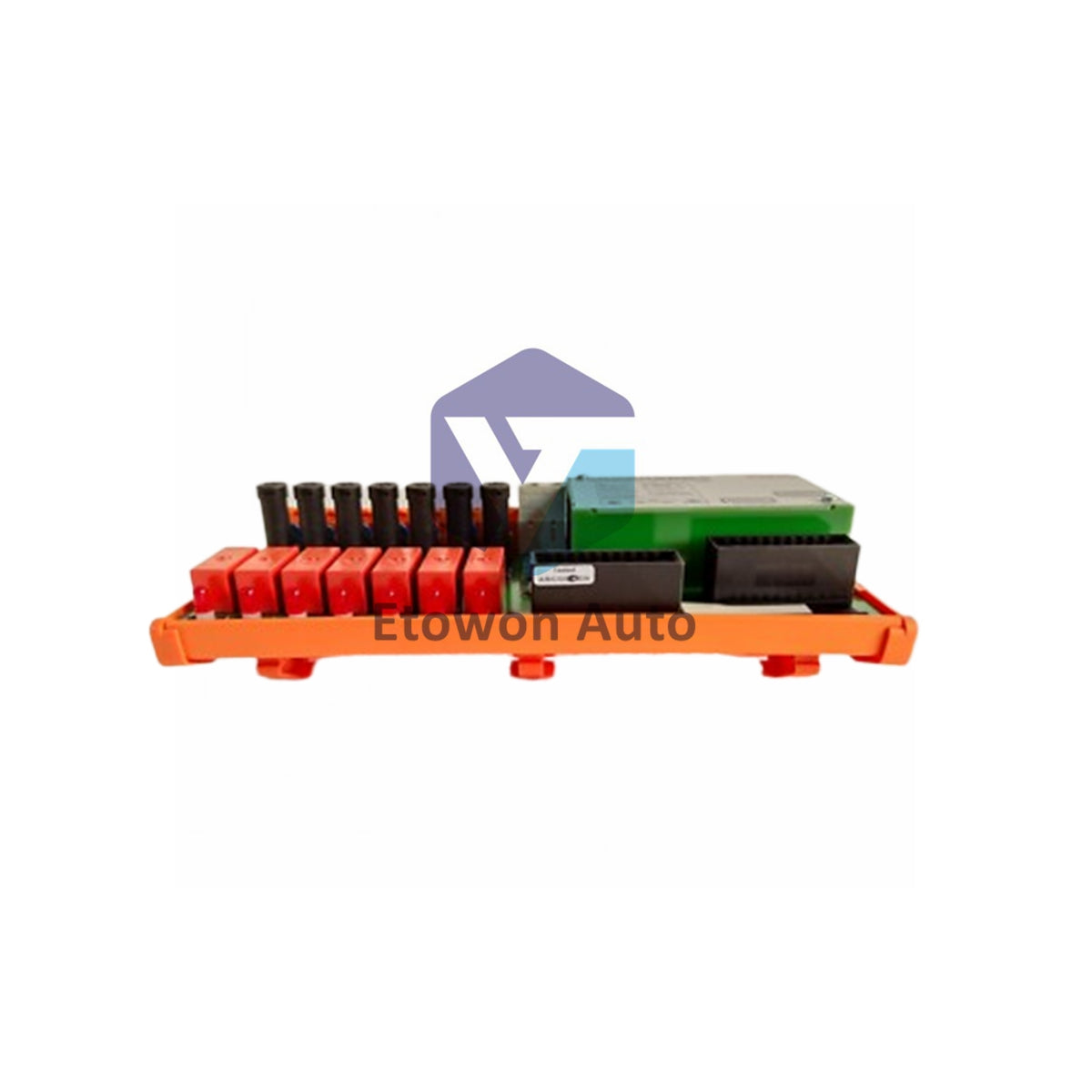

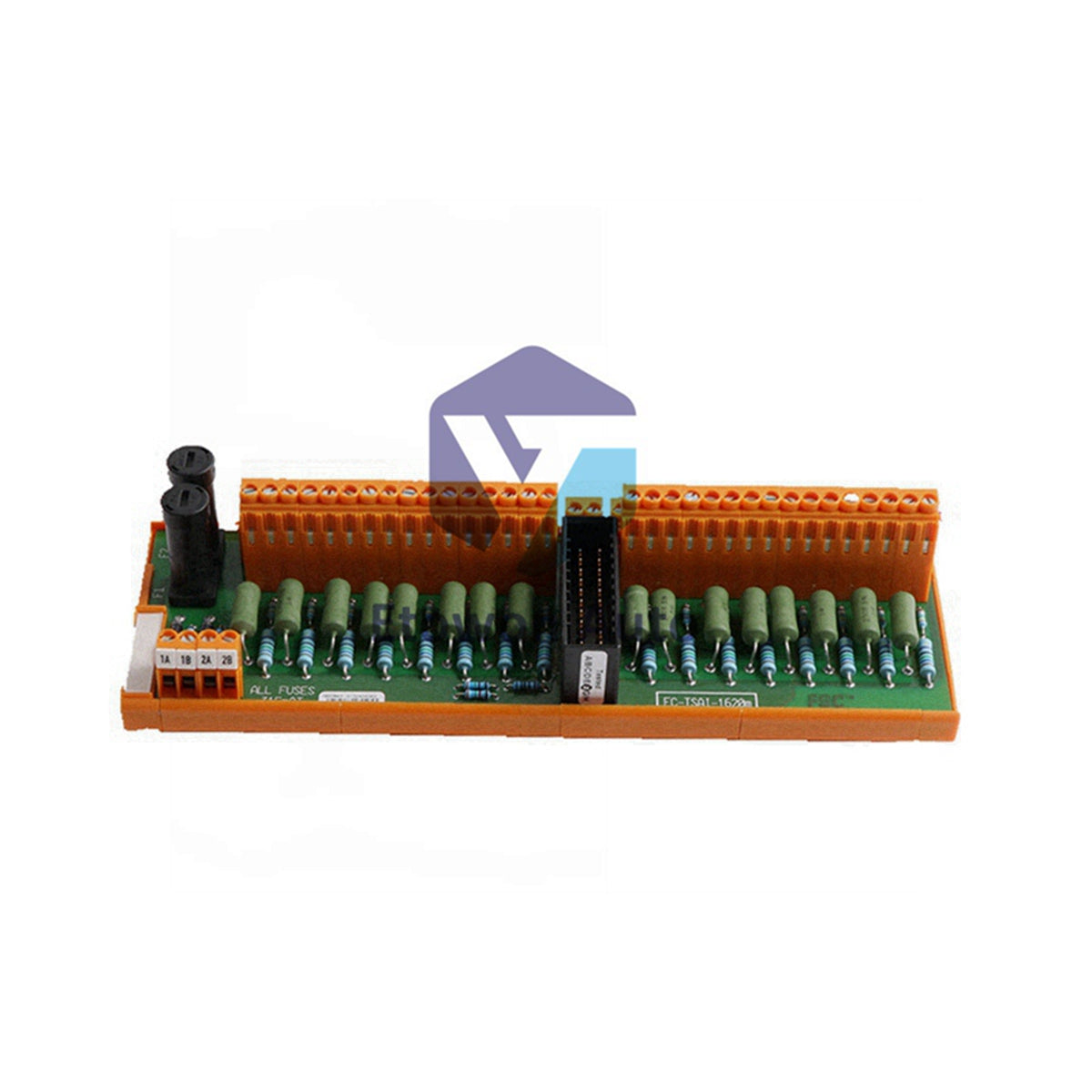

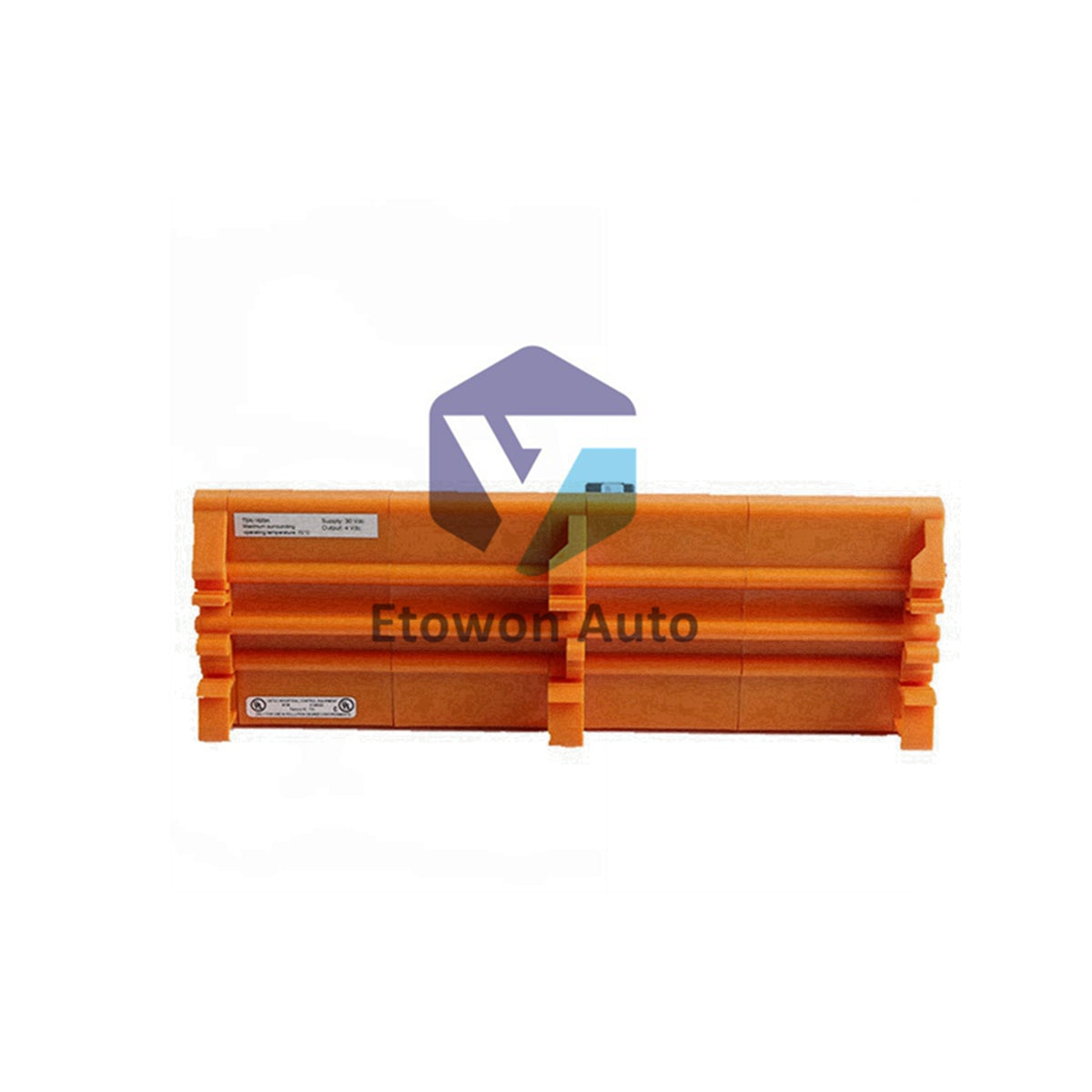

Honeywell FC-TSAI-0410 4-Channel Analog Input Board

Only 3 units left

  • Manufacturer: Honeywell

  • Product No.: FC-TSAI-0410

  • Product Type: Termination Assembly

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1200g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The FC-TSAI-0410 is a high-security Safe Analog Input Field Termination Assembly (FTA) designed for Honeywell Safety Manager systems. It provides a dedicated, reliable interface between external field wiring and system interconnection cables (SICC-0001/Lx). This module safely channels signals from field instruments to a redundant pair of SAI-0410 analog input modules, ensuring continuous uptime and strict signal integrity in critical process control loops.

Core Technical Advantages

  • Flexible Range Selection: Supports 0(4)-20 mA current loops or 0(2)-10 V voltage signals per 4-channel module using a BSAI-04x or BSDIL-0426 board.
  • Fail-Safe Redundancy Support: Connects directly to redundant pairs of SAI-0410 safe input modules to eliminate single points of failure.
  • Ultra-Compact Footprint: Occupies only 61 mm of rail length, maximizing cabinet space efficiency within crowded marshalling panels.

Technical Specifications

Parameter Specification Details
Type Numbers FC-TSAI-0410 / FS-TSAI-0410
Number of Channels 4 Safe Analog Input Channels
Maximum Voltage 50 V DC (IEC 1010, Overvoltage Category 3)
Max Channel Current (Current Mode) 50 mA (for 0/4-20 mA configurations)
Max Channel Voltage (Voltage Mode) 10 V DC (for 0/2-10 V configurations)
Physical Dimensions (L x W x H) 60 × 70 × 58 mm
Mounting Options DIN EN Rails TS32 / TS35 × 7.5 (Required length: 61 mm)
Safety Approvals CE, TUV, UL, CSA, FM

Installation & Maintenance

  • Termination Guidelines: Use field wiring up to 2.5 mm² (AWG 14). Strip insulation back exactly 7 mm to ensure a clean, secure clamp.
  • Torque Requirements: Tighten all terminal screws to exactly 0.5 Nm (0.37 ft-lb) to preserve reliable electrical connection and prevent thread damage.
  • Configuration Verification: Ensure correct range board matching (BSAI-04x or BSDIL-0426) before powering the module to avoid mismatched signal readouts.

Engineering Advantages

  • Robust Standards Compliance: Certified with Overvoltage Category 3 under IEC 1010, protecting downstream processors against strong line transients.
  • Toolless DIN Installation: The built-in universal snap-in mechanism mounts easily on both top-hat and G-profile industrial rails.
  • Clean Terminal Distribution: Dedicated screw clamp blocks simplify incoming transmitter line routing and quick loop diagnostics.

Technical FAQs

Q1: Can I mix 4-20mA inputs and 0-10V inputs on the same FC-TSAI-0410 assembly?
A1: No. Signal range selection applies per module across all 4 channels, configured via the matching BSAI-04x or BSDIL-0426 daughterboard.

Q2: Is this module qualified for functional safety systems?
A2: Yes. The module features complete TÜV, UL, and FM approvals, making it suitable for SIL-rated safety instrumented systems managed by Honeywell Safety Manager.

Q3: What cable matches this module to the controller framework?
A3: This assembly utilizes the standard SICC-0001/Lx system interconnection cable to establish high-integrity paths to the active SAI-0410 input modules.
