IS420YDOAS1B

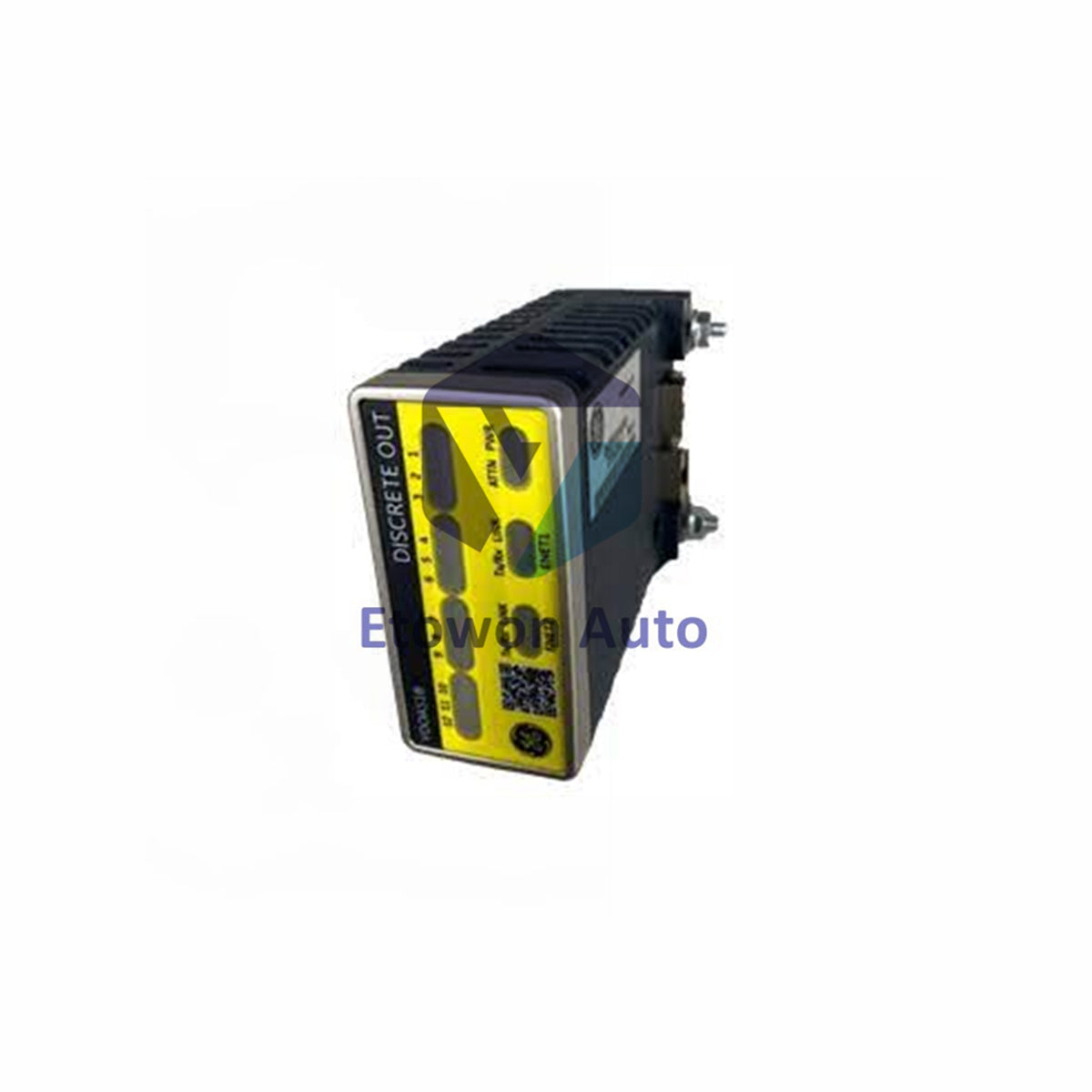

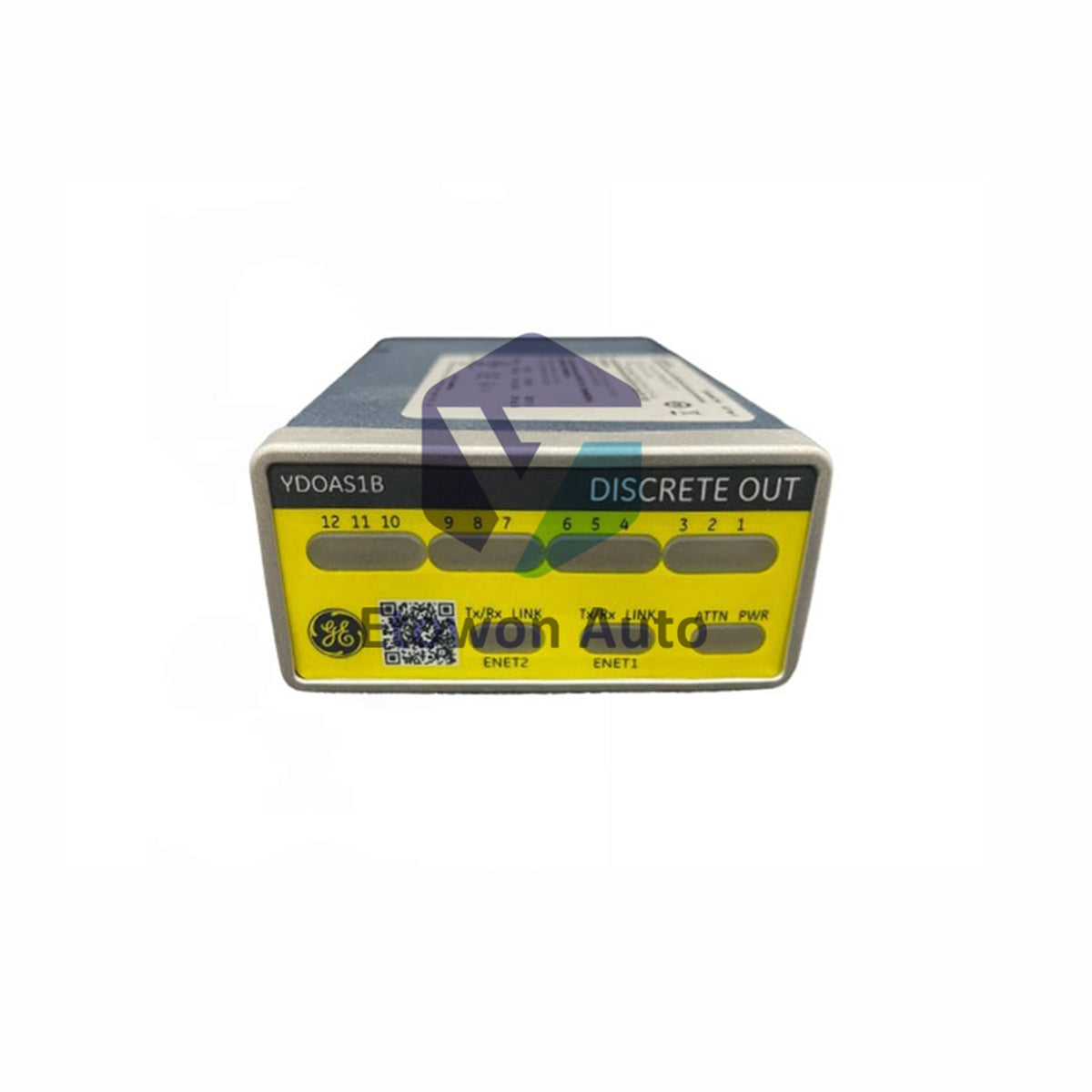

GE Mark VIe YDOA Module | IS420YDOAS1B Output Module

In stock (25 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IS420YDOAS1B

  • Product Type: Discrete Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 340g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

GE Mark VIe Digital Output Module IS420YDOAS1B

The GE IS420YDOAS1B is a digital output module for the Mark VIe control system. It provides reliable 24VDC output switching for critical industrial applications, featuring high isolation and wide temperature operation.

Technical Specifications

  • Brand & Model: GE IS420YDOAS1B (YDOA)
  • System: Mark VIe Turbine/Industrial Control
  • Module Type: Digital Output Module
  • Input Voltage: 24 VDC
  • Output Current: Up to 2 A per channel
  • Isolation Voltage: 1500 V RMS
  • Operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Dimensions (H×W×D): 82.55 × 41.91 × 121.43 mm (3.25" × 1.65" × 4.78")
  • Module Weight: 0.34 kg (0.75 lbs)
  • Connectors:
    • 2x Ethernet RJ45 (I/O Communication)
    • 1x 3-pin (Power Input)
    • 1x DC37-pin (Output to Terminal Board)

Key Features

  • High current capacity: 2A per output channel
  • Extreme temperature range operation (-40°C to 70°C)
  • High 1500V isolation for safety and noise immunity
  • Dual Ethernet ports for integrated I/O communication
  • Compact, rugged design for demanding environments
  • Direct interface to Mark VIe control system

Installation & Integration

  • Designed for installation in Mark VIe control rack
  • Connect 24 VDC power via 3-pin connector
  • Outputs wired through DC37 connector to terminal board
  • Communicates via built-in dual Ethernet ports
  • Configure and monitor through Mark VIe toolset

Shipping Information

  • 1x IS420YDOAS1B output module
  • Approximate shipping weight: 0.6 kg
  • ESD-safe protective packaging
  • Shipped via FedEx, UPS, or DHL

FAQ

  • What is the primary application of this module?
    It is used in GE Mark VIe turbine and industrial control systems to drive relays, solenoid valves, and other 24VDC field devices.
  • What does the "YDOA" abbreviation mean?
    It stands for the module's functional type within the Mark VIe system: a Digital Output module with specific characteristics.
  • Why are there two Ethernet ports?
    They provide a built-in network switch for daisy-chaining communication to other modules, simplifying cabling and improving reliability.
