IS200DSPXH1DBD

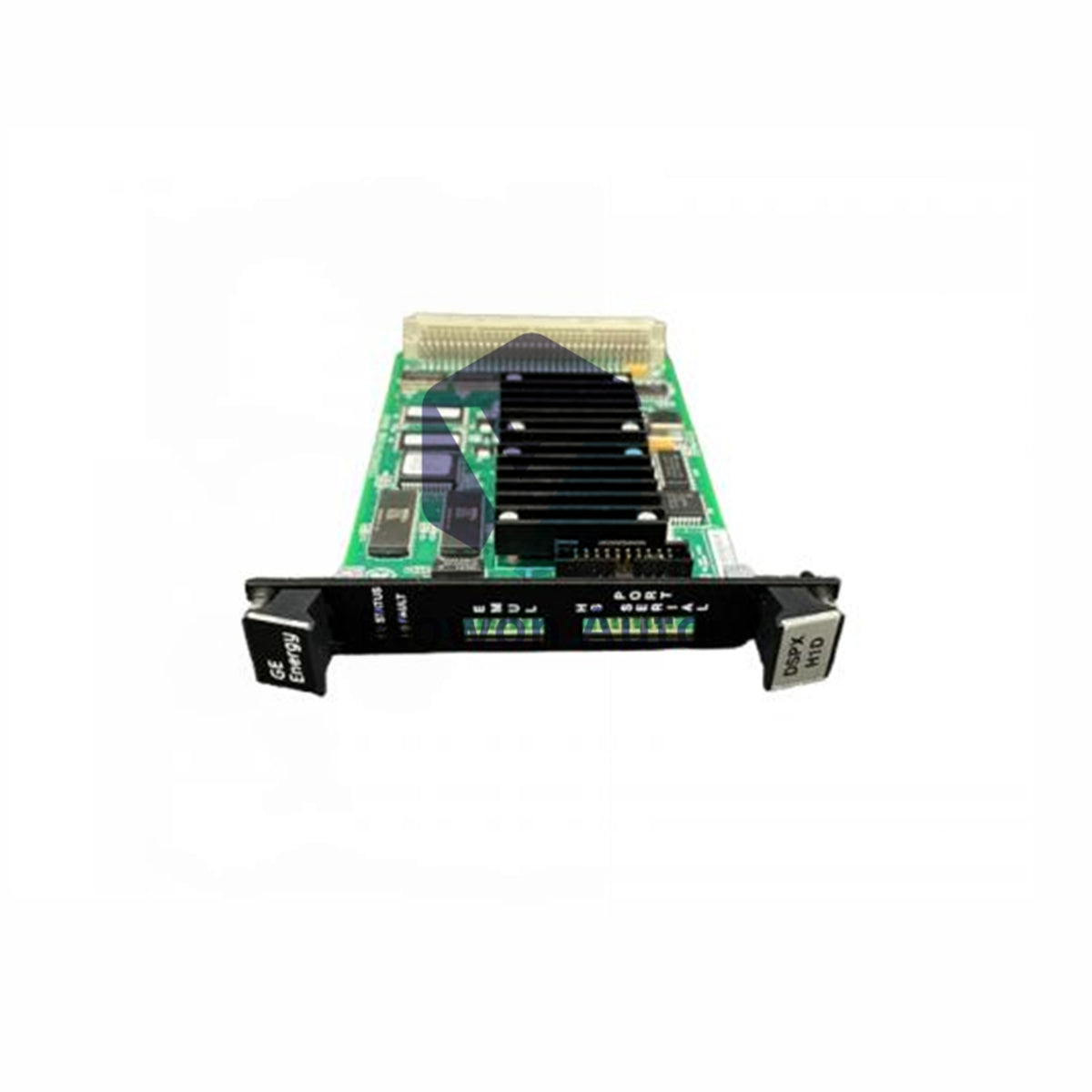

GE IS200DSPXH1DBD Digital Signal Processor Control Board

In stock (13 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IS200DSPXH1DBD

  • Product Type: Control Board

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 450g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

GE Speedtronic Mark VI / EX2100 DSP Control Board (IS200DSPXH1DBD)

The General Electric IS200DSPXH1DBD is a Digital Signal Processor Control Board (DSPX) designed for GE Speedtronic Mark VI turbine control systems, Innovation Series drives, and EX2100 excitation control systems. Operating at a 60 MHz DSP clock speed, this surface-mount PCB manages bridge and motor regulator operations, gating functions, and generator field control. Measuring 33.0 x 17.8 cm (13.0 x 7.0 in) and weighing approximately 0.45 kg (1.0 lb), the board is fitted with a front faceplate carrying status LEDs (DS1 Fault, DS2 Status), front diagnostic ports (P5 Emulator, P6 Engineering Monitor), and a 4-row 128-pin P1 backplane connector.

Key Performance Advantages

Integrates Flash, RAM, NVRAM, and Add-Only memory for robust system logging and parameter execution. Provides four dedicated external interrupts (INT0–INT3) for fast inner-loop and stack handling, conformal coating for environmental protection, and custom FPGA/ASIC logic for high-speed motor and excitation control.

Technical Specifications

Manufacturer & Series General Electric / Mark VI Speedtronic & EX2100 Excitation
Functional Part / Acronym IS200DSPXH1DBD / DSPX Control Board
DSP Clock Speed & Memory 60 MHz Clock / FLASH, RAM, NVRAM & Add-Only Memory
Dimensions & Weight 33.0 x 17.8 cm (13.0 x 7.0 in) / Approx. 0.45 kg (1.0 lb)
Connectors & Interfaces P1 (128-pin Backplane), P5 (DSP Emulator), P6 (Engineering Monitor)
Interrupt Structure 4 External Interrupts (INT0 Stack, INT1 Inner Loop, INT2/3 Configurable)
Operating Temperature -30 °C to +65 °C (-22 °F to 149 °F)
Status Indicators DS1 Fault LED (Red) / DS2 Status LED (Green)

Installation & Handling Guidelines

  • Rack Power & ESD Safety: Always de-energize the drive/excitation rack before inserting or removing the module to prevent electrical shock or hardware damage. Wear a grounded wrist strap when handling the static-sensitive board.
  • Rack Alignment & Slot Insertion: Align the IS200DSPXH1DBD with the designated slot guides in the EX2100 or Mark VI card cage, pressing firmly to ensure the 128-pin P1 DIN connector mates fully with the backplane.
  • Front Port Diagnostics: Connect engineering software tools or emulators to the faceplate P5 and P6 ports for commissioning, firmware updates, and system monitoring. Confirm healthy operation via DS2 (flashing green).

Frequently Asked Questions

Q1: Has EMC filter?
A1: N/A (DSP control card).

Q2: Key feature vs PF523?
A2: 60 MHz DSP & NVRAM memory.

Q3: Drives 3-phase motors?
A3: Controls external drives/exciters.
