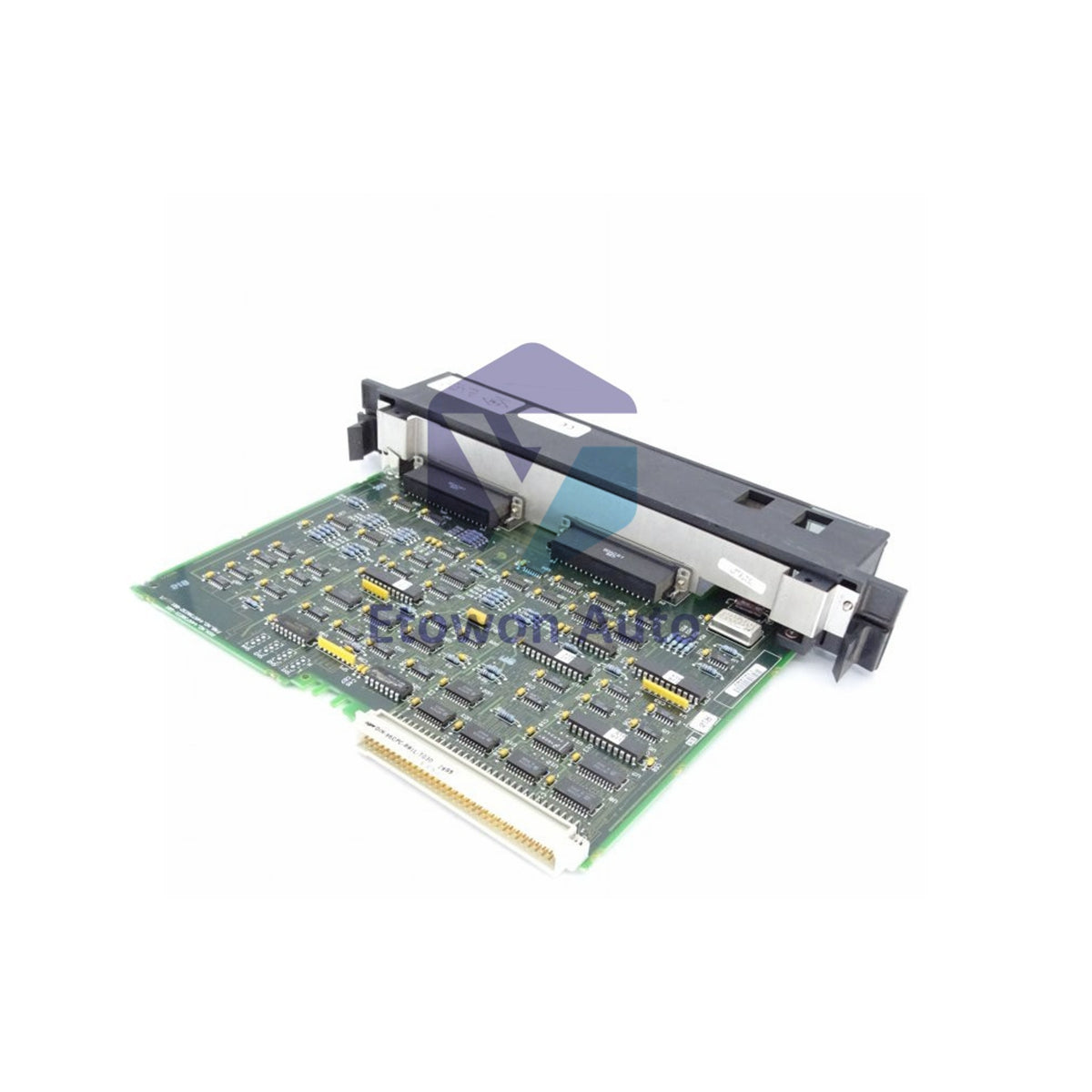

GE IC697BEM742 VME Integrator Rack 1.3A Controller Module

In stock (21 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC697BEM742

  • Product Type: Controller Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1810g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The IC697BEM742 is a single-slot FIP (Factory Instrumentation Protocol) Bus Controller Module engineered by GE Fanuc for the Series 90-70 PLC platform. This advanced interface connects the central IC697 PLC VME integrator rack to FIP or WorldFIP I/O serial bus systems, managing remote Series 90-30 I/O nests and field control modules with deterministic accuracy.

Key Advantages

  • Redundant Bus Topology: Dual 9-pin FIP connectors transmit identical signals concurrently, providing robust, redundant failover safety.
  • Software Configuration: Complete digital setup via MS-DOS or Windows-based programming tools removes the need for manual jumpers or hardware DIP switches.
  • Advanced Communications: Delivers high-level TCP/IP stack mapping and generic asynchronous messaging capabilities alongside regular cyclic I/O sweeps.

Technical Specifications

Model / Part Number IC697BEM742
System Series Series 90-70 PLC Architecture
Network Protocol FIP / WorldFIP I/O Serial Bus
Data Speed Rate 1 Megabit per second (1 Mbps)
Onboard Memory 2 MB RAM and high-speed Flash memory
Operating Voltage 5.0 Volts DC
Backplane Current Draw 1.3 Amps maximum
Interface Connectors Dual 9-Pin FIP Bus Connectors | Single 15-Pin Serial Port
HMI & Diagnostics 6 Status LED Indicators + 1 Front Panel Push-button
Module Net Weight 4.0 Pounds (approx. 1.81 kg)

Quick Installation Tips

  • Verify your IC697 PLC VME rack power supply can source the required 1.3 Amps load over the 5V DC backplane link.
  • Utilize the 15-pin serial port exclusively to attach a workstation or personal computer when executing firmware upgrades.
  • Ensure field network nodes are fully mapped within the MS-DOS or Windows utility software; the module does not utilize mechanical switches.

Technical FAQs

Q1: How does this module manage field tracking updates with the main CPU?

A1: The module scans I/O devices asynchronously along the FIP bus, buffering the input data, alarms, and faults to transmit them to the central CPU once per controller scan cycle.

Q2: What is the purpose of the manual push-button located on the front panel?

A2: Situated right beneath the 6 LED diagnostics line, the hardware push-button facilitates localized module testing, status cycling, and hardware fault resets.

Q3: Can the dual 9-pin ports be run on entirely separate distinct subnets?

A3: No. The internal signals routed to both 9-pin ports are fully identical, engineered strictly to support dual-cable media redundancy for mission-critical networks.
