GE IC670MDL240 AC Input Module 0-132V Range Genius I/O

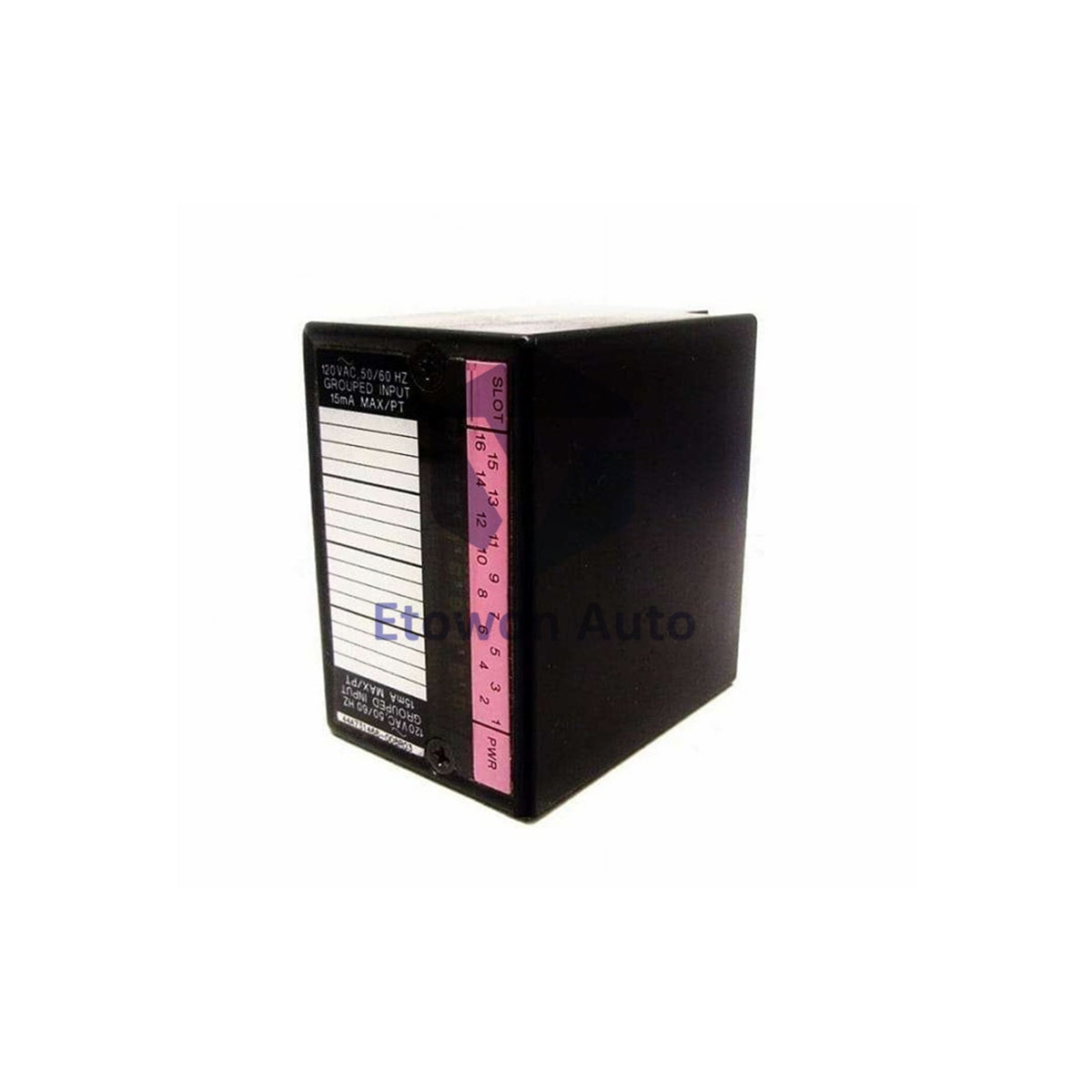

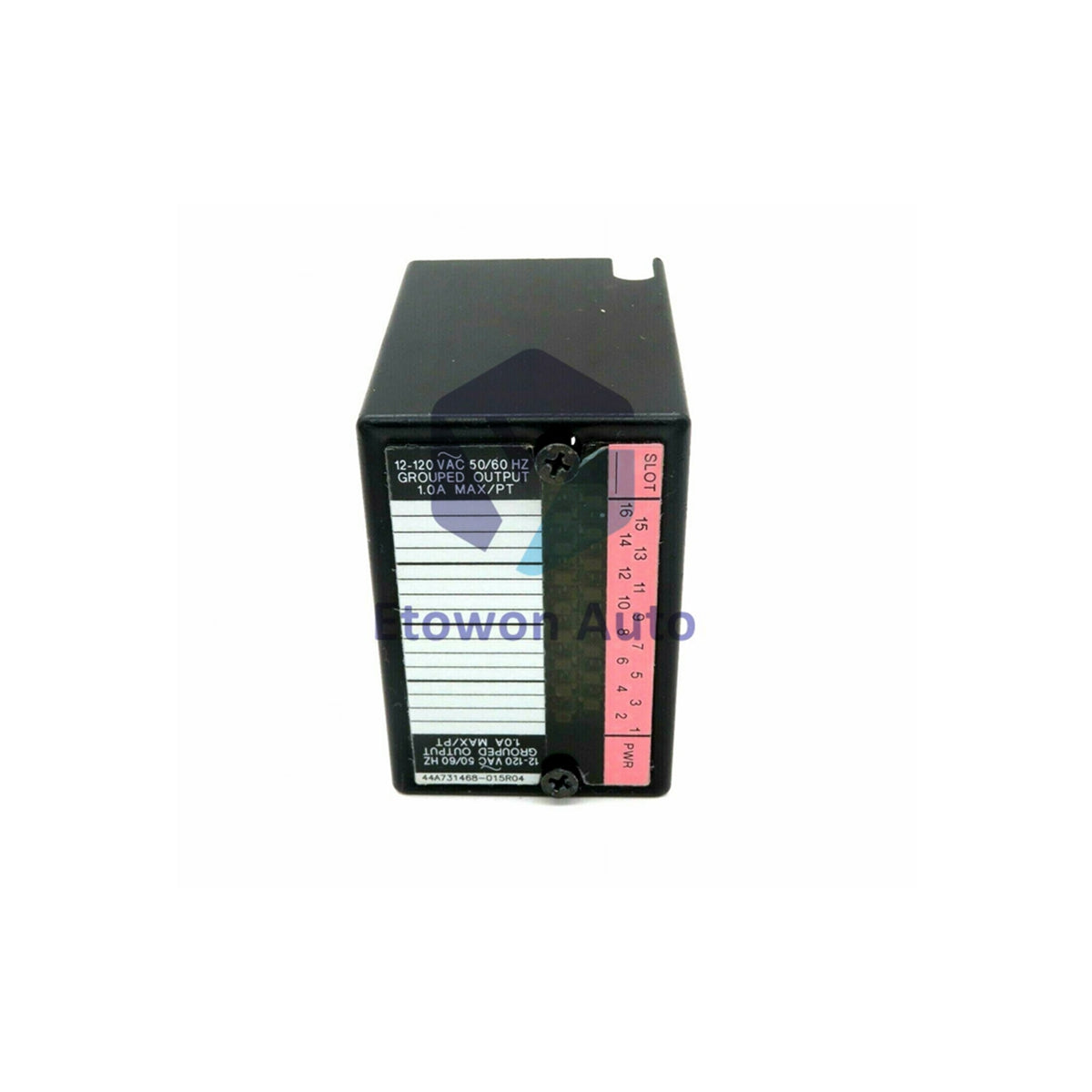

GE Fanuc IC670MDL240 16-Point AC Input Module

The GE Fanuc IC670MDL240 is a 16-point AC input module. It is designed for the Genius Series I/O system. This module handles standard 120V AC control signals. Its compact and lightweight design simplifies installation and integration.

Technical Specifications

• Brand GE Fanuc
• Model IC670MDL240
• Product Weight 0.5 kg (1.1 lbs)
• Input Range 0–132 VAC
• Frequency 47–63 Hz
• Nominal Voltage 115–120 VAC
• Current per Point 15 mA
• On Voltage 70–132 VAC
• Off Voltage 0–20 VAC
• On Current 5–15 mA
• Off Current 0–2.5 mA
• ON Response Time 12 ms typical, 20 ms max
• OFF Response Time 25 ms typical, 40 ms max
• BIU Power Draw 77 mA max
• External Power 120 VAC required
• Isolation Rating 1500 VAC for 1 minute
• Continuous Isolation 250 VAC

Key Features

• Lightweight Design Weighs only 0.5 kg for easy handling
• 16 AC Inputs For standard 120V industrial control signals
• Fast Response 12ms typical ON time for quick system feedback
• High Voltage Isolation 1500V protection ensures system safety
• External Power Supply Requires separate 120V AC field power
• Genius I/O Compatible Seamless integration with GE Fanuc systems

Installation Guide

• Install the IC670MDL240 in a Genius I/O rack
• Provide an external 120 VAC power source for field inputs
• Connect field devices to the 16 input terminals
• Ensure proper grounding and wiring practices
• Verify communication with the Bus Interface Unit (BIU)

Packaging & Shipping

• One IC670MDL240 input module
• Mounting hardware and connectors
• Installation guide and technical datasheet
• Module weight: 0.5 kg (packaged weight approximately 1.0 kg)
• Shipped via FedEx, UPS, or DHL worldwide

Frequently Asked Questions

What is the weight of the IC670MDL240 module?

The IC670MDL240 module weighs 0.5 kg (1.1 lbs). This lightweight design makes installation and handling convenient.

What voltage range does this module support?

It supports an input range of 0–132 VAC with a nominal voltage of 115–120 VAC for standard operation.

What is the response time for signal detection?

The module has a typical ON response time of 12 ms and OFF response time of 25 ms, ensuring prompt system feedback.
