GE Fanuc IC697BEM761 Bus Controller Expansion Module

Product Overview

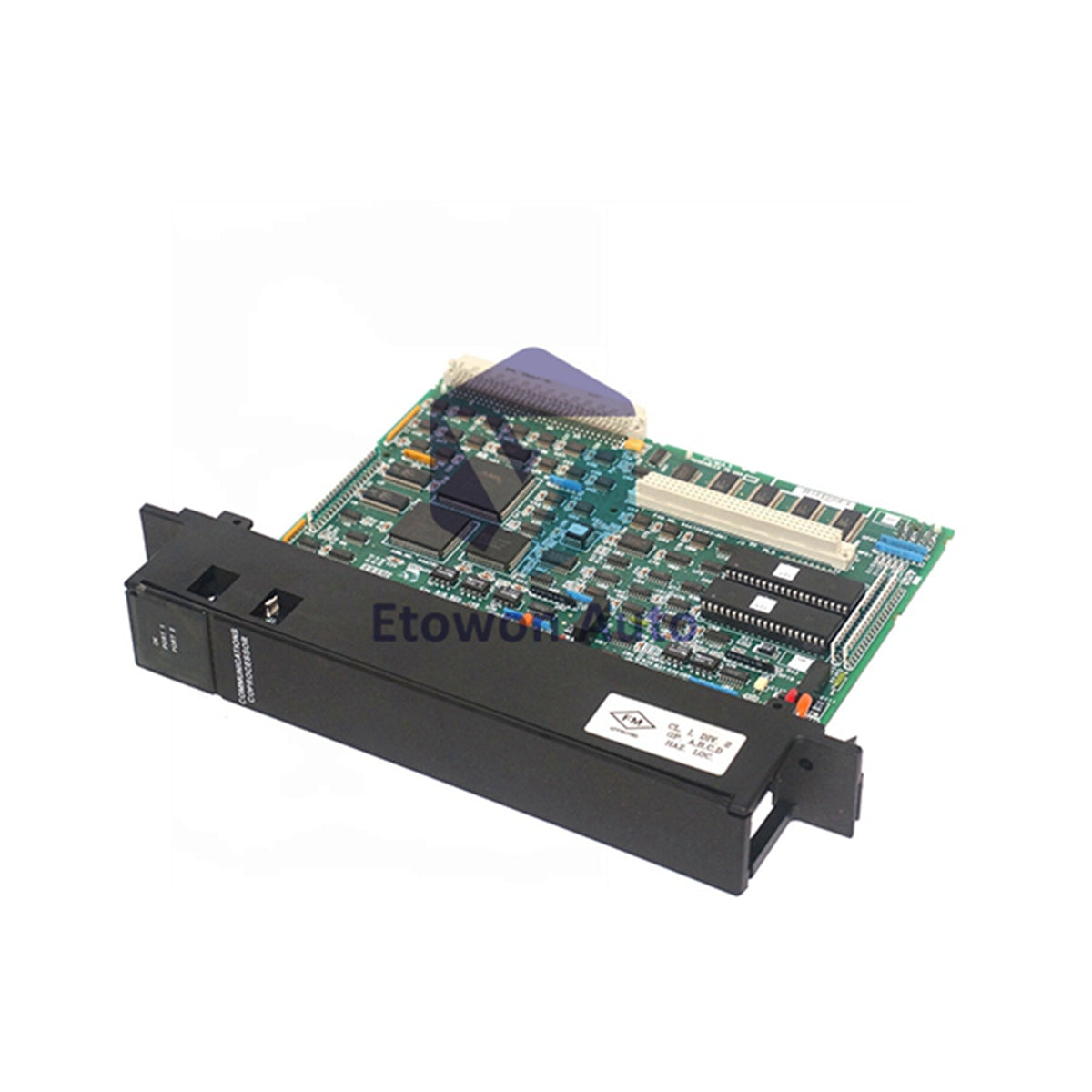

The IC697BEM761 is an authentic, industrial-grade Bus Expansion Module (often designated as a Remote/Expansion Rack Receiver) manufactured by GE Fanuc for the legacy Series 90-70 PLC automation platform. This module is engineered to extend the local CPU's chassis backplane across multiple physical racks, facilitating high-speed, distributed I/O control without communication lag. Outfitted with dual 37-pin D-shell sub-ports, it enables seamless upstream and downstream daisy-chaining across expanded panel layouts. With a robust chassis body weighing approximately 1.5 lbs (approx. 0.68 kg), the IC697BEM761 provides a hardware-level connection that treats remote inputs and outputs as local memory bits inside the master CPU controller.

Core Technical Advantages

• High-Density System Scalability: Empowers industrial networks to scale up to 8 physical expansion racks per direction. At a maximum allocation of 256 points per rack, this yields a total capacity of up to 2,048 discrete I/O points managed smoothly through a single interface node.
• Built-In Signal Integrity Features: Incorporates factory-installed, integrated backplane termination resistors. This eliminates the need for external dangling resistors and prevents high-frequency data reflection or signal attenuation across extended parallel cables.
• Instantaneous Localized Diagnostics: Features a dedicated three-LED front display array (RACK, MODULE, I/O CHAIN) that isolates physical layer issues in real time, allowing technicians to distinguish between card hardware failures and cable breaks instantly.

Technical Specifications

Installation & Multi-Rack Wiring Guide

• Chassis Slot Allocation: The IC697BEM761 module must be installed in the designated expansion slot of a Series 90-70 expansion rack. Always switch off all system power supplies before seating or unseating the module from the backplane connectors.
• Daisy-Chaining Configuration: Connect the high-speed expansion cable originating from the master transmitter rack (IC697BEM713 or equivalent) to the upstream 37-pin port. If wiring additional racks further down the chain, connect a subsequent expansion cable from the downstream 37-pin port to the next remote node.
• Setting Rack Reference Points: Ensure that internal jumper links or software configuration tools match the specific rack size choice (128 vs 256 bits). Overlapping address spaces will result in a bus configuration conflict, triggering the front-panel error LEDs.

Engineering Protection & Diagnostic Matrix

• RACK Fault Status Indicator: When lit, this red indicator alerts maintenance teams to a critical, hardware-level fault detected within that specific expansion chassis frame (such as power supply sag or slot failures).
• MODULE Internal Check Indicator: A solid red light indicates that the module's onboard micro-controller has failed its self-test routine or encountered a fatal logic error, requiring a hardware swap.
• I/O CHAIN Communications Indicator: Flashes or turns solid during downstream communication timeouts, broken 37-pin cable lines, or un-terminated endpoints along the multi-rack link.

Technical FAQs

Q1: What does the "761" suffix indicate compared to older version extensions?
A1: The "761" suffix denotes a specific hardware and firmware revision that features enhanced on-board diagnostic routines, broader multi-rack stability profiles, and optimized timing logic designed to match high-speed VME processing cycles.

Q2: Is a dedicated external power supply required to run the IC697BEM761?
A2: No. The expansion module draws its required 1.3 Amp operating current directly from the Series 90-70 chassis backplane 5V DC rail. Ensure that the rack's power supply module (e.g., IC697PWR711 or equivalent) has sufficient headroom to accommodate this load alongside your standard I/O cards.

Q3: Can I unplug the 37-pin expansion cables while the PLC system is actively executing code?
A3: Absolutely not. Disconnecting an active parallel expansion bus cable disrupts backplane communication and can cause inductive voltage spikes. This will immediately trigger a fatal CPU fault, stop the PLC, and may damage the sensitive line driver circuits inside the module ports.
