IC695FTB001

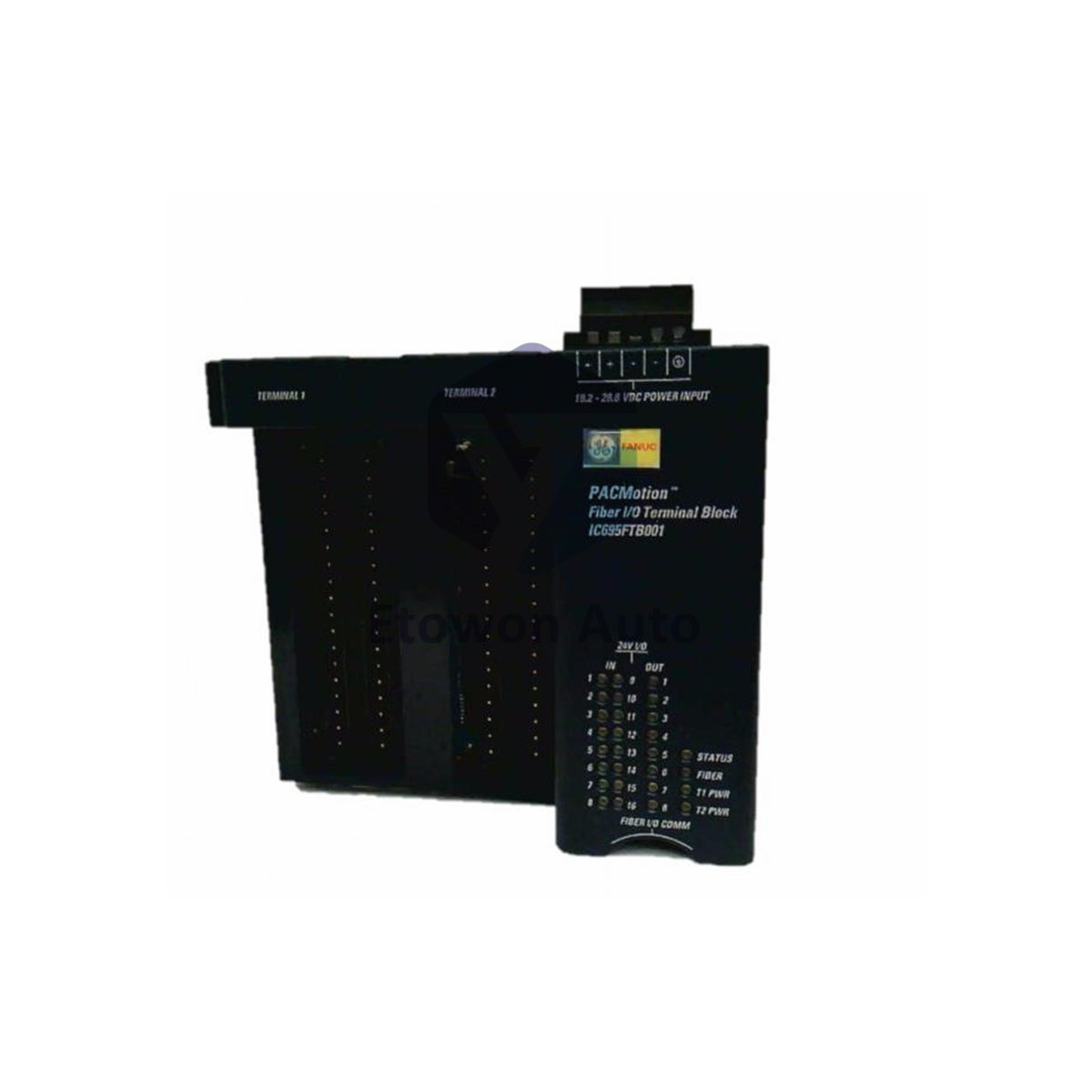

GE Fanuc IC695FTB001 PACMotion RX3i Fiber I/O Terminal Block

In stock (12 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC695FTB001

  • Product Type: Terminal Block

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 790g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Technical Specifications

Model / Type IC695FTB001
Brand / System GE Fanuc / PACMotion RX3i (Series 90-30 style)
Product Type Active Fiber I/O Terminal Block / Motion Interface
Input Voltage Range 19.2 to 28.8 V DC (0.45 A @ 24 V)
Auxiliary Power Output 5 V DC (0.5 A maximum)
Digital Inputs 16 x 24 V Gen-Purpose, 8 x 5 V Inputs
Digital Outputs 8 x 24 V Outputs
Differential I/O 4 x 5 V Differential Inputs/Outputs
Analog I/O Channels 2 x Analog In (±10 V Diff), 2 x Analog Out (±10 V Single-Ended)
Module Interface Port Fiber Optic Cable (Supports up to 100 meters)
Integrated Protection Electronic Overload Protection & Quad Encoder Open-Circuit Detection
Dimensions (W x H x D) 141.2 × 125.5 × 62.5 mm (5.56 × 4.94 × 2.46 inches)
Net Product Weight 0.79 kg (Approx. 1.74 lbs)
Mounting Setup 35 mm DIN Rail (Vertical placement required)

Product Overview

The GE Fanuc IC695FTB001 is an active fiber optic I/O terminal block designed exclusively to expand the distributed motion control capabilities of PACMotion RX3i systems. Weighing approximately 0.79 kg, this compact module operates on a wide 19.2 to 28.8 V DC input range, bridging specialized field instrumentation directly with central processors to deliver seamless data synchronization over high-noise industrial environments.

Core Technical Advantages

  • High-Density Motion Interface: Combines discrete, analog, and 5 V differential channels to support complex hardware accessories including touch probes, home switches, and over-travel limit points.
  • Immune Fiber Optic Media: Uses a dedicated fiber optic bus to establish rock-solid controller handshakes across long production spaces reaching lengths up to 100 meters.
  • Smart System Protection: Integrates automatic electronic overload protection alongside hardware-level quad encoder open-circuit diagnostics to safeguard connected sensors.
  • Streamlined Field Maintenance: This 0.79 kg unit features removable terminal block headers, letting engineers hot-swap physical wiring assemblies swiftly during module replacements.

Installation Guide

Snap the 0.79 kg module securely onto a standard 35 mm DIN rail. To protect internal logic circuits from overheating, always mount the 141.2 × 125.5 × 62.5 mm chassis in a vertical position to facilitate natural convection. Terminate the nominal 24 V DC supply source into the power inputs, and keep your fiber optic link route under the maximum 100-meter operating threshold.

Technical FAQs

Q1: What motion-specific sensor functions can be linked directly to this block?
A1: The physical input arrays are engineered to directly process diagnostic markers, high-speed touch probes, home position switches, and over-travel safety limits.

Q2: What is the maximum distance supported for fiber optic cable runs?
A2: The module maintains full communication integrity and sub-millisecond data refresh rates across fiber links up to a maximum length of 100 meters.

Q3: Why must the IC695FTB001 be mounted strictly in a vertical orientation?
A3: Vertical mounting is an environmental constraint required to enable optimal thermal dissipation, ensuring the 0.79 kg component stays safe from overheating during heavy steady-state power operations.
